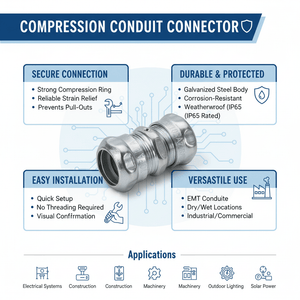

1-1/2" EMT Compression Coupling — Raintight, Zinc-Plated Steel
Heavy-duty EMT compression coupling (1-1/2" trade size) engineered for fast, secure, and leak-resistant joins between two runs of electrical metallic tubing. The zinc-plated steel body delivers excellent thread integrity and corrosion resistance for indoor or outdoor installations, with a compression design that holds tight without threading the conduit.
Key Features
- Raintight Performance: Compression seal helps keep moisture out when properly installed in wet locations.
- Rugged Build: Zinc-plated steel body resists corrosion and jobsite abuse.
- Clean, Thread-Free Join: No pipe threading required—just slide, tighten, and go.
- Installer-Friendly: Smooth lead-in chamfers for easier conduit starts and consistent make-up.
- Code-Ready: Designed for use with EMT raceways in commercial, industrial, and residential work.
Common Uses
- Joining two sections of 1-1/2" EMT in long straight pulls
- Extending existing EMT runs during remodels or service changes
- Outdoor runs where a raintight compression seal is preferred
Technical Specifications
| Conduit Type | EMT (Electrical Metallic Tubing) |
|---|---|
| Trade Size | 1-1/2" |
| Connection | Compression x Compression |
| Material | Steel, zinc-plated |
| Finish | Electro-galvanized (zinc) |
| Environment | Dry, damp, and wet locations (when properly installed) |
| Applications | Commercial, industrial, residential |
| Brand | Conversions Tech |
| SKU | CT-EMT-CC-1.5 |
What’s in the Box
- (1) 1-1/2" EMT Compression Coupling
Documentation
Related Categories
FAQs
What’s the difference between compression and set-screw for EMT?
Compression fittings use a ferrule and gland to create a tight, raintight seal—great for outdoor and wet locations. Set-screw fittings use screws to bite into the conduit wall—ideal for dry interior spaces and faster rough-in work.
Is this coupling rated for wet locations?
Yes—when properly installed and tightened, compression couplings provide a raintight connection suitable for wet locations. Always follow local code and the installation guide.
Can I use this with rigid or IMC conduit?
No. This coupling is designed specifically for EMT. Use fittings listed for rigid or IMC when working with those raceways.
Any tips for faster installation?
- Square-cut and deburr conduit ends for smooth insertion.
- Seat the conduit fully, then tighten to the recommended torque.
- Wipe moisture/debris from mating surfaces before make-up.
