NEMA Steel Enclosure, 24 x 20 x 9\'\' NEMA 4X Fiberglass Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical
Shipping calculated at checkout
SKU: 240914461:-101#24 x 20 x 9 inch
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Electrical Enclosure Box — IP66 Fiberglass Reinforced Polyester
The VEVOR D0100HAD4DA electrical enclosure box is engineered for reliable indoor and outdoor circuit protection. Constructed from fiberglass reinforced polyester (SMC), this enclosure delivers superior toughness, impact resistance, and corrosion resistance compared to metal enclosures. Designed with IP66 waterproofing, NEMA 3/3X compliance, reinforced lock and hinges, and a removable galvanized backplate, this box ensures long-term safety in demanding environments such as factories, construction sites, hotels, and residential applications.
Key Features

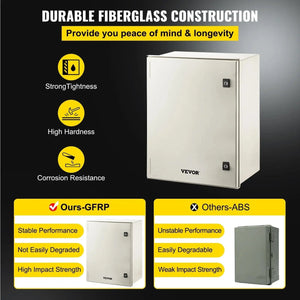

- Heavy-Duty Fiberglass Construction: High strength SMC material resists deformation, corrosion, and dents.

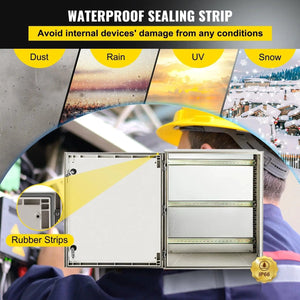

- IP66 Waterproof & Dustproof: Protects internal components from water, moisture, dust, oil, snow, and harsh conditions.
- NEMA Rated: Meets NEMA Type 3 and 3X standards for outdoor and industrial safety.

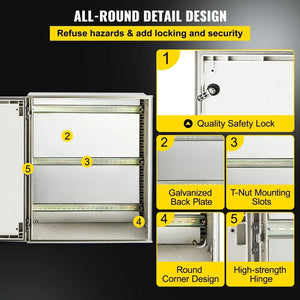

- Lock & Hinge Security: Reinforced hinges and precision lock core prevent tampering and ensure operational durability.

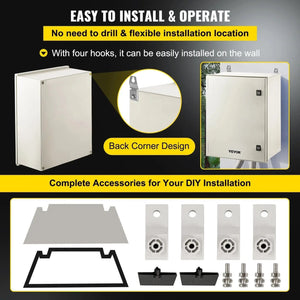

- Easy Wall Mounting: Four pre-drilled wall mount holes, plus guide rails and hanging accessories included.
- Galvanized Back Plate: High-strength, oxidation-resistant removable backplate for easy installation of terminals and PCBs.
- Thoughtful Design: T-nut slots for DIN rail mounting, rounded interior edges to protect cables, pre-installed ground wire.

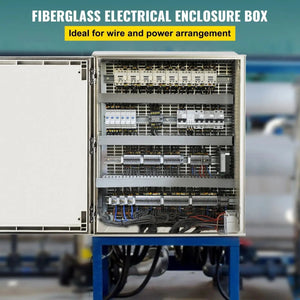

- Wide Application: Industrial automation, power distribution, commercial buildings, residential courtyards, and utility installations.
Technical Specifications
| Brand | VEVOR |
|---|---|
| Model Number | D0100HAD4DA (Default: D0102HQ4M5U) |
| Material | SMC — Fiberglass Reinforced Polyester |
| Coating | Natural SMC surface, oxidation resistant |
| Mounting Type | Wall-Mount (4-point) |
| Mounting Plate | Galvanized removable backplate, high-strength anti-oxidation |
| Outer Dimensions (H×W×D) | 23.6" × 19.7" × 9.1" (60 × 50 × 23 cm) |
| Inner Dimensions (H×W×D) | 22.6" × 19.1" × 8.7" (57.5 × 48.5 × 22 cm) |
| Net Weight | 25.57 lbs / 11.6 kg |
| IP Rating | IP66 • Dustproof and waterproof |
| NEMA Rating | NEMA Type 3, 3X |
| Connection Type | Hinged, lockable |
| Color | Gray White (RAL7035) |
| Certification | CE, RoHS |
| Features | Lockable, Waterproof, Weatherproof, Corrosion Resistant |
Package Contents
- 1 × Electrical Enclosure Box
- 2 × Keys
- 1 × Galvanized Back Plate
- 3 × Guide Rails
- 1 × Set of Hanging Accessories
Applications
- Industrial control systems, automation, and distribution.
- Outdoor power protection in construction sites and utilities.
- Commercial building circuit and junction housing.
- Residential areas, courtyards, and hotel installations.
FAQs
Q: What materials is the enclosure made of?
A: Fiberglass reinforced polyester (SMC), offering superior corrosion resistance compared to carbon steel.
Q: What protection standards does it meet?
A: IP66 rating for dust and water ingress protection, and NEMA Type 3/3X compliance.
Q: Is the backplate included?
A: Yes, a galvanized high-strength backplate is included and removable for easy mounting.
Q: How is it installed?
A: Includes four wall mounting points, guide rails, and hanging accessories for simple installation.
Q: What certifications are provided?
A: CE and RoHS certifications for compliance and safety.
