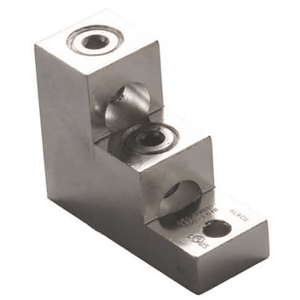

Aluminum Panel Board Connector | 2 Barrel | 1 Hole Mount | Electro-Tin Plated
Shipping calculated at checkout
SKU: CT-ALUM-PANE-BOAR-CONN-2-BARR-1-HOLE-1
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Are you looking for a reliable, durable, and high-quality panel board connector for your electrical grounding needs? Look no further than our Aluminum Panel Board Connector.
Designed and manufactured with precision, this connector is made from high-quality aluminum material, ensuring that it will last for years to come. The two barrels provide a secure and stable connection, while the mounting hole ensures that the connector can be easily installed and secured.
Our Aluminum Panel Board Connector is an ideal choice for anyone looking for a cost-effective and reliable grounding solution. It is suitable for use in a wide range of applications, including industrial, commercial, and residential projects.
- Made from high-quality and high strength aluminum alloy
- Includes 1 mounting hole for easy installation
- Cost-effective and reliable grounding solution
- Electro-Tin plated for low contact resistance and protection against corrosion when used with copper wire
- Rated 600 volts / 90°C
- Dual rated for copper and aluminum conductors
inches, the dimensions are:
|
Variant
|
Max
|
Min
|
Stud Size
|
L
|
W
|
H
|
F
|
|
350 MCM | 5/16 Stud
|
350 MCM
|
6 STR
|
5/16
|
2.99
|
1.00
|
2.01
|
0.31
|
|
350 MCM | 3/8 Stud
|
350 MCM
|
6 STR
|
3/8
|
2.99
|
1.00
|
2.01
|
0.31
|
|
350 MCM | 3/8 Stud
Large
|
350 MCM
|
6 STR
|
3/8
|
3.60
|
1.97
|
2.01
|
0.31
|
|
600 MCM | 3/8 Stud
|
600 MCM
|
2 STR
|
3/8
|
3.86
|
1.50
|
2.99
|
0.76
|
|
600 MCM | 1/2 Stud
|
600 MCM
|
2 STR
|
1/2
|
3.86
|
1.50
|
2.99
|
0.76
|
|
750 MCM | 3/8 Stud
|
750 MCM
|
1/0 STR
|
3/8
|
3.86
|
1.50
|
2.99
|
0.76
|
