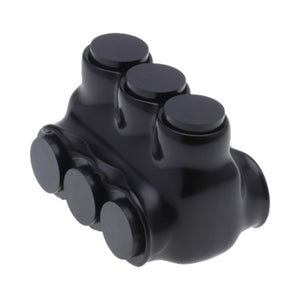

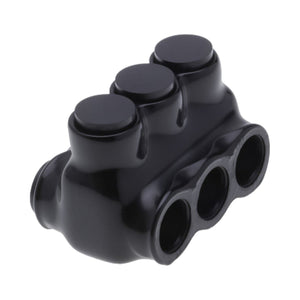

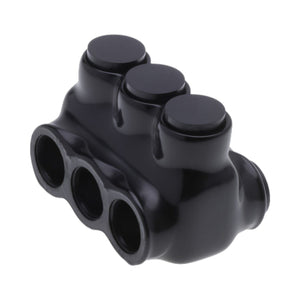

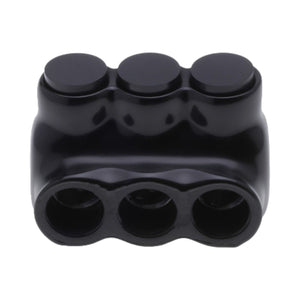

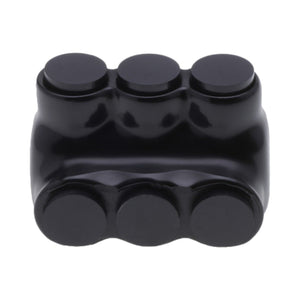

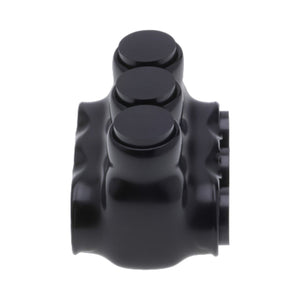

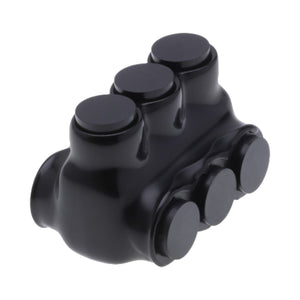

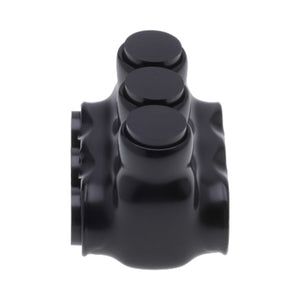

Insulated Tap Connectors 3 port dual-side Entry 1/0 AWG - 14 AWG
Shipping calculated at checkout
SKU: 610-1003114
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors 2 | Dual-Sided Entry | 1/0 AWG–14 AWG | UV-Resistant Plastisol | Conversions Tech
Conversions Tech Insulated Tap Connectors 2 are a high-performance line of pre-insulated electrical connectors designed for forming secure, low-resistance connections between multiple conductors. These connectors combine precision engineering and rugged construction to deliver exceptional reliability and ease of use across residential, commercial, and industrial applications. Featuring dual-sided wire entry and a UV-resistant plastisol coating, they ensure long-term durability and NEC 230.46 compliance for line-side connections in service equipment.
Key Advantages
- Secure Connections: Adjustable set screws and a rounded body design create high-pressure connections that ensure long-lasting conductivity with minimal resistance.
- Dual-Sided Wire Entry: Dual opposing entry ports allow for flexible conductor placement, supporting wire sizes from 1/0 AWG to 14 AWG.
- NEC 230.46 Compliance: Fully compliant with National Electrical Code Article 230.46, approved for line-side service connections.
- Ergonomic Design: Rounded body with a smooth plastisol finish provides comfort and efficiency during installation.
- Removable Plugs: Each port and screw includes removable plugs to protect against moisture, debris, and contaminants.
- Pre-Filled Oxide Inhibitor: Entry ports are pre-filled with corrosion-inhibiting oxide gel for long-term low-resistance connections.
- Professional-Grade Performance: UV, chemical, and abrasion-resistant plastisol insulation ensures durability in all weather and industrial conditions.
Key Technical Specifications
| Wire Gauge Range | 1/0 AWG – 14 AWG |
| Connection Type | Set Screw |
| Insulation Material | UV-Resistant Plastisol |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Finish | Plastisol Insulated (UV Resistant) |
| Color | Black |
| Certifications | cULus Listed, NEC 230.46 Compliant |
| UL Standard | UL 486A/B |
| UL File No. | E186991 |
| Wire Cable Class | Class B, Class C |
| Temperature Rating | 90°C, AL9CU |
| Environmental Temperature | Cold Temperature Rated to -45°C |
| Conductor Max Amps (Al/Cu) | Aluminum: 100 A / Copper: 130 A |
| Conductor Type | Copper or Aluminum |
| Conductor Count | 3 |
| UPC | 810166615495 |
| Origin | United States |
Bolt and Screw Sizes
| Wire Binding Screws per Port | 1 |
| Wire Binding Screw Size | 3/8 |
| Wire Binding Torque (10–14 AWG) | 35 in-lbs |
| Wire Binding Torque (8 AWG) | 40 in-lbs |
| Wire Binding Torque (4–6 AWG) | 45 in-lbs |
| Wire Binding Torque (2/0–3 AWG) | 50 in-lbs |
Dimensions
| Height | 1.627 in |
| Height (Box) | 2.75 in |
| Length | 2.248 in |
| Width | 1.825 in |
| Width (Box) | 6 in |
| Weight | 0.214 lb |
| Weight (Box) | 2.8149 lb |
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment systems
- Power distribution and grounding networks
- HVAC and energy systems
- Automotive and marine electrical applications
- Utility infrastructure and renewable power systems
