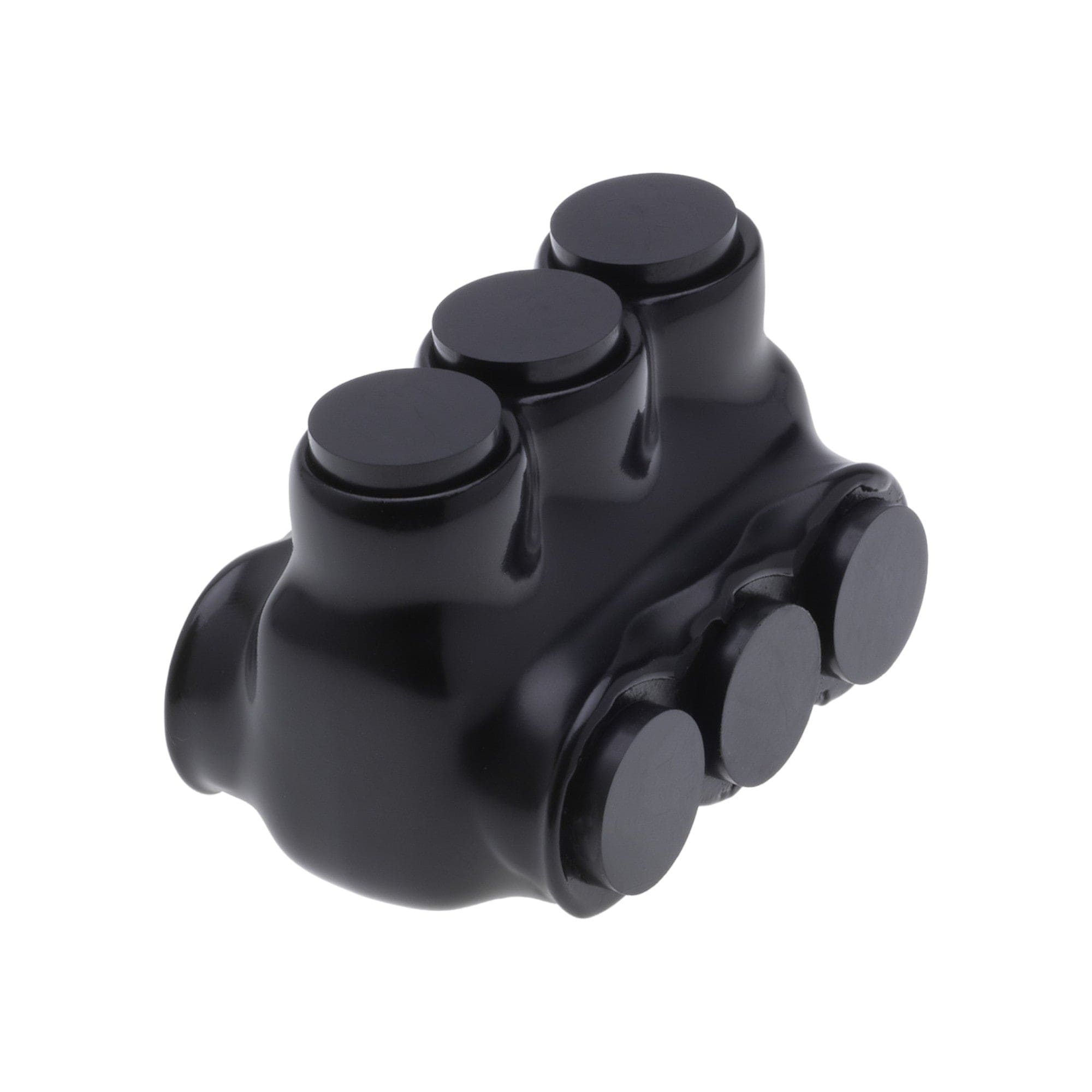

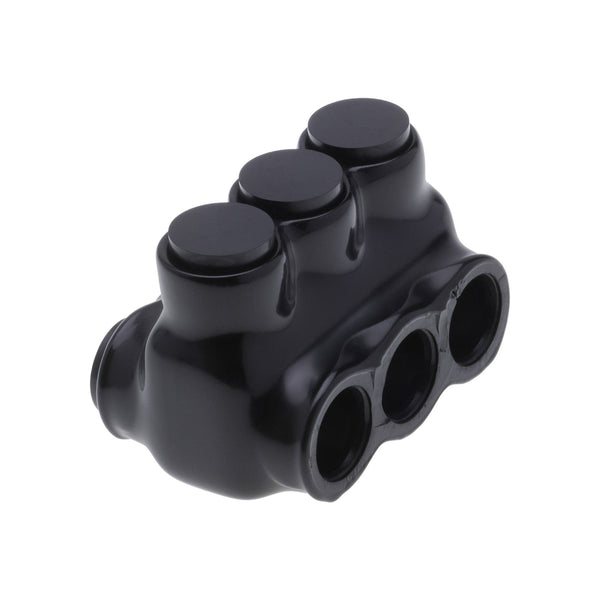

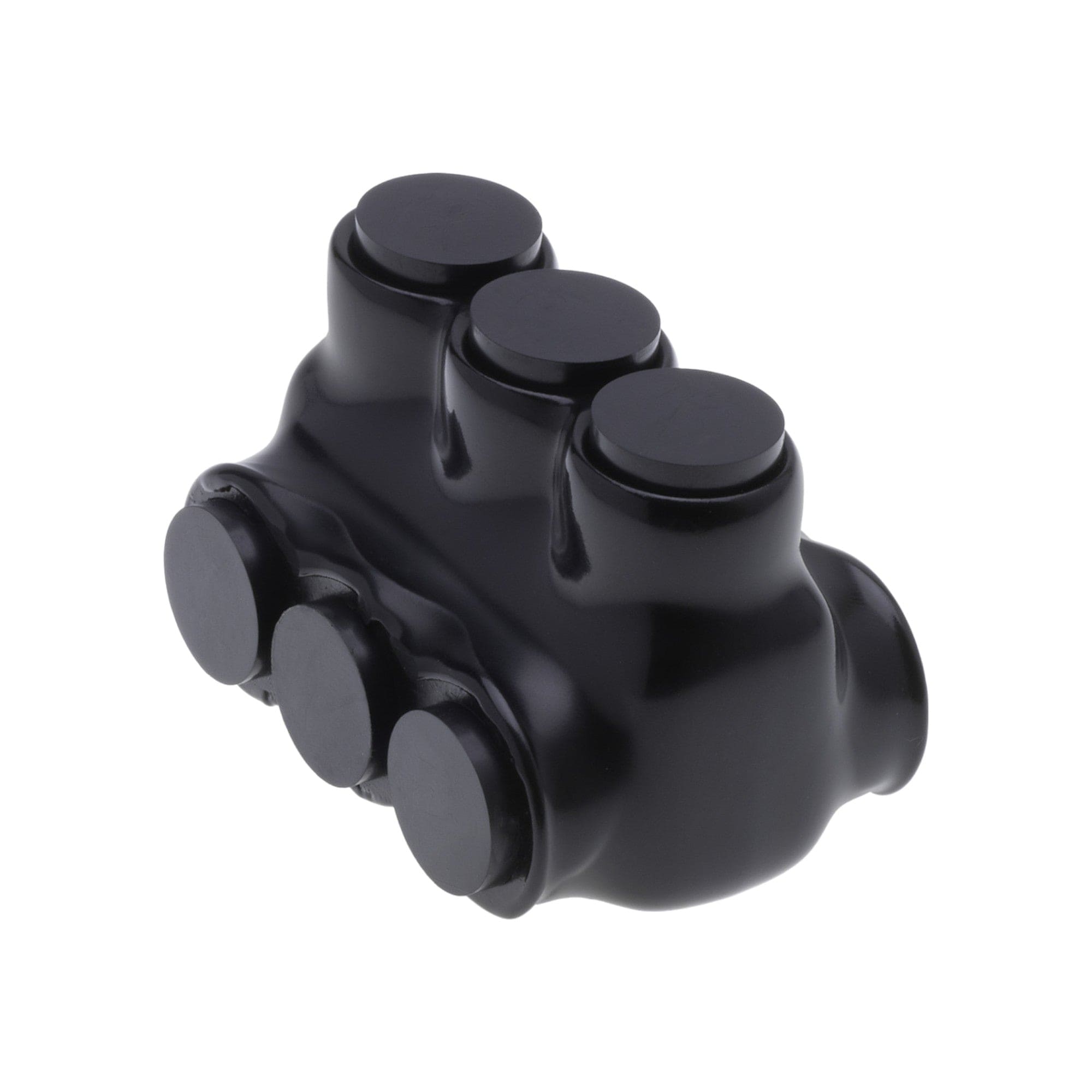

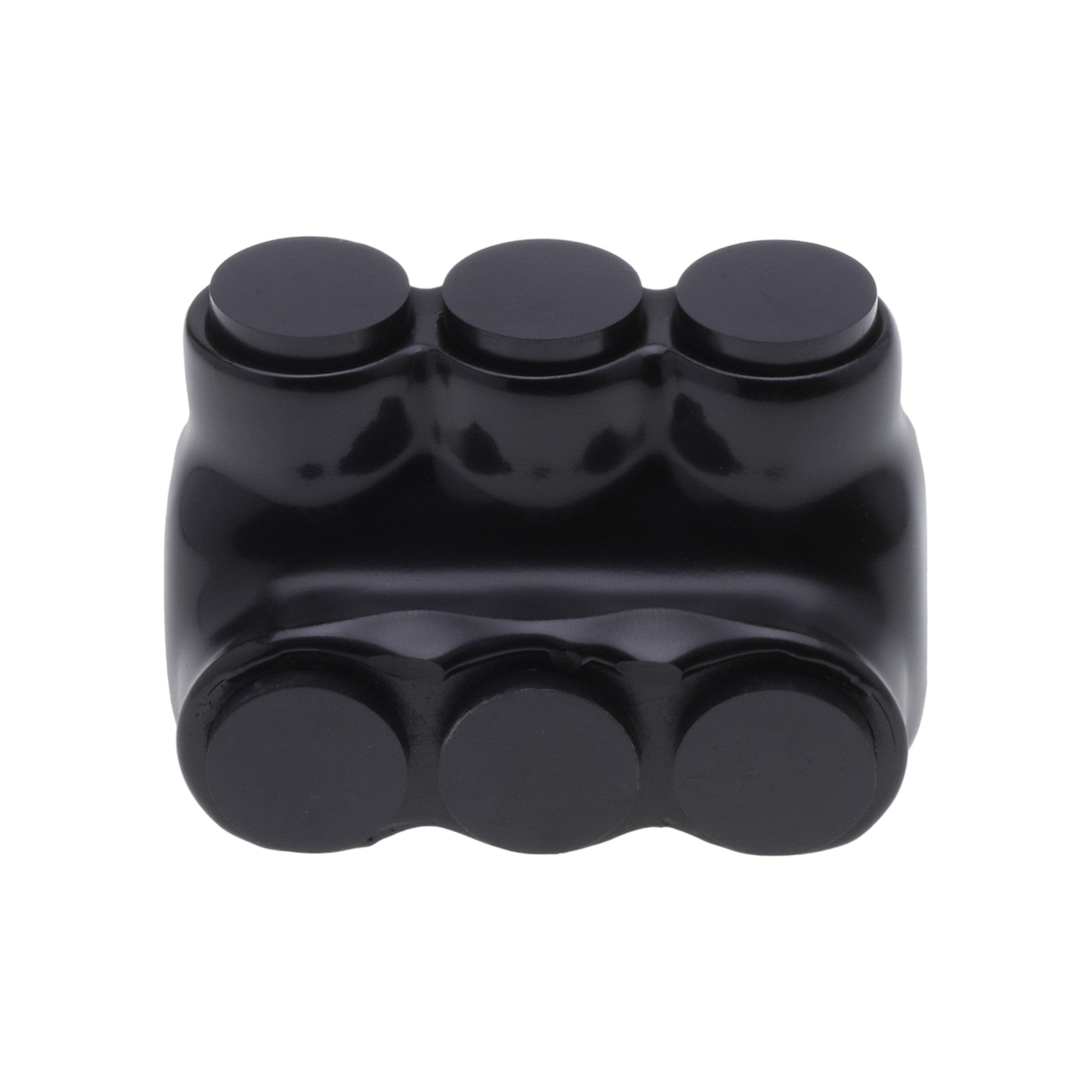

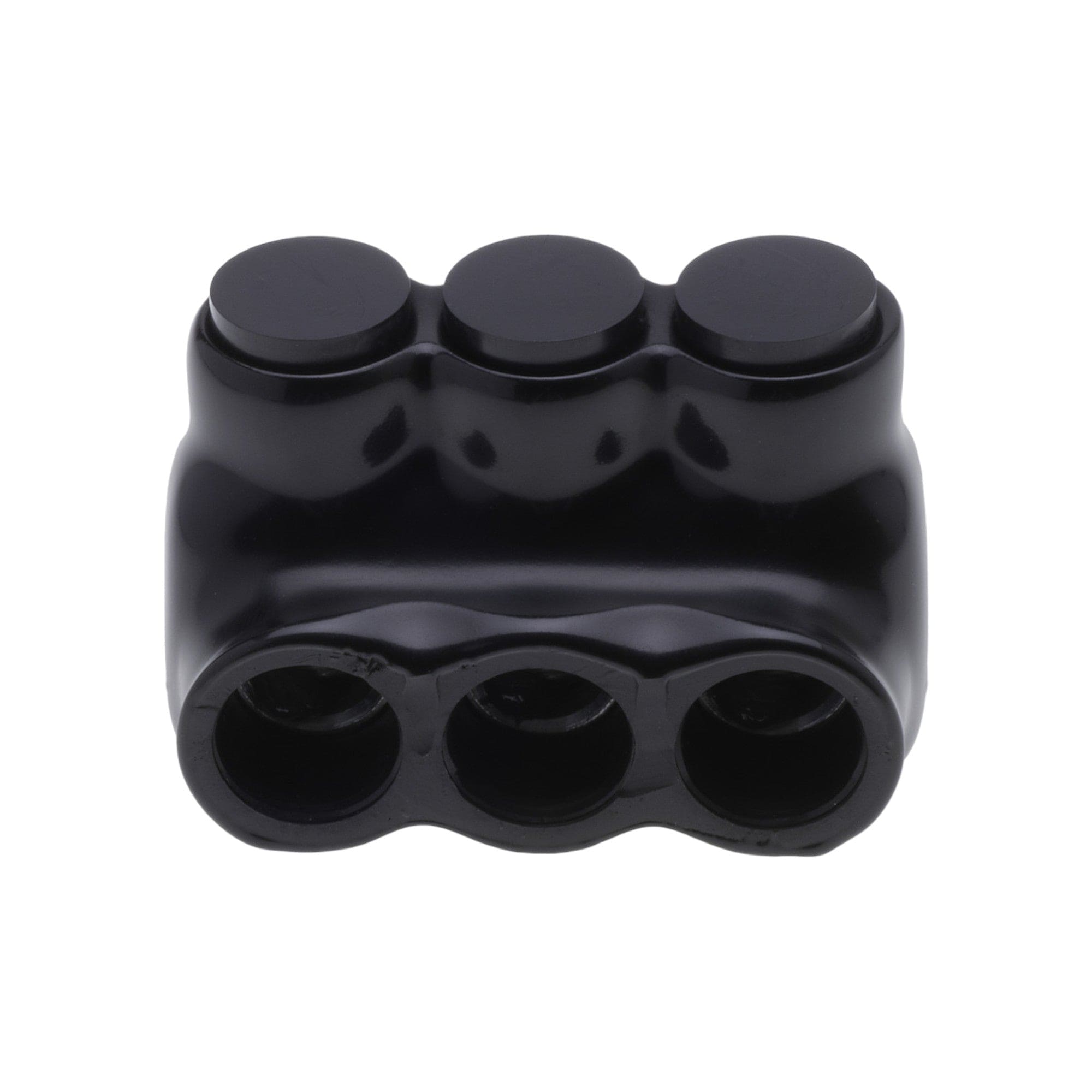

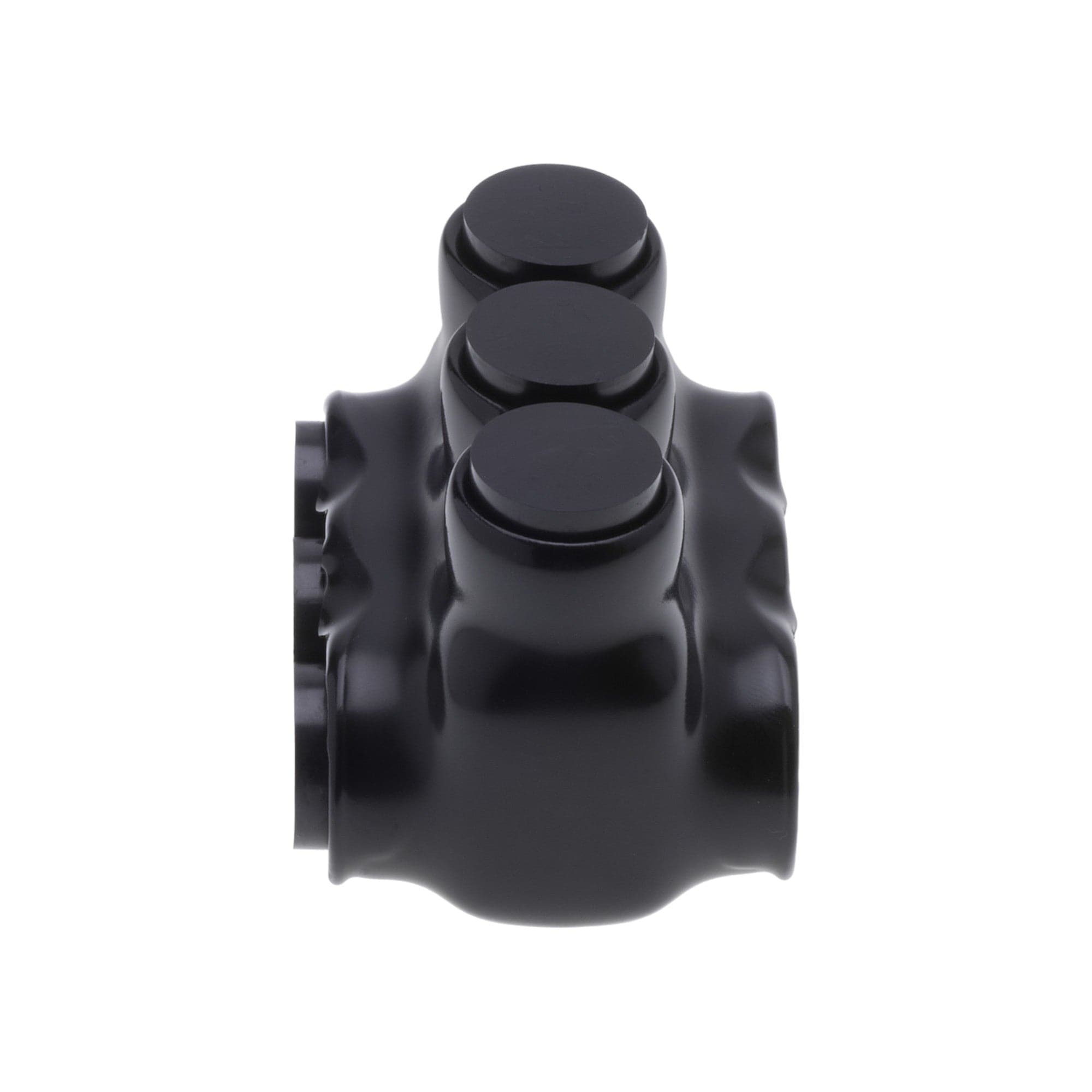

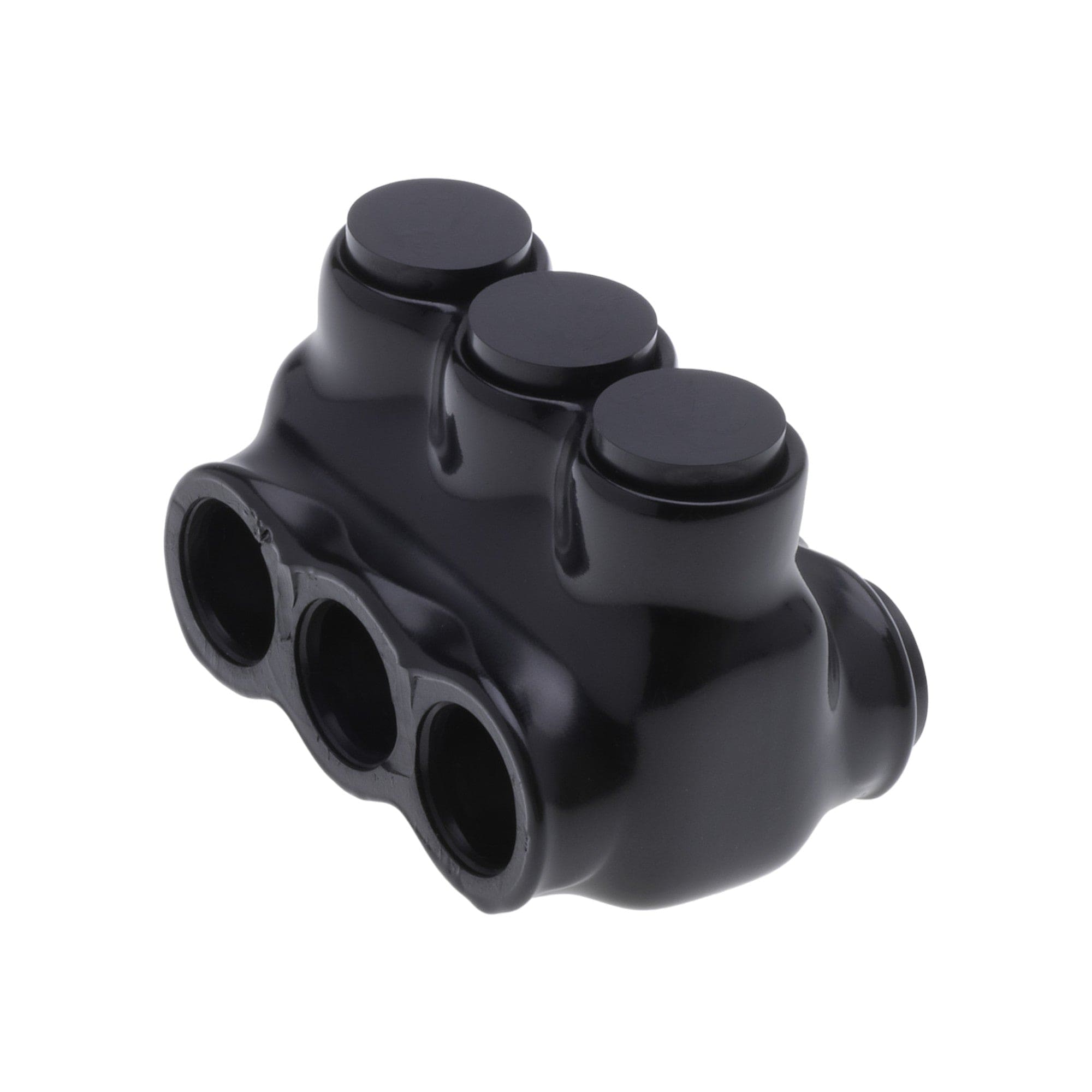

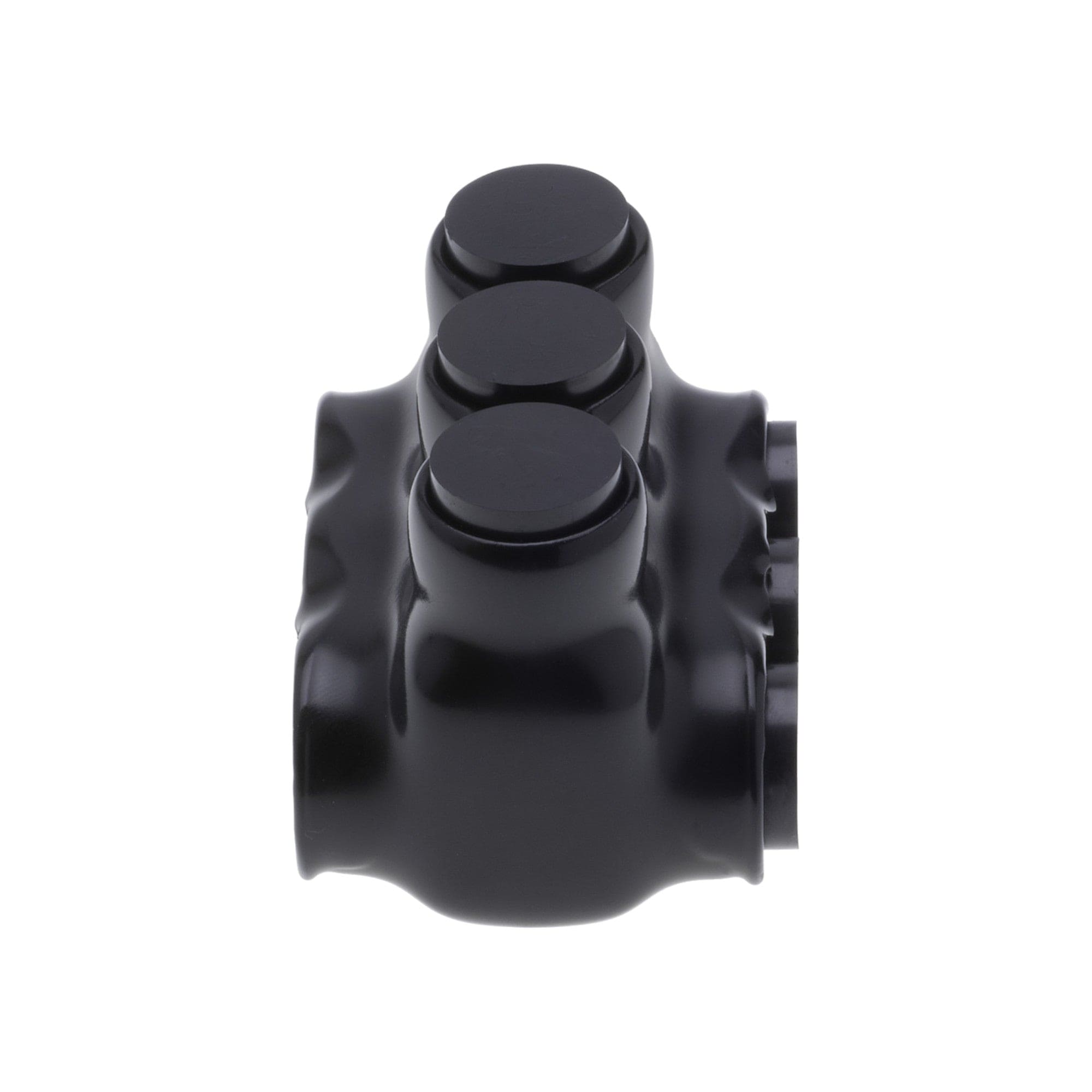

Insulated Tap Connectors 3 port dual-side Entry 2 AWG - 14 AWG
Shipping calculated at checkout
SKU: 610-1003214
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap connectors 2 are a line of pre-insulated electrical connectors designed for forming secure connections between multiple conductors. These connectors offer several key advantages:
Key Advantages
- Secure Connections: Utilizes adjustable set screws and a rounded body design to create a high-pressure connection between conductors, ensuring reliability and minimal electrical resistance.
- Dual-Sided Wire Entry: Features dual entry ports on opposing sides, allowing for flexible conductor placement and accommodating wires ranging from 2 AWG to 14 AWG.
- NEC 230.46 Compliance: Adheres to National Electrical Code (NEC) Article 230.46, suitable for line side connections on service equipment.
- Ergonomic Design: Rounded body with smooth plastisol insulation for comfortable gripping during installation.
- Removable Plugs: Each port and set screw includes a removable plug to prevent debris, moisture, and contaminants from entering the connector body.
- Pre-Filled Oxide Inhibitor: Entry ports pre-filled with oxide inhibitor gel to prevent corrosion, ensuring low and stable electrical resistance over time.
- Professional Performance: Durable plastisol insulation resists UV radiation, abrasion, and chemicals, ensuring reliable performance and extended service life.
Key Technical Specifications
Wire Gauge Range: 2 AWG to 14 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Dual-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Color: Black
UPC: 810166615471
Origin Country: US
Certifications: cULus, Meets NEC 230.46 Suitable for Line Side of Service
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Temperature Rating: 90C, AL9CU
Conductor Max Amps:
Aluminum: 100 A
Copper: 130 A
Conductor Size Range:
Aluminum: 2 AWG - 14 AWG
Conductor Type: Copper, Aluminum
Conductor Count: 3
Environmental Temperature: Cold Temperature rated to -45C
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Download our detailed specification sheet and drawing for more information:
Download Specification Sheet Download Drawing
