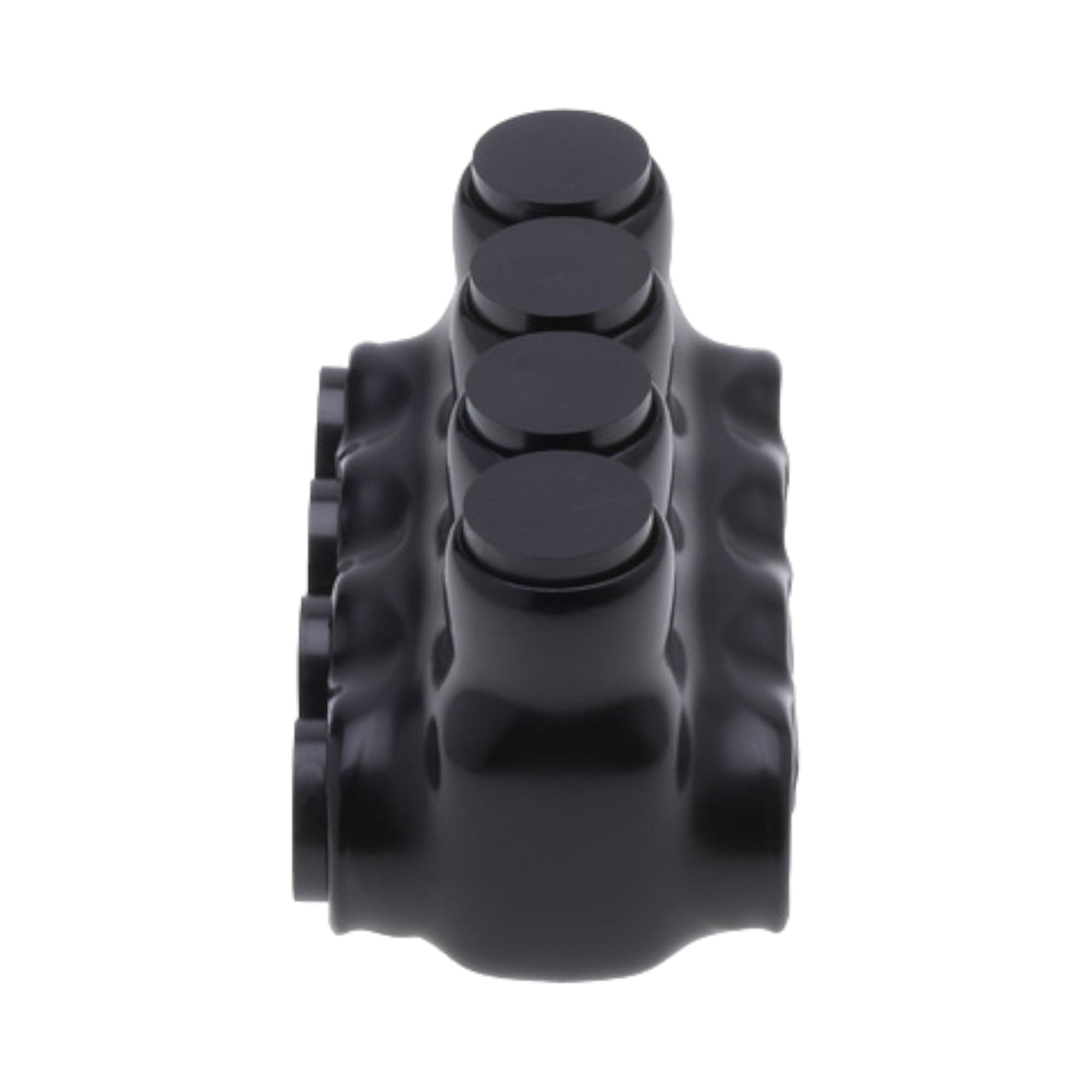

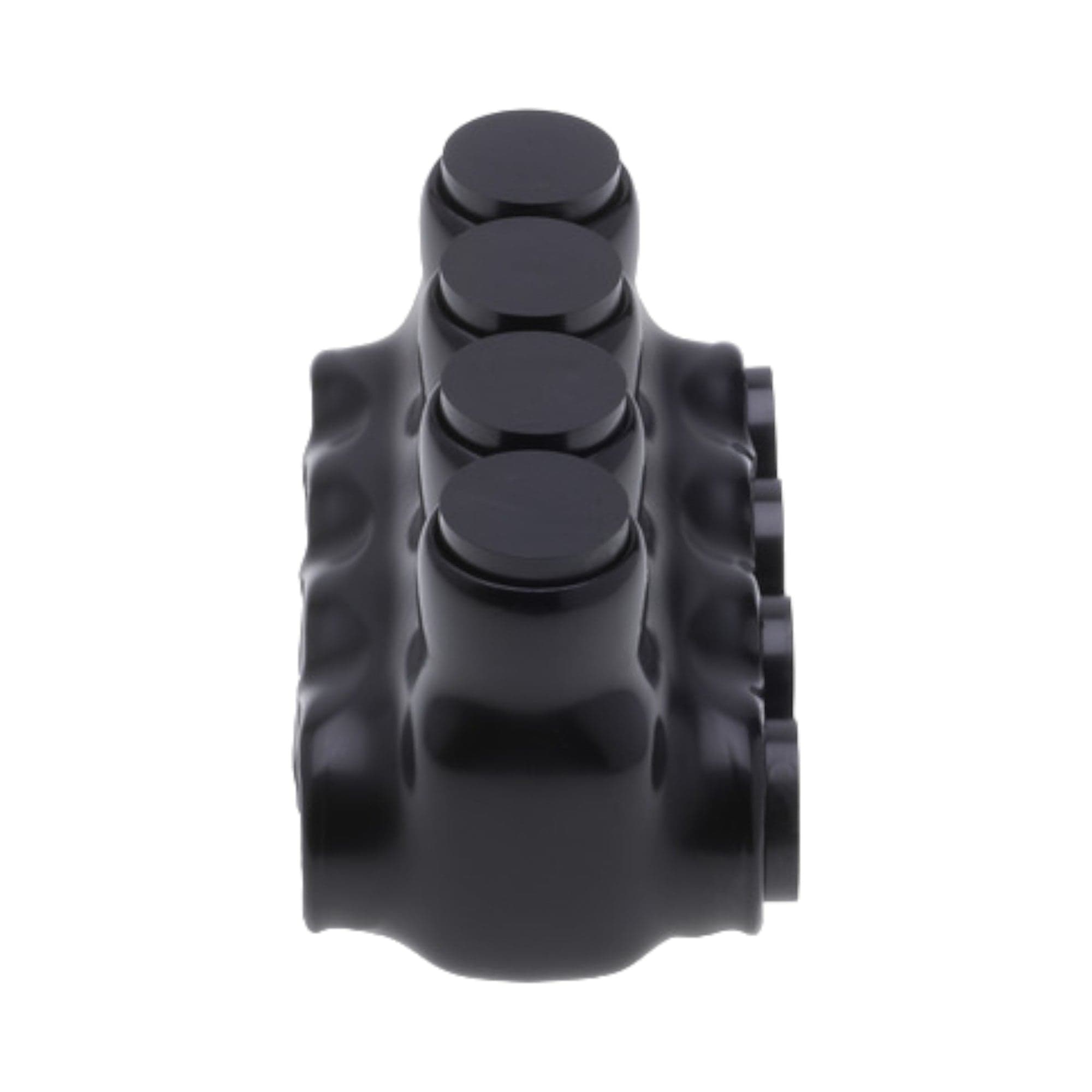

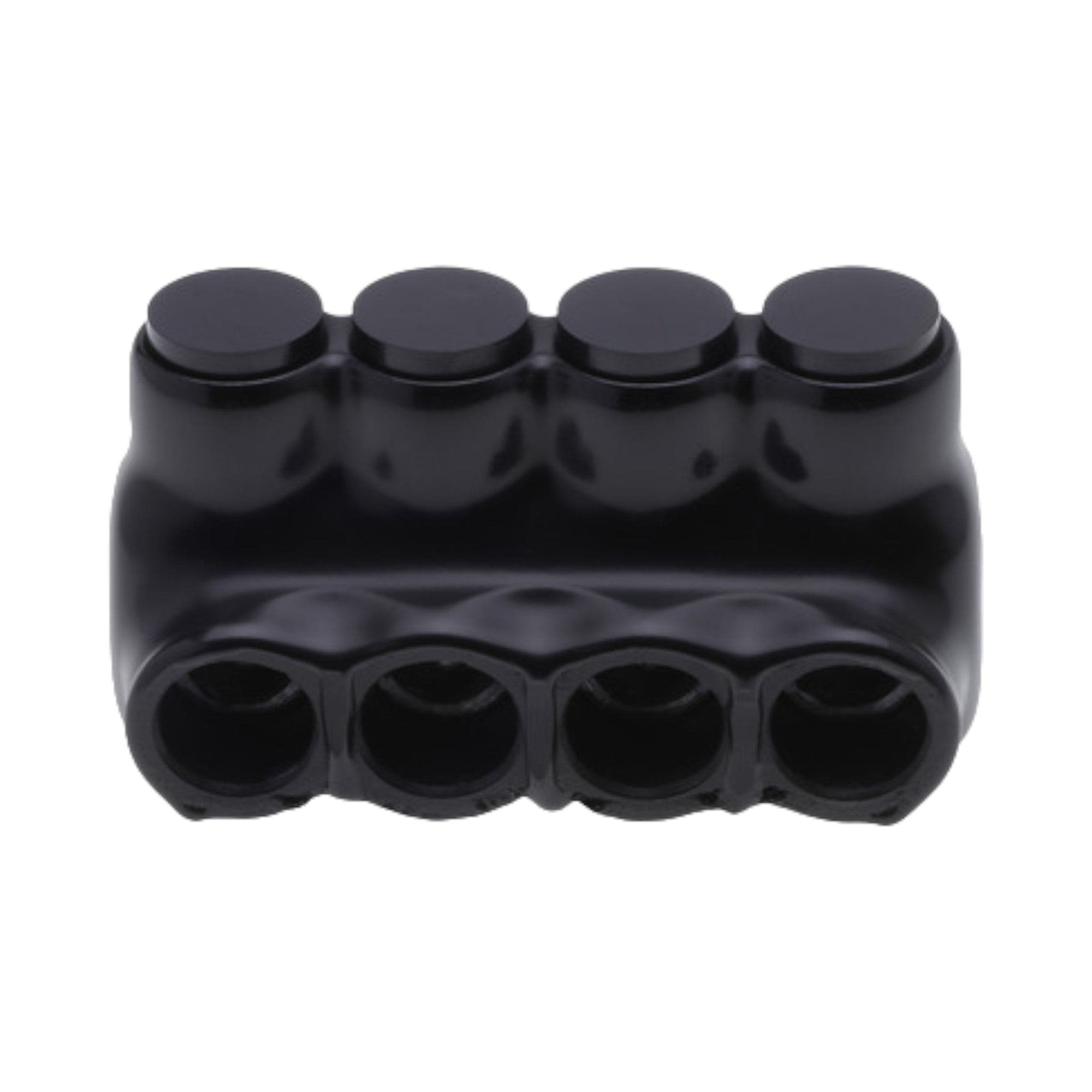

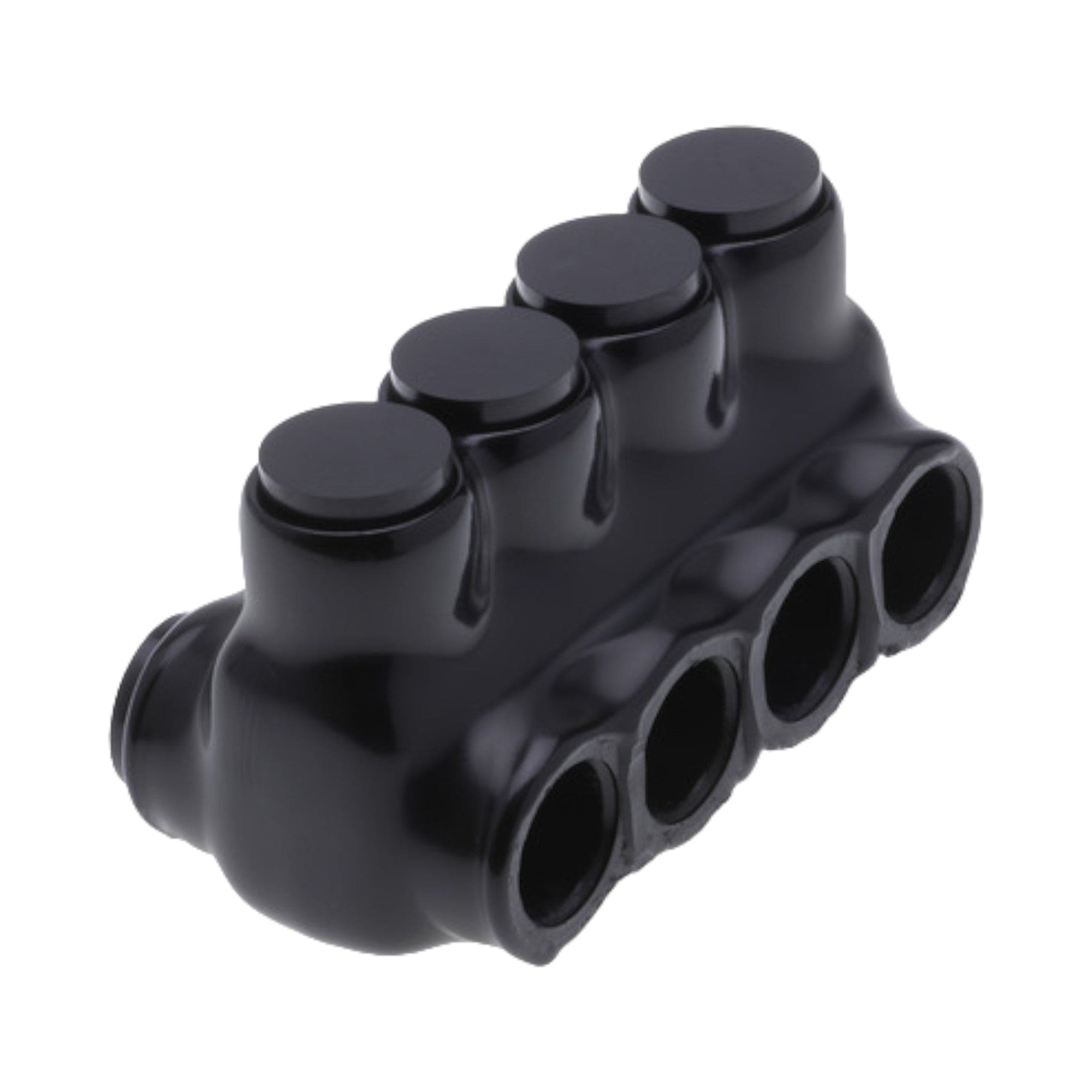

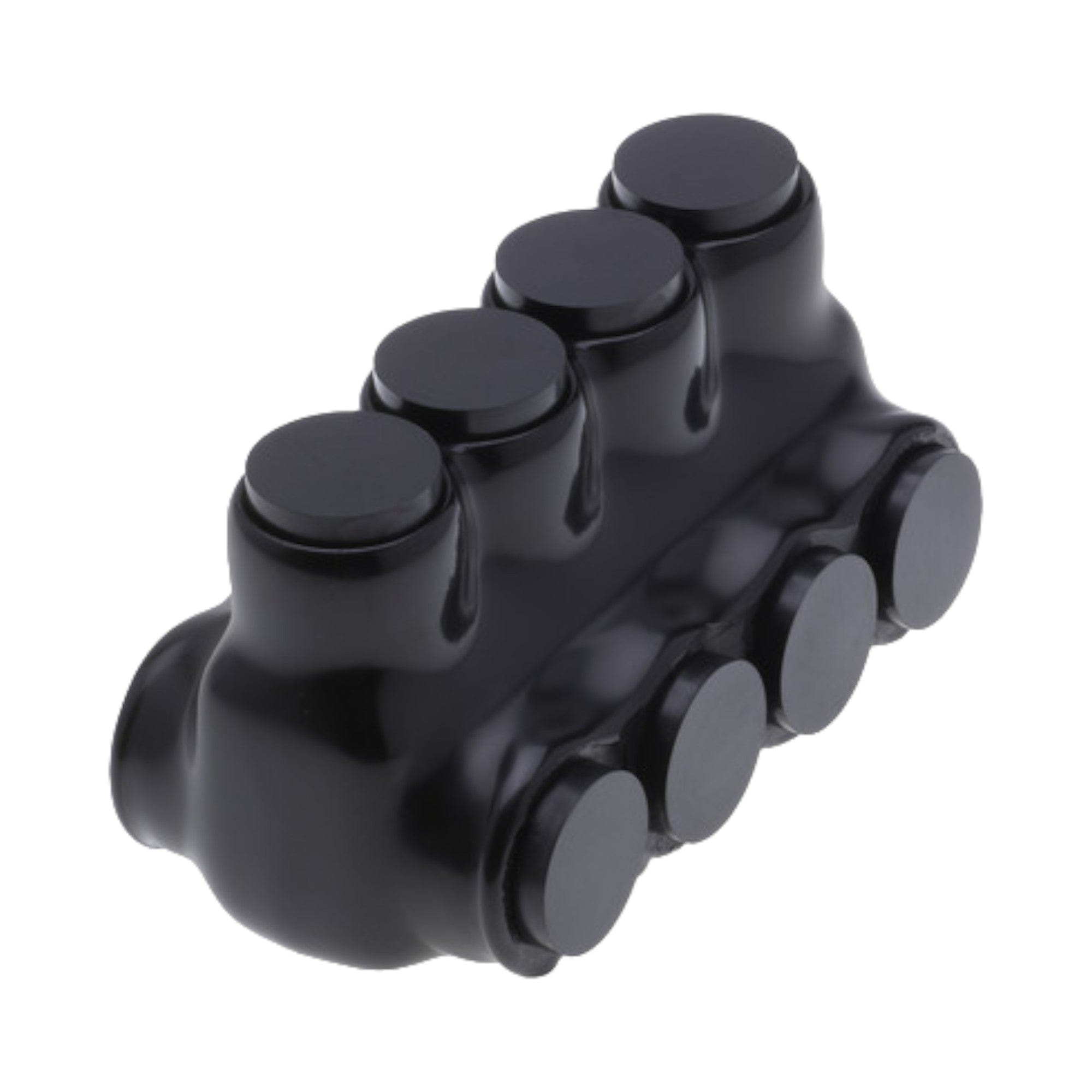

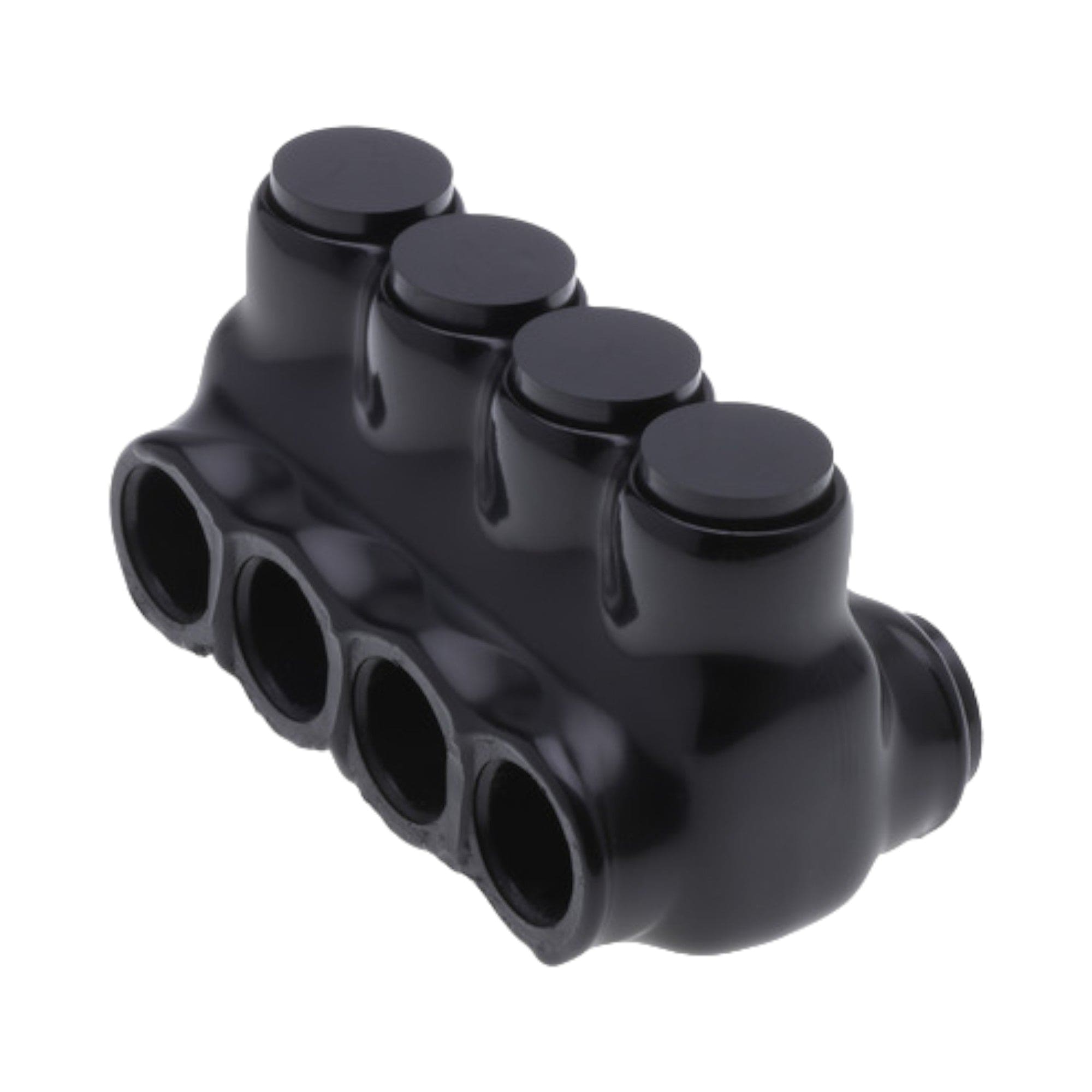

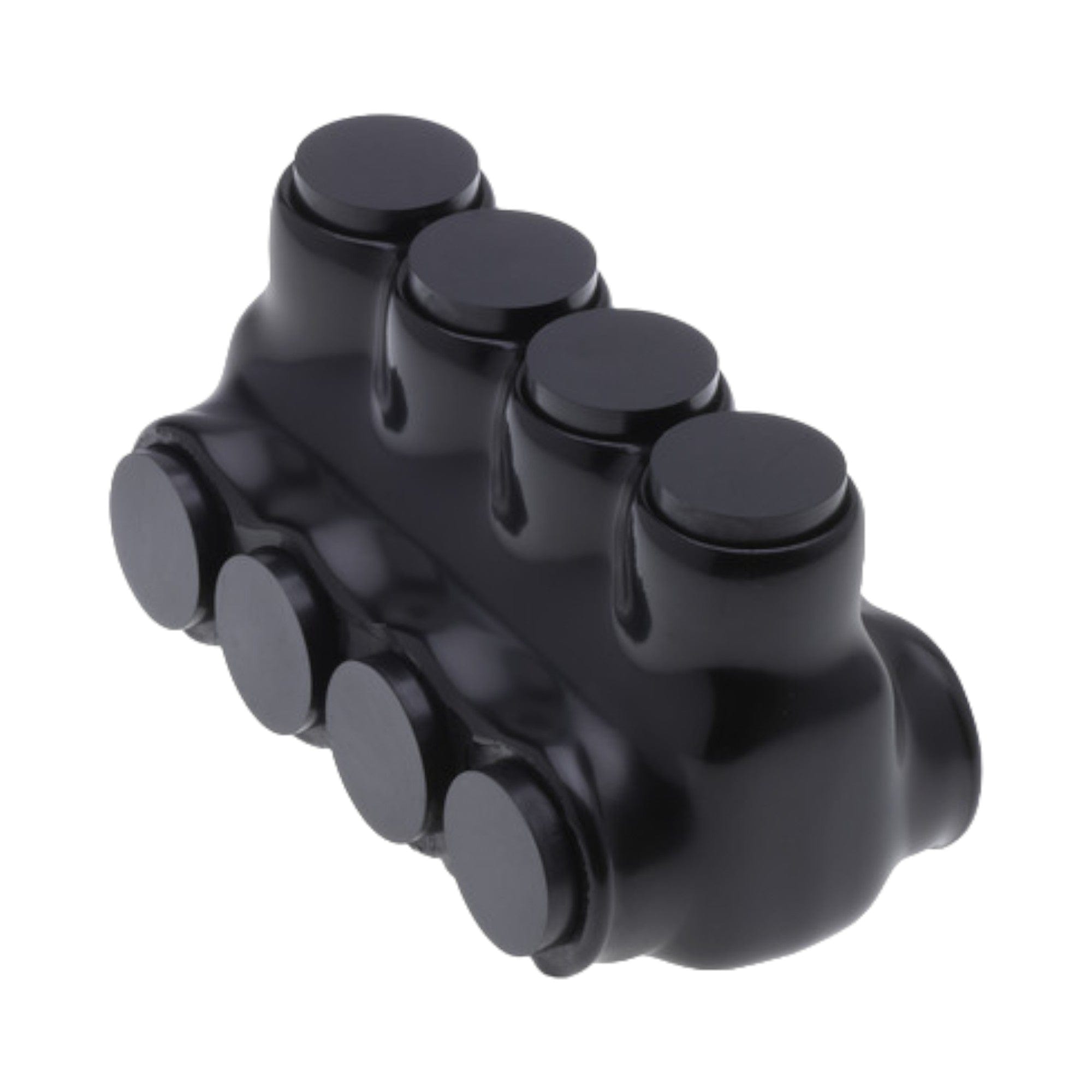

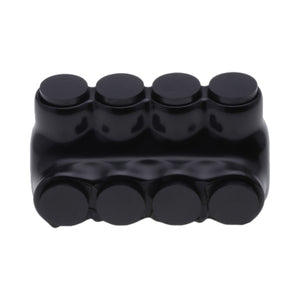

Insulated Tap Connectors 4 port dual-side Entry 1/0 AWG - 14 AWG
Shipping calculated at checkout
SKU: 610-1004114
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector 2 — Dual-Sided Entry | 1/0 AWG–14 AWG | 600V | cULus Listed | Conversions Tech
Conversions Tech Insulated Tap Connector 2 is part of our premium line of pre-insulated electrical connectors engineered for forming secure, low-resistance connections between multiple conductors. Designed for performance, compliance, and reliability, these connectors meet NEC Article 230.46 requirements — making them ideal for line-side connections on service equipment and power distribution systems.
Each connector features dual-sided wire entry ports that accommodate 1/0 AWG to 14 AWG conductors, allowing for flexible wiring configurations. With pre-filled oxide inhibitor gel and UV-resistant plastisol insulation, these connectors ensure corrosion resistance, long service life, and professional-grade performance in any environment.
Key Technical Specifications
| Wire Gauge Range | 1/0 AWG – 14 AWG |
| Connection Type | Set Screw (Dual-Sided Entry) |
| Insulation Material | UV-resistant Plastisol |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Finish | Plastisol Insulated (Black, UV Resistant) |
| Certifications | cULus Listed • NEC 230.46 Compliant • UL 486A/B (File No. E186991) |
| Conductor Type | Copper or Aluminum (Class B, Class C) |
| Max Amperage | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Conductor Count | 4 |
| Torque Ratings | 10–14 AWG = 35 in-lb | 8 AWG = 40 in-lb | 4–6 AWG = 45 in-lb | 2/0–3 AWG = 50 in-lb |
| Dimensions | L 2.873″ × W 1.825″ × H 1.627″ (Box: L 3.75″ × W 6″ × Weight 1.76 lb) |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Connections: Adjustable set screws and rounded body ensure stable, high-pressure conductor bonding.
- Dual-Sided Wire Entry: Allows multiple wiring configurations for 1/0 AWG–14 AWG conductors.
- NEC 230.46 Compliant: Fully approved for line-side service equipment use.
- Ergonomic Design: Smooth plastisol insulation offers comfortable handling.
- Removable Plugs: Protect set screws and wire ports from debris and moisture.
- Pre-Filled Oxide Inhibitor: Prevents oxidation and ensures low-resistance contact.
- UV-Resistant Insulation: Protects against sunlight, abrasion, and harsh environments.
Applications
- Residential and commercial electrical installations
- Industrial power and machinery systems
- Power distribution networks
- HVAC and automation systems
- Infrastructure and utility projects
- Marine and automotive systems
Frequently Asked Questions (FAQs)
1. What wire sizes does the Insulated Tap Connector 2 support?
It supports wire sizes from 1/0 AWG to 14 AWG, ideal for copper or aluminum conductors.
2. Is this connector NEC 230.46 compliant?
Yes. It meets NEC Article 230.46 standards and is approved for line-side connections on service equipment.
3. Are the ports pre-filled with oxide inhibitor?
Yes. Each connector is factory-filled with oxide inhibitor gel to prevent corrosion and maintain stable conductivity.
4. Can this connector be used outdoors?
Absolutely. The UV-resistant plastisol insulation makes it suitable for indoor and outdoor installations.
5. What certifications does it have?
It’s cULus Listed and UL 486A/B certified (File No. E186991) for compliance and safety.
6. What is the conductor count for this connector?
The Insulated Tap Connector 2 accommodates up to four conductors for flexible wiring layouts.
