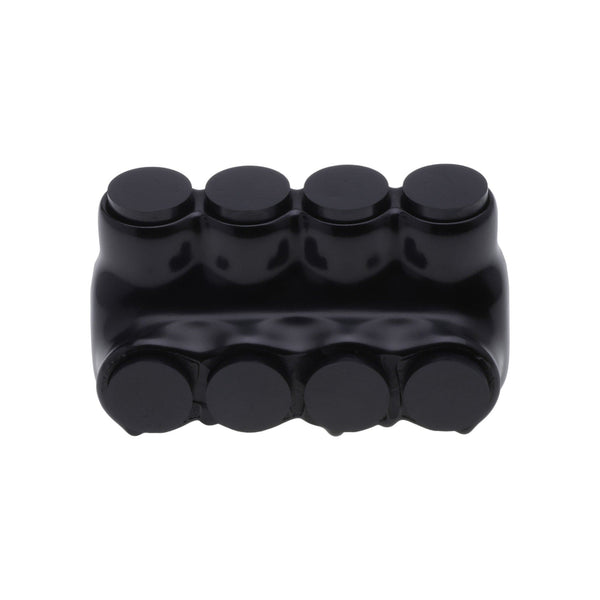

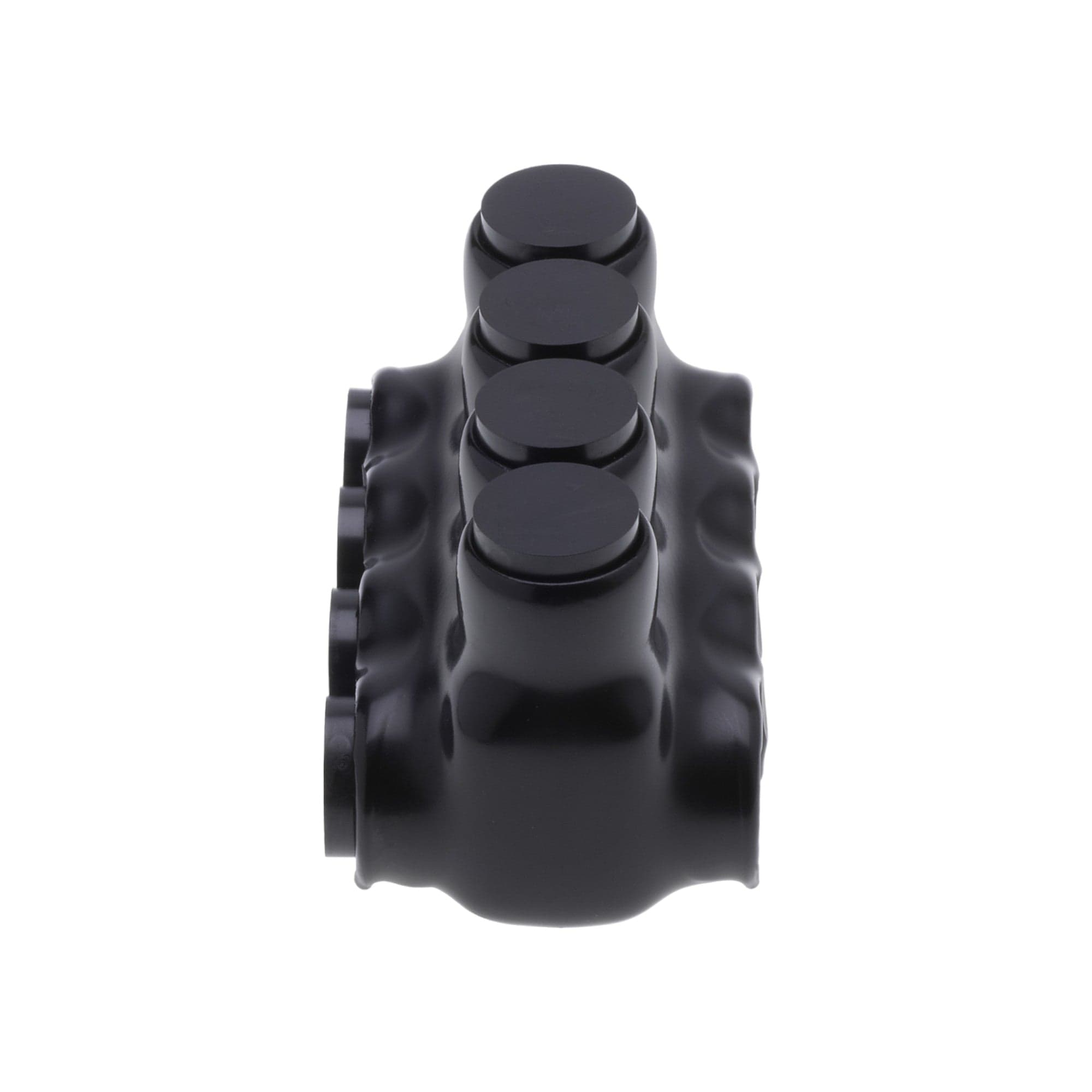

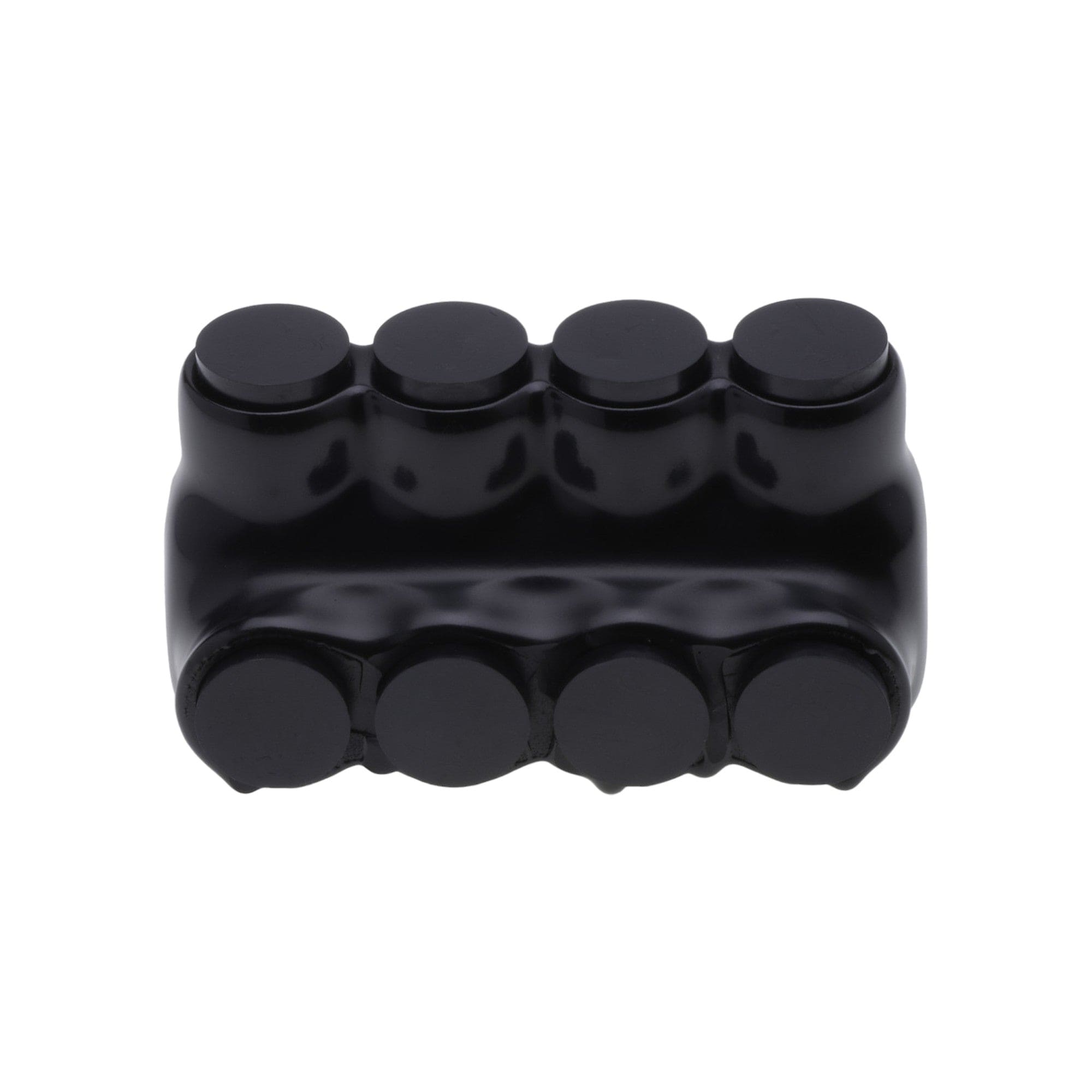

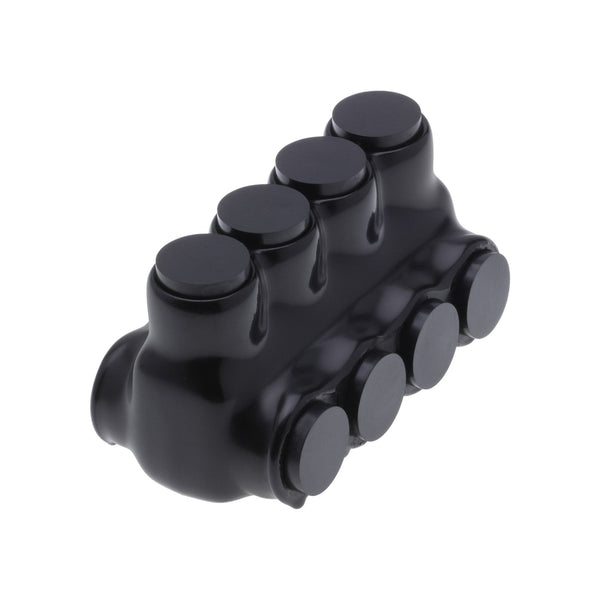

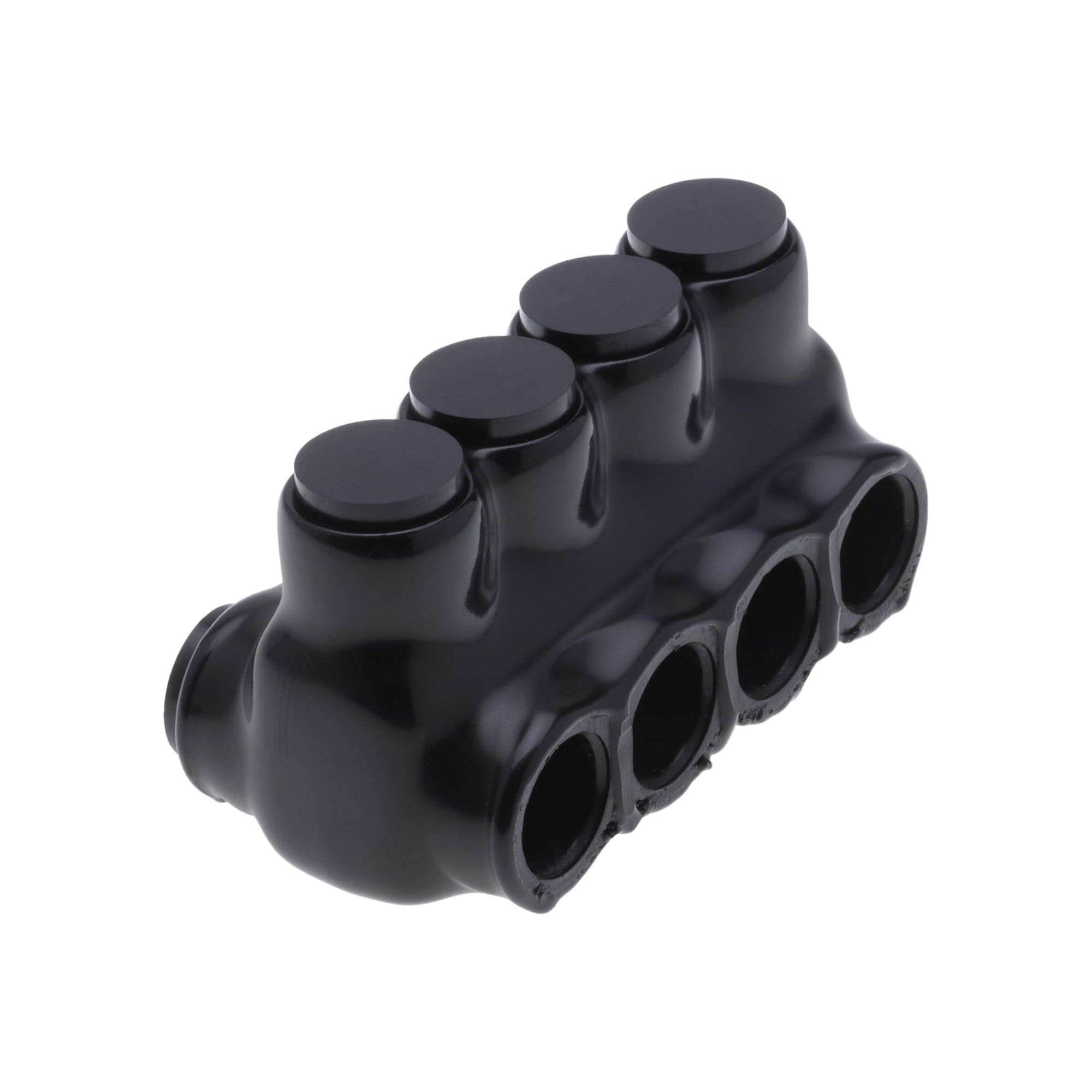

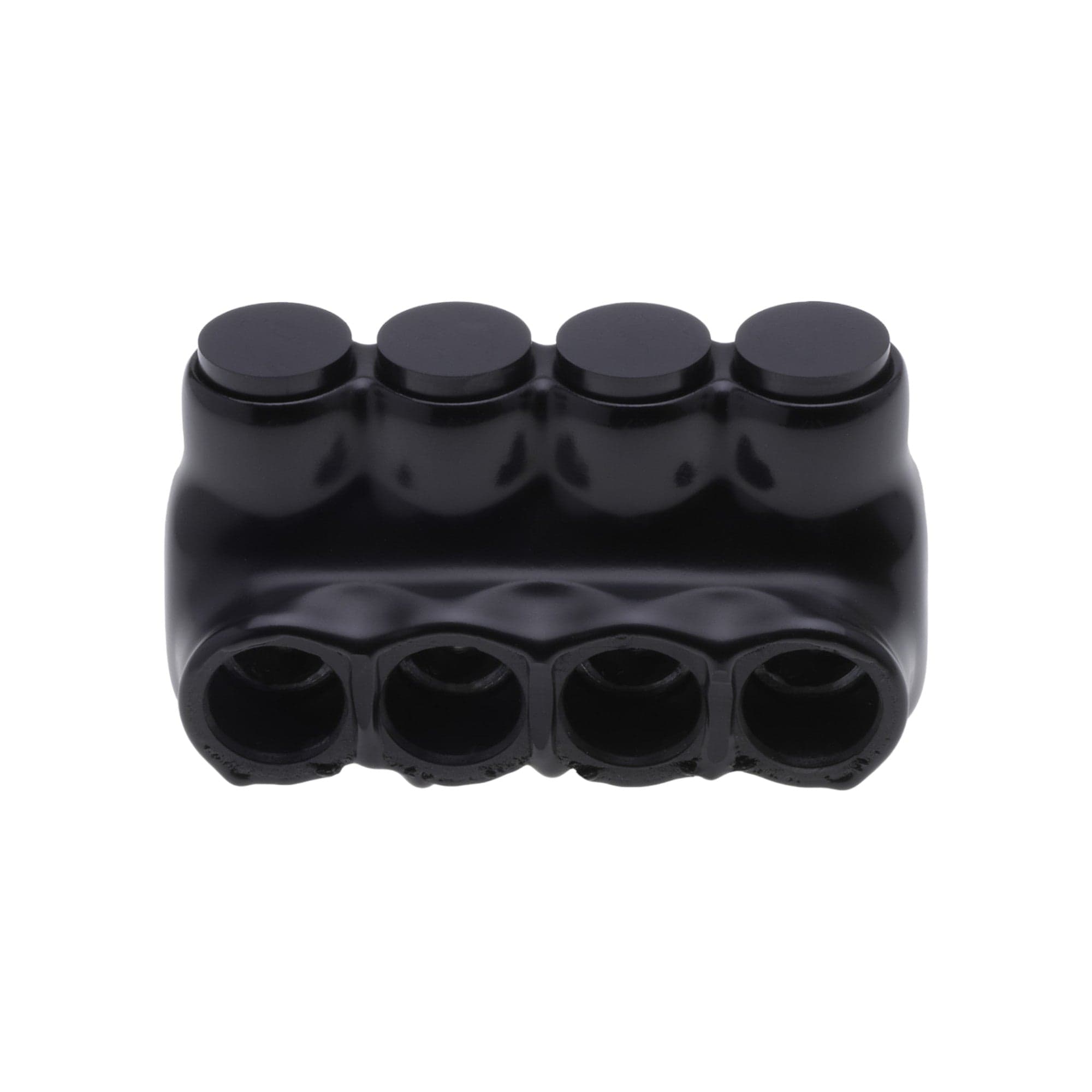

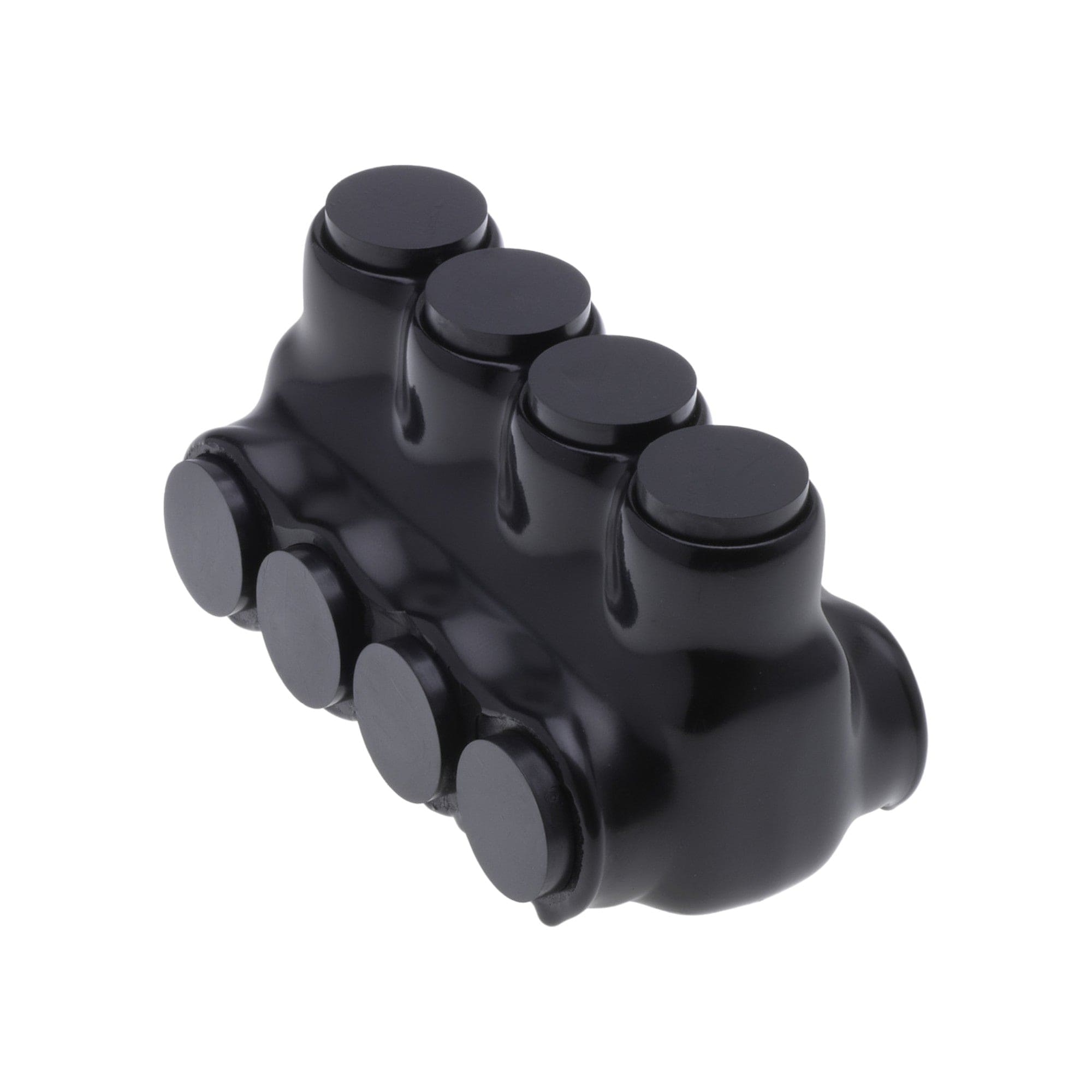

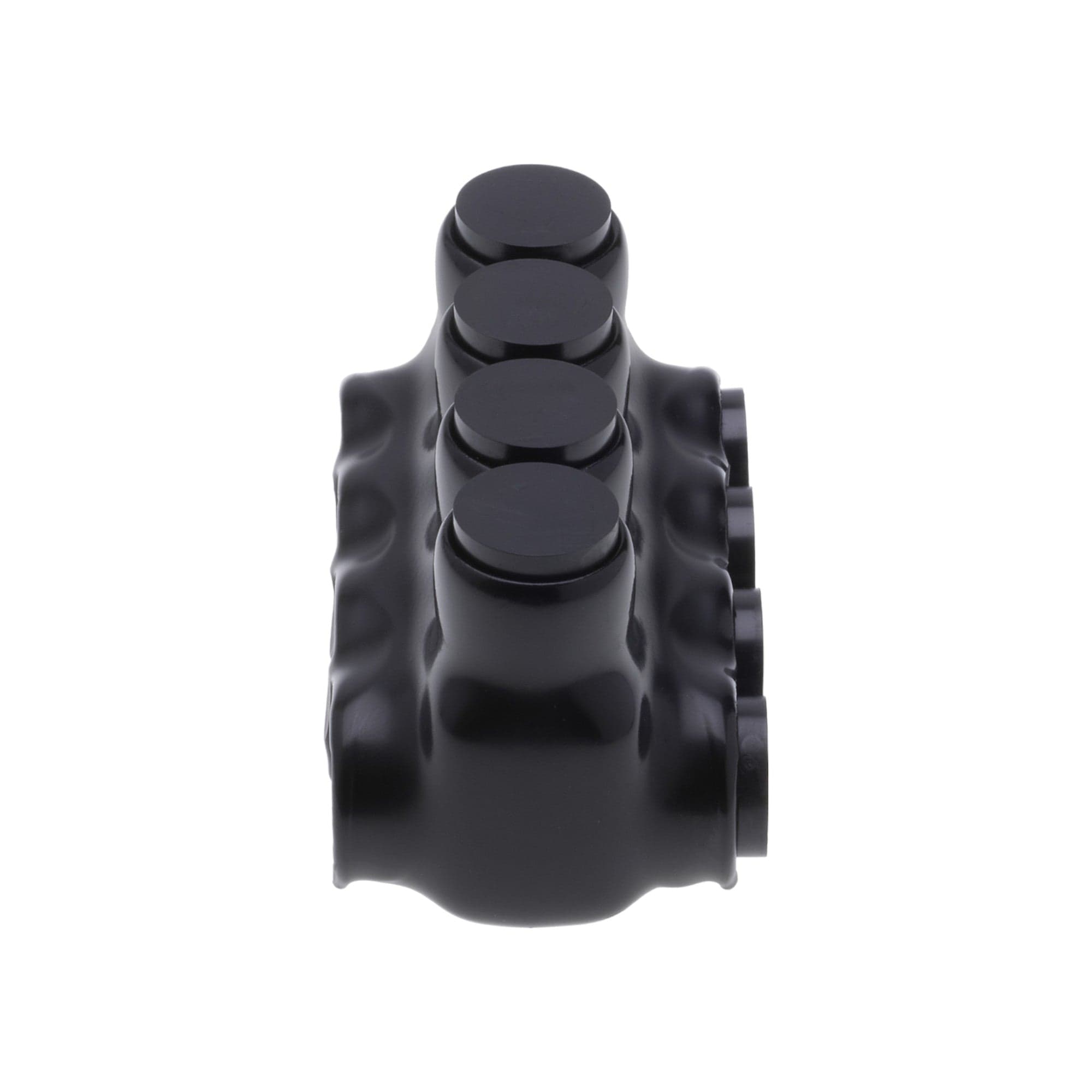

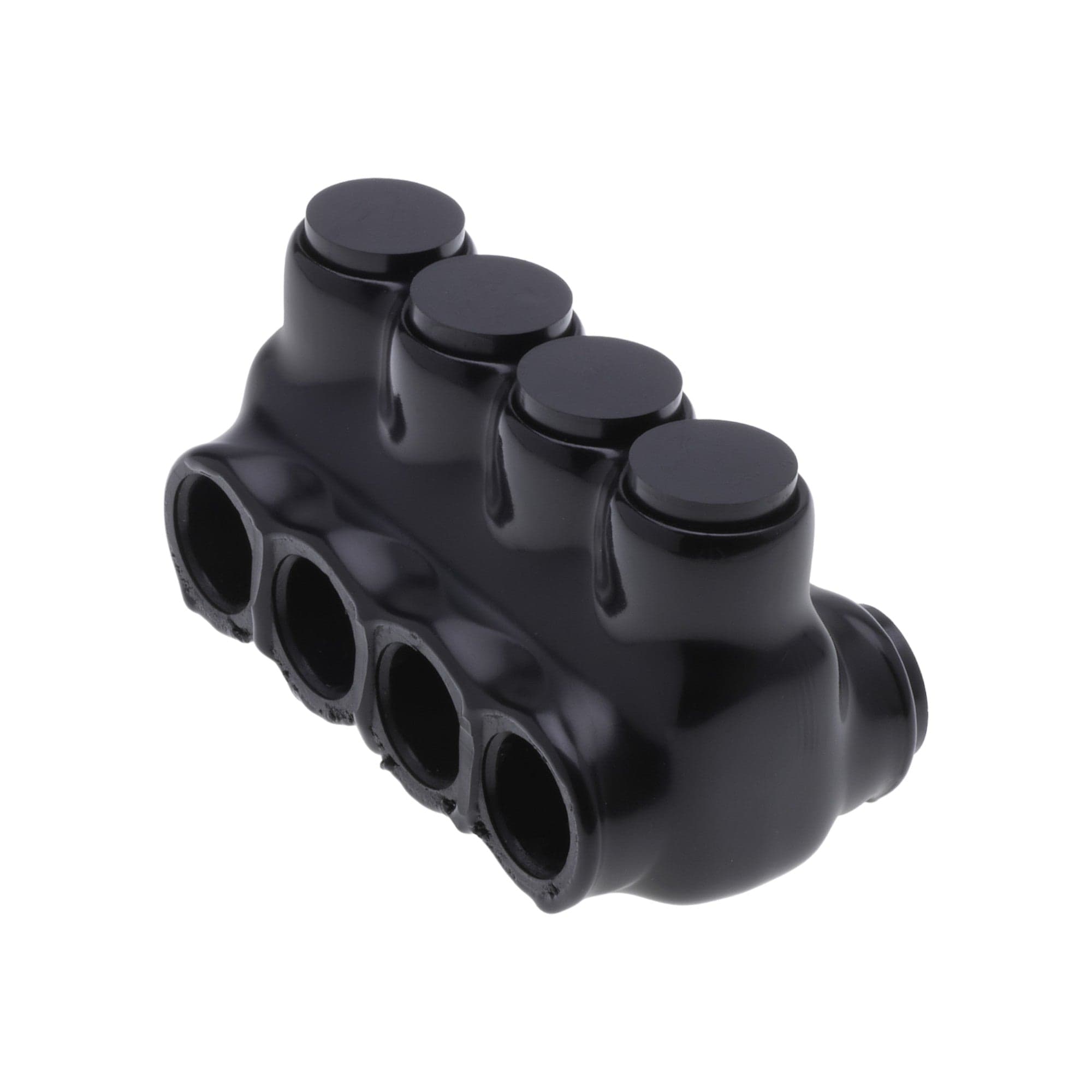

Insulated Tap Connectors 4 port dual-side Entry 2 AWG - 14 AWG
Shipping calculated at checkout
SKU: 610-1004214
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors 2 | Dual-Sided Entry | 2 AWG–14 AWG | UV-Resistant Plastisol | Conversions Tech
Conversions Tech Insulated Tap Connectors 2 are premium pre-insulated electrical connectors engineered for forming secure connections between multiple conductors. Featuring a dual-sided wire entry and a UV-resistant plastisol insulation coating, these connectors provide excellent reliability, durability, and compliance with NEC Article 230.46. Designed for copper and aluminum conductors, they deliver stable, low-resistance performance in residential, commercial, and industrial electrical systems.
Key Advantages
- Secure Connections: Adjustable set screws and a rounded body design create high-pressure contact between conductors, minimizing resistance and enhancing longevity.
- Dual-Sided Wire Entry: Accommodates wires from 2 AWG to 14 AWG with opposing-side entry ports for flexible conductor placement and faster installation.
- NEC 230.46 Compliance: Meets NEC Article 230.46 standards, approved for use on the line side of service equipment.
- Ergonomic Design: Smooth plastisol-coated body for a comfortable grip and easy handling during installation.
- Removable Plugs: Protects ports and set screws from moisture, debris, and contaminants.
- Pre-Filled Oxide Inhibitor: Gel-filled ports prevent corrosion and ensure stable, low-resistance performance over time.
- Professional Durability: UV-resistant, abrasion-proof plastisol coating ensures reliable outdoor and indoor performance.
Key Technical Specifications
| Wire Gauge Range | 2 AWG to 14 AWG |
| Connection Type | Set Screw |
| Insulation Material | UV-Resistant Plastisol |
| Features | Dual-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Finish | Plastisol Insulated (UV Resistant) |
| Color | Black |
| Certifications | cULus, NEC 230.46 Compliant |
| UL Standard | UL 486A/B |
| UL File No. | E186991 |
| Wire Class | Class B, Class C |
| Conductor Type | Copper, Aluminum |
| Conductor Count | 4 |
| Temperature Rating | 90°C, AL9CU |
| Environmental Temperature | Cold Temperature Rated to -45°C |
| Max Amperage (Al/Cu) | Aluminum: 100 A / Copper: 130 A |
| UPC | 810166615419 |
| Origin | United States |
Applications
- Residential and commercial electrical systems
- Industrial and automation wiring
- Power distribution and grounding
- HVAC and building infrastructure
- Automotive and marine applications
- Utility and energy network installations
- Machinery and equipment terminations
