Lever Nut Connectors | (2) 24-12AWG Stranded/Solid Splicing Wire Conductor | 100ct
Shipping calculated at checkout
SKU: 050-212
196 in stock

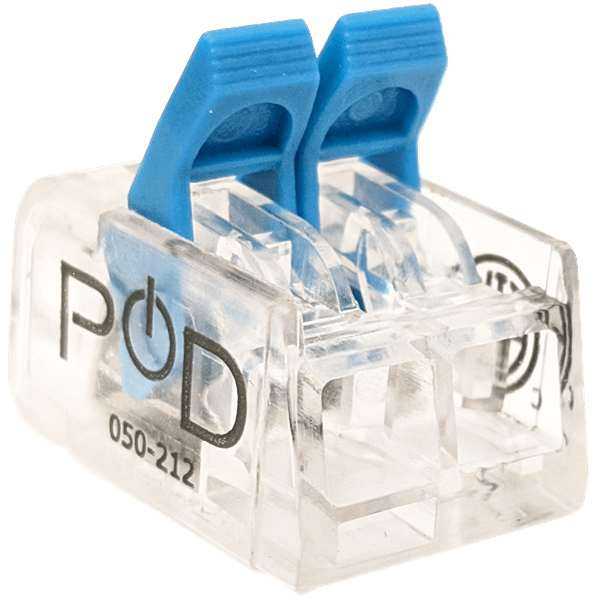

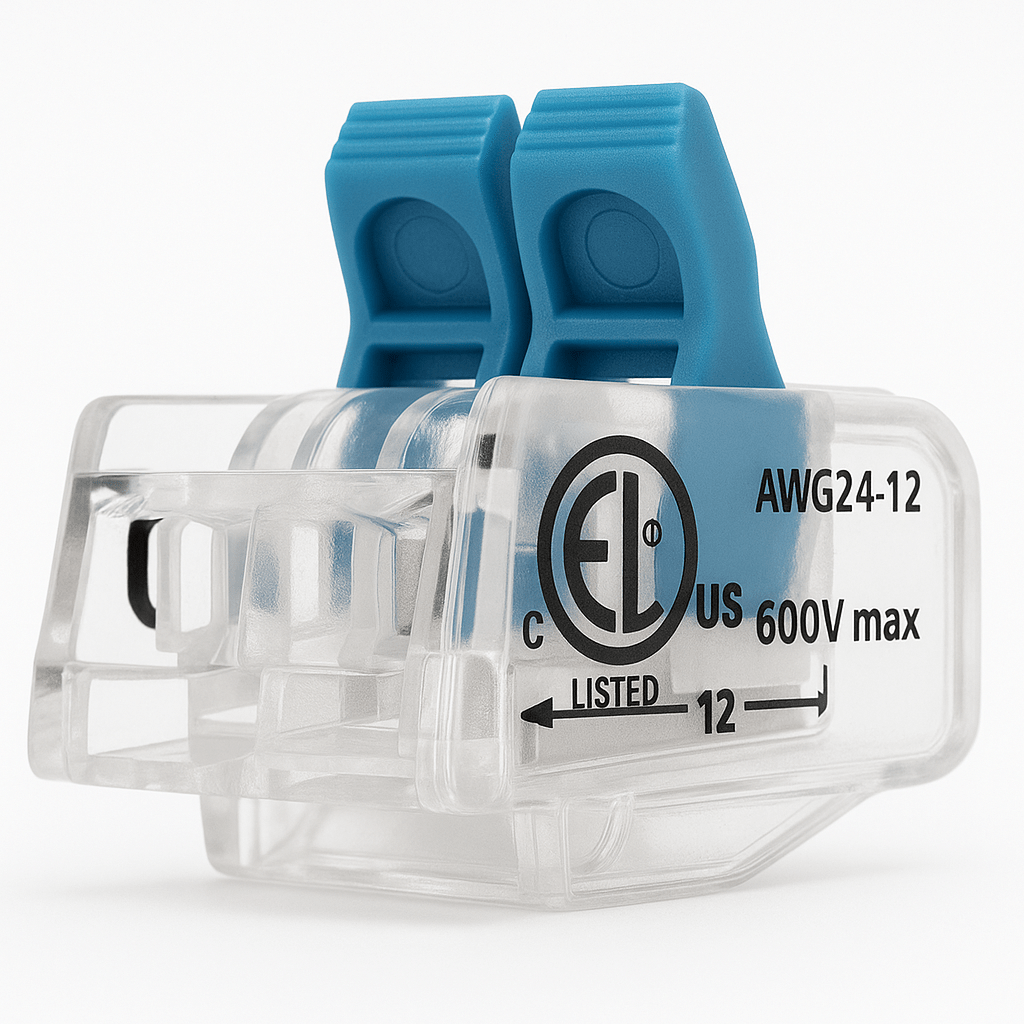

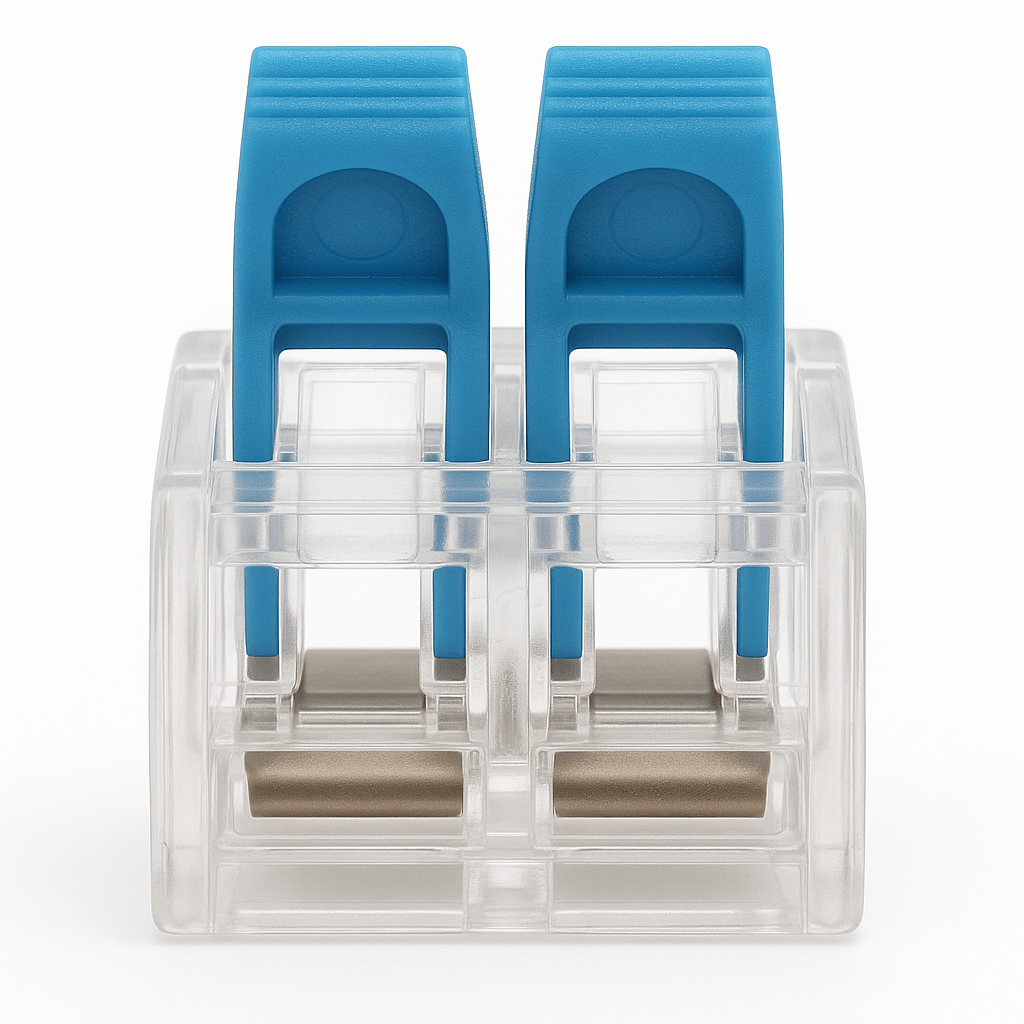

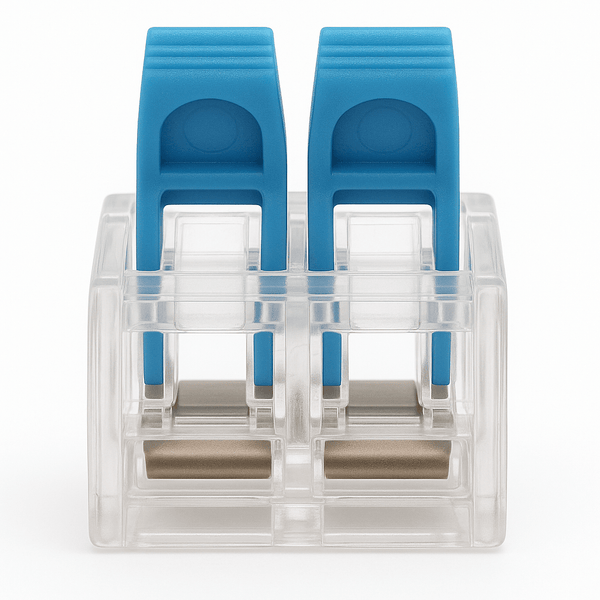

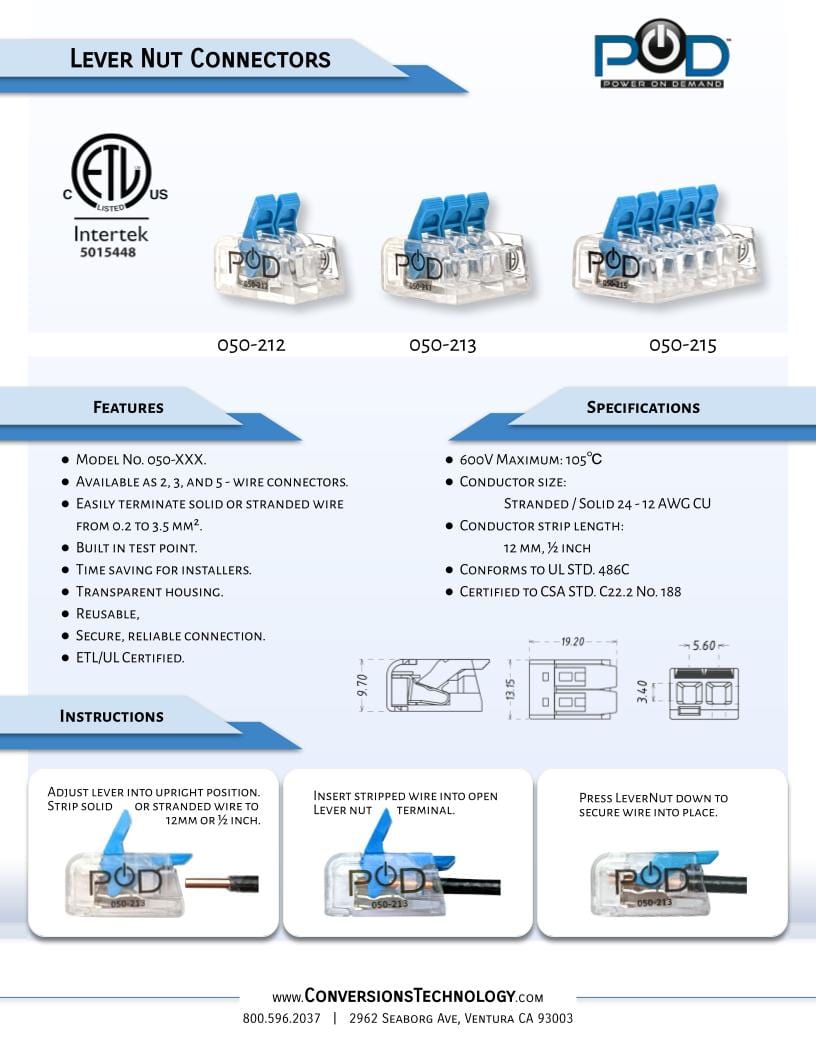

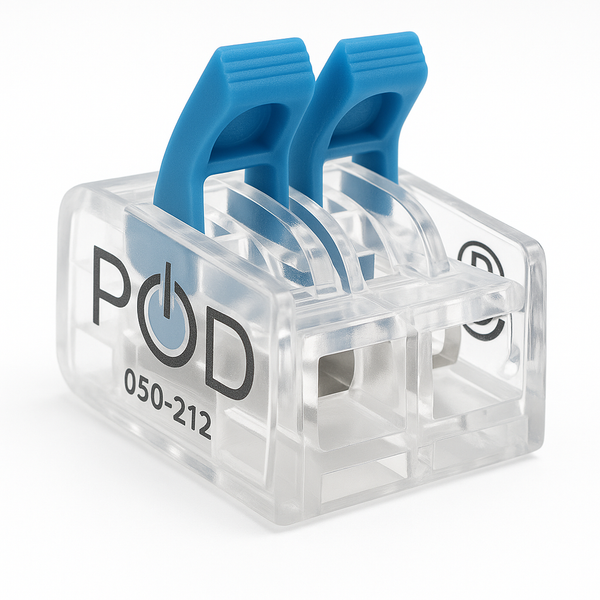

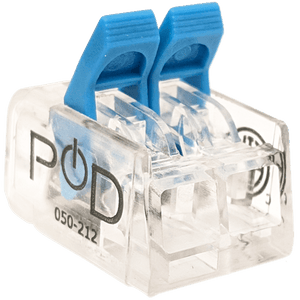

2-Port Lever Nut Wire Connectors
Conversions Tech lever-action wire connectors deliver tool-free, rock-solid terminations for 24-12 AWG solid or stranded copper. With a transparent polycarbonate body, integrated test point, and reusable lever design, they’re the fastest way to achieve code-compliant, 600-volt connections in residential, commercial, and industrial projects alike.
Why Electricians Love Our Lever Nuts
- Rapid installs: flip the lever, insert wire, snap—done in seconds.
- Universal compatibility: handles mixed gauges from AWG 24–12 without special tools.
- Crystal-clear housing: instant visual inspection for quality control.
- Built-in test port: probe connections without removing conductors.
- ETL/UL listed & CSA certified: third-party tested for safety and reliability.
- Reusable & eco-friendly: remove, reposition, or rewire with zero waste.
Tech Specs at a Glance
Voltage Rating | 600 V AC/DC |
---|---|
Temp Rating | 105 ℃ (221 ℉) |
Wire Range | 0.2 – 3.5 mm² | 24 – 12 AWG CU |
Strip Length | 12 mm (½″) |
Certifications | ETL | UL 486C | CSA C22.2 No. 188 |
Top Applications
- Residential wiring – outlets, switches, ceiling fans, LED retrofits.
- Commercial builds – office lighting grids, branch circuits, power drops.
- Industrial panels – control cabinets, machinery hook-ups, PLC terminations.
- Lighting installs – troffers, downlights, retrofit kits, and more.
- Maintenance & repair – field service techs love the reusable design for quick fixes.
Available Configurations

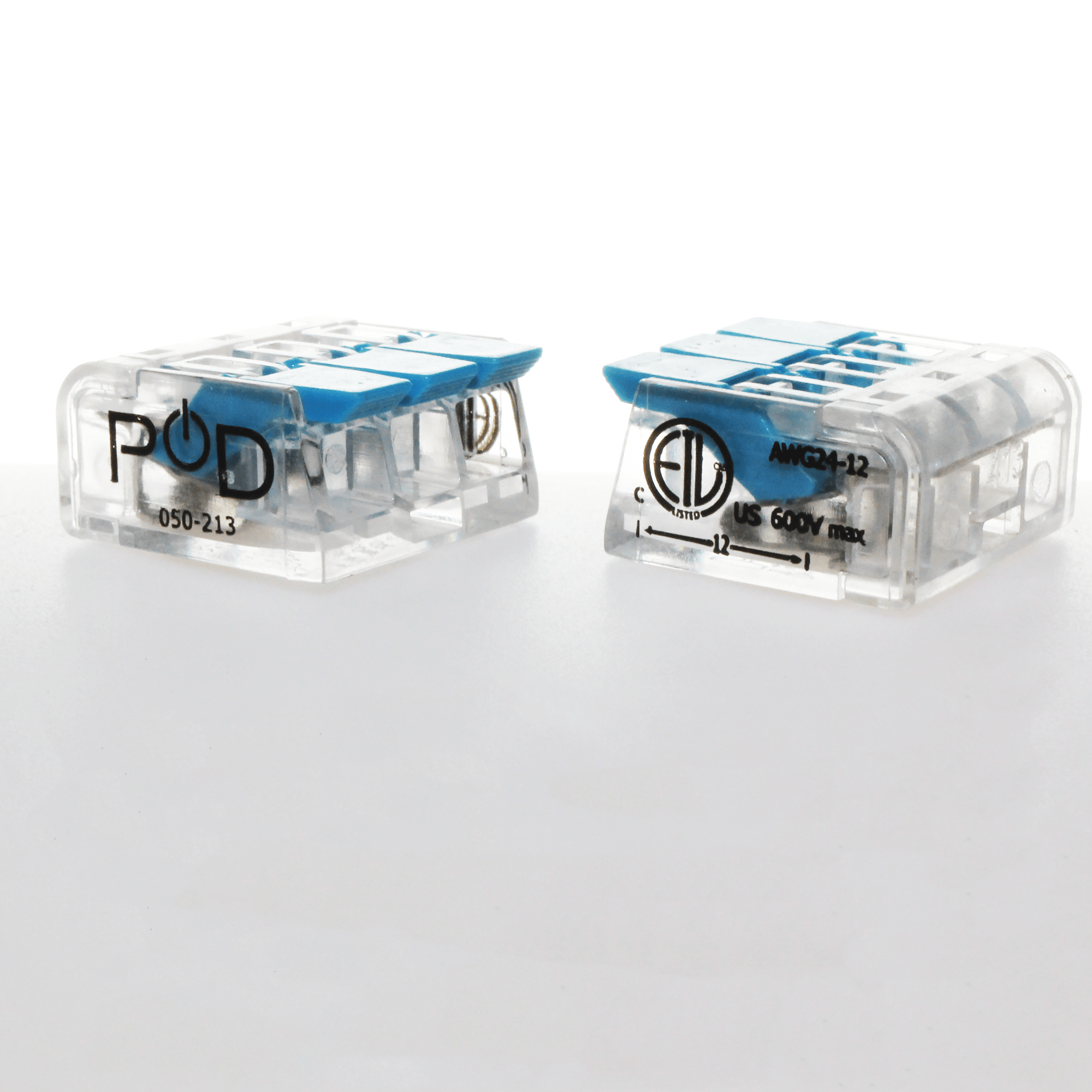

Need more conductors? Choose our 3-port or 5-port variants for multi-wire splicing while maintaining the same game-changing speed and reliability.
Ready to upgrade? Add a box of Conversions Technology 2-port lever nuts to your cart now and experience the fastest, safest way to splice copper wire.
