Conversions Tech™ ½-inch NPT Nylon Cable Gland Light Gray
Shipping calculated at checkout
SKU: 9889-0112
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Designed for installers who demand leak-free reliability, this gland pairs a UV-stabilised, halogen-free PA-6 body with an EPDM O-ring and CR/NBR compression sleeve. Rated IP-68 to 5 bar, it shrugs off dust, wash-downs and submersion from −40 °C to +105 °C, keeping power, control and data cables protected in the harshest environments.
Key Features
- IP-68 / NEMA 6P — maintains a 5 m / 30 min seal.
- UL-94 V-2 PA-6 construction — halogen-free, corrosion-proof and UV-stable.
- Wide temperature range — −40 °C → +105 °C continuous service.
- Self-locking ratchet thread — resists vibration on mobile and industrial equipment.
- Ships complete with lock-nut and sealing washer for one-trip installation.
- ANSI/ASME B1.20.1 NPT taper • CE & RoHS compliant.
Typical Applications
- PV combiner boxes & micro-inverter drops
- EV charge posts & battery-swap cabinets
- PLC enclosures, VFD drives & pump skids
- LED lighting retrofits & outdoor security cameras
- Marine / RV cable lead-ins through GRP or aluminium skins
Technical Specifications
| Parameter | (Std) | (Slim) |
|---|---|---|
| Thread Size | ½″ NPT (ANSI/ASME B1.20.1) | |
| Cable Ø Range | 10 – 14 mm | 5 – 9 mm |
| Ingress Protection | IP-68 / NEMA 6P (5 bar) | |
| Body & Cap | PA-6, UL-94 V-2, black RAL 9005 or grey RAL 7035 | |
| Seal / O-ring | CR/NBR compression sleeve + EPDM O-ring | |
| Temperature | −40 °C → +105 °C (−40 °F → +221 °F) | |
| Pack Quantity | 50 pcs / bag | |
60-Second Installation
- Punch or drill a ½″ NPT knockout.

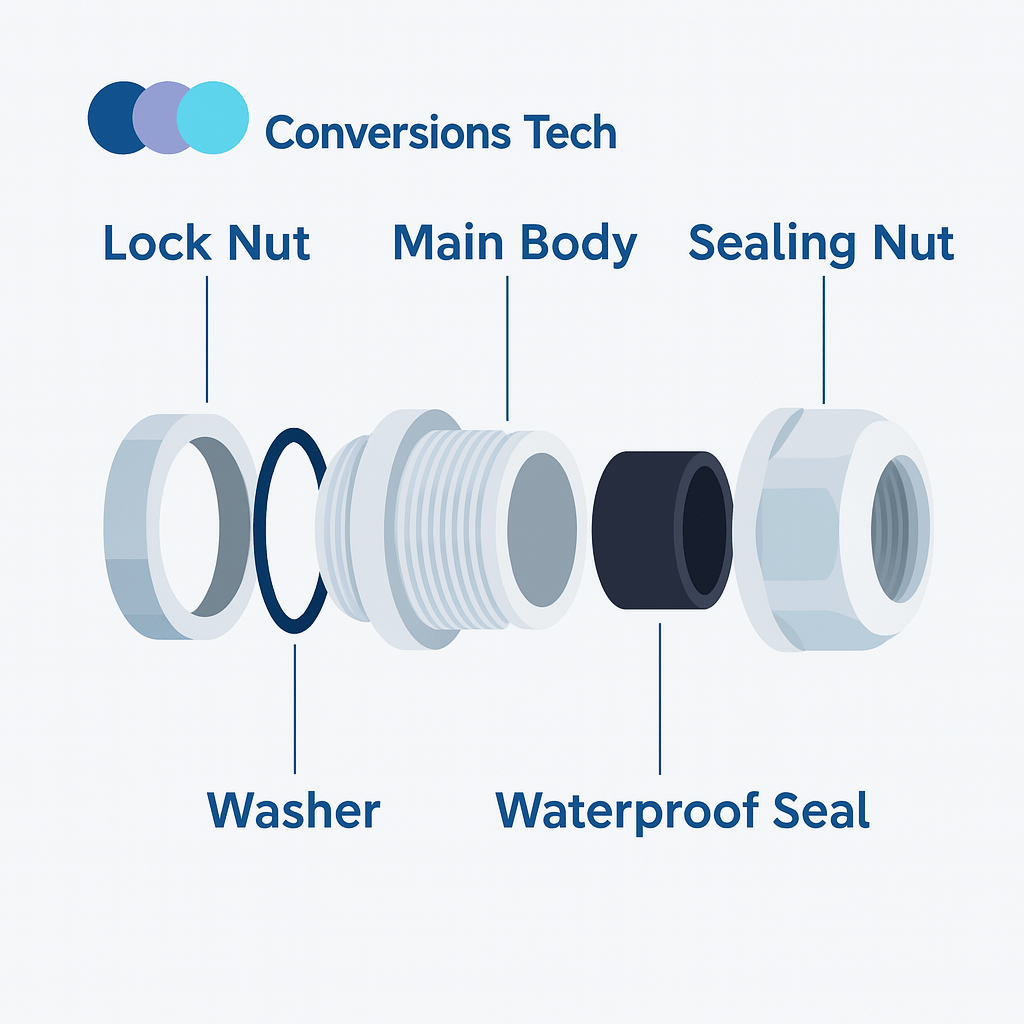

- Place the supplied O-ring on the gland (use the flat washer on sheet-metal).
- Tighten the lock-nut until the gland body no longer turns.
- Insert the cable and hand-tighten the dome cap until snug.
