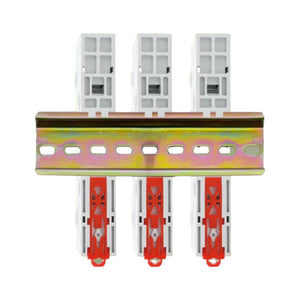

DIN Rail 1500V DC Fuse Holder
Shipping calculated at checkout
SKU: MDPV-32
Only 4 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

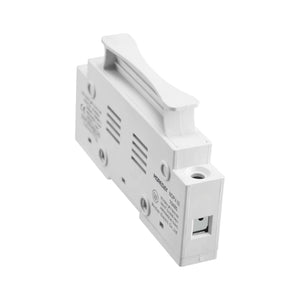

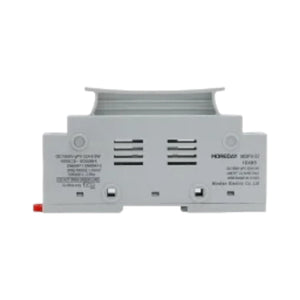

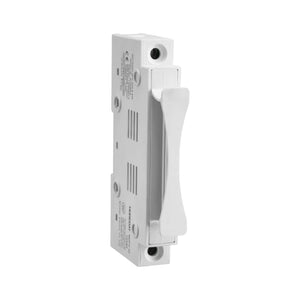

1500V DC Fuse Holder MDPV-32
The Conversions Technology Fuse Holder is engineered for photovoltaic (PV) systems, offering reliable circuit protection under harsh conditions. Rated at 1500V DC and 32A, this fuse holder adheres to IEC standards and undergoes rigorous testing to ensure enhanced reliability.
Key Features:
- Voltage and Current Rating: 1500V DC, 32A
- Standards Compliance: IEC 60947-1

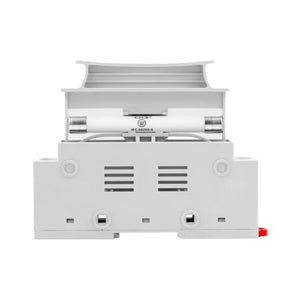

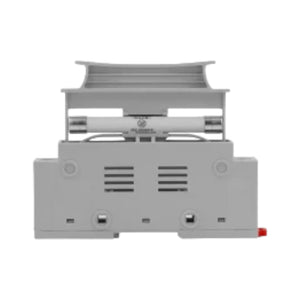

- Fuse Compatibility: Suitable for 10x85mm fuses
- High Capacity: Handles up to 25kA
- Design: Compact with excellent ventilation
- Material: ROHS compliant
Designed for solar PV applications,32 ensures safe and reliable circuit interruption.
Specification
- Type Designation: MDPV-32
- Type of Terminal: Pillar terminal
- Material/Plating of the Terminal: Zinc plated steel
- Material/Plating of the Washer: Zinc plated copper
- Material/Plating of the Screw: Zinc plated iron
- Type of Conductor:
- Flexible: 2.5mm² - 6mm², copper type
- Hard wire: 2.5mm² - 6mm²
- Number of Conductors per Terminal: 1
- Required Preparation of the Conductor: No preparation required
- Max. Stripping Length: 8 mm
- Tightening Torque: 2Nm, M5
- Ambient Temperature: -5℃ to +40℃
- Contact Material: Copper (T2Y)
- Contact Form: Form U
- Interrupting Medium: Air
- Rated Operational Voltage: 1500V DC
- Rated Insulation Voltage : 1800V DC
- Rated Impulse Withstand Voltage: 8kV
- Rated Operational Current: 32A
- Insulation Voltage: 1800V
- Conventional Free Air Thermal Current: 32A
- Conventional Enclosed Thermal Current: 32A
- Conditional Short-Circuit Current: 25kA
- Short Circuit Protective Device: Tested with fuse-link: YRPV-32 (SOLAR, gPV, 10x85, DC 1500V, 32A, Interrupting Capacity: 25kA)
- IP Code: IP20
- Pollution Degree: 3
*note fuse NOT included
