LL Series (Non-Thread) - 1"
Shipping calculated at checkout
SKU: 677-30023
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

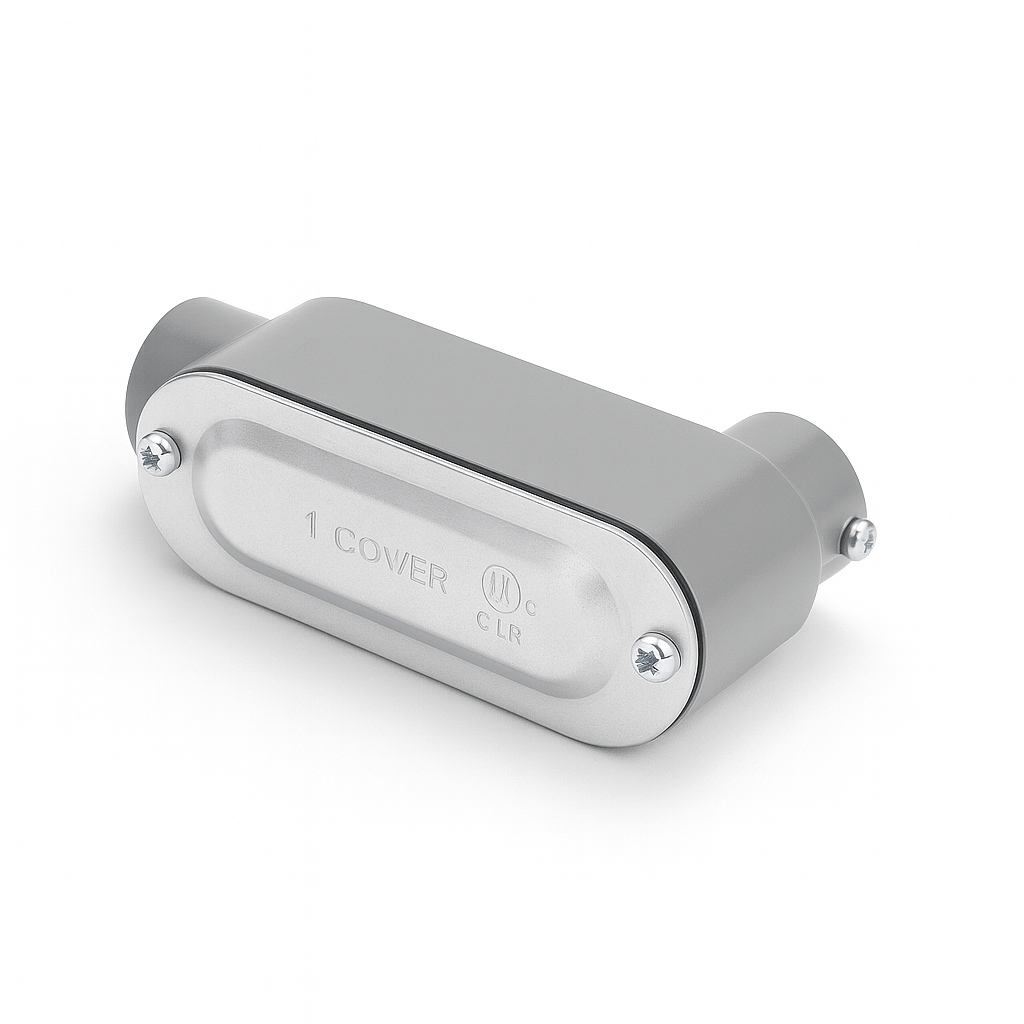

LL Series (Non-Thread) 1" Conduit Fitting — Precision 90° Electrical Elbow
Overview
The LL Series Non-Thread 1" Conduit Fitting provides a precise 90-degree directional change for conduit runs while ensuring smooth conductor transitions and maximum mechanical protection. Designed for medium-diameter conduit applications, it offers a perfect balance of strength, corrosion resistance, and ease of installation—ideal for commercial and light industrial electrical systems.
Description
Manufactured from die-cast zinc or aluminum alloy, the LL 1" elbow features a robust, non-threaded body that eliminates the need for threading or reaming conduit ends. The smooth internal radius minimizes wire friction during pulling, and the left-hand removable cover provides convenient access for conductor maintenance. With optional electro-galvanized or powder-coated finishes, this fitting delivers superior corrosion resistance in both indoor and outdoor environments.
Specification
Applications & Use Cases
- Enable 90° directional changes in conduit systems with minimal effort.
- Provide a protected conduit path into junction boxes, panels, or enclosures.
- Reduce installation time by eliminating threading requirements.
- Ideal for commercial, residential, and light industrial conduit installations.
- Maintain pull-through accessibility for conductor inspection and maintenance.
Key Features
FAQs
What does “LL” stand for on this conduit fitting?
“LL” refers to a left-side cover orientation on a 90° conduit body, providing access from the left side for conductor pulling or inspection.
Is the 1" LL conduit fitting suitable for outdoor applications?
Yes. When installed with the included gasket and sealed properly, the fitting offers reliable protection in outdoor or damp environments.
What conduit types are compatible with this fitting?
This fitting works with EMT, IMC, and rigid metallic conduit when used with appropriate connectors.
Does the fitting come with a cover and gasket?
Most LL fittings include a removable cover and gasket. Verify your model to confirm included accessories.
Is threading required for installation?
No. The non-threaded design allows quick assembly without threading tools, reducing labor and installation time.
What makes this conduit elbow NEC compliant?
The fitting meets all applicable National Electrical Code requirements for mechanical protection, accessibility, and continuity.
Can I use this fitting for high-voltage applications?
Yes, it can be used as part of conduit systems housing conductors rated for high-voltage circuits, provided the conduit type and enclosure rating are suitable.
What finish options are available?
Available finishes include electro-galvanized and powder-coated surfaces for enhanced corrosion resistance and appearance.
Are replacement covers or gaskets available?
Yes. Replacement covers and gaskets can be ordered through Conversions Tech or authorized distributors.
How do LL, LR, and LB conduit fittings differ?
LL has a left-side cover, LR has a right-side cover, and LB has a back cover. Each provides access from a different orientation depending on conduit routing.
