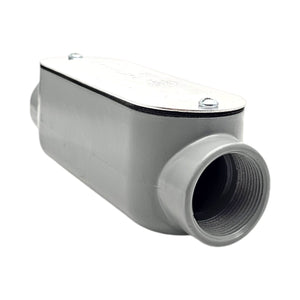

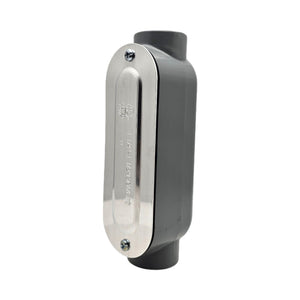

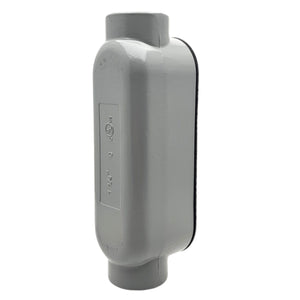

C‑Series 1‑1/4″ Threaded Rigid Conduit Body
The Conversions Tech C‑Series 1‑1/4‑inch conduit body is precision‑engineered for straight‑through junctions in rigid metal conduit (RMC) and intermediate metal conduit (IMC) runs. Die‑cast aluminum construction, UL / CSA certification, and a gasketed cover deliver code‑compliant access for pulling, splicing and inspecting conductors while maintaining a continuous, grounded raceway.
Key Technical Features
- Trade Size 1‑1/4″ threaded NPT hubs — vibration‑proof connection to 1.25″ RMC / IMC.
- C‑Series straight‑through body — ample interior volume for NEC bend radius & fill.
- Die‑cast aluminum alloy — lightweight, corrosion‑resistant, non‑sparking.
- Stamped aluminum cover + neoprene gasket — NEMA 3R / IP54 seal for dry & damp locations.
- ANSI 61 grey powder‑coat — UV, salt‑spray and chemical resistance.
- UL Listed & CSA certified — fully NEC‑compliant for North‑American installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Series / Geometry | C‑Series, straight‑through |
| Trade Size | 1‑1/4″ (32 mm) |
| Hub Type | Threaded NPT, UL‑filed |
| Body Material | Die‑cast aluminum alloy |
| Cover & Seal | Stamped aluminum cover + neoprene gasket |
| Environmental Rating | NEMA 3R / IP54 (with gasket installed) |
| Finish | TGIC polyester powder coat, ANSI 61 grey |
| Certifications | UL Listed, CSA Certified, RoHS compliant |
Application Highlights
- Securely joins two straight runs of 1‑1/4″ RMC / IMC conduit.
- Provides code‑approved chamber for wire pulling, splicing and tapping.
- Removable cover speeds inspection and future upgrades—no conduit cutting.
- Suitable for service entrances, rooftop HVAC feeds, plant‑floor raceways, and large‑amp residential feeders.
