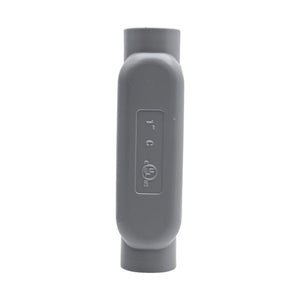

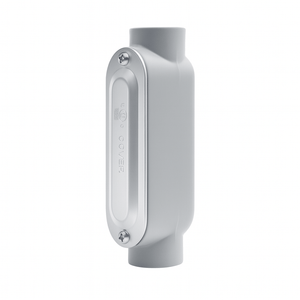

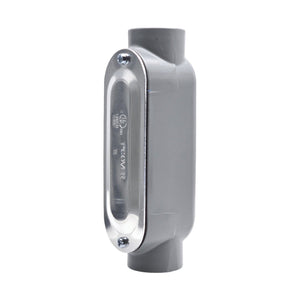

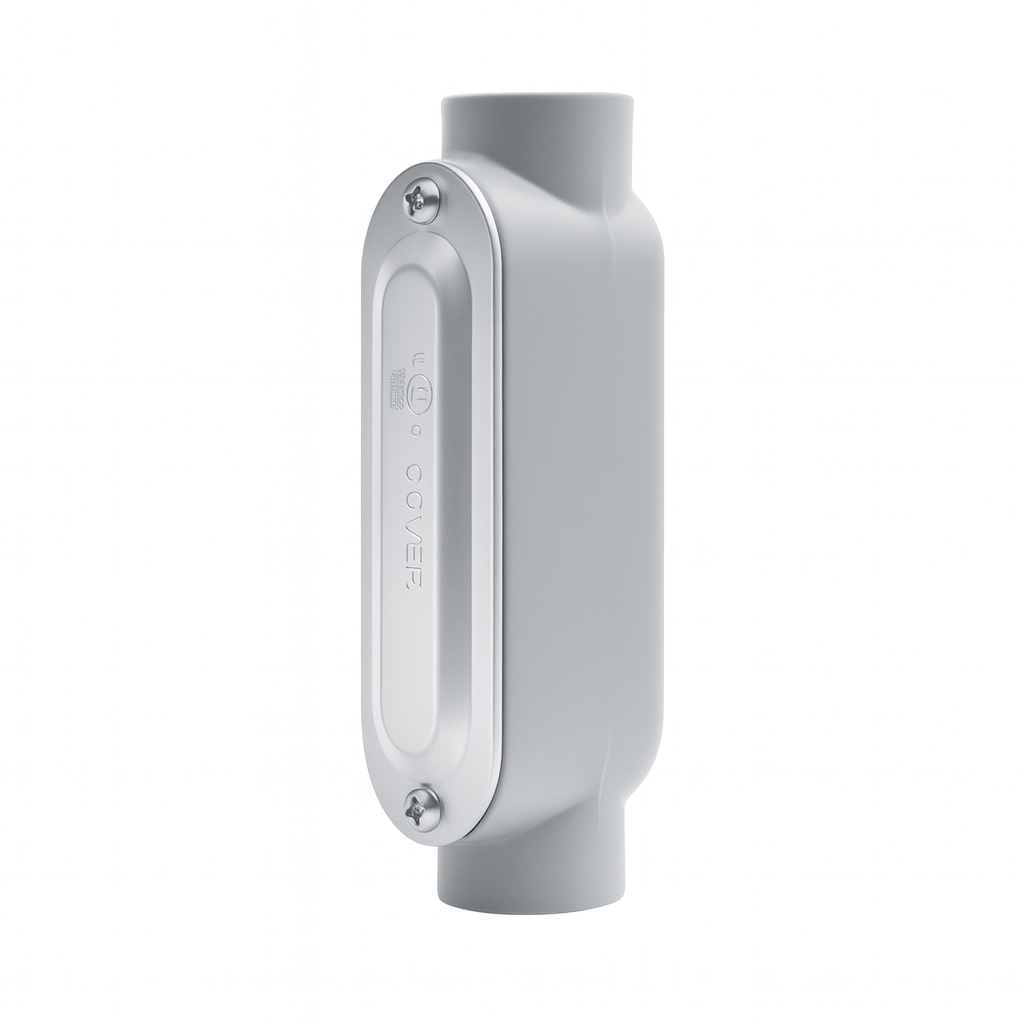

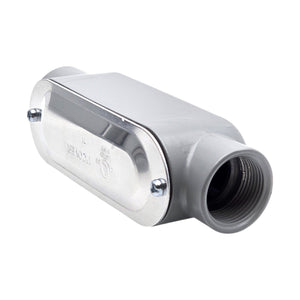

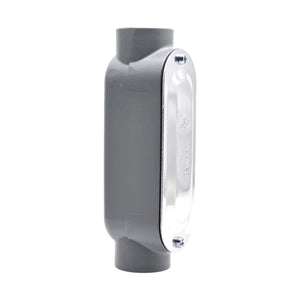

Rigid Conduit Body C Series 1" UL Threaded
Overview:
The C Series Threaded Rigid Conduit Body (RCB) is a 1" UL Listed enclosure designed for facilitating access within rigid metal conduit (RMC) or intermediate metal conduit (IMC) systems. This junction box functions as a connection point for two conduit runs and provides an accessible point for maintenance activities.
Description:
- Configuration: C-Type designation signifies a design optimized for connecting two straight conduit sections.
- Size: 1" threaded hubs accommodate connections with correspondingly sized RMC or IMC conduit.
- Removable Cover: A stamped aluminum cover with a pre-installed rubber gasket facilitates access for wire pulling, splicing (limited by NEC regulations), inspection, and maintenance within the conduit system.
- Material: Constructed from aluminum die-casting for a balance of weight and durability.
- UL & CSA Listed: Ensures adherence to stringent safety and quality standards established by Underwriters Laboratories (UL) and Canadian Standards Association (CSA).
Applications:
- Conduit Connection: Provides a secure and reliable connection point for two straight lengths of 1" RMC or IMC conduit.
- Wire Access Point: Enables pulling, splicing (limited by NEC), and manipulation of electrical conductors within the conduit system.
- Inspection & Maintenance: The removable cover allows for visual inspection and maintenance procedures within the connected conduit runs.
- Dry Locations: This RCB is pre-assembled with a gasket suitable for use in dry locations only. For wet locations, a weatherproof gasket or additional sealing compound might be necessary.
Key Technical Points:
- C-Type configuration: Straight conduit connection.
- 1" Thread Size: Accommodates corresponding RMC or IMC conduit.
- Removable Aluminum Cover: Enables access for wire manipulation and maintenance.
- Pre-Installed Rubber Gasket: Provides a basic seal for dry locations (may require additional sealing for wet locations).
- Aluminum Die-Cast Construction: Lightweight and durable.
- UL & CSA Listed: Meets safety and quality standards.
