Rigid Conduit Body C Series 3/4" UL Threaded
Shipping calculated at checkout
SKU: 675-30012
499 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

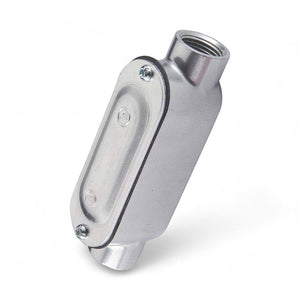

The C Series Threaded Rigid Conduit Body (RCB) is a 3/4" UL Listed enclosure designed for facilitating access within rigid metal conduit (RMC) or intermediate metal conduit (IMC) systems. This junction box functions as a connection point for two conduit runs and provides an accessible point for maintenance activities.
Specifications
Configuration: C-Type designation signifies a design optimized for connecting two straight conduit sections.
Size: 3/4" threaded hubs accommodate connections with correspondingly sized RMC or IMC conduit.
Removable Cover: A stamped aluminum cover with a pre-installed rubber gasket facilitates access for wire pulling, splicing, inspection, and maintenance within the conduit system.
Material: Constructed from aluminum die-casting for a balance of weight and durability.
UL & CSA Listed: Meets safety and quality standards established by Underwriters Laboratories (UL) and Canadian Standards Association (CSA).
Uses and Applications
- Conduit Connection: Provides a secure and reliable connection point for two straight lengths of 3/4" RMC or IMC conduit.
- Wire Access Point: Enables pulling, splicing (limited by NEC), and manipulation of electrical conductors within the conduit system.
- Inspection & Maintenance: The removable cover allows visual inspection and maintenance of the conduit runs.
- Dry Locations: Pre-assembled with a gasket for dry locations. For wet environments, additional sealing may be required.
Item Features
- C-Type Configuration: Designed for connecting two straight conduit sections.
- Removable Aluminum Cover: Facilitates access for wire manipulation and maintenance.
- Pre-Installed Rubber Gasket: Provides a basic seal for dry locations (additional sealing needed for wet conditions).
- Aluminum Die-Cast Construction: Lightweight and durable for long-term use.
- UL & CSA Listed: Meets stringent safety and quality standards.
For more details and technical drawings, download the spec sheet and drawing in PDF format below:
Download Spec Sheet Download Drawing
