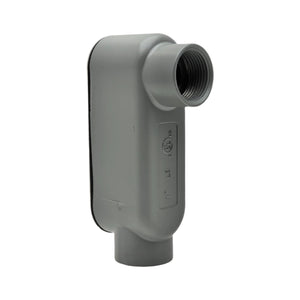

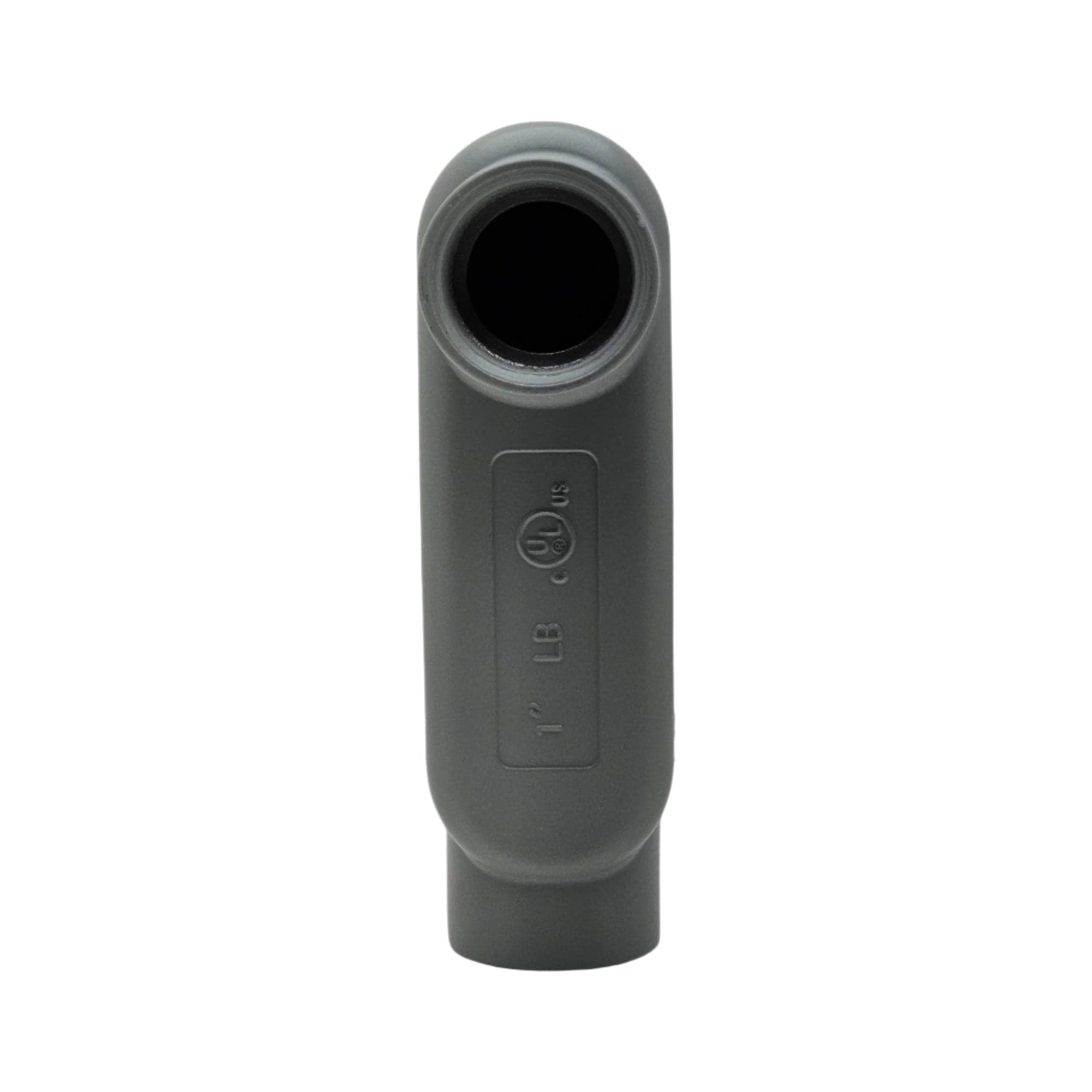

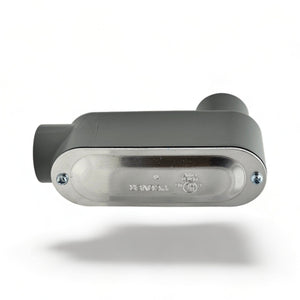

LB Series 1″ Rigid Conduit Body — Threaded
Optimize every 90‑degree bend. The Conversions Tech LB‑Series conduit body delivers IP54‑rated, code‑compliant access for wire pulls, splices and inspections in RMC/IMC systems—built for heavy‑duty commercial, industrial and residential service.
Key Features
- High‑strength aluminum alloy — corrosion‑proof & non‑sparking.
- Threaded 1 inch NPT hubs with UL‑filed threads for vibration‑resistant joints.
- LB 90° access cover enables straight‑in conductor terminations.

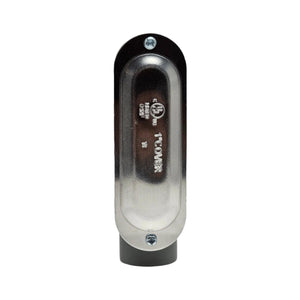

- Neoprene gasket + stainless screws maintain a weather‑tight seal (NEMA 3R).
- TGIC polyester powder coat (ANSI 61 grey) resists UV, salt‑spray & chemicals.
- UL Listed • NEC 2011 compliant — ready for inspection, indoors or out.
Technical Specifications
| Parameter | Value |
|---|---|
| Trade Size | 1 in (25 mm) |
| Series | LB — 90° access |
| Hub Type | Threaded, NPT |
| Body Material | Die‑cast aluminum |
| Cover/Gasket | Formed aluminum cover & neoprene gasket |
| Finish | TGIC polyester powder coat, ANSI 61 grey |
| Environmental Rating | NEMA 3R / IP54 (with gasket installed) |
| Certifications | UL Listed, RoHS |
Typical Applications
- Service‑entrance bends on exterior walls
- Mid‑run access for wire pulling & splicing in long conduit runs
- Industrial plants, rooftop HVAC feeds, data centers, utility rooms
