Rigid Conduit Body LR Series 1-¼” UL Threaded
Shipping calculated at checkout
SKU: 675-30034
99 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

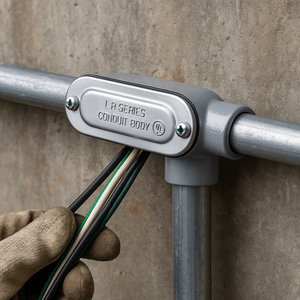

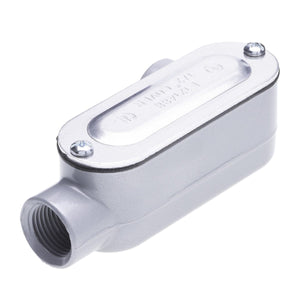

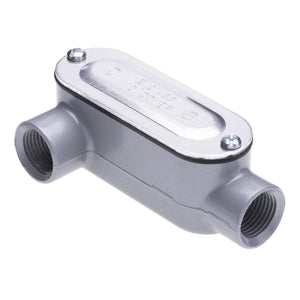

LR Series Threaded Rigid Conduit Body — 1-1/4 in. NPS, Aluminum, Wet-Location Rated
Upgrade your RMC or IMC raceway with our UL-Listed LR Series threaded rigid conduit body. Engineered from marine-grade aluminum and sealed with a weather-tight neoprene gasket, this 1-1/4 inch LR-type enclosure delivers easy access for wire pulling, splicing, inspection, and 90° directional changes—all while maintaining a dust- and moisture-proof seal.
Key Performance Benefits
- Dual-Hub Versatility – Set-screw EMT hub + NPS tapered threaded hub simplify EMT-to-RMC/IMC transitions in one compact body.
- 10.8 in³ Internal Volume – Ample space for code-compliant wire bends and splices (NEC 314.16).
- Weatherproof Design – Factory-installed neoprene gasket + powder-coat finish block water, UV, and concrete slurry.
- Quick-Access Cover – Captive stainless screws allow tool-free entry for maintenance without dropping hardware.
- UL & CSA Certified – Meets the latest safety standards for commercial and industrial installs.
Technical Specifications
| Trade Size | 1 ¼ in. (NPS) |
|---|---|
| Body Material | High-strength A380 aluminum alloy |
| Finish | Electro-static powder coat, ANSI 49 gray |
| Cover & Gasket | Die-cast aluminum cover with molded neoprene O-ring |
| Hub Configuration | LR orientation — EMT set-screw (inlet) / NPS threaded (outlet) |
| Environmental Rating | Wet locations, direct-burial & concrete encasement |
| Listings | UL EXXXXXXX • CSA C22.2 No. 18 |
| Operating Temp | -40 °C to +105 °C |
Typical Applications
Perfect for commercial buildings, wastewater plants, refineries, and any project that demands corrosion-proof bending, splicing, or conduit redirection without extra junction boxes.
4 Reasons Pros Buy Direct from Conversions Tech
Headquartered in business-friendly Wyoming, we design, test, and ship every product from inside the United States—delivering genuine “Made-for-America” quality without the big-box markup.
Our in-house team owns every CAD file, mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. Vertical control means tighter tolerances, UL-listed safety, and up to 30 % lower cost than private-label imports.
Thousands of SKUs sit ready to go. Orders placed by 2 p.m. ship the same day, keeping contractors, OEMs, and distributors on schedule.
Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.
Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
