Rigid Conduit Body TSeries 1-½” UL Threaded
Shipping calculated at checkout
SKU: 675-30045
100 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

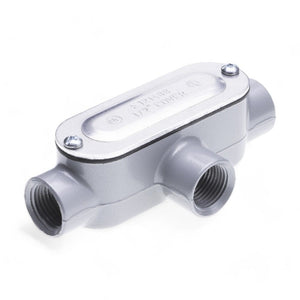

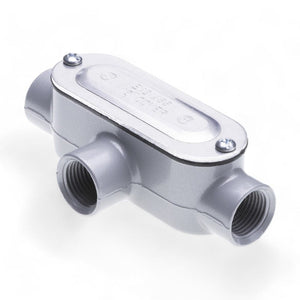

T-Series 1-1/2-Inch Threaded Rigid Conduit Body (Type T)
The UL-Listed, NEMA 3R-rated T-Series conduit body delivers extra-wide access for wire pulling, splicing, and tapping in any rigid metal conduit (RMC/IMC) run. Its removable, gasketed cover makes inspections and future upgrades a breeze—indoors or out.
Key Benefits
- True Type T Configuration – Three-way hub speeds 90° and straight-through transitions while maximizing interior cubic capacity.
- 1-1/2-Inch Female Threads – Fits large-diameter feeders common in industrial, commercial, and multi-family installs.
- UL Listed & NEC-Ready – Fully compliant with 2011 NEC and carries a NEMA 3R weatherproof rating.
- Integrated Neoprene or EPDM Gasket – Manufacturer-supplied seal keeps moisture, dust, and debris out.
- Durable Powder-Coated Finish – Resists corrosion, UV, and chemicals for long-term reliability.
- Tool-Free Access Cover – Single-screw lid slashes labor time on pulls and ongoing maintenance.
Common Applications
- Wire pulling, bending, and splicing for high-amp feeders or multi-circuit bundles.
- Branch taps feeding HVAC equipment, machinery, or exterior lighting.
- Inspection ports for periodic testing and troubleshooting.
- Indoor or outdoor conduit runs that require NEMA 3R weather protection.
Technical Specifications
| Type | Rigid Conduit Body – Type T |
|---|---|
| Hub Size | 1-1/2 in. NPT (38 mm) |
| Body Material | High-durability cast aluminum (manufacturer-specific) |
| Cover Material | Powder-coated aluminum, UL Listed |
| Gasket Material | Neoprene / EPDM (manufacturer-specific) |
| Environmental Rating | NEMA 3R – indoor / outdoor |
| Certifications | UL Listed, 2011 NEC compliant |
| Dimensions | See product datasheet for exact measurements |
| Weight | Lightweight, high-strength construction |
| Warranty | Manufacturer’s Limited Warranty (see details) |
Engineered for Future-Proof Installs
Specify the Conversions Tech T-Series 1-1/2-inch conduit body to simplify large-gauge pulls, reduce service time, and guarantee code compliance in every environment—from busy factory floors to rooftop raceways.
