Split Bolt Connector 1/0 Awg (Max) - 4Awg (Max)
Shipping calculated at checkout
SKU: 610-00104
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

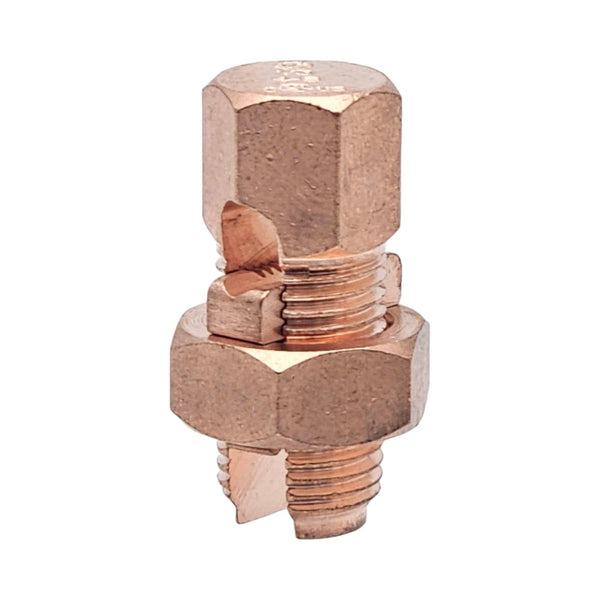

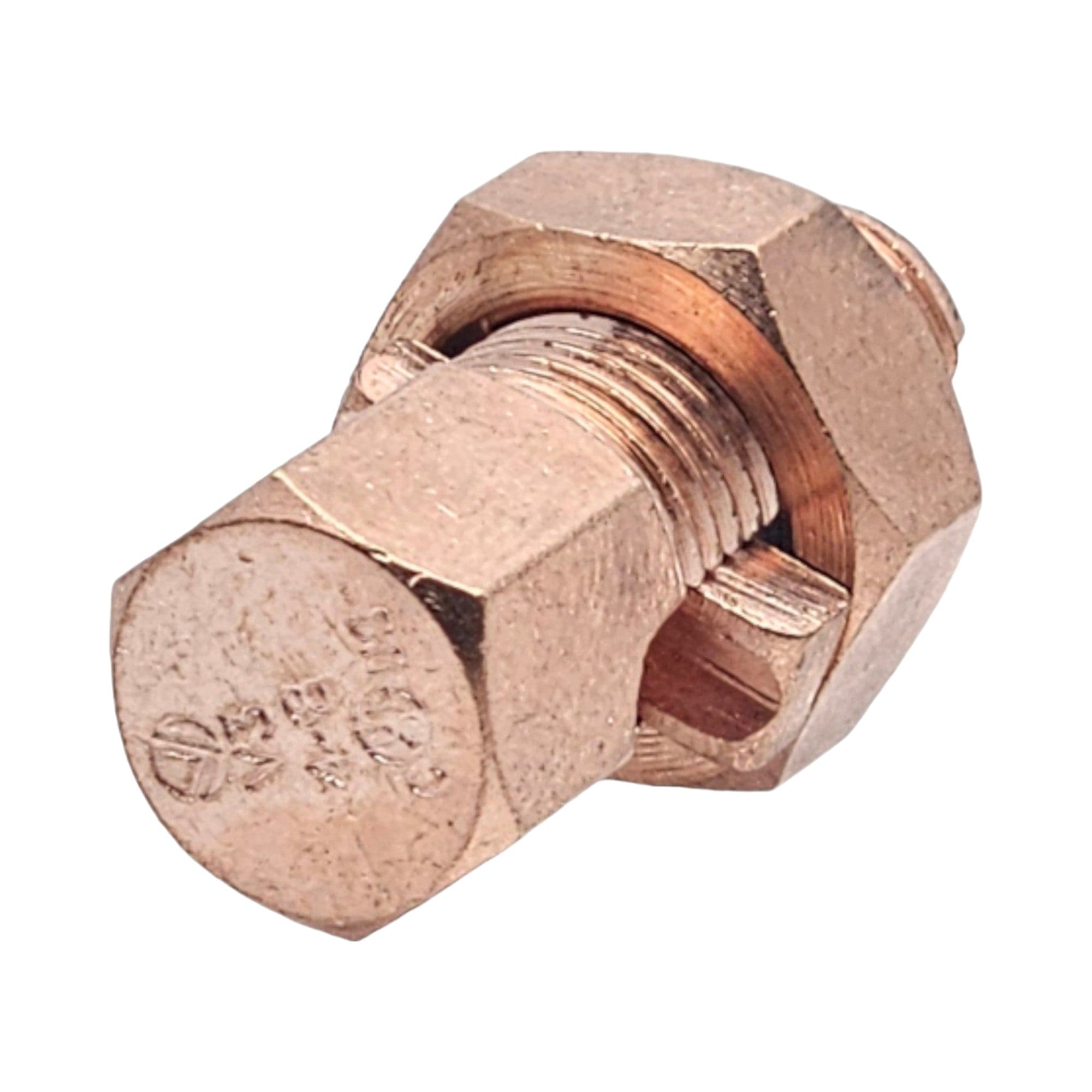

The Split Bolt Connector is an advanced electrical component engineered for precision splicing and termination of copper conductors. It is specifically designed to accommodate conductor sizes ranging from 1/0 AWG Stranded (STR) to 4 AWG Solid (SOL), ensuring optimal mechanical and electrical performance across diverse applications. Constructed from high-grade brass, this connector provides exceptional conductivity, corrosion resistance, and long-term durability.
Technical Specifications
- Conductor Compatibility: 1/0 AWG (STR) – 4 AWG (SOL)
- Material Composition: High-purity brass with anti-corrosive properties
- Thermal Endurance: Rated for continuous operation at 90°C (194°F)
- Voltage Rating: Suitable for use in low- and medium-voltage electrical systems
- Regulatory Compliance: Fully compliant with UL 486A-B and ANSI C119.4 standards
Application Scope
- Electrical Power Distribution: Ensures robust mechanical retention and electrical continuity in residential, commercial, and industrial wiring installations
- Conductor Termination & Splicing: Facilitates secure interconnection of multiple conductors within panelboards, switchgear, and junction boxes
- System Maintenance & Upgrades: Ideal for electrical infrastructure modifications, load expansions, and circuit reconfigurations
- Extreme Environment Deployment: Engineered for use in outdoor, high-humidity, and chemically exposed environments
Key Features & Advantages
- Optimized Electrical Contact: Precision-machined threads ensure high torque retention and minimized resistance losses
- Enhanced Mechanical Strength: Ruggedized construction prevents deformation under high-tension loads
- Corrosion-Resistant Finish: Provides superior resistance to oxidation and environmental degradation
- Ease of Installation: Designed for quick, tool-assisted tightening with standard electrical installation tools
- Versatile Implementation: Compatible with a wide range of conductor types, including solid, stranded, and flexible class copper wires
This Split Bolt Connector is a critical component for ensuring reliable electrical connections in demanding environments, meeting rigorous industry safety and performance standards.
