EMT Compression Connector - Steel with Zinc Plated 3/4"
Shipping calculated at checkout
SKU: 3120-0034
998 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

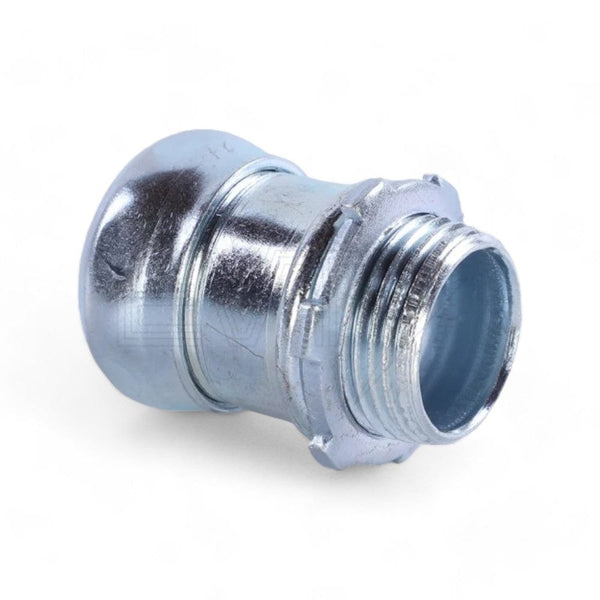

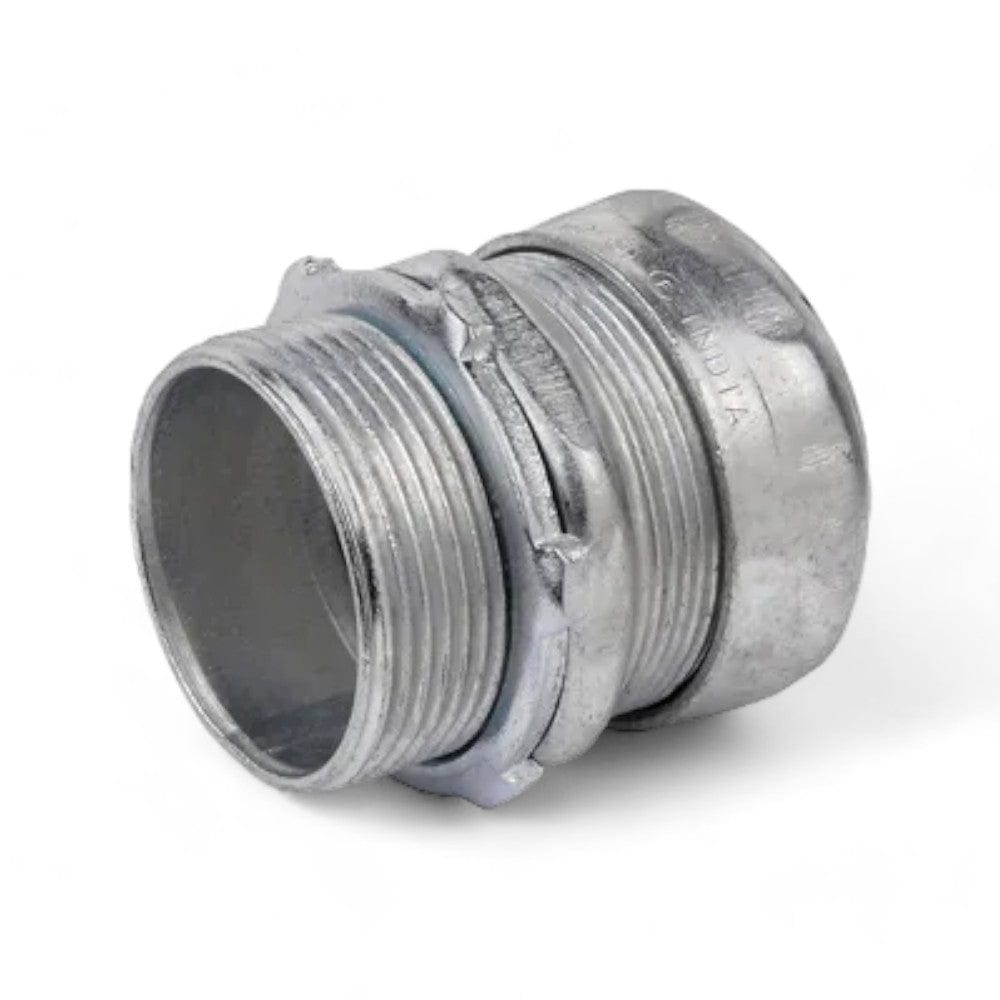

3/4" EMT Non-Insulated Compression Straight Connector – Steel, Concrete-Tight
The Conversions Tech 3/4" Non-Insulated EMT Compression Straight Connector is a precision-engineered electrical fitting designed to create a secure, concrete-tight mechanical and electrical bond between Electrical Metallic Tubing (EMT) conduit and steel boxes or enclosures. Manufactured from high-strength steel and finished with zinc electro-plating, this connector delivers long-term corrosion resistance and dependable performance in both commercial and industrial electrical installations.
This compression-type EMT connector utilizes a threaded body and compression ring to provide rapid installation, superior pull-out resistance, and consistent grounding continuity. Once the EMT conduit is inserted and the compression nut is tightened, the connector forms a robust, vibration-resistant, and concrete-tight seal at the knockout interface—ideal for embedded, exposed, or poured-in-place applications.
Key Technical Features & Benefits
- Fast, Tool-Efficient Installation: Compression design allows quick EMT termination—insert conduit, tighten compression ring, and installation is complete.
- Concrete-Tight Performance: Engineered to maintain a concrete-tight seal between EMT and box or enclosure knockouts.
- Durable Steel Construction: Heavy-duty steel body provides excellent mechanical strength and long-term reliability.
- Zinc Electro-Plated Finish: Protects against corrosion, oxidation, and environmental exposure.
- Reliable Bonding & Grounding: Meets UL bonding and grounding continuity requirements without additional components.
- Trade Size 3/4": Designed specifically for standard 3/4" EMT conduit installations.
- Professional-Grade Compliance: UL Listed for use in code-compliant electrical systems.
Technical Specifications
| Product Type | Non-Insulated EMT Compression Straight Connector |
|---|---|
| Trade Size | 3/4" |
| Conduit Compatibility | Electrical Metallic Tubing (EMT) |
| Material | Steel |
| Finish | Zinc Electro-Plated |
| Connection Type | Compression |
| Seal Type | Concrete-Tight |
| UL Standard | UL 514B |
| UL File Number | E24001 |
Typical Applications
- Connecting EMT conduit to steel junction boxes
- Electrical enclosures and panelboards
- Commercial and industrial conduit systems
- Concrete-embedded conduit installations
- Indoor and protected outdoor electrical applications
Frequently Asked Questions (FAQs)
Is this connector compatible with rigid conduit?
No. This connector is specifically designed for Electrical Metallic Tubing (EMT) and is not intended for rigid or IMC conduit.
Does this connector provide a concrete-tight seal?
Yes. The compression design creates a concrete-tight seal at the box or enclosure knockout when properly installed.
Is this connector UL Listed?
Yes. It is UL Listed under File No. E24001 and complies with UL 514B requirements.
Is additional grounding hardware required?
No. When installed correctly, the connector provides reliable bonding and grounding continuity per UL standards.
What tools are required for installation?
Standard hand tools such as a wrench or pliers are sufficient to tighten the compression nut.
Can this connector be used in outdoor installations?
It may be used in protected outdoor environments. For wet or direct-exposure locations, consider fittings specifically rated for wet locations.
What is the finish used on this connector?
The connector features a zinc electro-plated finish for enhanced corrosion resistance.
Is this connector insulated?
No. This is a non-insulated EMT compression connector.
What trade sizes are available?
Compression EMT connectors are available in trade sizes ranging from 1/2" to 4". This listing is for the 3/4" size.
Where is this connector commonly used?
It is commonly used in commercial buildings, industrial facilities, electrical rooms, and conduit systems requiring durable EMT connections.
