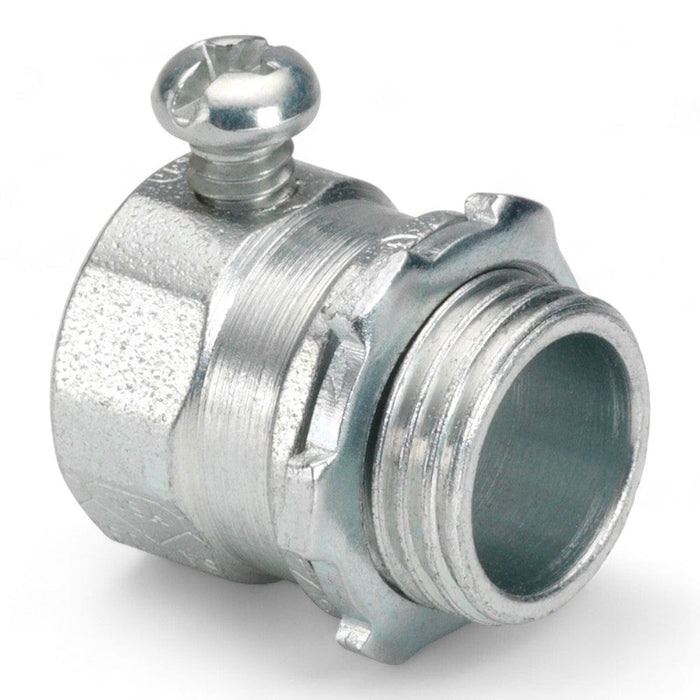

EMT Set Screw Connector - Zinc 1/2''
Shipping calculated at checkout
SKU: 3125-0012
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech ½" steel set screw connectors can be used to connect electrical metallic tubing to an electrical box or enclosure. When properly installed they create a concrete-tight seal.
SPECIFICATIONS:
Flexible Sizing: Set screw EMT steel connectors are available in trade sizes 1/2" to 4", meeting all of your EMT installation needs
Strong and Durable: Set screw EMT connectors are constructed from steel and then electroplated with zinc for both superior strength and excellent corrosion resistance
Set-Screw Design: Quick, reliable connections are as easy as tightening down the included set screw and then securing the connector's locknut to a box knockout
Professional Performance: These set screw EMT steel connectors are UL Listed under File No. E24001
TECHNICAL DETAILS:
Material: Steel
Finish: Zinc Eletro-Plated
UL Standard: UL-514B
UL File No.: E24001
APPLICATION:
-
Used to connect EMT conduit to boxes or enclosures
-
Used in dry locations
-
Concrete-tight when taped
Copyright © 2023 Conversions Tech. All rights reserved.
Specifications
- Trade Size: 1/2"
- Material: Steel
- Finish: Zinc Electro-Plated
- Type: Set Screw Connector
- UL Listed: E24001
Cross-Reference
This fitting is dimensionally equivalent to standard set screw connectors from Crouse-Hinds, Appleton, and Bridgeport.
How do I install this set screw connector?
Installation is quick and reliable: tighten down the included set screw onto the EMT conduit, then secure the connector's locknut to the box knockout. When properly installed, the fitting creates a concrete-tight seal.
Is this connector suitable for wet locations?
No, this set screw EMT connector is designed for use in dry locations only.
What makes this connector concrete-tight?
These set screw EMT steel connectors create a concrete-tight seal when properly installed and taped, as confirmed by their UL Listing under File No. E24001 to UL-514B.
