127Pcs Heat Shrink Tube Sleeving Tubing Assortment Kit Electrical Connection Electrical Wire Wrap Cable Waterproof Shrinkage 2:1
Shipping calculated at checkout
SKU:
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
127-Piece Heat Shrink Tubing Assortment Kit (Polyolefin • 2:1 • VW-1)
Complete dual-wall heat-shrink tubing kit for electronics, automotive, marine, and general electrical insulation. Outer polyolefin provides abrasion resistance, while the inner adhesive lining bonds to form a waterproof, strain-relieved seal. Flame-retardant (VW-1) and manufactured under ISO9001 quality standards.

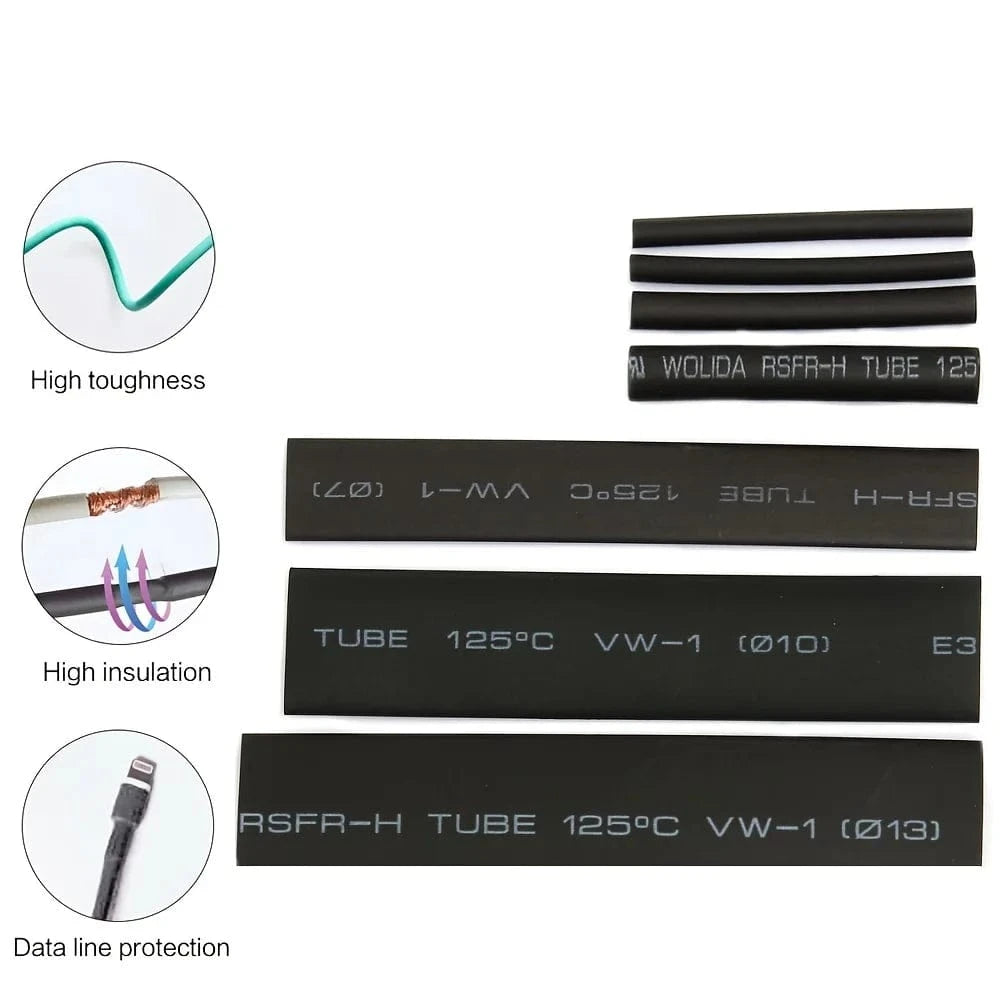

Key Features
- Six Common Diameters to cover most repair, splice, and harness needs.
- Dual-Wall Protection — rugged outer jacket with adhesive inner seal.
- Waterproof & Corrosion-Resistant when fully recovered.
- Fast Application: slide over joint, heat, cool—professional finish in seconds.
- Flame-Retardant VW-1 tubing for added safety.
Technical Specifications
| Material | Polyolefin (PE), dual-wall adhesive-lined |
|---|---|
| Shrink Ratio | 2:1 (shrinks to 50% of supplied diameter) |
| Total Length | 6.4 m (all pieces combined) |
| Operating Temperature | −55 °C to +125 °C |
| Minimum Shrink Temperature | ≈ 70–80 °C |
| Full Recovery Temperature | ≈ 125 °C |
| Dielectric Strength | 15 kV/mm |
| Tensile Strength | 10.4 MPa |
| Flammability | VW-1 (flame-retardant) |
| Compliance | RoHS • ISO9001 |
| Supplied Format | Flat; cut to length with a sharp knife or scissors |
| Color | Black |

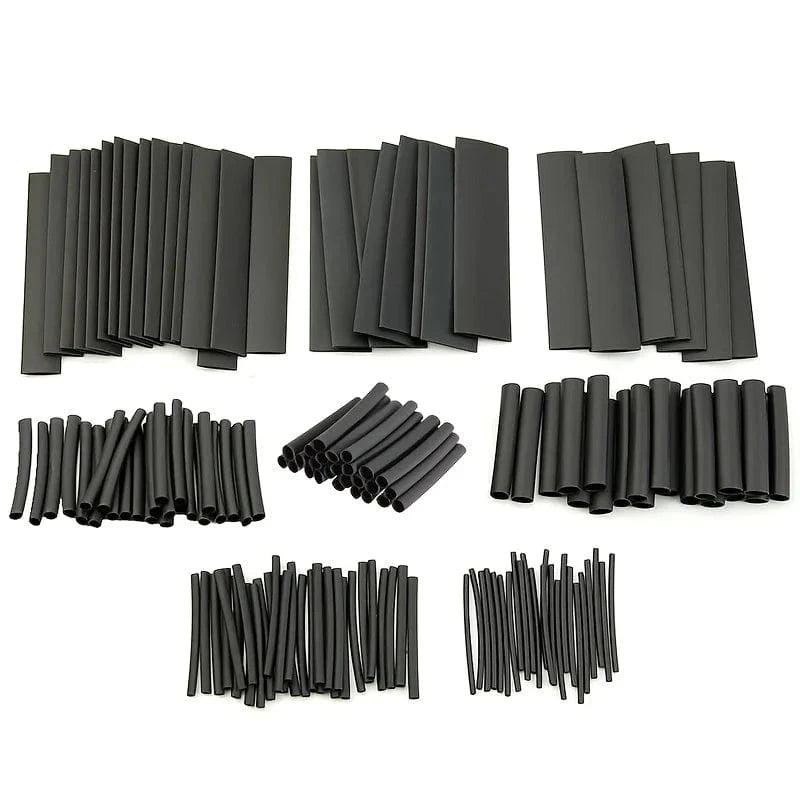

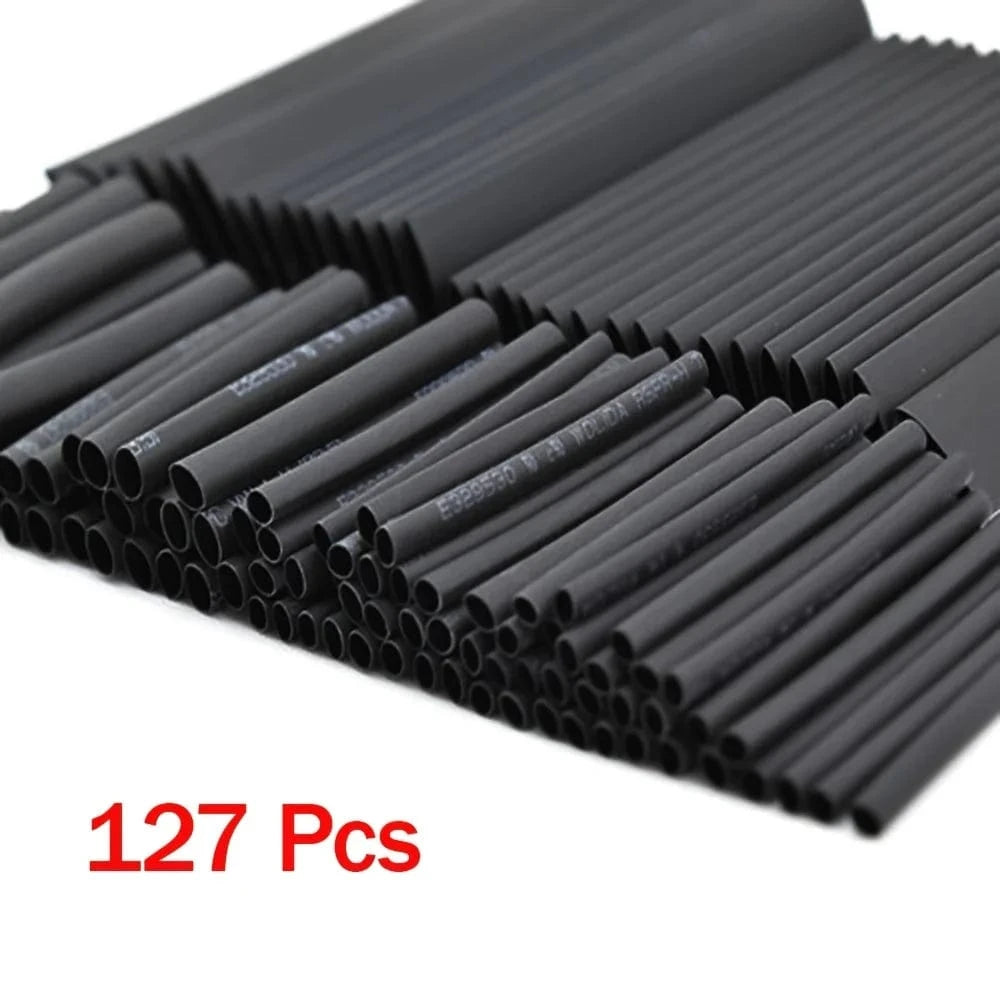

Kit Contents (127 Pieces)
| Size (Ø × Length) | Quantity |
|---|---|
| 2.0 mm × 40 mm | 30 pcs |
| 2.5 mm × 40 mm | 25 pcs |
| 3.5 mm × 40 mm | 20 pcs |
| 5.0 mm × 40 mm | 20 pcs |
| 7.0 mm × 80 mm | 16 pcs |
| 10.0 mm × 80 mm | 8 pcs |
Use & Applications

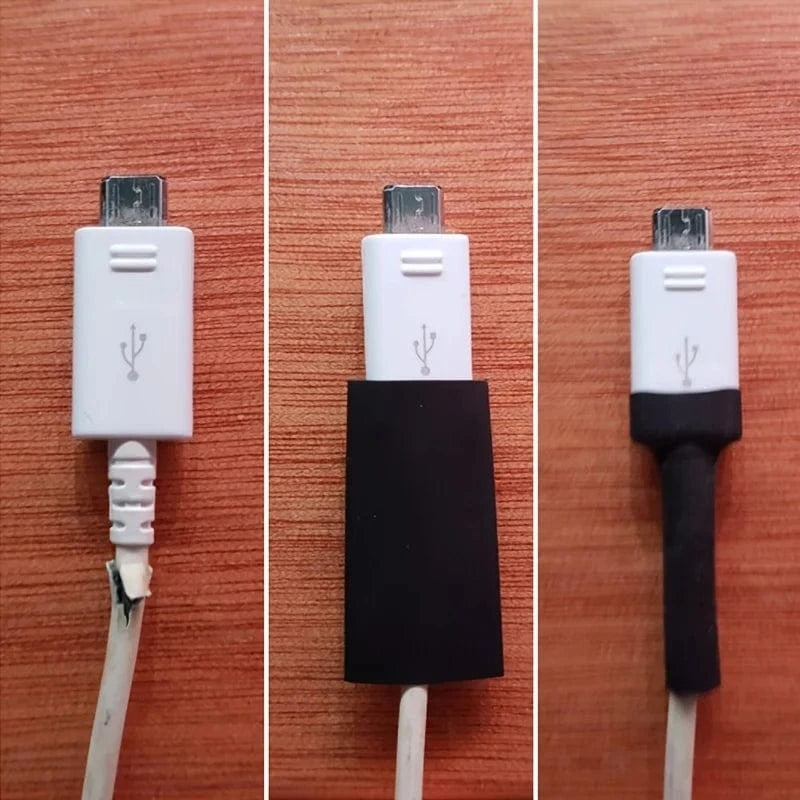

- Seal and insulate soldered splices, crimp connectors, and cable joints.
- Harness consolidation and strain relief in vehicles, boats, and outdoor enclosures.
- Moisture protection for low-voltage DC wiring, sensors, and LED leads.

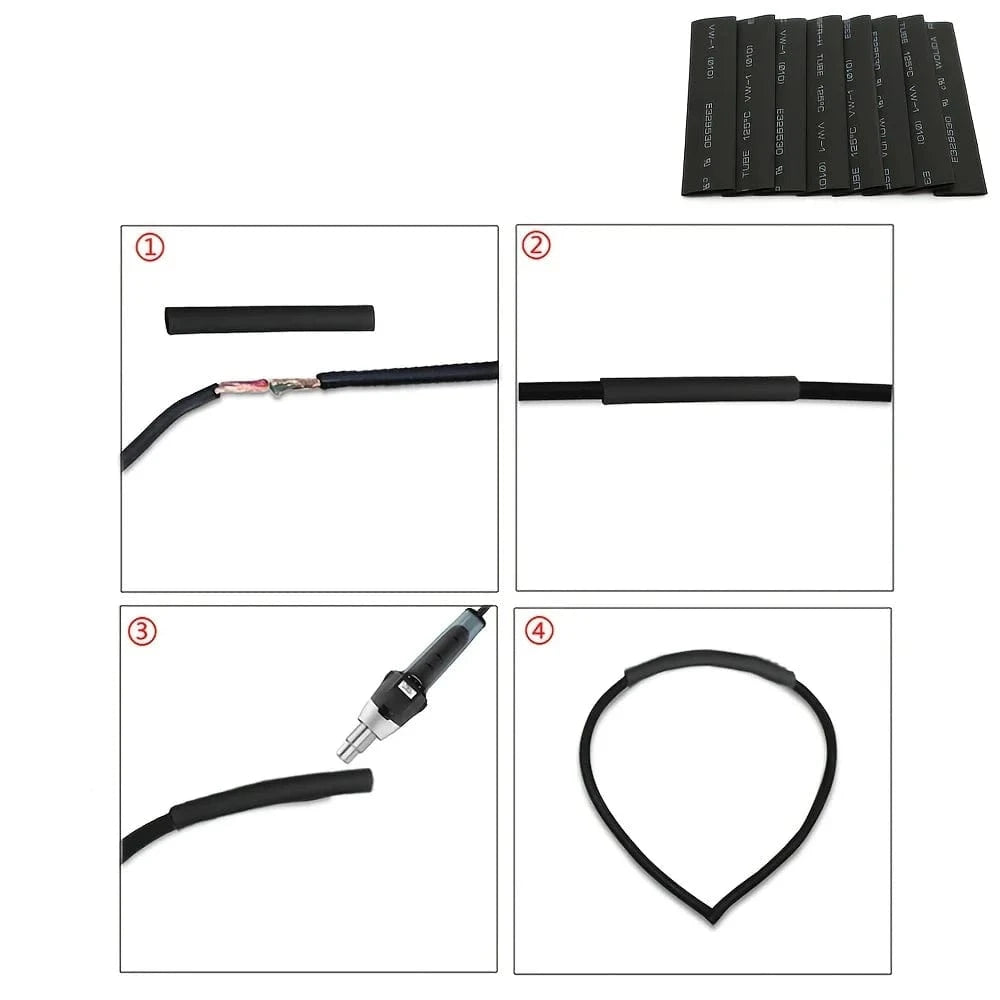

How to Apply
- Select tubing 20–30% larger than the largest OD of the joint.
- Slide over the connection; heat evenly with a heat gun until fully recovered and adhesive flows.
- Allow to cool undisturbed for a watertight, mechanically secure seal.
Safety & Handling
- Use a heat gun; avoid open flames.
- Contains small parts—keep away from children under 3 years.
- Test fit on a sample joint before critical installations.
FAQs
Is it waterproof?
Yes—when fully recovered, the adhesive-lined inner wall creates an environmental seal.
What heat source should I use?
A standard heat gun provides uniform heating and best results.
Will 2:1 fit larger splices?
2:1 shrinks to half its original diameter. Choose a supplied size 20–30% larger than your joint’s OD.
Is the tubing flame-retardant?
Yes—tested to VW-1 standard.
Can I cut it?
Yes—supplied flat; cut to length with a sharp knife or scissors.
