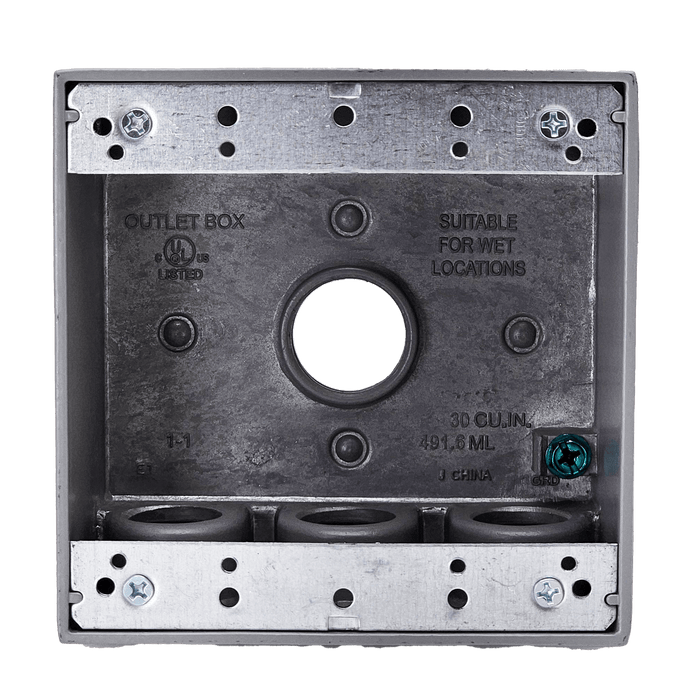

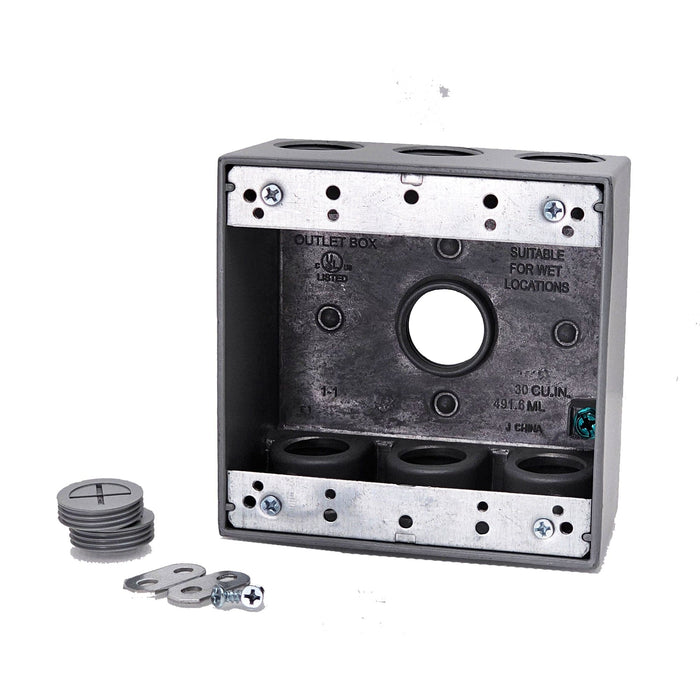

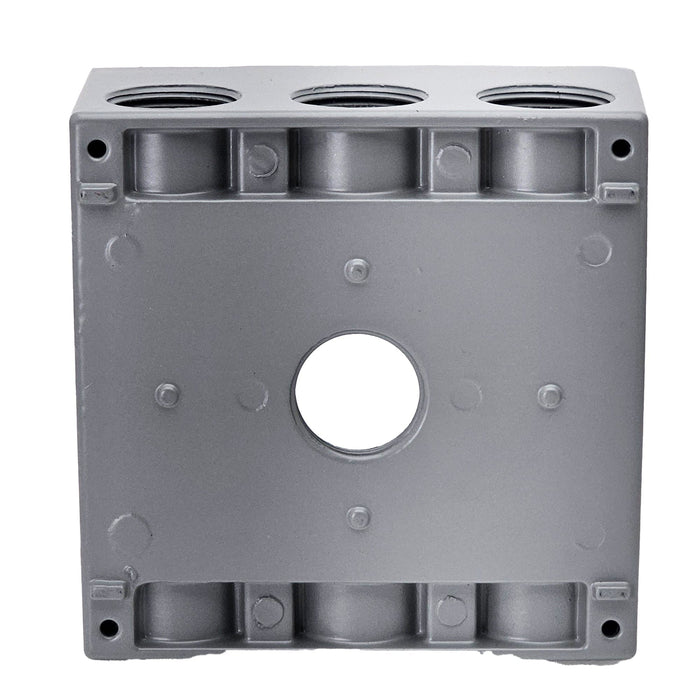

2 Gang weatherproof Grey box with (7) 1/2" threaded outlets
Shipping calculated at checkout
SKU: 210-31036
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Precision-engineered for housing dual wired devices, these die-cast metal 2-gang boxes are ideal for switches, outlets, and outdoor lighting fixtures, offering robust protection and versatile wiring configurations.
Specifications
Material: Seamless die-cast metal for enhanced durability.
Finish: Gray powder-coating for a sleek, protective exterior.
Dimensions: Measures 4.56" x 4.56" with a depth of 2.10".
Hub Size: Compatible with 1/2" hubs.
Hub Count: Features 7 hubs for comprehensive wiring schemes.
Gang Compatibility: Designed for 2 gangs, allowing space for multiple devices.
Mounting: Equipped with lug mounting for secure installation.
Certifications: Compliant with RoHS and UL standards, ensuring safety and quality.
Hub Locations: Strategically placed at the back and sides for optimal wiring pathways.
Installation Instructions
- Determine the ideal installation location in line with your wiring layout.
- Fix the box in position using the pre-fitted mounting lugs.
- Attach conduits to the hubs for a robust connection.
- Carry out the wiring and connection of your devices within the box.
- Secure your devices to the box using the screws provided.
- Employ closure plugs to seal off any unused hubs, protecting against the elements.
- Lastly, connect the ground wire to the ground screw to enhance safety measures.
