SPECIFICATIONS

Application: Cars

Brand Name: DAIER

Housing Color: Black

IP level: IP67

Item: STARLINK Switch Symbol Lasered

Lamp color: White+Blue

MOUNTING TYPE: Surface Mount

Material: Plastic

Max. Current: 20A

Max.magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c4433c;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#fff;font-family:Roboto;font-size:24px;font-style:italic;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:28px;padding:5px 10px;width:580px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-4{width:750px}#detail_decorate_root .magic-5{overflow:hidden;width:750px;height:236px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:750px;height:231px}#detail_decorate_root .magic-7{text-align:justify}#detail_decorate_root .magic-8{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-9{margin-bottom:0}#detail_decorate_root .magic-10{position:relative;width:100%}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:500.24342745861736px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:500.24342745861736px}#detail_decorate_root .magic-13{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:371px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:371px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:259.1093117408907px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:259.1093117408907px}#detail_decorate_root .magic-18{vertical-align:top}#detail_decorate_root .magic-19{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-20{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-21{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:168px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:168px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:249px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:249px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:311px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:311px}#detail_decorate_root .magic-28{font-size:16px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:742px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:742px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:243px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:243px}

About This Item

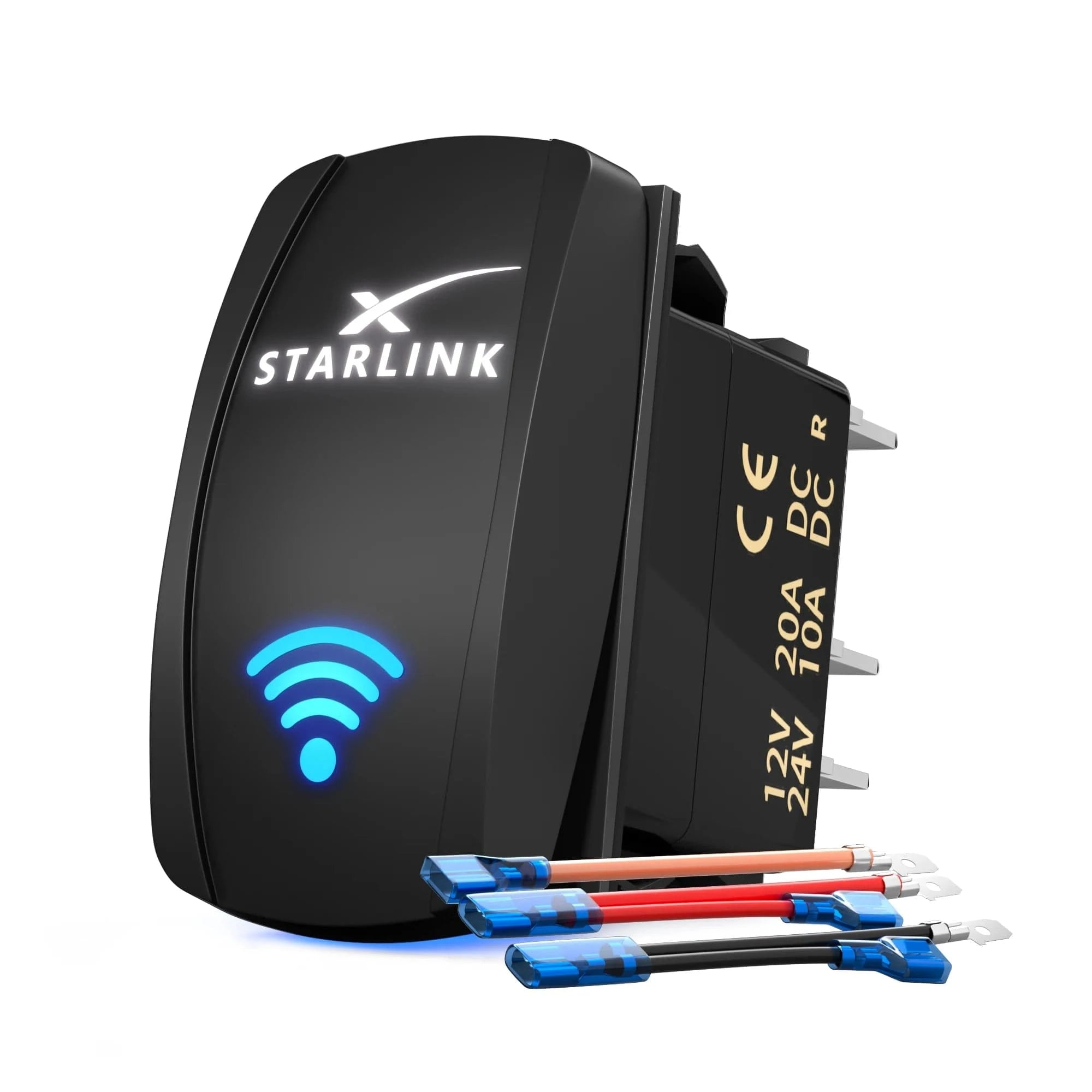

【Dual LED Illumination】- This interior light rocker switch features a dual LED illuminated design for enhanced visibility and functionality. The word markings illuminate when the dash lights are on, while the laser-etched pattern illuminates when the switch is activated, providing clear status indication in all lighting conditions.
【Versatile Circuit Control】- This 5-pin rocker switch utilizes an SPST (Single Pole Single Throw) design for simple ON/OFF control of your interior light or other 12V/24V accessories. It is rated for 20A at 12V DC and 10A at 24V DC, making it suitable for a variety of applications.
【Easy Installation】- This interior light switch comes with a set of jumper wires and quick disconnect terminals, simplifying the installation process. The included wiring kit allows for quick and easy connection to your vehicle's electrical system.

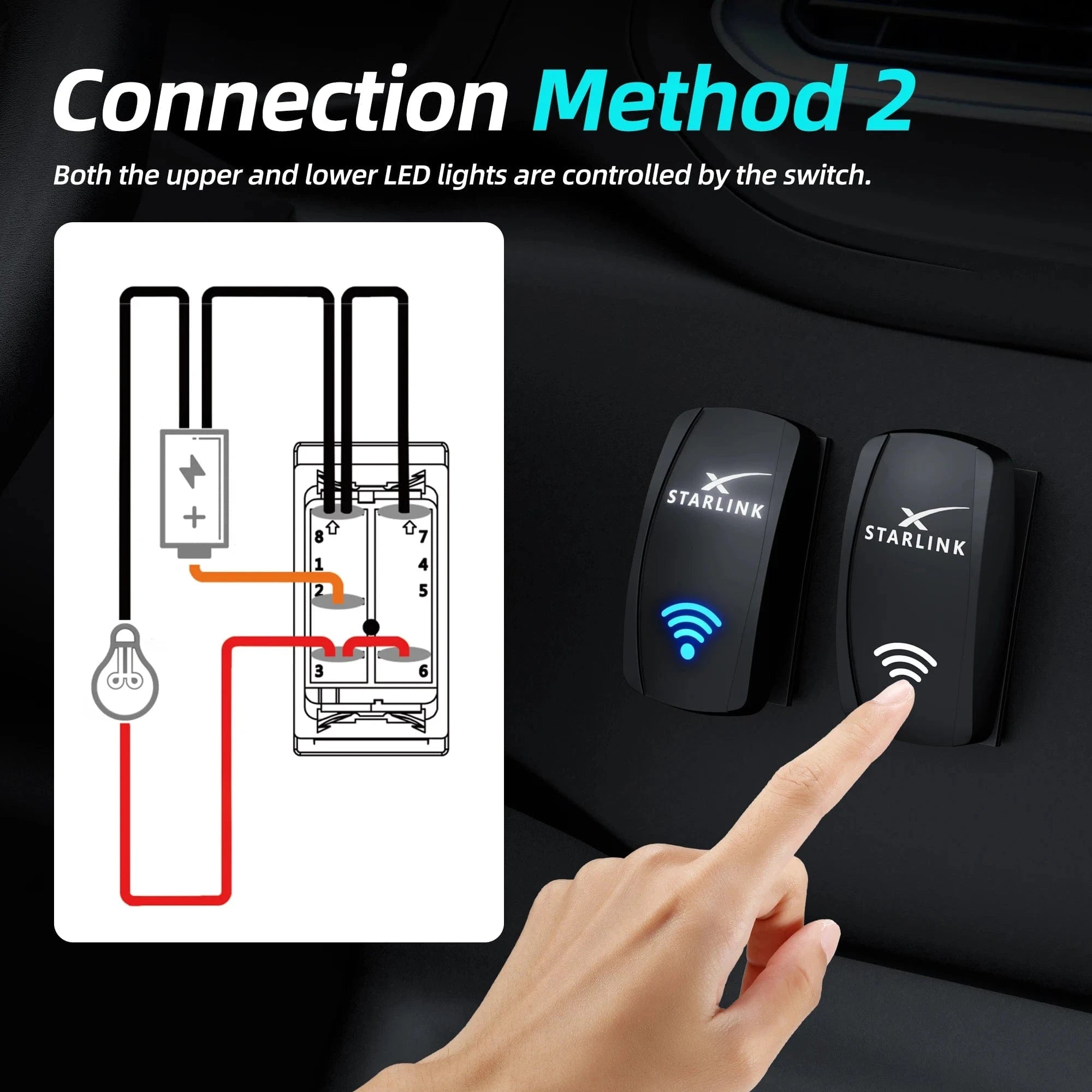

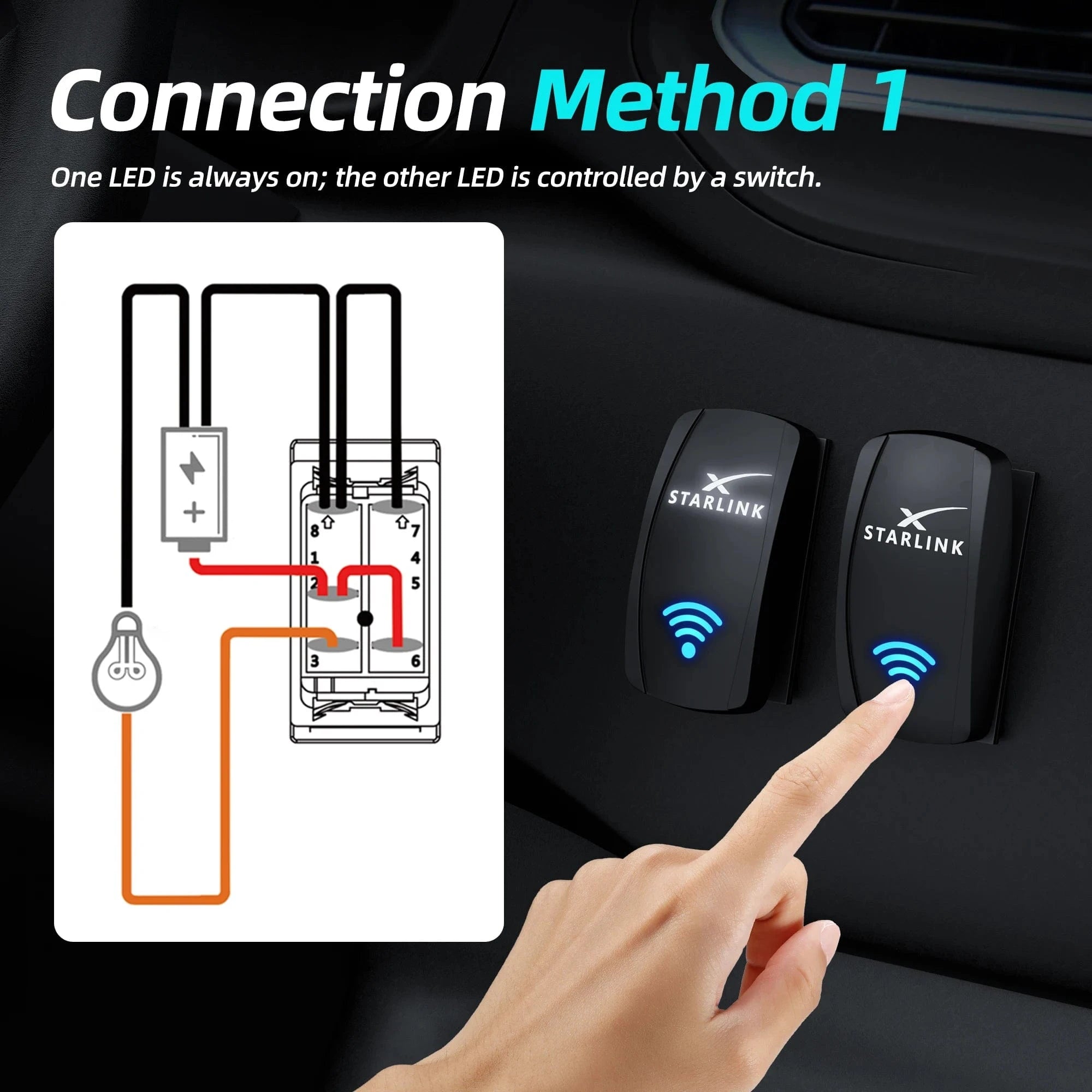

【Flexible Wiring Options】- Users can choose between two wiring methods (A and B), allowing them to customize how the 5-pin switch illuminates. This allows for either the word markings to light up with the dash lights or for both the word markings and the pattern to illuminate only when the switch is turned on.
【Durable and Weather-Resistant】- This rocker switch is built with a rugged, IP65 waterproof, weatherproof, and dustproof design. This ensures reliable performance in harsh environments, making it suitable for automotive, marine, powersports, and other demanding applications.

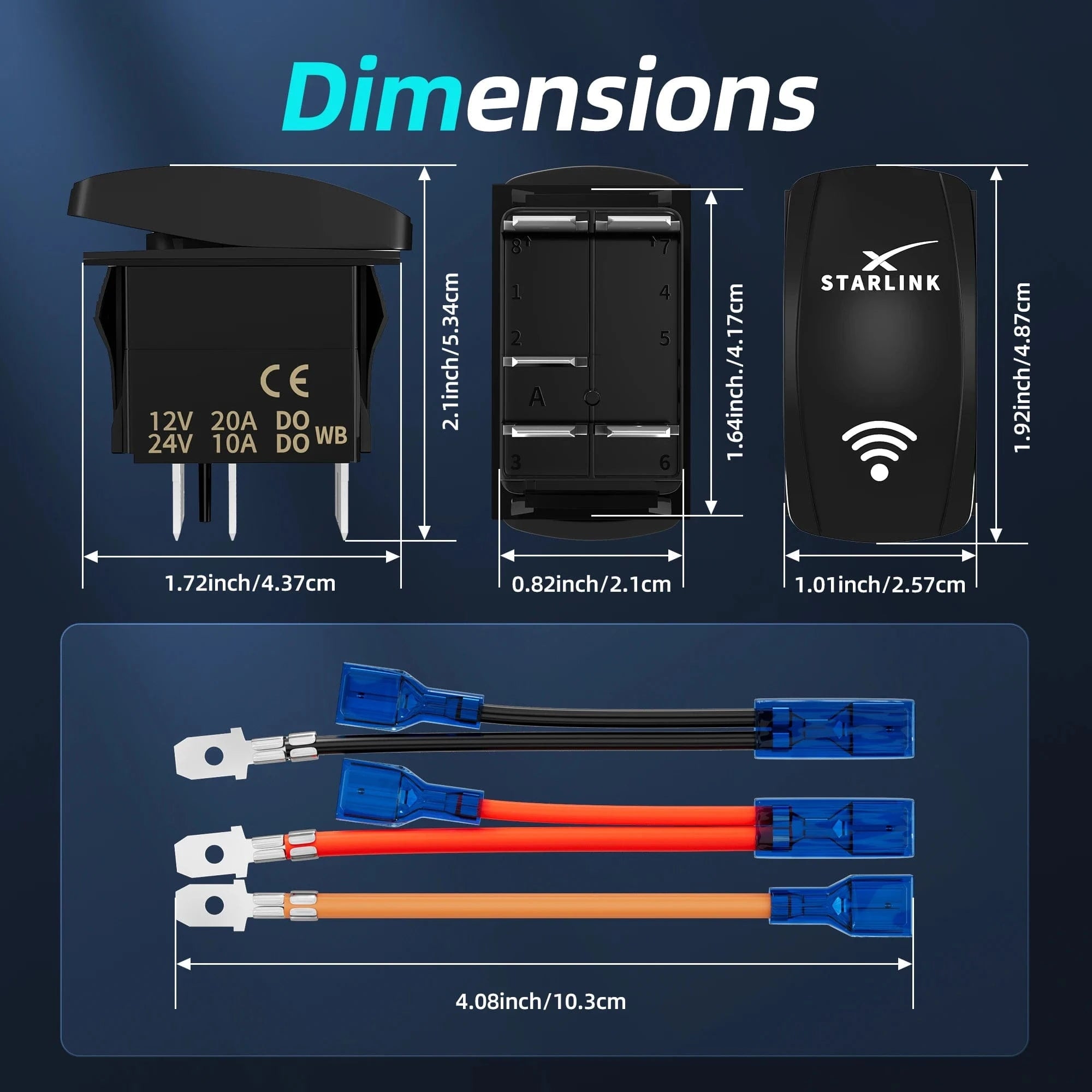

【Convenient Standard Mounting Size】- The switch features a standard mounting hole size of 37mm x 21mm (approximately 1.46" x 0.83"), making it compatible with most standard rocker switch panels and mounts. Its compact size allows for easy integration into various dashboards and control panels.
