Product Overview

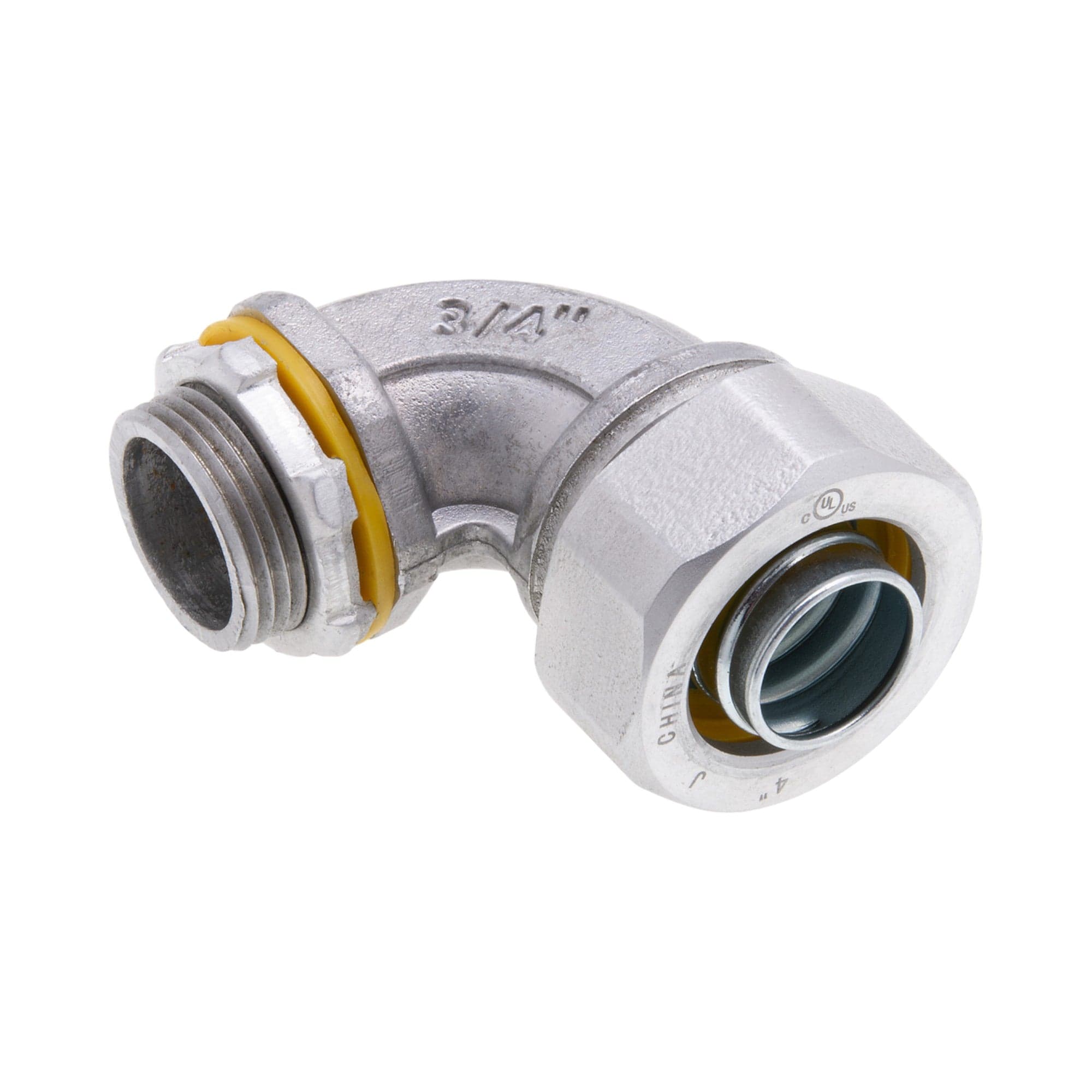

The 90° Angle Liquid Tight Connector with Insulated Throat is designed for secure, moisture-resistant connections in flexible conduit systems. Constructed from high-quality Zinc Die Cast material, it features an insulated yellow throat that provides extra protection against electrical shorts and enhances the safety of electrical installations. This connector is certified with both the UL and S1 marks, ensuring compliance with strict safety and performance standards. The 3/4-inch size makes it ideal for medium to large conduit applications in industrial, commercial, and residential environments.
Description
The 90° Angle Liquid Tight Connector with Insulated Throat allows for reliable, angled connections between liquid-tight flexible conduit and junction boxes, electrical panels, or other equipment. The insulated yellow throat provides electrical insulation, ensuring a safe and secure connection while helping to prevent shorts and electrical hazards. The Zinc Die Cast construction offers superior strength, corrosion resistance, and durability, even in demanding environments.
This connector is designed to meet the requirements of the most challenging installations. It is UL-listed and S1-marked, ensuring it meets industry standards for safety and reliability. The 3/4-inch size is compatible with standard conduit, making it a versatile choice for a wide variety of electrical applications.
Specifications
-
Product Type: 90° Angle Liquid Tight Connector with Insulated Throat
-
Material: Zinc Die Cast
-
Insulated Throat Color: Yellow
-
Size: 3/4 inch (for use with 3/4-inch conduit)
-
UL Mark: Yes (Underwriters Laboratories certified)
-
S1 Mark: Yes (Meets additional industry safety standards)
-
Temperature Rating: -40°C to 105°C (-40°F to 221°F)
-
IP Rating: Typically IP65, providing dust-tight and water-resistant protection
-
Compliance: UL 514B, CSA C22.2 No. 18, RoHS Compliant
-
Application: Indoor and outdoor use
Product Features
-
90° Angle Configuration: Designed for use in applications requiring a right-angle conduit connection, perfect for space-saving installations.
-
Insulated Throat: The yellow insulated throat provides extra electrical protection, ensuring a secure, safe connection that reduces the risk of electrical shorts.
-
Durable Zinc Die Cast Construction: Provides exceptional strength, corrosion resistance, and longevity in harsh environments.
-
Liquid Tight: Ensures a sealed, moisture-resistant connection, preventing the ingress of liquids, dust, and other contaminants.
-
UL and S1 Certified: Meets the stringent safety and performance standards set by UL and S1, ensuring a high-quality and reliable product.
-
Wide Temperature Range: Can withstand temperatures ranging from -40°C to 105°C, making it suitable for a variety of environments.
-
IP65 Rating: Dust-tight and water-resistant, ensuring protection against environmental elements in both indoor and outdoor applications.
-
Yellow Insulation for Visibility: The yellow color of the insulated throat improves visibility during installation and maintenance.
Cases & Uses
-
Industrial Applications: Ideal for use in factories, manufacturing facilities, and warehouses where conduit needs to be routed in challenging, space-limited environments and protected from contaminants.
-
Commercial Electrical Installations: Suitable for commercial buildings, electrical systems, and junction boxes where safe and secure conduit connections are required.
-
Residential Wiring: Used in residential applications where conduit must be routed at a 90° angle, such as in garages, basements, or outdoor installations.
-
Outdoor Electrical Systems: Ideal for use in outdoor equipment, lighting systems, or signage, providing protection against rain, dust, and other environmental factors.
-
Marine Environments: Perfect for use in marine installations where electrical systems must be sealed and protected from water and corrosion.
-
Agricultural Installations: Protects electrical systems in agricultural environments, such as greenhouses, barns, or farms, where exposure to water and dust is common.
