Aluminum Single Barrel Connectors 600 kcmil 3/8 Inch Stud Size

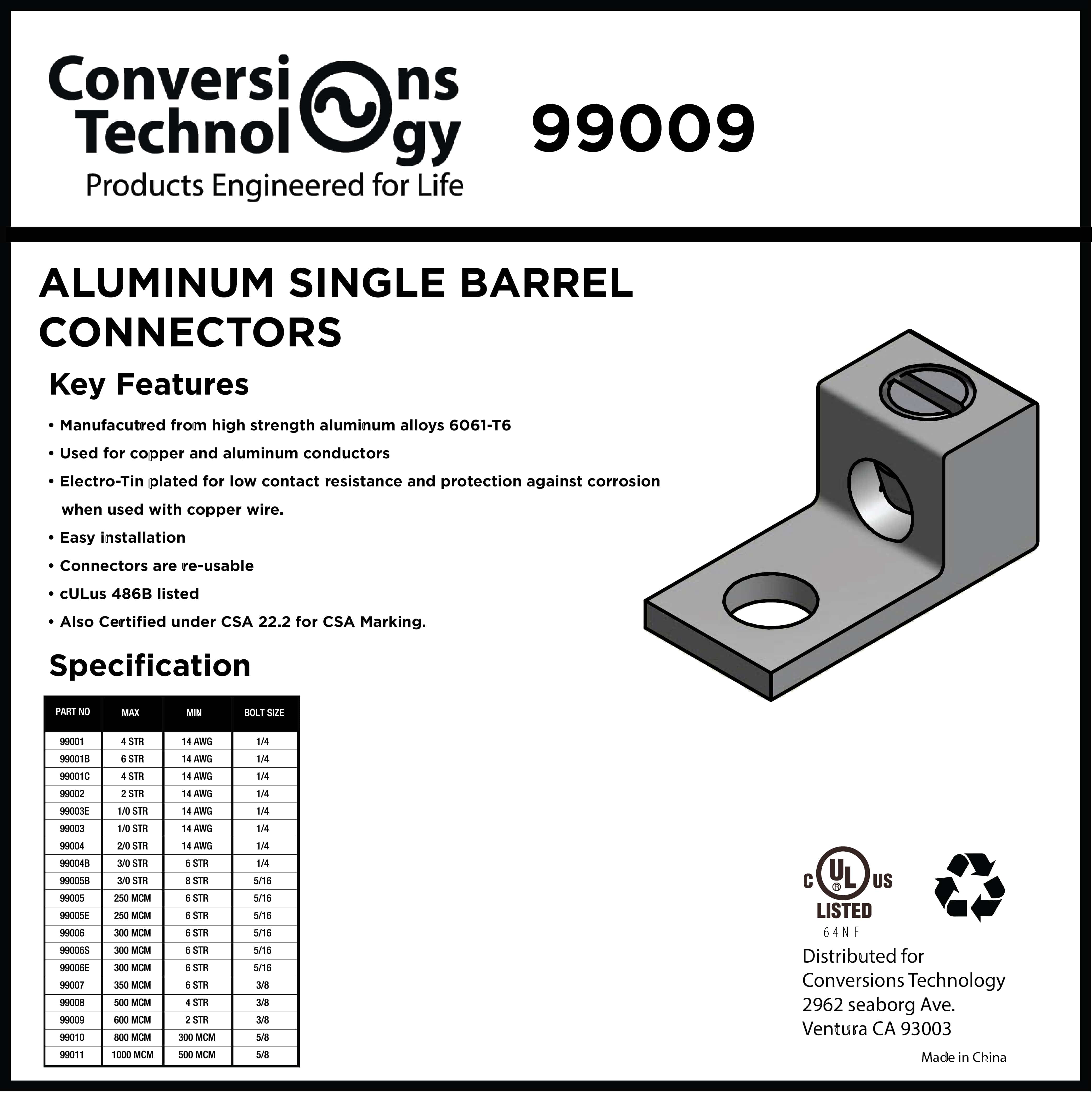

ALUMINUM SINGLE BARREL CONNECTORS

The 99009 is a high-quality electrical connector designed for reliable and secure wire terminations. With a versatile capacity ranging from 2 AWG to 600 MCM, this lug is suitable for a wide range of applications, ensuring efficient conductivity and durability in diverse electrical installations.

Product Overview

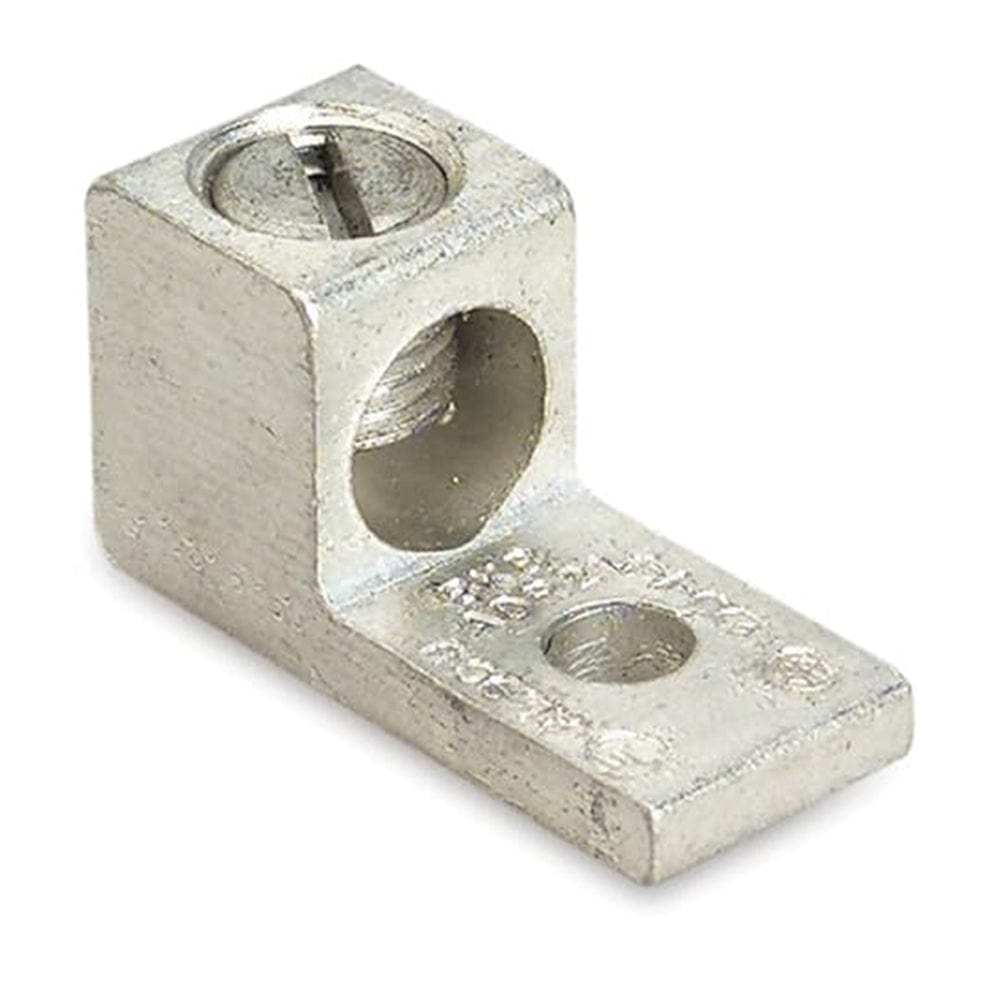

The 99009 is a robust and versatile electrical connector engineered to provide secure wire terminations in various applications. Featuring a durable construction with high-strength aluminum alloy material, this lug accommodates wire sizes from 2 AWG to 600 MCM, offering flexibility for a wide range of electrical needs. With a length of 2-13/16 inches and a reliable chamfered wire entry, the 99009 ensures efficient and easy installations. Commitment to quality, this dual-rated lug is an ideal choice for dependable electrical connections in industrial, commercial, and residential settings.

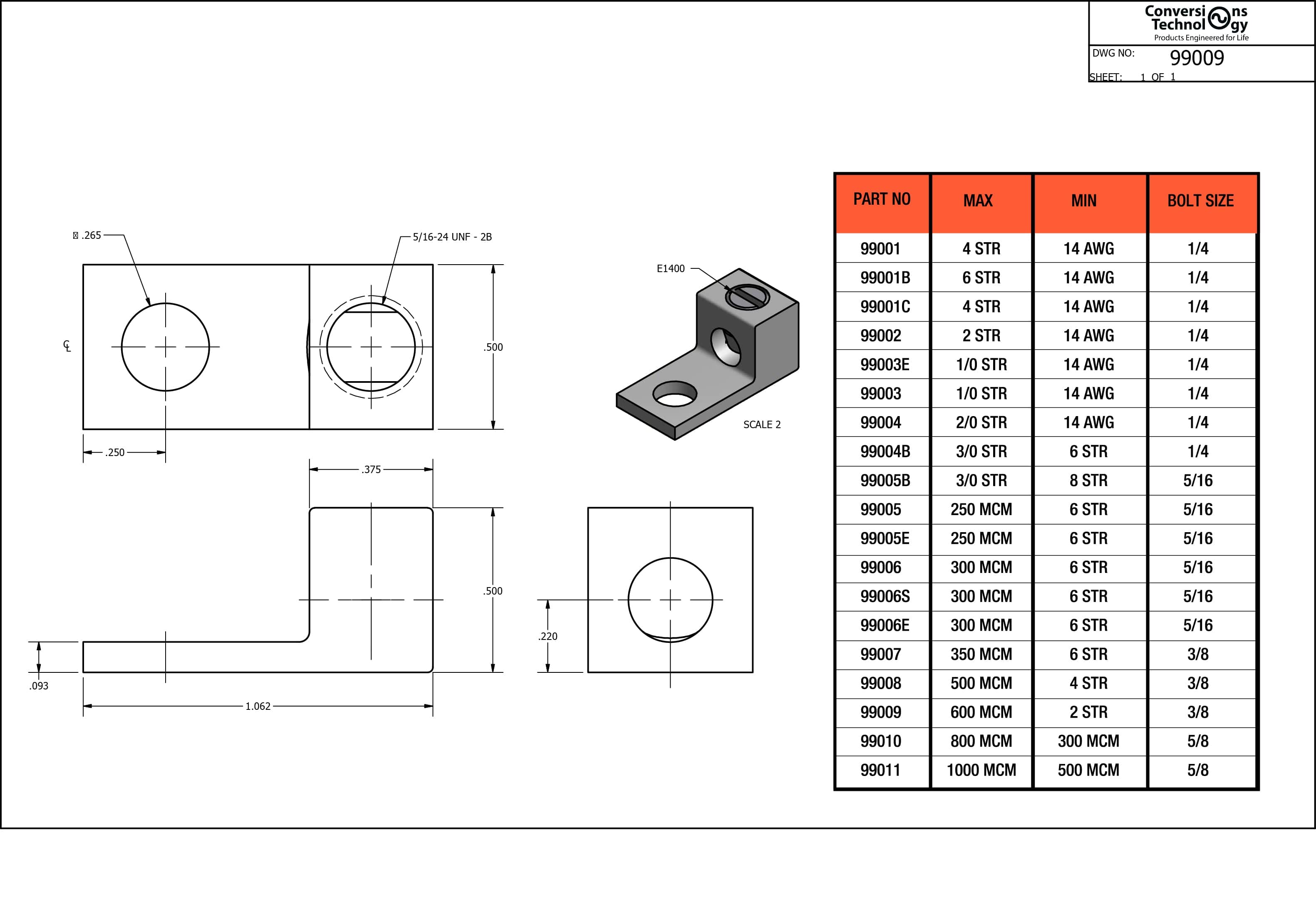

Specifications

• Type: Chamfered Wire Entry
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Overall Length: 3-3/16 Inch
• Conductor Size: 2 AWG minimum to 600 kcmil maximum
• Conductor Material: Aluminum/Copper
• Pad Holes: 1
• Pad Type: Straight
• Temperature Rating: 90 Deg C

Uses and Cases

• Industrial Power Distribution:Ideal for industrial power distribution systems where reliable connections are crucial for efficient electrical supply to machinery and equipment.
• Commercial Electrical Installations: Used in commercial buildings for wiring applications, ensuring secure connections in electrical panels, lighting systems, and HVAC equipment.
• Renewable Energy Projects: Applied in solar and wind energy installations to establish dependable connections for the transfer of electrical power.
• Construction Sites: Commonly used in construction projects for temporary and permanent electrical installations, providing a robust solution for various wiring needs.
• Telecommunication Infrastructure: Utilized in the installation and maintenance of telecommunication equipment, ensuring reliable electrical connections in communication networks.
• Power Substations: Found in power substations for connecting conductors and ensuring efficient power transmission within the electrical grid.
• Data Centers: Used in data center facilities for connecting power distribution units and ensuring reliable power supply to critical computing equipment.
• Renovation and Upgrades: Applied during electrical system renovations and upgrades to establish secure connections in compliance with modern electrical codes and standards.
• Residential Electrical Wiring: Suited for residential applications in circuit breaker panels, subpanels, and other wiring applications where dependable connections are essential.
• Heavy Machinery and Equipment: Employed in environments with heavy machinery and equipment, ensuring secure electrical connections in demanding industrial settings.

Item Features

• Chamfered Wire Entry: Facilitates easy and efficient wire installation with a chamfered entry, streamlining the connection process.
• Material and Coating: Constructed with Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy, ensuring durability and resistance to corrosion for long-lasting performance.
• Wide Range of Conductor Sizes: Accommodates a broad range of conductor sizes, from 2 AWG to 600 kcmil, offering flexibility for various wire gauges in electrical installations.
• Dual Rating: Designed as a dual-rated lug, accommodating both aluminum and copper conductors, providing versatility in wiring applications.
• Pad Size and Hole: Provides a pad size of 1-13/16 Inch Length X 1-1/2 Inch Width X 7/16 Inch Thickness, with one pad hole for effective conductor attachment.
• Pad Type: Features a straight pad type, enhancing stability and contact with the conductor.
• Temperature Rating: Rated for a temperature of 90 degrees Celsius, suitable for a wide range of electrical applications.
• Versatile Applications: Suited for various applications, including industrial, commercial, renewable energy, construction, telecommunication, power substations, data centers, and residential wiring.
