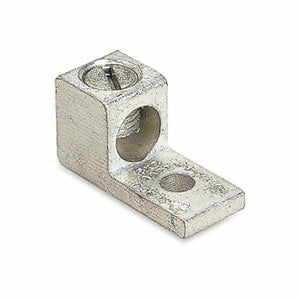

Aluminum Single Barrel Connectors 1000 kcmil 5/8 Inch Stud Size

ALUMINUM SINGLE BARREL CONNECTORS

The 99011 is a high-performance electrical connector designed for secure and efficient wire terminations. With a robust construction and the ability to accommodate a wide range of conductor sizes, from 350 kcmil to 1000 kcmil, the 99011 is a reliable choice for demanding electrical applications.

Product Overview

The 99011 is an advanced electrical connector engineered for secure and versatile wire terminations. With an overall length of 8.19 inches and the capability to accommodate conductor sizes ranging from 350 kcmil to 1000 kcmil, this lug offers flexibility for a broad spectrum of wiring applications. Featuring a chamfered wire entry and constructed from high-strength 6061-T6 aluminum alloy with electro-tin plating, the 99011 ensures both ease of installation and durability.

Specifications

• Type: Chamfered Wire Entry
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Overall Length: 5.97 Inch
• Conductor Size: 350 kcmil minimum to 1000 kcmil maximum
• Conductor Material: Aluminum/Copper
• Pad Holes: 2
• Pad Type: Straight
• Screw Type: (2) 1/2 Inch Hex
• Temperature Rating: 90 Deg C

Uses and Cases

• Industrial Power Distribution: Ideal for industrial environments where robust and reliable electrical connections are crucial for power distribution systems.
• Heavy Machinery and Equipment: Used in settings with heavy machinery and equipment, ensuring secure electrical connections in demanding industrial applications.
• Commercial Construction: Applied in commercial construction projects for wiring applications, providing a dependable solution for electrical panels, lighting systems, and other components.
• Power Substations: Found in power substations to establish secure connections, facilitating efficient power transmission within the electrical grid.
• Data Centers: Utilized in data center facilities for connecting power distribution units, ensuring a stable and reliable power supply to critical computing equipment.
• Renewable Energy Projects: Applied in solar and wind energy installations to provide reliable connections for the transfer of electrical power.
• Telecommunication Infrastructure: Used in the installation and maintenance of telecommunication equipment, ensuring secure electrical connections in communication networks.
• Residential Wiring: Suited for residential applications in circuit breaker panels, subpanels, and other wiring applications where secure connections are essential.
• Electrical Panel Upgrades: Applied during electrical panel upgrades to establish secure connections in compliance with modern electrical codes and standards.
• Construction Sites: Commonly used in construction projects for temporary and permanent electrical installations, providing a durable solution for various wiring needs.

Item Features

• Chamfered Wire Entry: Facilitates easy and efficient wire installation with a chamfered entry, streamlining the connection process.
• Material and Coating: Constructed with Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy, ensuring durability and resistance to corrosion for long-lasting performance.
• Wide Range of Conductor Sizes: Accommodates a broad range of conductor sizes, from 350 kcmil to 1000 kcmil, providing flexibility for various wire gauges in electrical installations.
• Dual Rating: Designed as a dual-rated lug, accommodating both aluminum and copper conductors, offering versatility in wiring applications.
• Pad Type: Features a straight pad type, enhancing stability and contact with the conductor.
• Temperature Rating: Rated for a temperature of 90 degrees Celsius, suitable for a wide range of electrical applications.
