Aluminum Three Barrel Connectors 6 AWG min. to 3/0 AWG max. 1/2 Inch Bolt Size
Shipping calculated at checkout
980 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

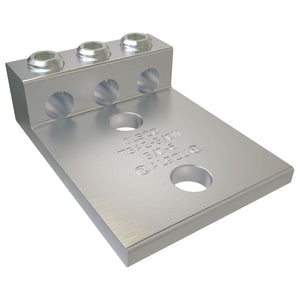

ALUMINUM THREE BARREL CONNECTORS
The 99021 3-Conductor Lug is a durable and efficient electrical connector designed for secure three-conductor terminations. Constructed with high-quality aluminum and copper materials, this lug ensures reliable connections for 3/0 AWG conductors in various electrical applications.
Product Overview
The 99021 is a robust 3-conductor lug designed for secure electrical connections. This versatile connector is specifically engineered for 3/0 AWG conductors and features a durable construction using high-quality aluminum and copper materials. With a 3-conductor design, it provides flexibility in wiring configurations, making it suitable for a variety of applications. Ideal for use in industrial settings, electrical panels, and other environments where reliable and efficient electrical connections are essential.
Specifications
- Wire Entry Type: Chamfered
- Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
- Overall Length: 3-7/8 Inches
- Conductor Size Range (Min/Max): 6 AWG minimum to 3/0 AWG maximum
- Conductor Material: Aluminum/Copper
- Number of Conductors: 3
- Stud Size: 1/2 Inch
- Pad Size: 3 Inches Length X 2-13/16 Inches Width X 5/16 Inches Thickness
- Number of Pad Holes: 2
- Pad Type: Straight
- Screw Type: 5/16 Inch Hex Screw
- Size: 1-1/8 Inch Height
- Temperature Rating: 90 Degrees Celsius
Uses and Cases
- Electrical Panels: Ideal for securely connecting three 3/0 AWG conductors in electrical panels and distribution boards.
- Power Distribution Systems: Suitable for use in power distribution systems where reliable and efficient three-conductor terminations are required.
- Industrial Machinery: Used in industrial settings for connecting large conductors in machinery and equipment requiring high current capacities.
- Commercial Wiring: Applicable in commercial buildings for wiring tasks that involve three conductors of 3/0 AWG, providing a robust solution for diverse applications.
- Renewable Energy Systems: Suitable for use in renewable energy projects such as solar or wind installations, ensuring dependable electrical connections.
- Large-Scale Construction Projects: Well-suited for use in large construction projects where durable and efficient electrical connections are required.
- Transformers: Used in the electrical connections of transformers to ensure a reliable flow of power between different components.
- Switchgear Installations: Commonly employed in switchgear installations where electrical equipment is interconnected for controlling, protecting, and isolating electrical systems.
- Data Centers: In data center installations, where precision and reliability are crucial, the lug can be used for connecting conductors within electrical systems supporting servers and networking equipment.
- Electrical Subpanels: Suitable for connecting heavy conductors in electrical subpanels to ensure efficient power distribution within buildings.
Item Features
- Chamfered Wire Entry: Facilitates easy and precise insertion of conductors.
- Material: Constructed from electro-tin plated high-strength 6061-T6 aluminum alloy, ensuring durability and corrosion resistance.
- Overall Length: Measures 3-7/8 inches, providing a compact yet robust solution for various wiring applications.
- Conductor Size Range: Accommodates conductors from 6 AWG minimum to 3/0 AWG maximum, offering flexibility for diverse wiring needs.
- Conductor Material: Compatible with both aluminum and copper conductors.
- Number of Conductors: Designed to accommodate three conductors, allowing for efficient wiring configurations.
- Stud Size: Equipped with a 1/2-inch stud size for a secure connection point for electrical conductors.
- Pad Size and Holes: Features a pad size of 3 inches length x 2-13/16 inches width x 5/16 inches thickness, with two pad holes for secure installations.
- Pad Type: Straight pad design for ease of use and stability.
- Screw Type: Utilizes a 5/16-inch hex screw for secure fastening.
- Size: Compact with a height of 1-1/8 inch.
- Temperature Rating: Rated for a temperature of 90 degrees Celsius, ensuring reliability in various environmental conditions.
