ALUMINUM THREE BARREL CONNECTORS

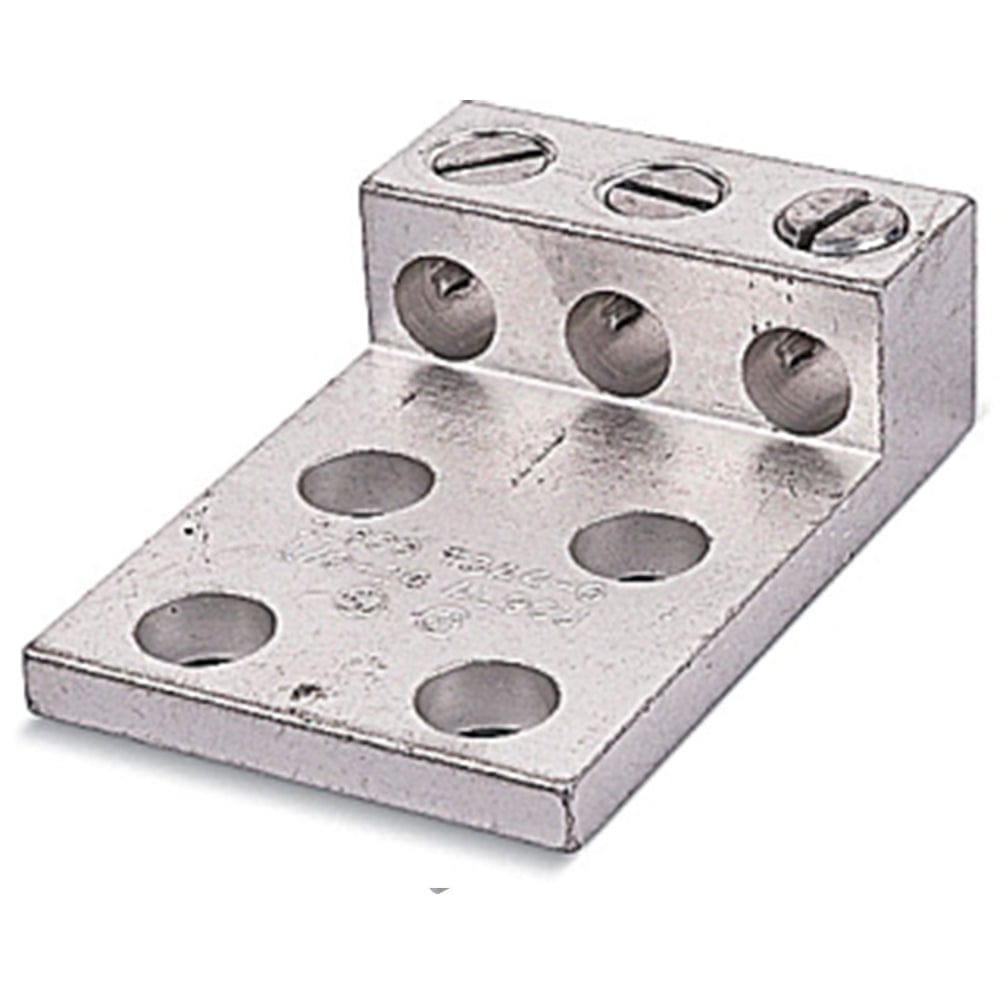

The 99034 350Kcmil Connector is a high-quality electrical component designed for secure and efficient termination of large conductors up to 350 Kcmil. With its robust construction and reliable design, this connector ensures a durable and dependable connection in industrial and commercial electrical applications.
Product Overview
The 99034 350Kcmil Connector is a heavy-duty electrical connector designed for terminating large conductors with a capacity of up to 350 Kcmil. Its durable construction, featuring high-quality materials, ensures a reliable and long-lasting electrical connection. The connector is suitable for various industrial and commercial applications, providing a secure and efficient means of joining large conductors. With its robust design and ample capacity, the 99034 is a dependable choice for demanding electrical installations.

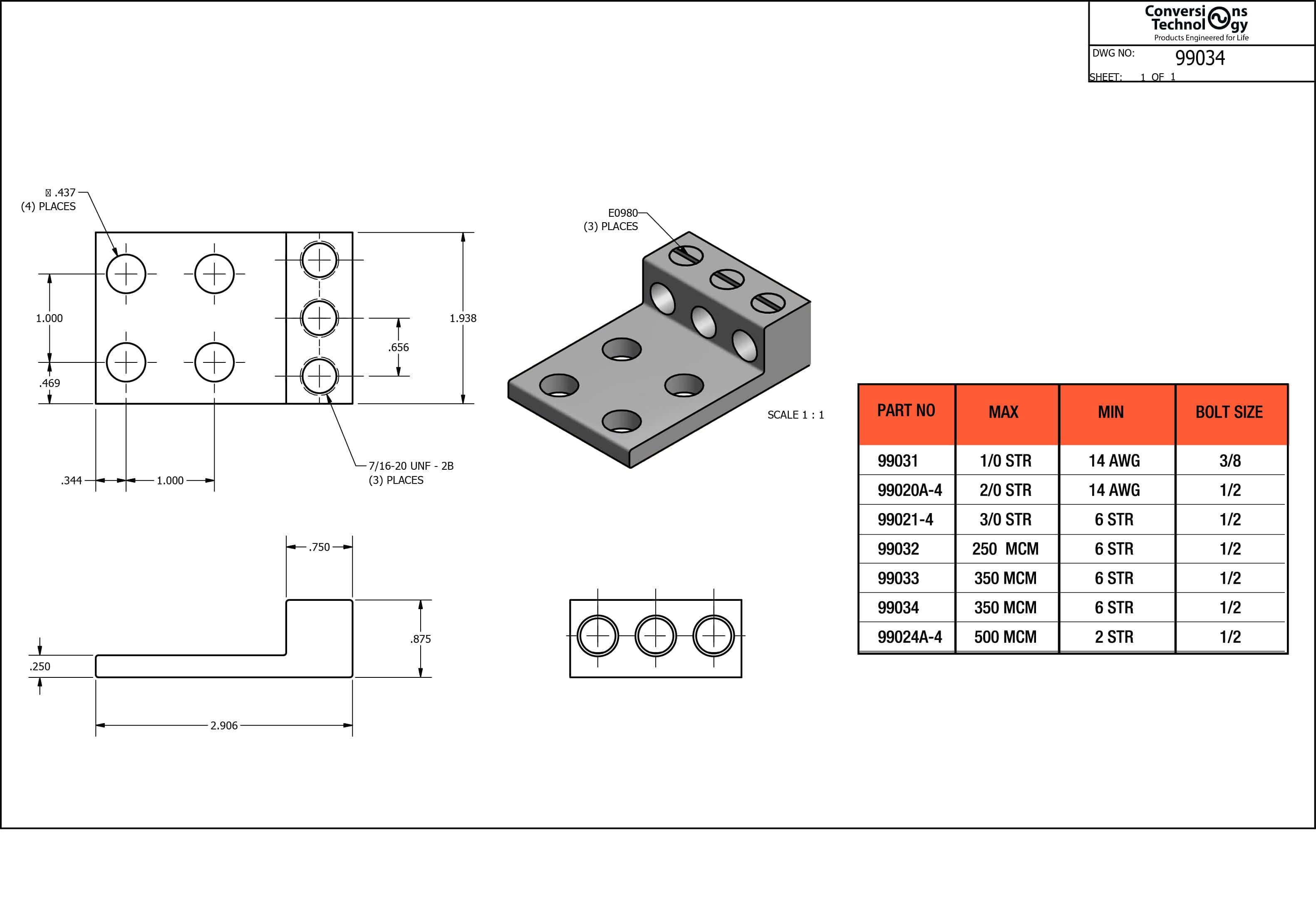

Specifications
- Screw Type: Set Screw
- Material: Tin Plated Aluminum
- Overall Length: 4-3/16 Inch
- Conductor Size Range: 6 AWG Stranded min. to 350 kcmil max.
- Conductor Material: Aluminum/Copper
- Number of Conductors: 3
- Stud Size: 1/2 Inch
- Pad Size: 3-1/16 Inch L X 3-3/16 Inch W X 1/4 Inch Thk
- Pad Type: Straight
- Number of Pad Holes: 4 NEMA
- Screw Type: Slot
Uses and Cases
- Industrial Electrical Installations: Well-suited for connecting large conductors in industrial settings, providing a reliable solution for heavy-duty electrical systems.
- Commercial Construction Projects: Ideal for commercial construction applications where robust and secure electrical connections are required for efficient power distribution.
- Renewable Energy Systems: Suitable for use in renewable energy installations, such as solar or wind power systems, ensuring dependable connections for energy production.
- Electrical Panel Terminations: Used in electrical panels to terminate large conductors, contributing to the overall safety and functionality of the electrical distribution system.
- Equipment and Machinery Wiring: Applicable in the wiring of heavy machinery and equipment, providing a durable connection for consistent and efficient operation.
- Utility Infrastructure: Employed in utility applications for connecting conductors in infrastructure projects, ensuring reliable power transmission and distribution.
- Upgrade or Repair Projects: Useful for upgrading or repairing existing electrical systems, offering a dependable solution for enhancing or restoring electrical connections.
- Data Centers: Suitable for use in data centers where high-capacity electrical connections are essential for supporting the power needs of servers and equipment.
- Telecommunications: Applied in telecommunications infrastructure for terminating large conductors, contributing to the reliability of communication systems.
- Compliance with Electrical Codes: Used in various applications to meet electrical code requirements, ensuring that installations adhere to safety and regulatory standards.
Item Features
- Set Screw Type: Utilizes a set screw mechanism for secure and reliable conductor termination.
- Tin Plated Aluminum Material: Constructed with high-quality tin-plated aluminum, ensuring durability and corrosion resistance.
- Wide Conductor Size Range: Accommodates conductors ranging from 6 AWG Stranded minimum to 350 kcmil maximum, providing versatility in application.
- Three-Conductor Design: Specifically engineered for terminating three conductors, suitable for various electrical configurations.
- 1/2 Inch Stud Size: Features a 1/2 inch stud size for compatibility with standard electrical components.
- Compact Design: With an overall length of 4-3/16 inches, it offers a compact solution for efficient space utilization.
- Sturdy Pad Type: Incorporates a straight pad design for stability during conductor connections.
