RJ45 Connector | Cat6 550MHz Feed through Modular Plug Unshielded 100 pcs
Shipping calculated at checkout
SKU: 950-081
78 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
⭐ Cat6 Enhanced — 550 MHz Bandwidth
This cable is rated at 550 MHz — more than double standard Cat6 (250 MHz). Supports 10 Gbps at the full 100-meter distance, delivering Cat6A-level performance at Cat6 pricing. 23 AWG bare copper conductors, gold-plated RJ45 connectors, UL Listed, ETL Verified.

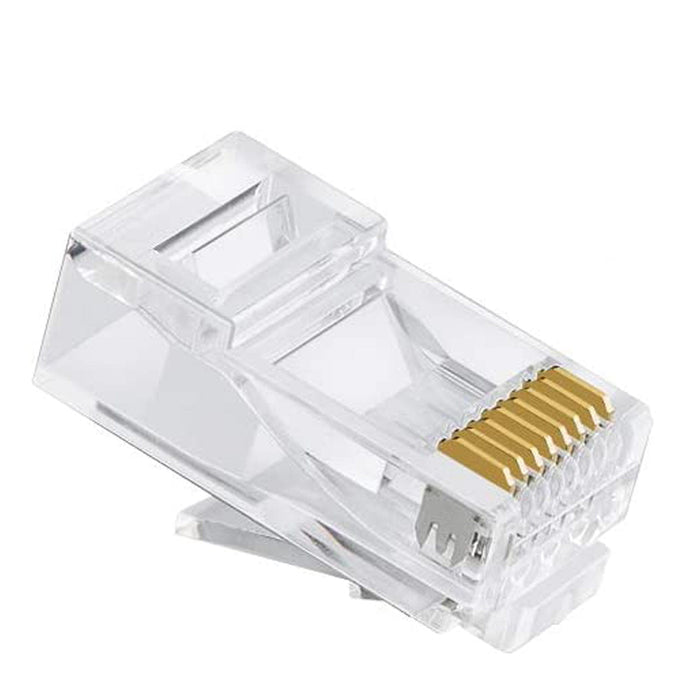

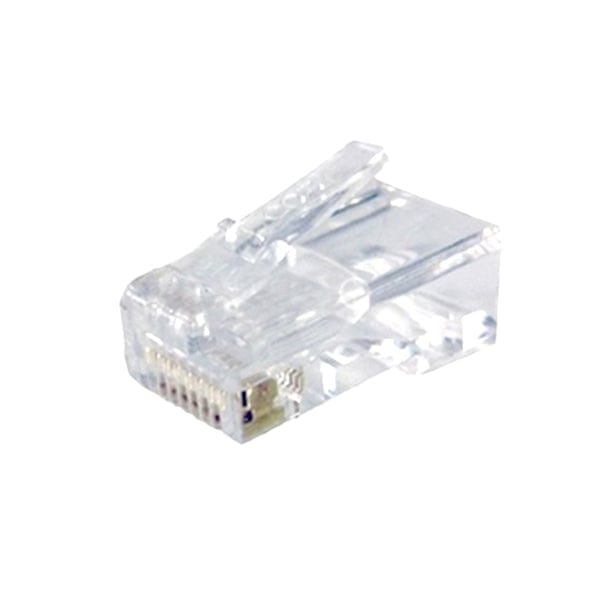

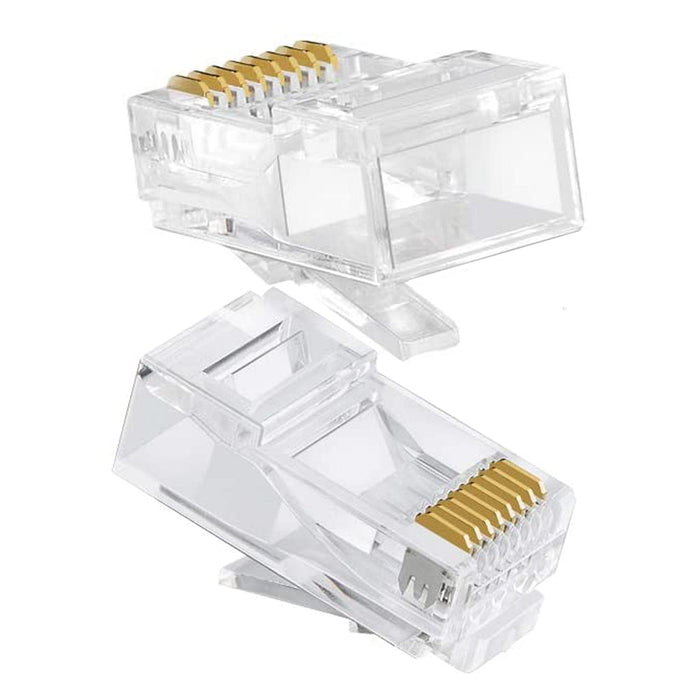

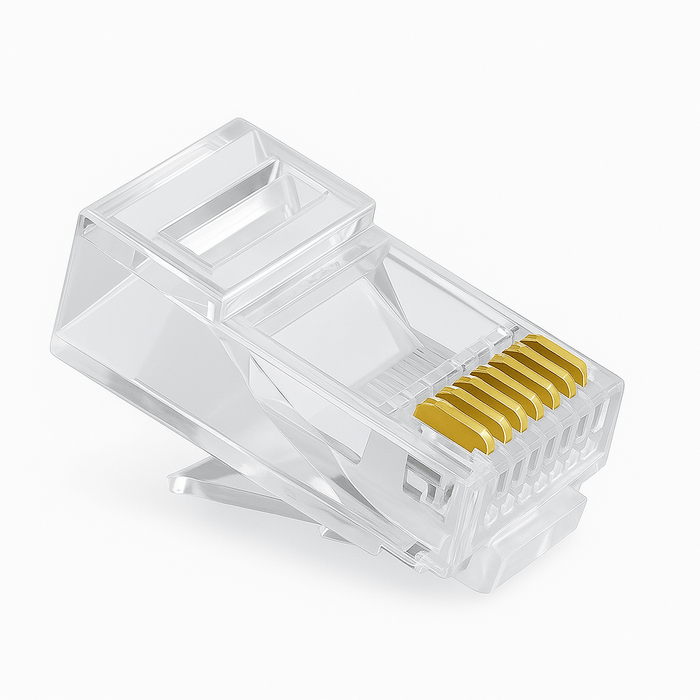

Cat6 RJ45 Modular Plugs (100-Pack)
Engineered for datacom professionals, the Cat6 RJ45 modular plugs deliver uncompromising conductivity and mechanical resilience. Each plug is injection-molded from crystal-clear, impact-rated polycarbonate for fast visual inspection and long-term durability in field terminations.
- 50 µ″ gold-plated contacts for ultra-low contact resistance
- UL-rated clear polycarbonate housing
- Cat6 10 Gb/s capable; backward-compatible with Cat5e
- PoE ++ (802.3bt) up to 90 W
- Exceeds ANSI/TIA-568-D.2 & tested to ISO/IEC 11801 Class E
- RoHS & REACH compliant
Precision Engineering & Materials
- High-Impact Polycarbonate Housing — UL-rated, crack-resistant resin withstands repetitive crimp cycles and harsh installation environments.
- 50 µ″ Gold-Plated Contacts — Corrosion-proof plating guarantees ultra-low contact resistance and long-term signal stability for up to 10 Gb/s Ethernet.
- Staggered Pin Architecture — Optimized contact alignment minimizes NEXT/FEXT crosstalk and maintains RL performance across the full Cat6 bandwidth.

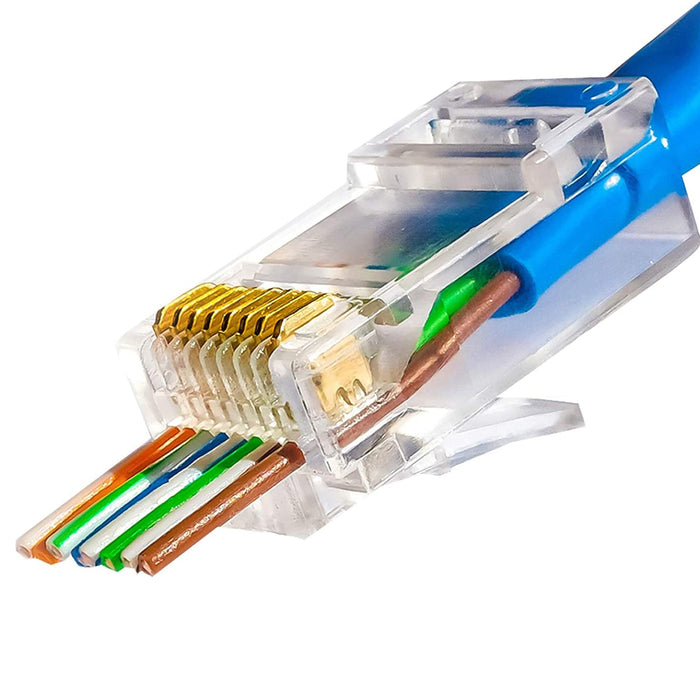

- Rapid Visual Verification — Transparent body lets technicians confirm pair order instantly, reducing re-terminations and truck rolls.
Wire Compatibility & Versatility
- Conductor Range — Terminates 24 – 28 AWG solid or stranded copper conductors with outer diameters ≤ 1.05 mm (0.041″).
- Cable Types — Works with unshielded Twisted Pair (UTP) Cat6/Cat5e and PoE ++ (802.3bt) cables up to 90 W.
- Tool Compatibility — Fits industry-standard RJ45 crimpers with 8P8C die sets.
Standards Compliance
- Exceeds ANSI/TIA-568-D.2 channel & component requirements
- Tested to ISO/IEC 11801 Class E electrical parameters
- RoHS & REACH-compliant materials for global deployments
Backward Compatibility
The plugs are fully backward-compatible with Cat5e infrastructure, enabling seamless upgrades without re-cabling legacy runs.
Technical Specifications
| Housing Material | UL-rated clear polycarbonate |
|---|---|
| Contact Plating | 50 µ″ Au over Ni |
| Conductor Size | 24 – 28 AWG, solid & stranded (OD ≤ 1.05 mm) |
| Supported Cables | Cat6/Cat5e UTP; PoE ++ (802.3bt) up to 90 W |
| Operating Temp. | -10 °C – 60 °C (14 °F – 140 °F) |

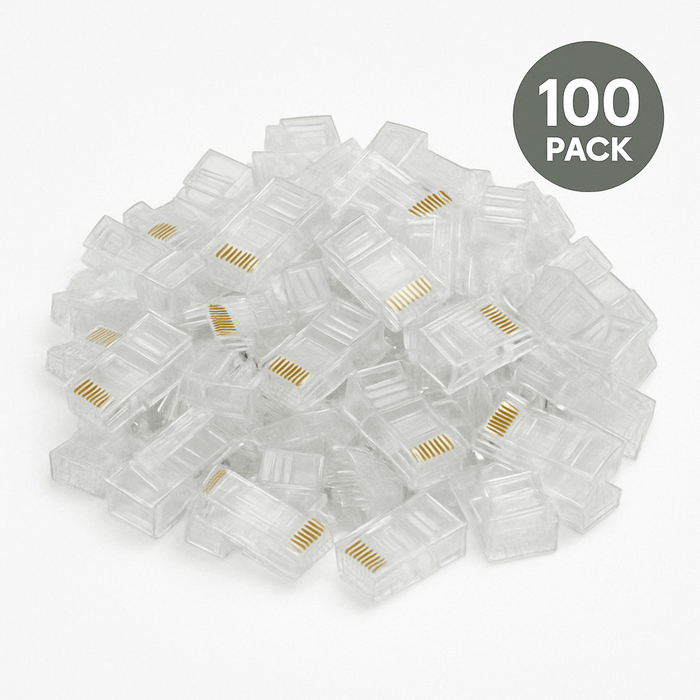

| Pack Qty. | 100 connectors / resealable bag |
| Tooling | Compatible with standard 8P8C RJ45 crimpers |
| Compliance | ANSI/TIA-568-D.2; ISO/IEC 11801 Class E; RoHS & REACH |
Built for Real-World Deployments
- Campus & enterprise Cat6 runs (10GBASE-T capable distances)
- PoE++ cameras, APs, and lighting up to 90 W
- Field terminations where fast visual verification reduces rework
Upgrade your terminations. Stock the Conversions Tech® 100-Pack today and eliminate bottlenecks on your next Cat6 deployment.
FAQs
Do these plugs support PoE++ (802.3bt)?
Yes, they’re suitable for PoE ++ applications up to 90 W when used with compliant cable and terminations.
Will these work with stranded conductors?
Yes—Okto Series plugs terminate 24–28 AWG solid or stranded copper conductors.
Are these shielded?
No, this model is designed for UTP (unshielded) Cat6/Cat5e. For STP use cases, choose our shielded variant.
What crimper do I need?
Any industry-standard RJ45 crimper with an 8P8C die set.
Do they exceed Cat6 requirements?
Yes—these plugs exceed ANSI/TIA-568-D.2 component & channel requirements and are tested to ISO/IEC 11801 Class E parameters.
