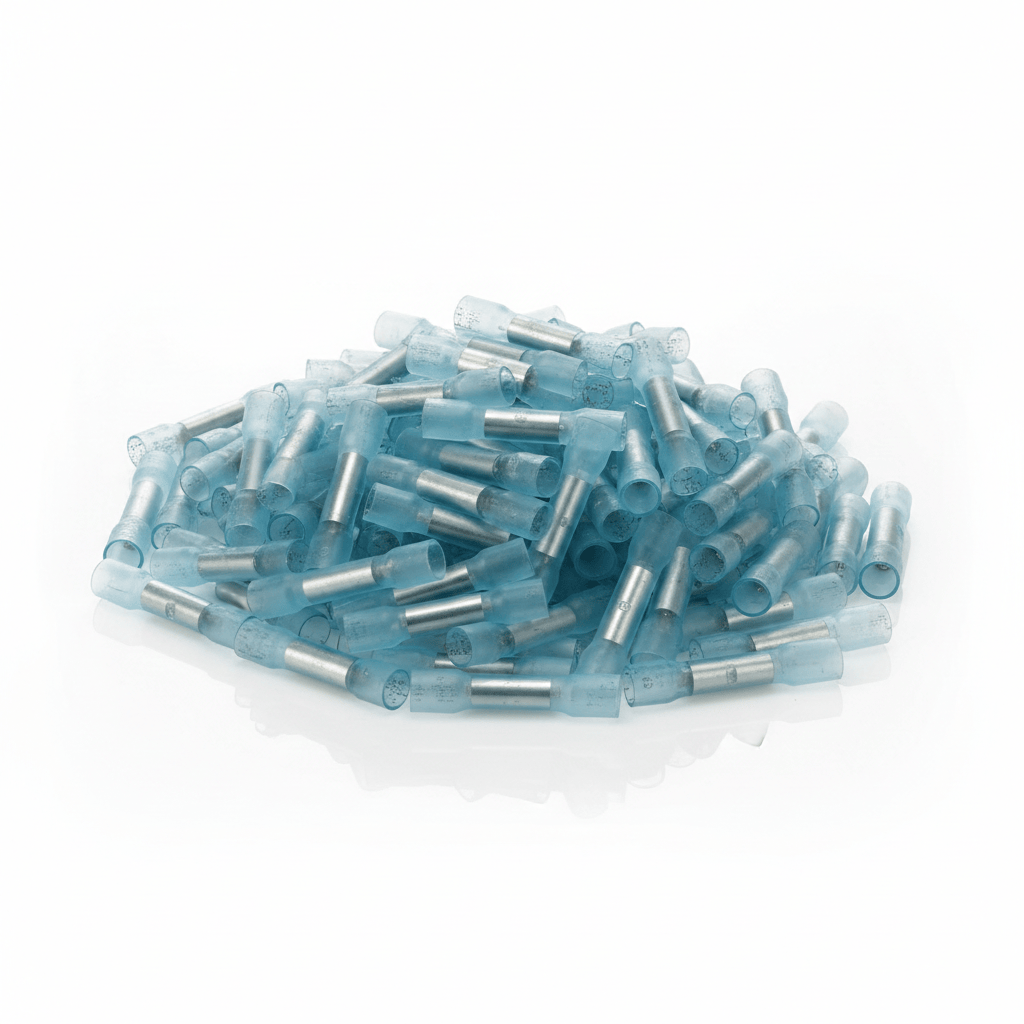

Conversions Tech Heat-Shrink Butt Splice Connector (14–16 AWG, Blue) 100 pcs bag Sealed Crimp Splice
Shipping calculated at checkout
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Heat-Shrink Butt Splice Connector (14–16 AWG, Blue) — Adhesive-Lined, Sealed Crimp Splice
The Conversions Tech Heat-Shrink Butt Splice (14–16 AWG) is a rugged, inline crimp wire splice connector engineered for low-resistance electrical continuity plus environmental sealing in demanding field and OEM harness applications. This connector uses a tin-plated copper splice barrel and a heat-shrink insulation sleeve with hot-melt adhesive liner that bonds to wire insulation during recovery—helping block moisture, salt spray, and common automotive/industrial fluids when installed correctly.
Why This Heat-Shrink Butt Splice Works in Harsh Environments
- Sealed connection: Heat-shrink tubing with hot-melt inner liner creates an adhesive bond to wire insulation for moisture resistance.
- High conductivity barrel: Tin-plated copper splice body supports reliable current flow and corrosion resistance.
- Two individual wire entries: Inline butt splice geometry for clean harness routing and service repairs.
- Wide temperature capability: Designed for environments spanning approximately -55°C to +125°C (typical for this style of adhesive-lined heat-shrink splice).
- Fast recovery: Minimum shrink temperature around 90°C (194°F) for efficient installation with a controlled heat source.
Typical Applications
- Automotive harness repair (engine bay, chassis, lighting, accessory circuits)
- Marine and RV wiring (bilge areas, exterior lighting, battery and distribution runs)
- Industrial equipment & field service repairs (washdown zones, outdoor enclosures)
- Off-road / construction equipment harnessing (vibration + moisture exposure)
Technical Specifications
| Wire Range | 14–16 AWG |
|---|---|
| Terminal Type | Butt splice, inline, individual openings (2 wire entries) |
| Termination Method | Crimp |
| Insulation | Fully insulated heat-shrink sleeve with adhesive liner |
| Barrel Material / Finish | Tin-plated copper (seamless splice barrel) |
| Color | Blue (AWG range identification) |
| Operating Temperature (Typical) | -55°C to +125°C |
| Minimum Shrink Temperature (Typical) | ~90°C (194°F) |
Note: Always verify final performance requirements (voltage/current/temperature/chemical exposure) against your project’s standards and installation process.
Installation Notes (Best Practices)
- Strip length: Strip each conductor so copper is fully captured in the splice barrel without exposed strands.
- Correct crimp: Use a properly matched crimp tool/die for 14–16 AWG butt splices. Under- or over-crimping can increase resistance and reduce pull strength.
- Heat evenly: Apply controlled heat to shrink the sleeve uniformly; allow the adhesive liner to flow and seal at both ends.
- Strain relief: Avoid tight bends at the splice—support the harness so vibration doesn’t concentrate at the joint.
FAQs (Minimum 10)
1) What wire sizes does this butt splice fit?
This connector is designed for 14–16 AWG conductors (commonly used in automotive, marine, and industrial wiring). :contentReference[oaicite:6]{index=6}
2) Is this a sealed/water-resistant splice?
Yes—once properly crimped and heated, the adhesive-lined heat-shrink sleeve bonds to the wire insulation to help resist moisture and contamination. :contentReference[oaicite:7]{index=7}
3) What is the barrel made of?
The splice uses a tin-plated copper terminal barrel for conductivity and corrosion resistance. :contentReference[oaicite:8]{index=8}
4) How many wire entries does it have?
This is an inline butt splice with two individual wire entries (one on each side). :contentReference[oaicite:9]{index=9}
5) What temperature range can it handle?
For this adhesive-lined heat-shrink butt splice style, typical operating range is about -55°C to +125°C when installed correctly. :contentReference[oaicite:10]{index=10}
6) What heat level is needed to shrink it?
Minimum shrink temperature is typically around 90°C (194°F). Use a controlled heat gun (preferred) and heat evenly for full recovery and adhesive flow. :contentReference[oaicite:11]{index=11}
7) Can I use this in marine or RV wiring?
Yes—adhesive-lined heat-shrink splices are commonly used for marine and RV harnesses where moisture and corrosion resistance are important (when installed properly).
8) What’s the difference between this and a standard vinyl butt connector?
Standard vinyl connectors provide insulation but typically do not create a bonded seal. This product adds a heat-shrink + hot-melt adhesive liner that helps seal and strain-relieve the joint. :contentReference[oaicite:12]{index=12}
9) Do I need a special crimper?
You need a quality crimp tool compatible with 14–16 AWG butt splices. Using the correct die profile is critical for pull strength and low resistance.
10) How do I confirm I got a proper seal?
After shrinking, the sleeve should be uniformly recovered with no gaps, and you should see evidence of adhesive flow at the ends (without overheating or scorching). Perform a light pull test and continuity check.
11) Is this suitable for vibration environments?
Yes—when properly crimped and sealed, adhesive-lined heat-shrink splices provide added strain relief and are commonly used in vibration-prone applications (vehicles, equipment, off-road).
12) Can this be used for repairs in areas exposed to chemicals?
This category of sealed heat-shrink splices is marketed for resistance to harsh fluids (common in automotive/industrial settings). Always validate against your specific chemical exposure requirements. :contentReference[oaicite:13]{index=13}
What You Get (Conversions Tech Standard)
- Heat-shrink, adhesive-lined butt splice connector — 14–16 AWG
- Consistent sizing for fast field installs and repeatable harness builds
- Support from Conversions Tech for cross-reference and application fit
