Conversions Tech Heat-Shrink Ring Terminal, Blue — 16–14 AWG, 5/16" Stud
Shipping calculated at checkout
SKU: 6611-160516
Only 15 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

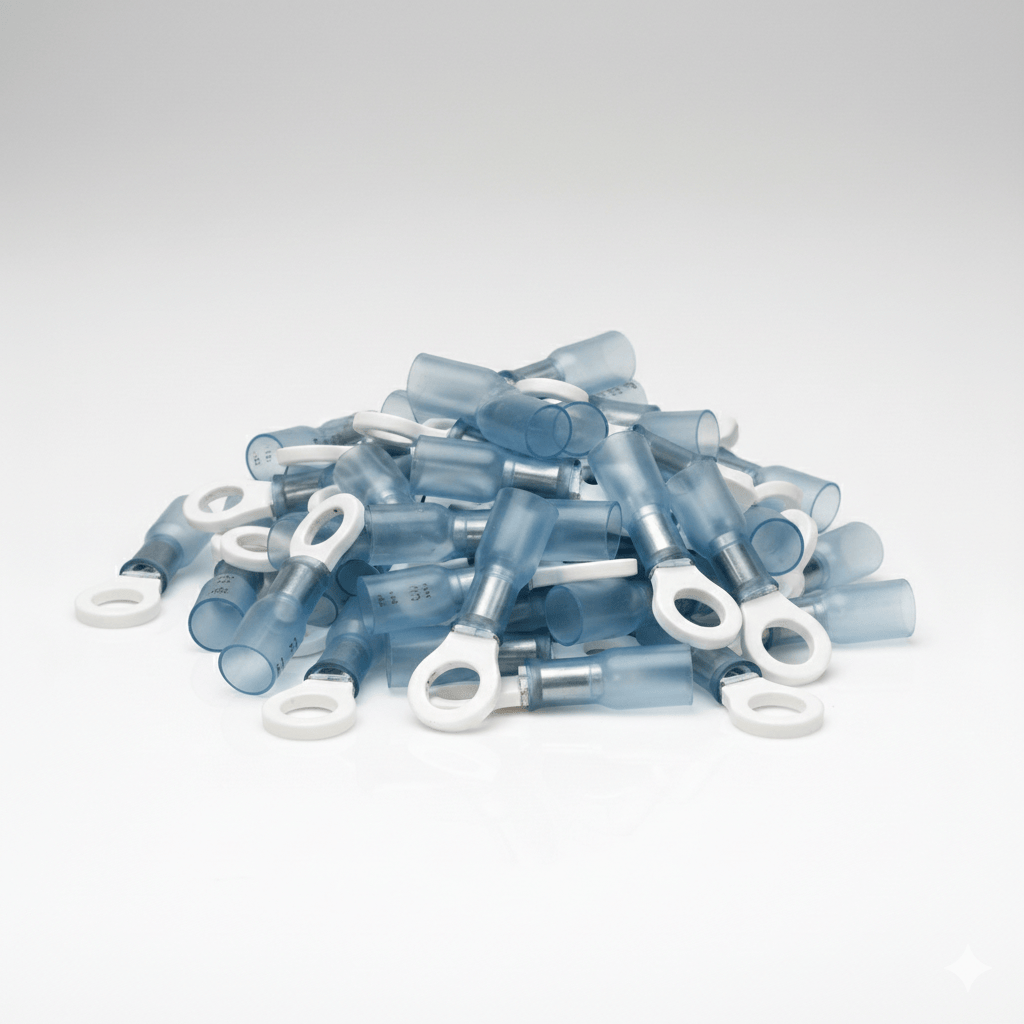

Conversions Tech Heat-Shrink Ring Terminal, Blue — 16–14 AWG, 5/16" Stud (Bag of 100)

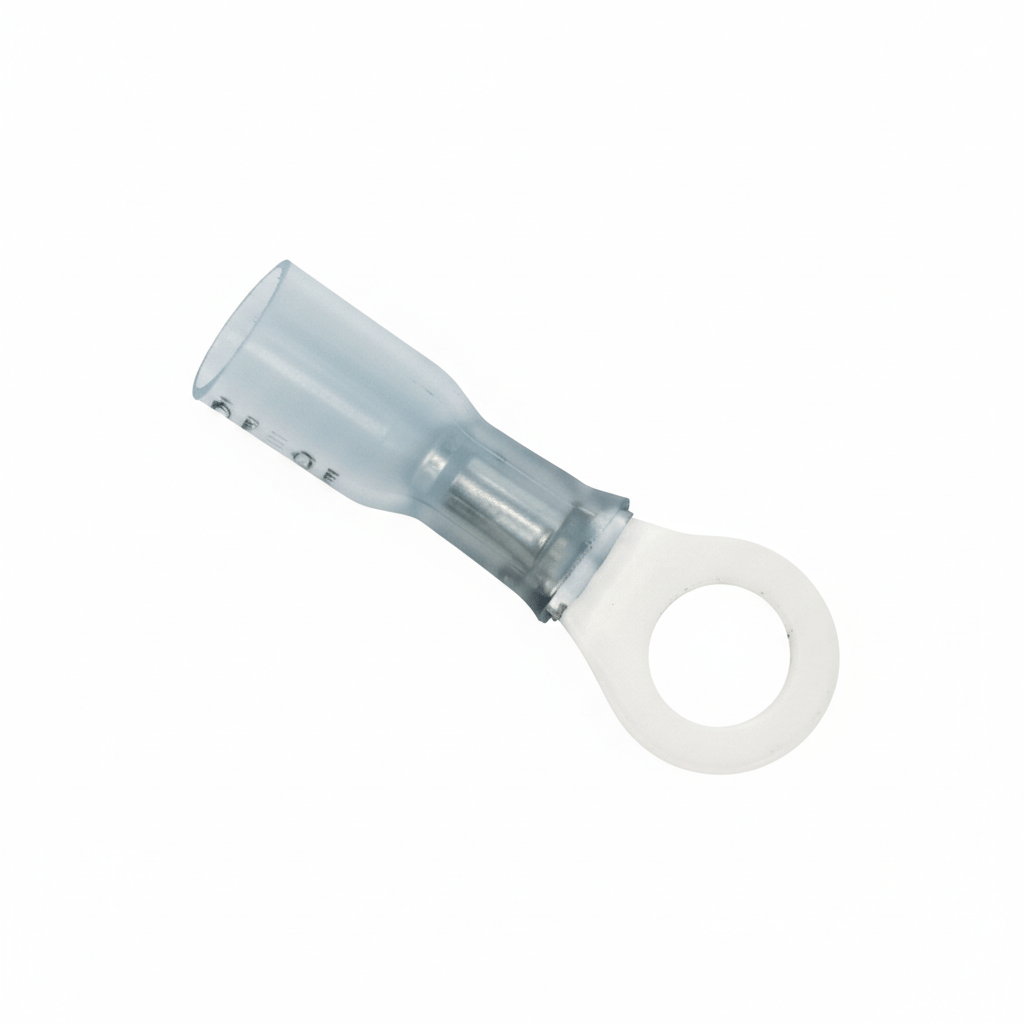

The Conversions Tech Heat-Shrink Ring Terminal (16–14 AWG, 5/16") is a professional-grade crimp-style ring connector designed for secure, vibration-resistant, sealed electrical terminations. Featuring a tin-plated copper barrel and adhesive-lined heat-shrink insulation, this terminal provides excellent conductivity, corrosion resistance, and environmental sealing once properly crimped and heated.
Sold in bags of 100, this terminal is ideal for OEM harness assembly, contractors, maintenance teams, and industrial applications requiring consistent, production-ready quantities.
Search terms: heat shrink ring terminal, 16 AWG ring terminal, 14 AWG ring terminal, 5/16 stud ring connector, sealed ring terminal, marine ring terminal, adhesive lined ring terminal
Key Features
- Designed for 16–14 AWG stranded copper conductors
- 5/16" stud size for secure bolted connections
- Heat-shrink insulation with adhesive liner for moisture resistance
- Tin-plated copper barrel for low electrical resistance
- Blue color coding for fast wire size identification
- Bag of 100 for inventory efficiency
Dimensional Specifications (Inches)
| Wire Range | 16–14 AWG |
|---|---|
| Stud Size | 5/16" |
| Barrel Length | 0.250" |
| Overall Length (L) | 1.110" |
| Ring Width (W) | 0.470" |
| Stud Diameter (SD) | 0.324" – 0.327" |
| Pad Thickness (F) | 0.405" |
All dimensions shown are in inches. Dimensional data referenced from Mueller Electric ring terminal selection guide (16–14 AWG, 5/16" stud geometry). :contentReference[oaicite:1]{index=1}
Typical Applications
- Automotive and truck electrical systems
- Marine and RV power distribution
- Industrial control panels
- Grounding and bonding connections
- Outdoor and wash-down environments
Conversions Tech Standard
- Precision-manufactured heat-shrink ring terminals
- Consistent dimensions for OEM and field installs
- Bags of 100 for professional use
- Cross-reference and technical support from Conversions Tech
