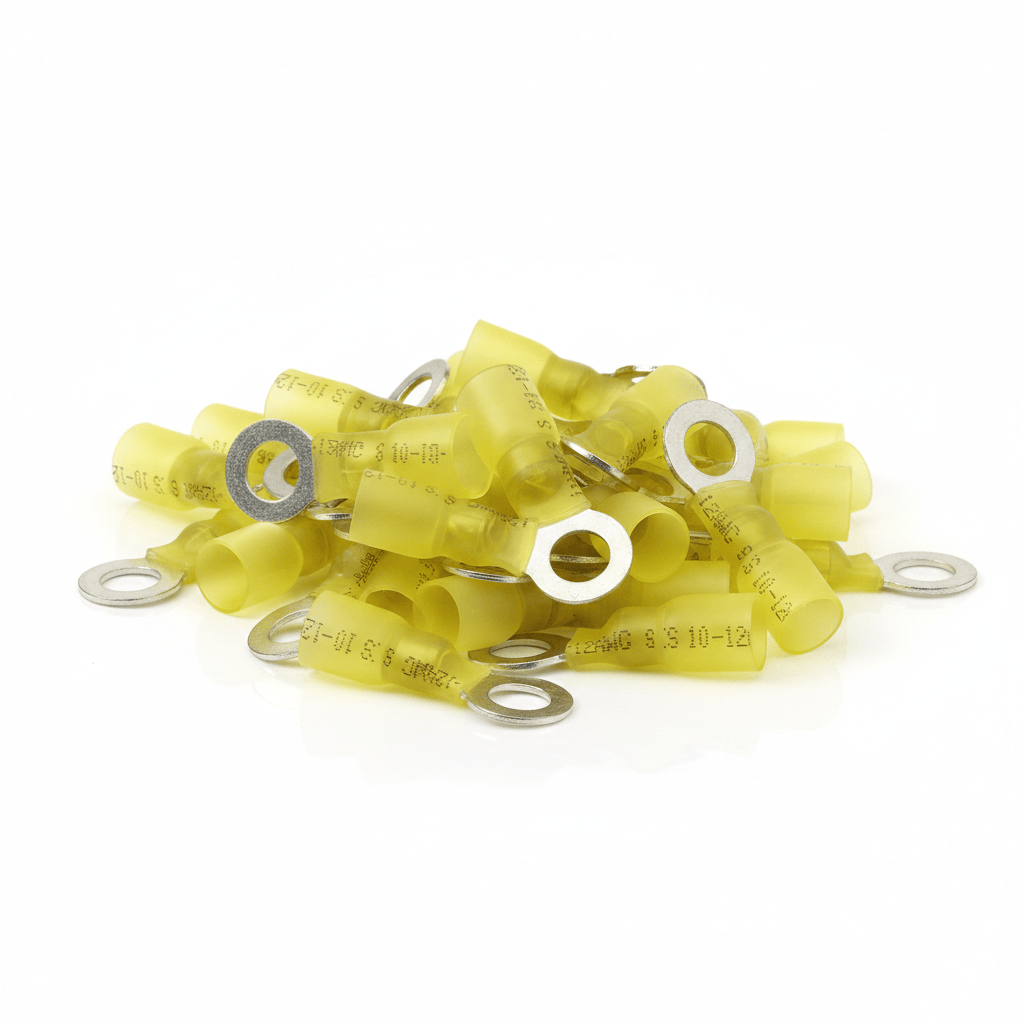

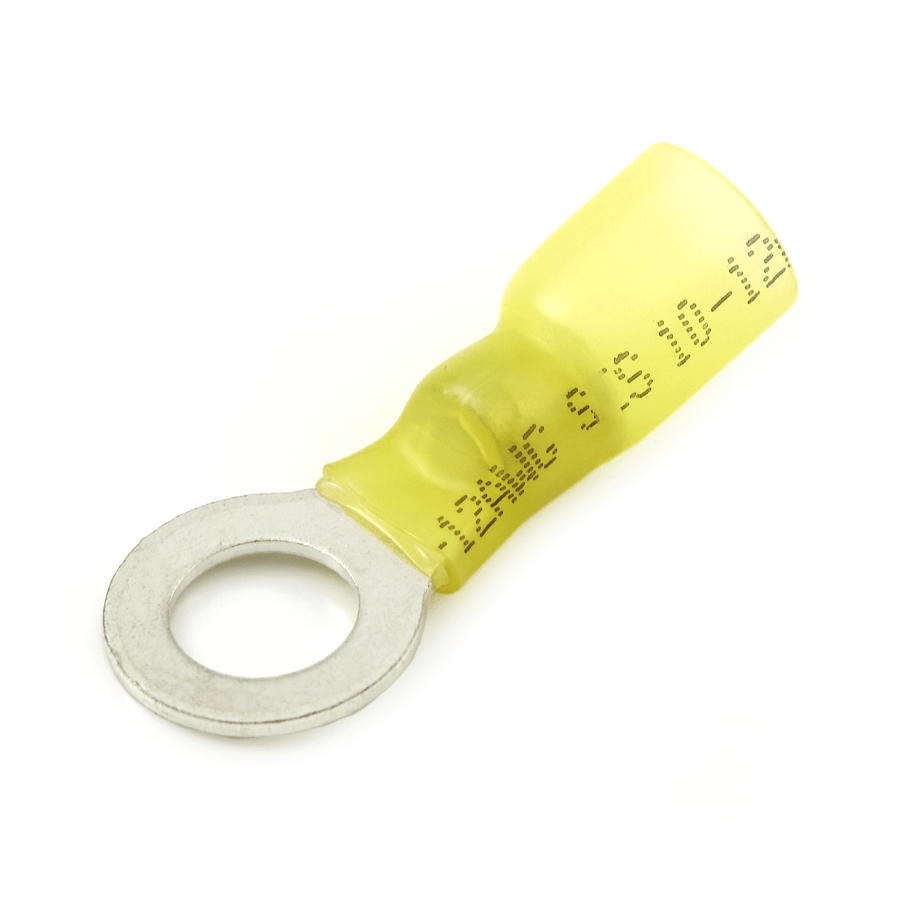

Conversions Tech Heat-Shrink Ring Terminal, Yellow — 12–10 AWG, 5/16" Stud
The Conversions Tech Heat-Shrink Ring Terminal (12–10 AWG, 5/16" Stud) is a heavy-duty crimp-style ring connector engineered for secure, sealed electrical terminations in high-current applications. Featuring a tin-plated copper barrel and a heat-shrink insulation sleeve with adhesive liner, this terminal delivers reliable electrical conductivity while forming a moisture-resistant seal when properly crimped and heated.
This ring terminal is optimized for stranded copper conductors and is widely used in automotive, marine, industrial, and power distribution environments where vibration resistance and corrosion protection are critical.
Search terms: heat shrink ring terminal, 12 AWG ring terminal, 10 AWG ring terminal, 5/16 stud ring connector, sealed ring terminal, adhesive lined ring terminal, marine ring terminal
Key Features
- Designed for 12–10 AWG stranded copper conductors
- 5/16" stud size for secure bolted connections
- Heat-shrink insulation with adhesive liner for environmental sealing
- Tin-plated copper barrel for low resistance and corrosion protection
- Yellow color coding for quick AWG size identification
- Single-crimp barrel design for consistent installations
Dimensional Specifications (Inches)
| Wire Range | 12–10 AWG |
|---|---|
| Stud Size | 5/16" |
| Barrel Length | 0.250" |
| Overall Length (L) | 1.300" |
| Ring Width (W) | 0.558" |
| Stud Diameter (SD) | 0.323" – 0.327" |
| Pad Thickness (F) | 0.469" |
All dimensions shown are in inches. Dimensional data referenced from Mueller Electric 12–10 AWG heat-shrink ring terminal geometry (5/16" stud). :contentReference[oaicite:1]{index=1}
Typical Applications
- Automotive and truck electrical systems
- Marine and RV power distribution
- Industrial machinery and control panels
- Battery terminals and power distribution blocks
- Outdoor and moisture-exposed installations
Conversions Tech Standard
- Precision-manufactured heat-shrink ring terminals
- Consistent dimensions for OEM and field installations
- Designed for sealed, vibration-resistant performance
- Cross-reference and technical support from Conversions Tech
