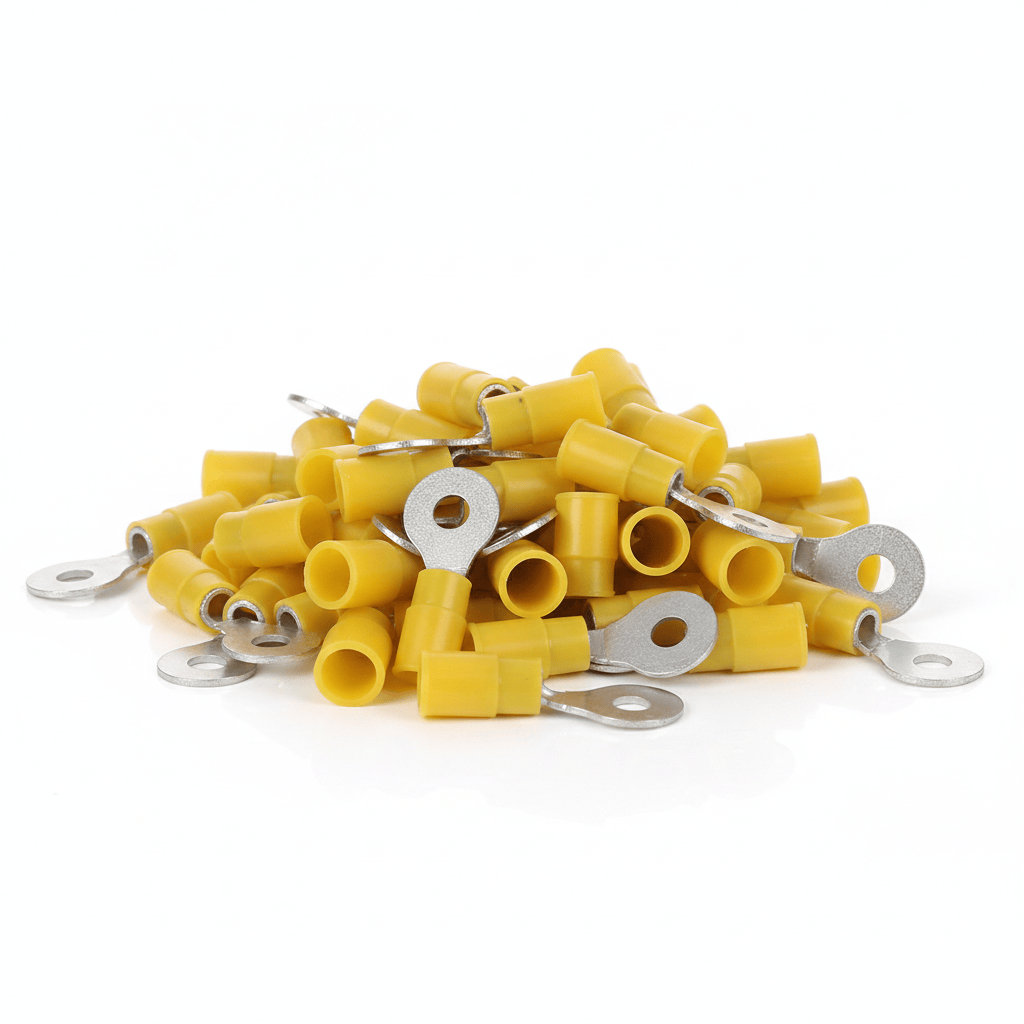

Conversions Tech Nylon Insulated Ring Terminal, Yellow — 12–10 AWG, #10 Stud
The Conversions Tech Nylon Insulated Ring Terminal (12–10 AWG, #10 Stud) is a professional-grade crimp-style ring connector designed for secure, vibration-resistant bolted electrical terminations. Manufactured with a tin-plated copper alloy barrel and durable nylon insulation, this terminal delivers reliable electrical performance and mechanical strength in automotive, industrial, and commercial wiring applications.
The #10 stud ring provides a fixed, non-rotating connection once fastened, making it ideal for terminal blocks, bus bars, grounding points, contactors, and power distribution equipment. Yellow color coding allows fast identification of the 12–10 AWG wire range during installation.
Sold in bags of 100, this packaging format is well suited for OEM harness assembly, contractors, maintenance departments, and inventory-controlled environments.
Search terms: nylon ring terminal, 12 AWG ring terminal, 10 AWG ring terminal, #10 stud ring connector, insulated ring terminal yellow, crimp ring terminal, electrical ring lug
Key Features
- Designed for 12–10 AWG stranded copper conductors
- #10 stud size for secure bolted terminations
- Nylon insulation for abrasion resistance and durability
- Tin-plated copper alloy barrel for low electrical resistance
- Yellow color coding for quick wire size identification
- Single-crimp barrel design for consistent installations
- Bag of 100 terminals for production-ready use
Dimensional Specifications (Inches)
| Terminal Type | Ring terminal, nylon insulated |
|---|---|
| Wire Range | 12–10 AWG |
| Stud Size | #10 |
| Barrel Length | 0.250" |
| Overall Length (L) | 1.020" |
| Ring Width (W) | 0.342" |
| Stud Diameter (SD) | 0.194" – 0.197" |
| Pad Thickness (F) | 0.297" |
All dimensions shown are in inches. Dimensional data referenced from Mueller Electric 12–10 AWG ring terminal selection guide (nylon insulated, #10 stud).
Typical Applications
- Industrial control panels and terminal blocks
- Automotive and fleet electrical repairs
- Power distribution and grounding connections
- HVAC equipment and machinery wiring
- General electrical maintenance and service
Installation Notes
- Strip conductor to the recommended strip length (typically ~1/4").
- Use a crimp tool rated for 12–10 AWG insulated terminals.
- Verify proper crimp with a light pull test before installation.
- Secure the ring to a #10 stud using appropriate torque values.
Frequently Asked Questions (FAQs)
1) What wire sizes does this ring terminal support?
This terminal is designed for 12–10 AWG stranded copper conductors.
2) What stud size does it fit?
The ring fits a standard #10 stud.
3) What material is the terminal made from?
The barrel is made from tin-plated copper alloy for conductivity and corrosion resistance.
4) What type of insulation is used?
This terminal uses nylon insulation for improved durability and abrasion resistance.
5) Does this terminal provide moisture sealing?
No. Nylon insulated terminals do not provide environmental sealing. For sealed connections, use a heat-shrink ring terminal.
6) Is this suitable for automotive use?
Yes. Nylon insulated ring terminals are commonly used in automotive and fleet wiring applications.
7) Can this be used for grounding?
Yes. Ring terminals are frequently used for grounding and bonding connections.
8) What crimp tool should be used?
Use a crimp tool rated for 12–10 AWG insulated ring terminals.
9) What does the yellow color indicate?
Yellow indicates the 12–10 AWG wire size range.
10) Are these suitable for OEM production?
Yes. The consistent dimensions and bag-of-100 packaging make them suitable for OEM and production use.
Conversions Tech Standard
- High-quality nylon insulated ring terminals
- Consistent geometry for repeatable installs
- Production-ready packaging in bags of 100
- Cross-reference and technical support from Conversions Tech
