Short Barrel Compression Connector 2 AWG Copper | 35kV 90°C Center Wire
Shipping calculated at checkout
SKU: 210-98114
Only 8 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

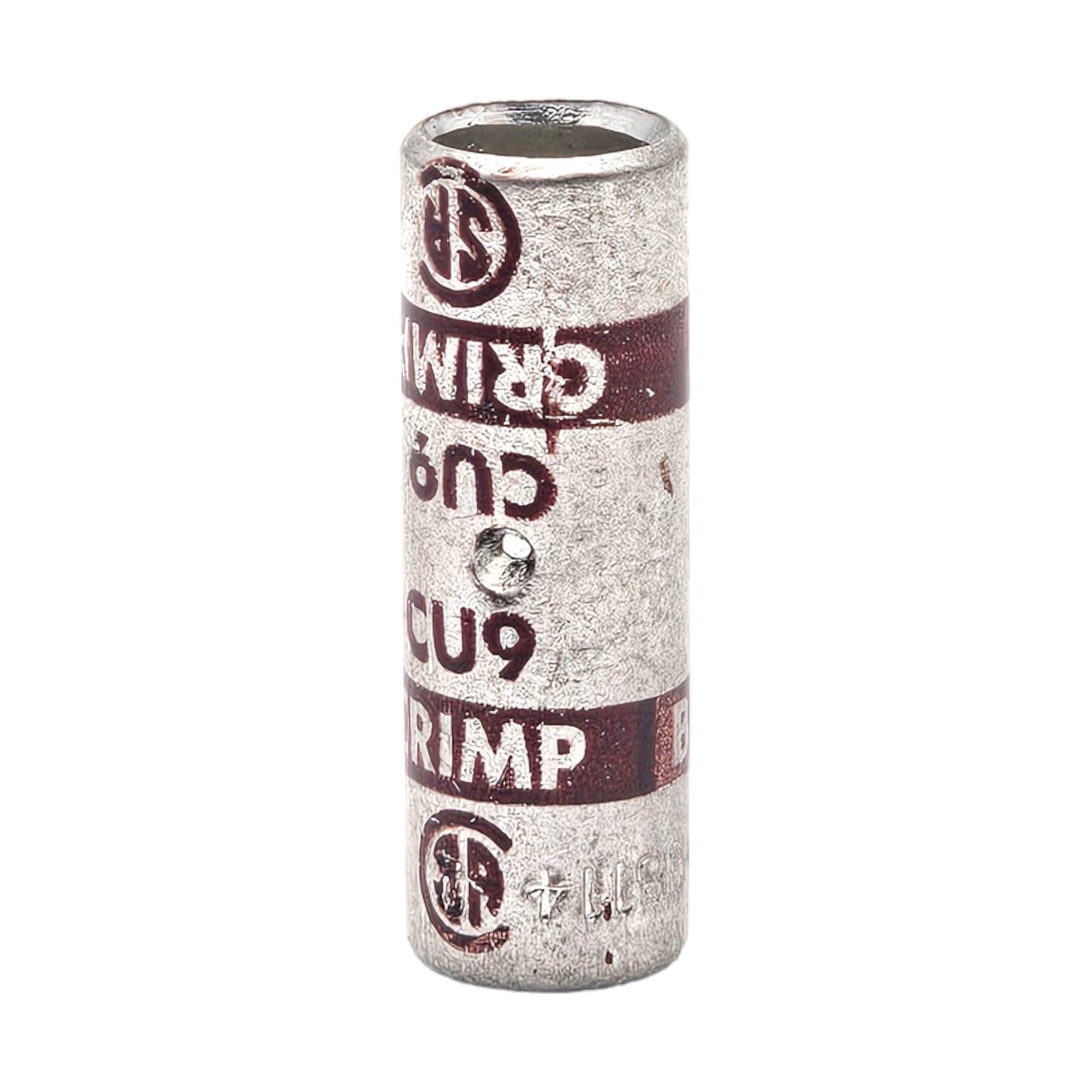

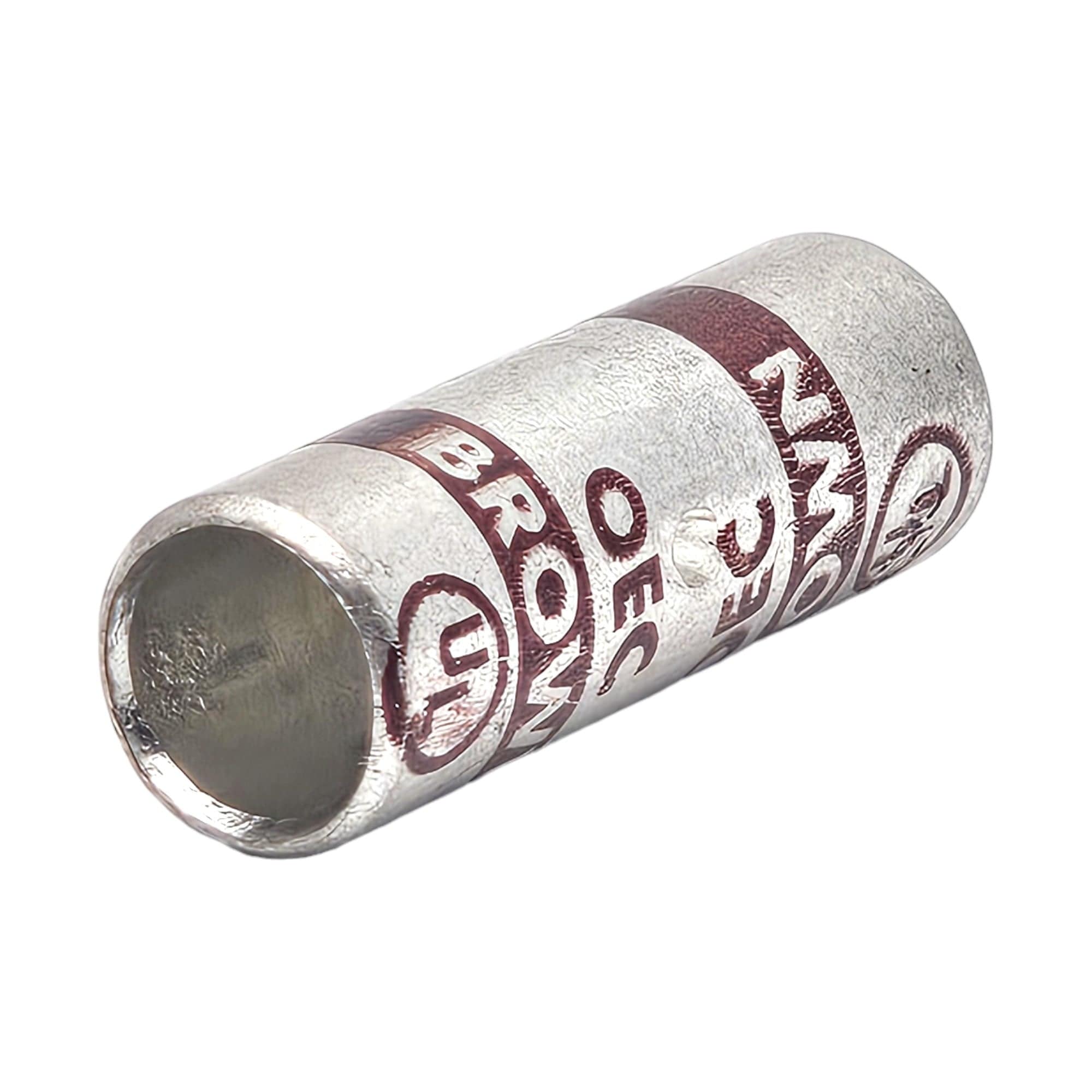

The 2 AWG Copper Short Barrel Compression Connector is a center wire stop crimp lug engineered for grounding and bonding applications across power distribution, industrial machinery, renewable energy systems, and electrical substations. The electro tin-plated seamless copper body provides conductivity and corrosion resistance, while the short barrel with chamfered end accommodates tight-space installations.
Specifications
- Type: Center Wire Stop
- Conductor Size: 2 AWG
- Length: 1.875 inches
- Inner Diameter: 0.312 inches
- Outer Diameter: 0.421 inches
- Barrel Type: Short With Chamfered End
- Body Material: Electro Tin-Plated Seamless Copper
- Conductor Material: Copper
- Voltage Rating: 35 Kilovolts
- Temperature Rating: 90°C
- Color Code: Brown
- Application: Grounding and Bonding
Cross-Reference
Equivalent to short-barrel compression lugs from major manufacturers. Specified by Conversions Tech's US engineering team and built to exact dimensions by certified partner factories.
FAQ
What crimping tool is required for this 2 AWG compression connector?
Use a compression tool with the appropriate die set for 2 AWG copper conductors and short-barrel lugs. Verify die compatibility with the 0.421 inch outer diameter and center wire stop design.
Does the brown color code indicate a specific standard?
The brown color code provides visual identification for 2 AWG conductor size, supporting field verification and inventory management per industry color-coding conventions.
Can this connector be used in wet locations?
The source specifications do not include environmental or NEMA ratings. Evaluate your specific installation environment against applicable NEC and local code requirements for grounding and bonding connections.
