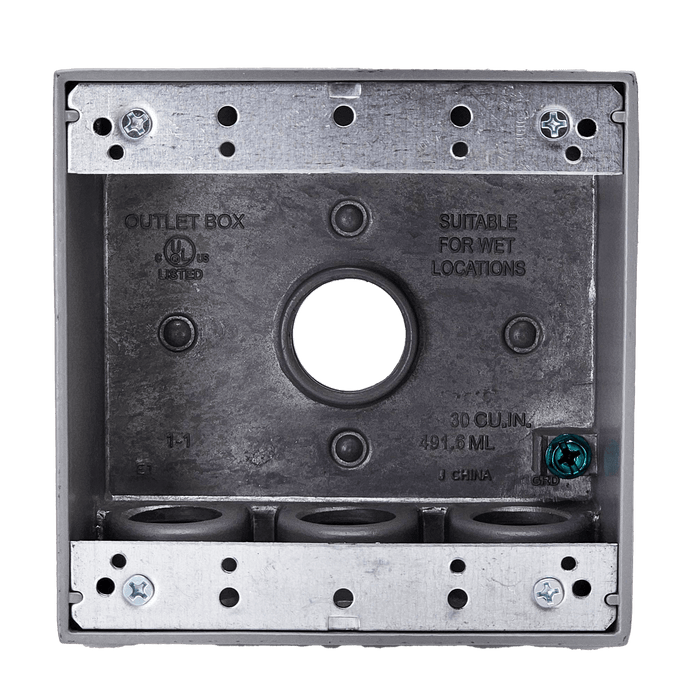

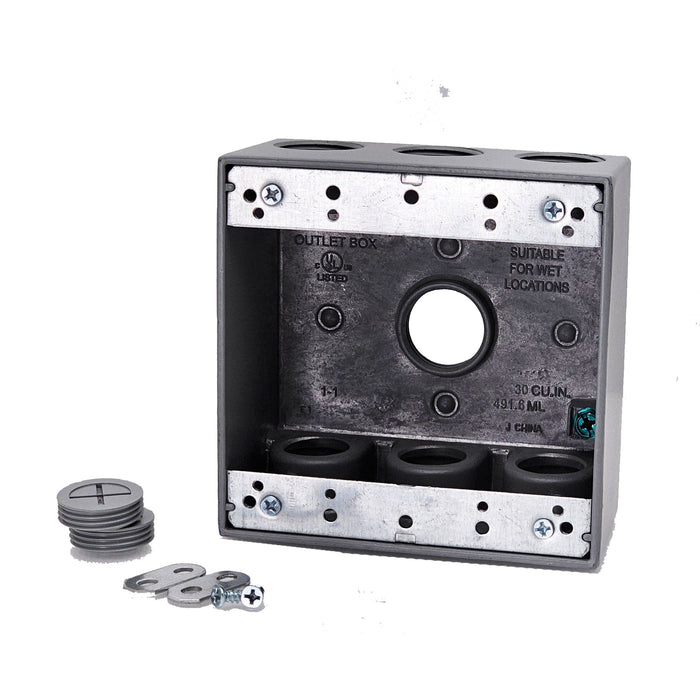

Precision-engineered to house dual wired devices, this premium-grade 2-gang die-cast metal box is an ideal solution for switches, outlets, and outdoor lighting fixtures. It provides robust protection, versatile wiring configurations, and meets strict quality and safety standards.
Specifications
Material: Seamless die-cast metal for enhanced durability.
Finish: Applied gray powder-coating for a sleek, protective exterior.
Dimensions: Measures 4.56" x 4.56" with a depth of 2.70".
Hub Size: Compatible with 1/2" hubs.
Hub Count: Features 7 hubs to accommodate comprehensive wiring schemes.
Gang Compatibility: Specifically designed for 2 gangs, allowing space for multiple devices.
Mounting: Equipped with lug mounting for a secure installation.
Certifications: Compliant with RoHS and UL standards, ensuring safety and quality benchmarks.

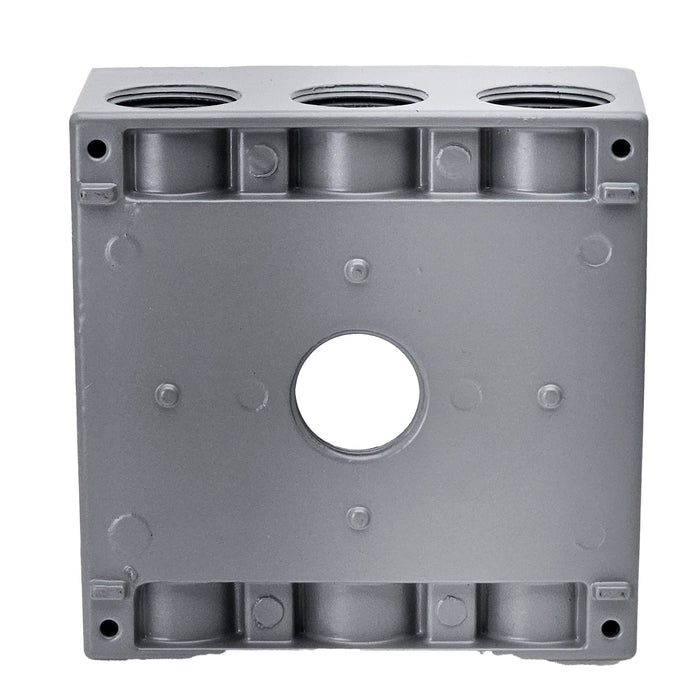

Hub Locations: Strategically placed at the back and sides to enable optimal wiring pathways.
Installation Instructions
- Find the ideal mounting location based on your wiring layout.
- Fix the box in place using the pre-fitted mounting lugs.
- Attach conduits to the designated hubs for a secure connection.
- Perform all internal wiring and device connections within the box.
- Secure devices using the provided screws.
- Use closure plugs to seal any unused hubs, ensuring weatherproofing.
- Connect the ground wire to the ground screw to maintain safety.
