DaierTek Bus Bar 12V Power Distribution Block with Cover 5 x 1/4" Studs Terminal Block Max 150A 48VDC Positive Negative for Auto
Shipping calculated at checkout
SKU:
77 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
SPECIFICATIONS
Brand Name: Daiertek
Choice: yes
Connector Type: Screw
Current Rating: 150 Amps
Hign-concerned Chemical: None
Item: Power Distribution Block
Item Height: 1.1
Item Weight: 0.18
Item Width: 4.media-amazon.com/images/S/aplus-media-library-service-media/d422690a-ce8e-448a-aef1-3d7467e075b1.__CR0,0,1464,600_PT0_SX1464_V1___.jpg" slate-data-type="image">
About this item
Durable & Sturdy - The base of the bus bar is made of nylon, which is heat resistant and durable. Also the stainless steel stud terminals are resistant to corrosion, and the nickel plated copper plate also makes the marine bus bar have high conductivity and superior corrosion resistant performance, effectively enhances the lifecycle of the bus bar.
1/4" Stud Terminal - The battery bus bar terminal block with 5 x 1/4" (M6) studs terminal, which makes the 12V busbar able to accept a wide range size terminal connectors and wires install. And the washer design nuts also makes the contact of nut, wire lug and the terminal block closer, which will be much easier to tighten and safer to use.
Rating & Dimension - Maximum current: 150A DC, 130A AC. Maximum voltage: 48V DC, 300V AC. The overall dimension of this small bus bar is 4.2in x 0.9in x 1.1in.
Wide Applied Range - The 12V power distribution block with cover helps to protect more exposed areas and prevent accidental short circuit, of course the busbar helps to wire neatly and prevent electrical short circuit caused by messing wiring harness. The battery bus bar can widely used in automotive, cars, trucks, RVs, motorhomes, motorcycles, marine, boats, ships and so on.

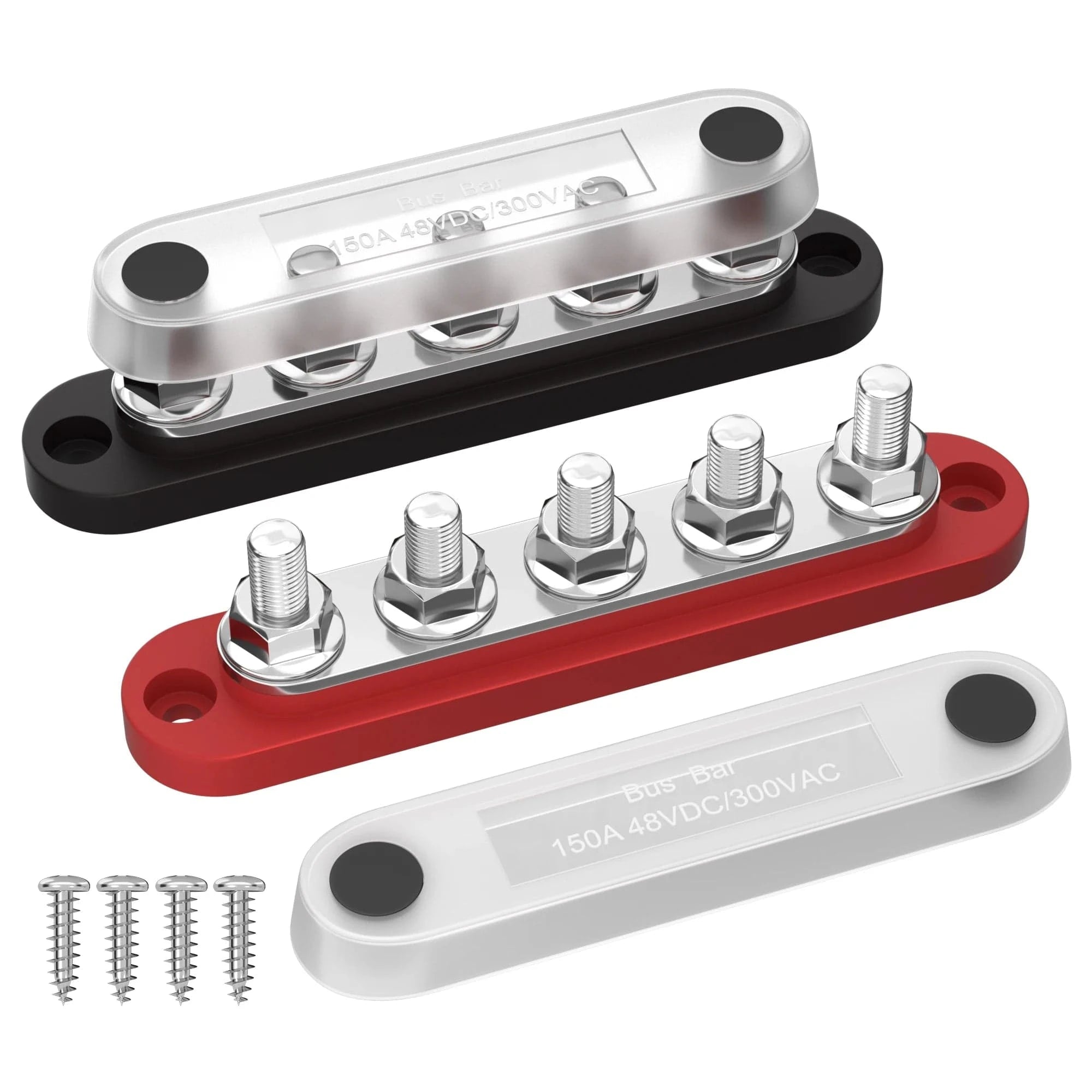

Package Included - A pair of 12V battery bus bars with covers: A red positive bus bar and a black ground bus bar, two sets of mounting screws and each of bus bar with 5 terminal posts.

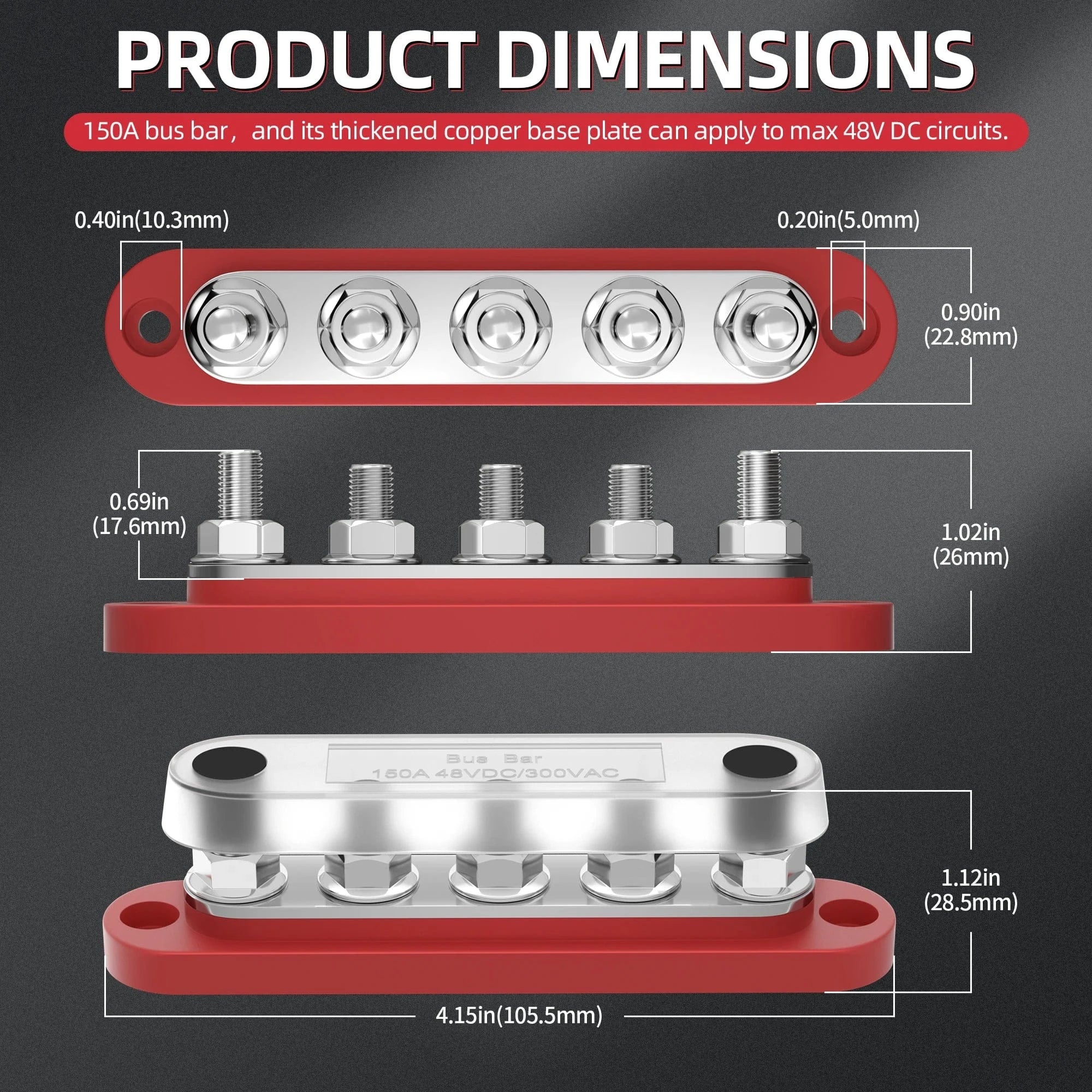

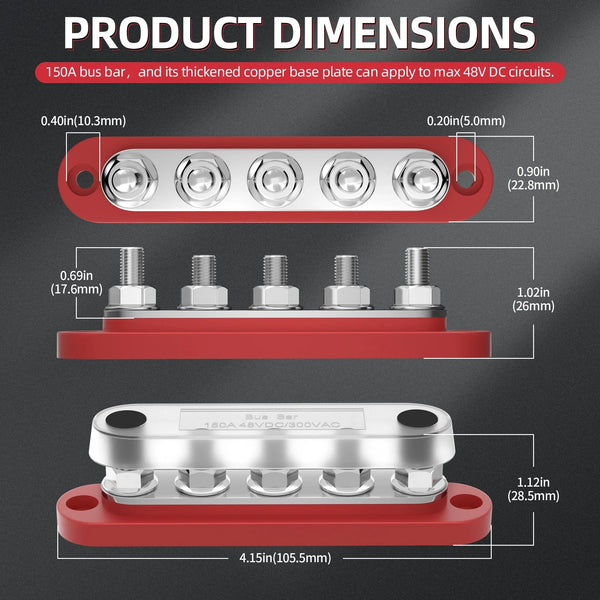

PRODUCT DIMENSIONS
150A bus bar, and its thickened copper base plate can apply to max 48V DC circuits.

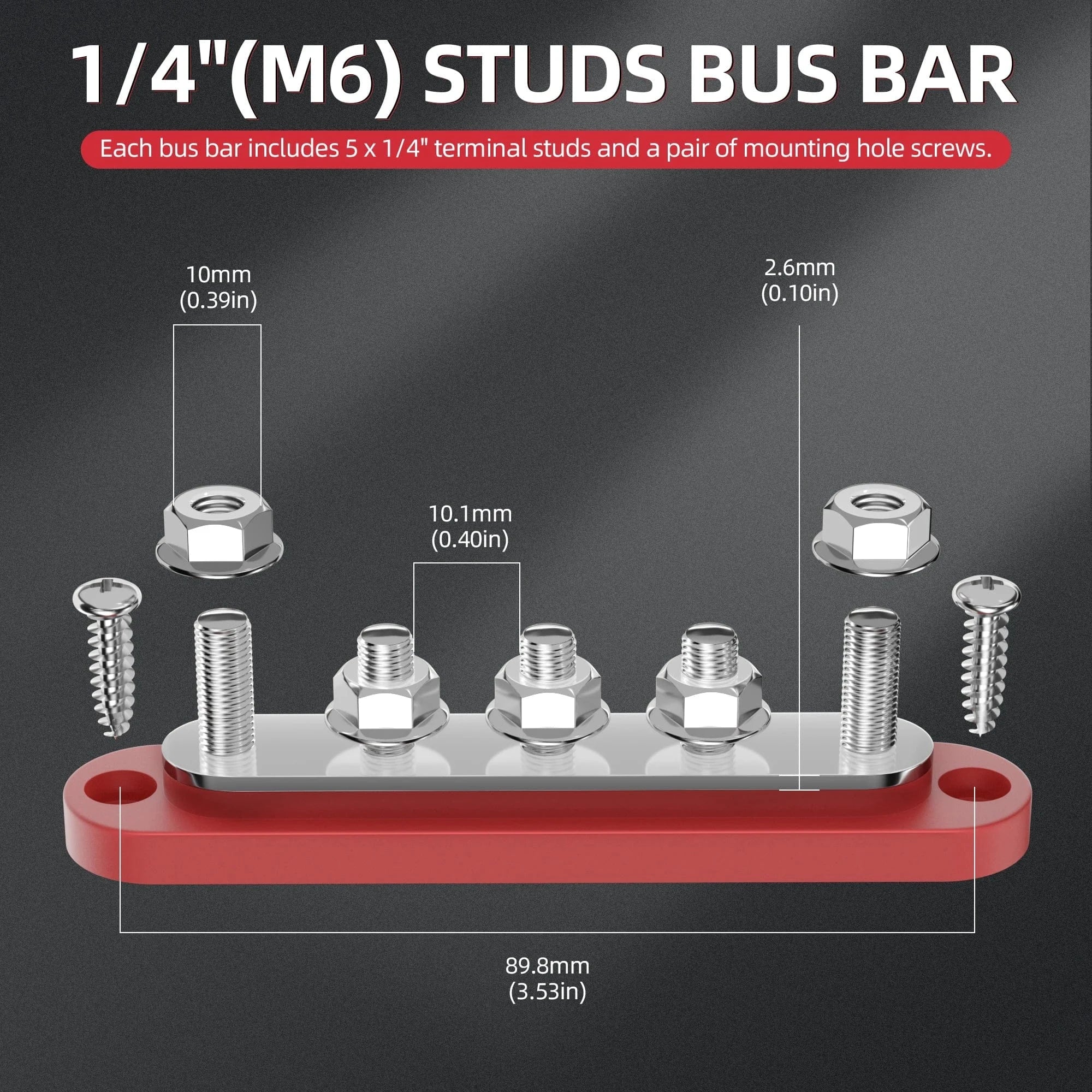

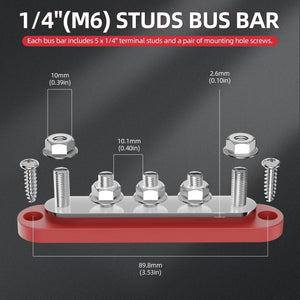

1/4" (M6) STUDS BUS BAR
Each bus bar includes 5 x 1/4" terminal studs and a pair of mounting hole screws.

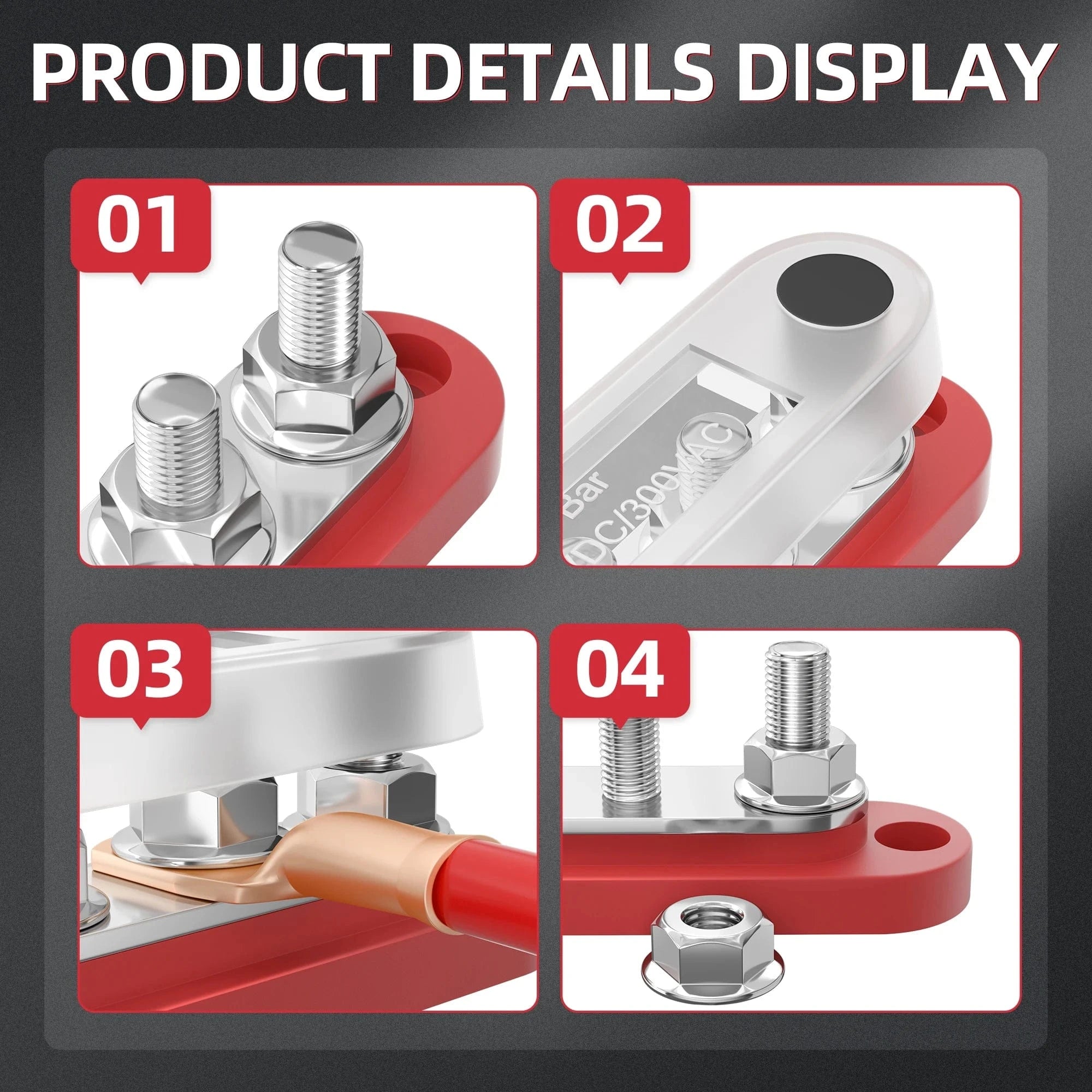

WASHER DESIGN NUTS
The washer design of the nuts can increase the contact area between the studs and the copper bottom plate, which makes it safer to use.

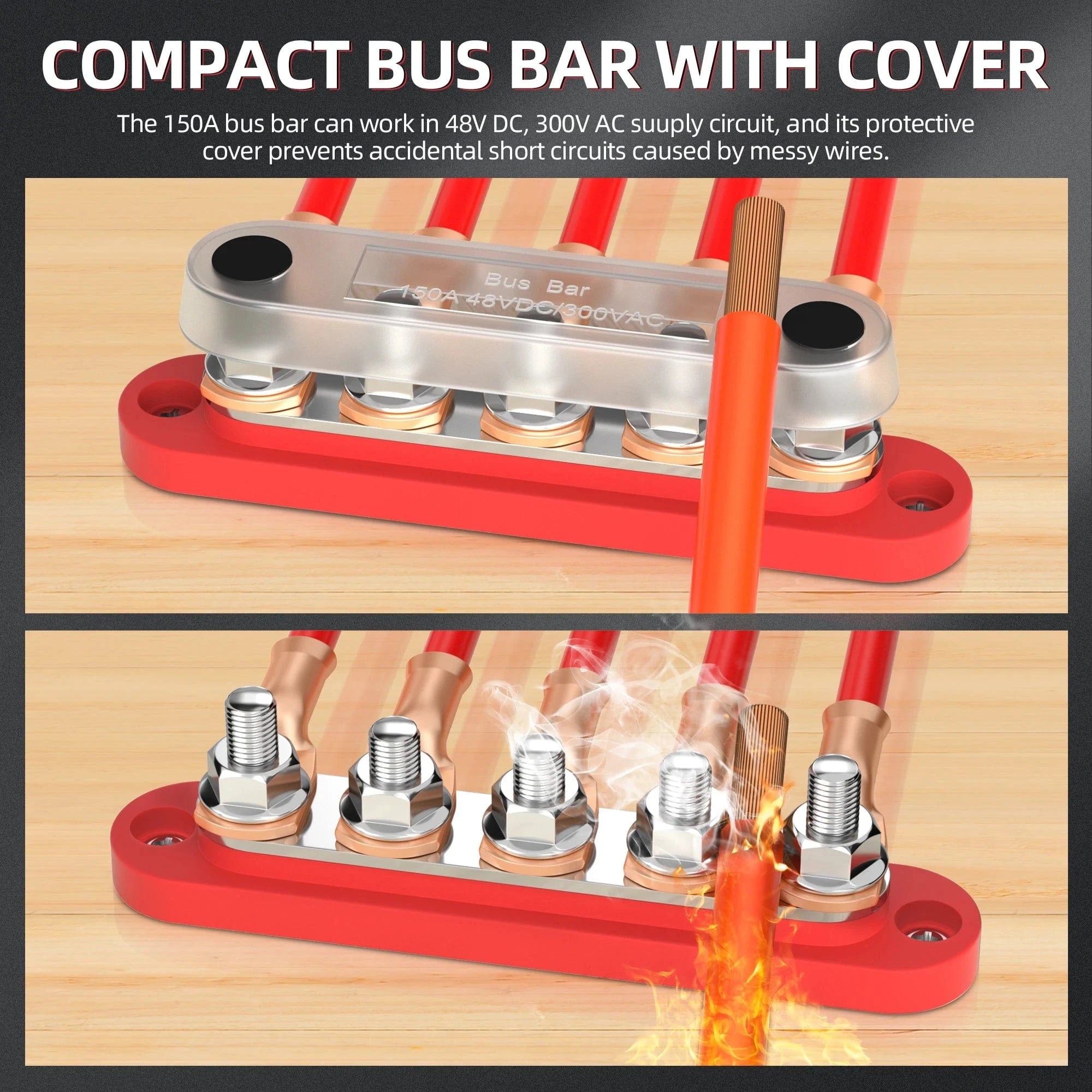

NYLON PROTECTIVE COVER
The nylon cover can shelter the exposed part of the bus bar, and prevents messy wires from affecting the normal operation of the circuit.
MADE OF HIGH QUALITY MATERIAL
Stainless steel studs, nickel plated copper base, making the terminal block have high conductivity and corrosion resistance.
EASY TO WIRE NEATLY
The battery bus bar is easy to arrange the circuit neatly to avoid accidental short circuit caused by messy lines.
The distribution block with cover can be widely used in automotive, cars, motorcycles, RVs, off-road, trucks, marine, yacht, ships, boats, and so on. With our bus bars, you can do many installations on these five connection points, so that you can arrange these lines neatly and easily.
