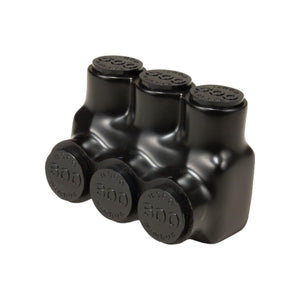

Insulated Tap Connectors 3 port single-side Entry 4 AWG - 600 MCM
Shipping calculated at checkout
SKU: 610-2003600
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Form secure connections between multiple conductors with the Insulated Tap Connectors. These connectors feature a rounded design and UV-resistant insulation coating, offering several key advantages for reliable electrical installations.
Key Advantages
- Secure Connections: Utilizes adjustable set screws and a rounded body design to create high-pressure connections between conductors, ensuring long-lasting performance with minimal electrical resistance.
- One-Side Wire Entry: Securely connects up to 3 conductors using single-side entry ports designed for wire sizes between 4 AWG and 500 KCMIL, suitable for line-side service equipment as per NEC article 230.46.
- NEC 230.46 Compliance: Adheres to NEC Article 230.46 requirements, making these connectors suitable for line-side connections on service equipment.
- Ergonomic Design: Features a rounded body and smooth plastisol insulation, promoting comfortable handling during installation.
- Removable Plugs: Equipped with removable plugs on each port and set screw, protecting against debris, moisture, and contaminants.
- Pre-Filled Oxide Inhibitor: Entry ports are pre-filled with oxide inhibitor gel to prevent corrosion, ensuring stable electrical resistance over time.
- Professional Performance: The durable plastisol insulation coating offers superior resistance to UV radiation, abrasion, and chemicals, ensuring extended service life in various environmental conditions.
Key Technical Specifications
Wire Gauge Range: 4 AWG to 500 KCMIL
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Color: Black
UPC: 810166614573
Origin Country: US
Certifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps:
- Aluminum: 100 A
- Copper: 130 A
Conductor Size Range: Aluminum: 4 AWG to 500 KCMIL
Conductor Type: Copper, Aluminum
Temperature Rating: 90°C, AL9CU
Environmental Temperature: Cold Temperature rated to -45°C
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Explore our Insulated Tap Connectors for secure, compliant connections across a wide range of electrical applications.
Download our detailed specification sheet and drawing for more information:
Download Specification Sheet Download Drawing
