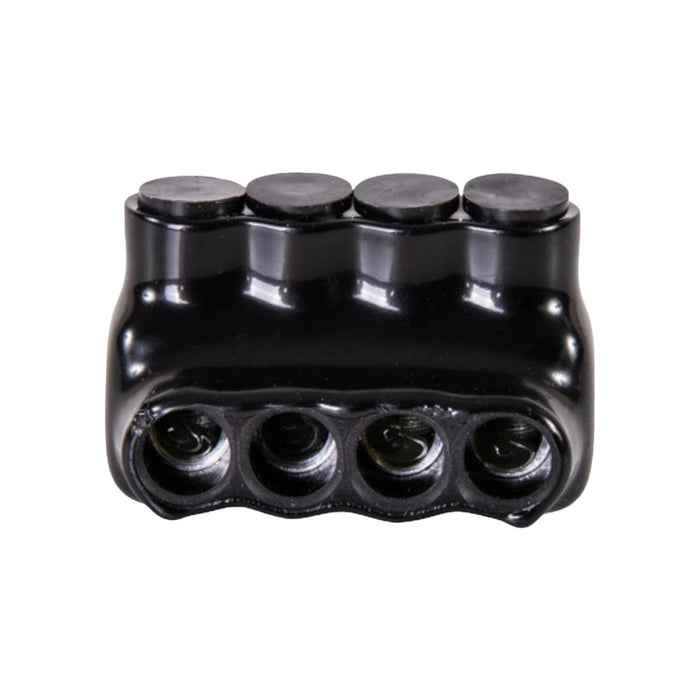

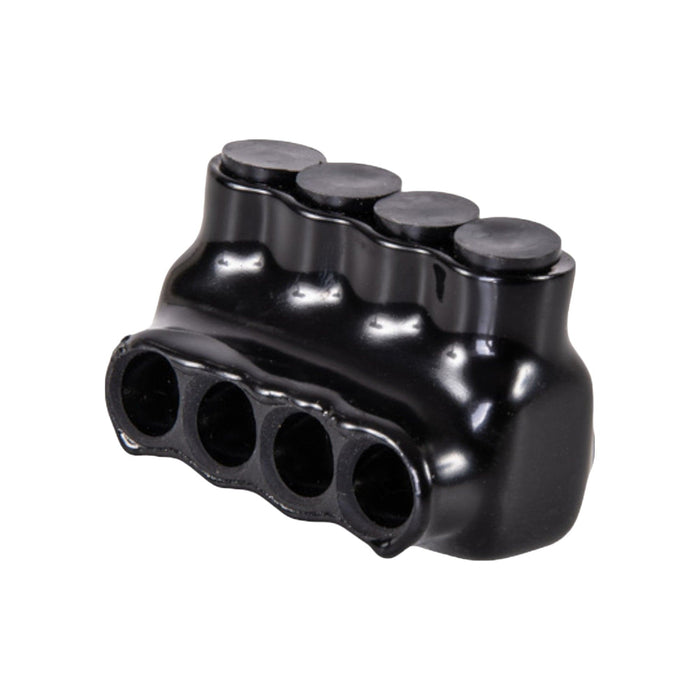

Insulated Tap Connectors 4 port single-side Entry 14 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-2004214
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Our Insulated Tap Connectors form secure connections between conductors with a rounded design and UV-resistant insulation. Designed for versatility and reliability, these connectors are ideal for a wide range of electrical applications.
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body for high-pressure, low-resistance connections.
- Single-Side Wire Entry: Quickly connects 4 conductors (2-14 AWG), compliant with NEC article 230.46.
- NEC 230.46 Compliance: Meets NEC requirements for line side connections on service equipment.
- Ergonomic Design: Rounded body and smooth plastisol insulation for comfortable gripping during installation.
- Removable Plugs: Each port and set screw includes a removable plug to prevent debris and moisture ingress.
- Pre-Filled Oxide Inhibitor: Gel-filled ports inhibit corrosion, ensuring stable electrical resistance over time.
- Professional Performance: Durable plastisol insulation resists UV radiation, abrasion, and chemicals for reliability.
Technical Specifications
Wire Gauge Range: 2 AWG to 14 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Certifications: cULus, Meets NEC 230.46 Suitable for Line Side of Service
UL Standard: UL 486A/B
Conductor Max Amps:
- Aluminum: 100 A
- Copper: 130 A
Temperature Rating: 90°C, AL9CU
Conductor Count: 4
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure projects
- Automotive environments
- Marine environments
- Various machinery and equipment wiring applications
Download our detailed specification sheet and drawing for more information:
Download Specification Sheet Download Drawing
