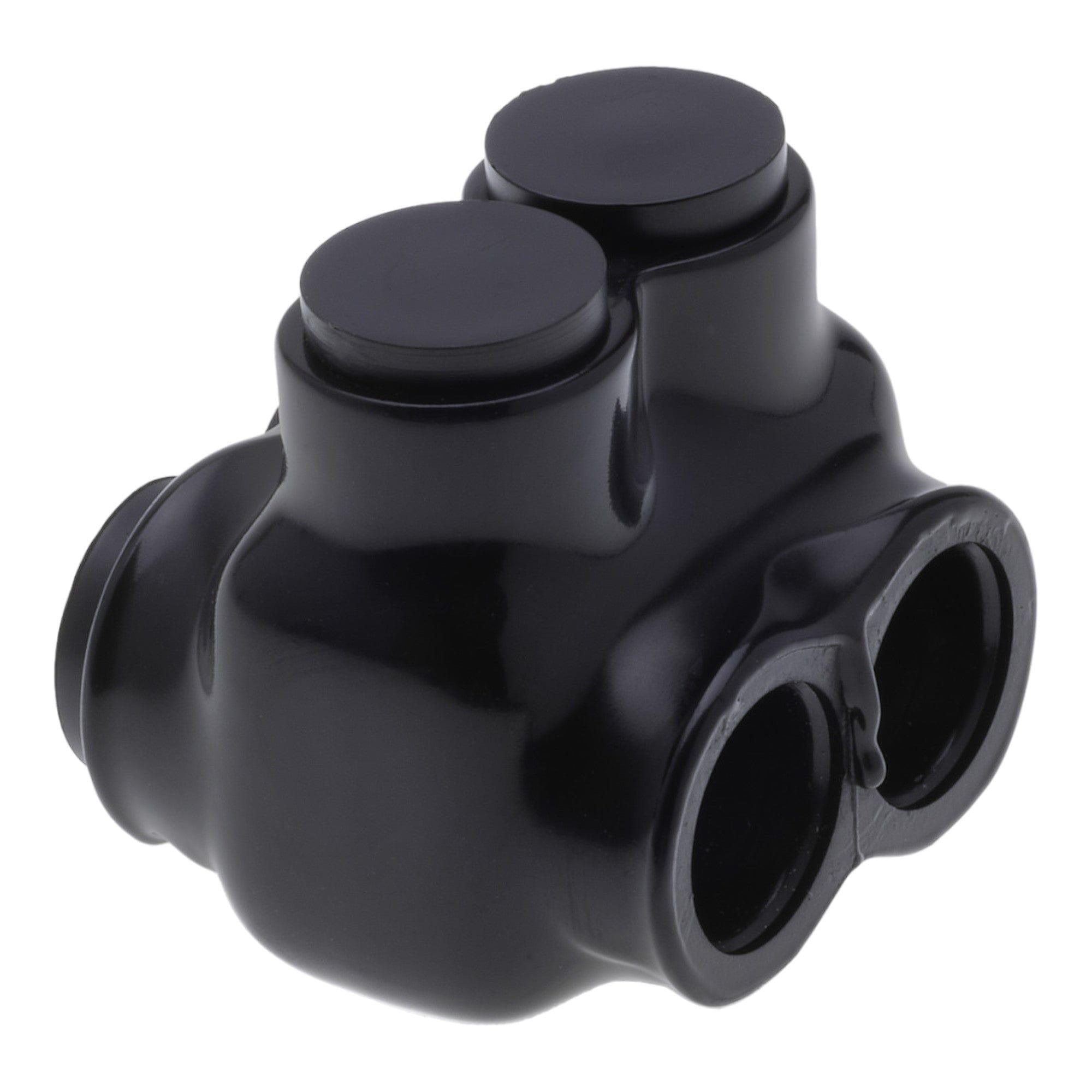

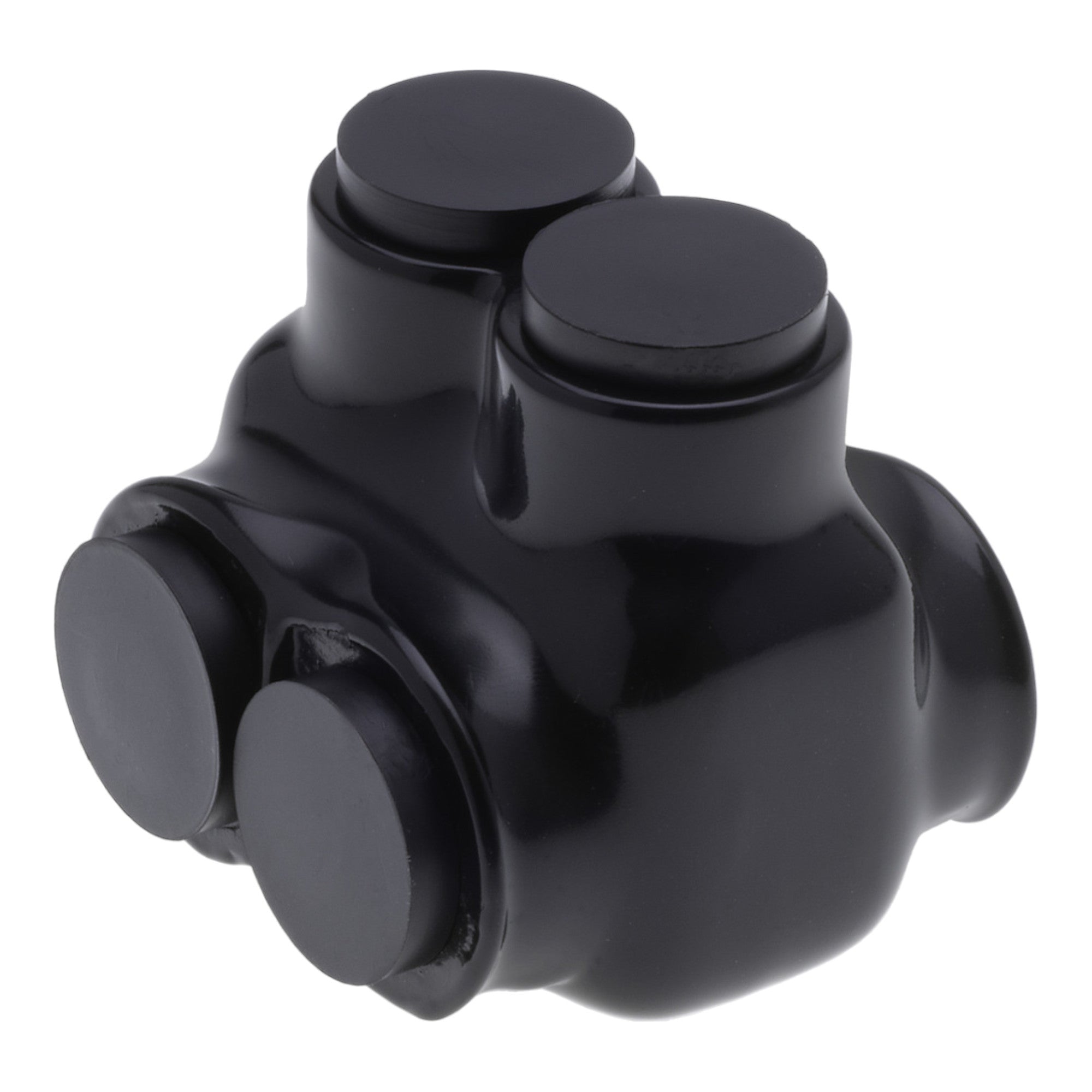

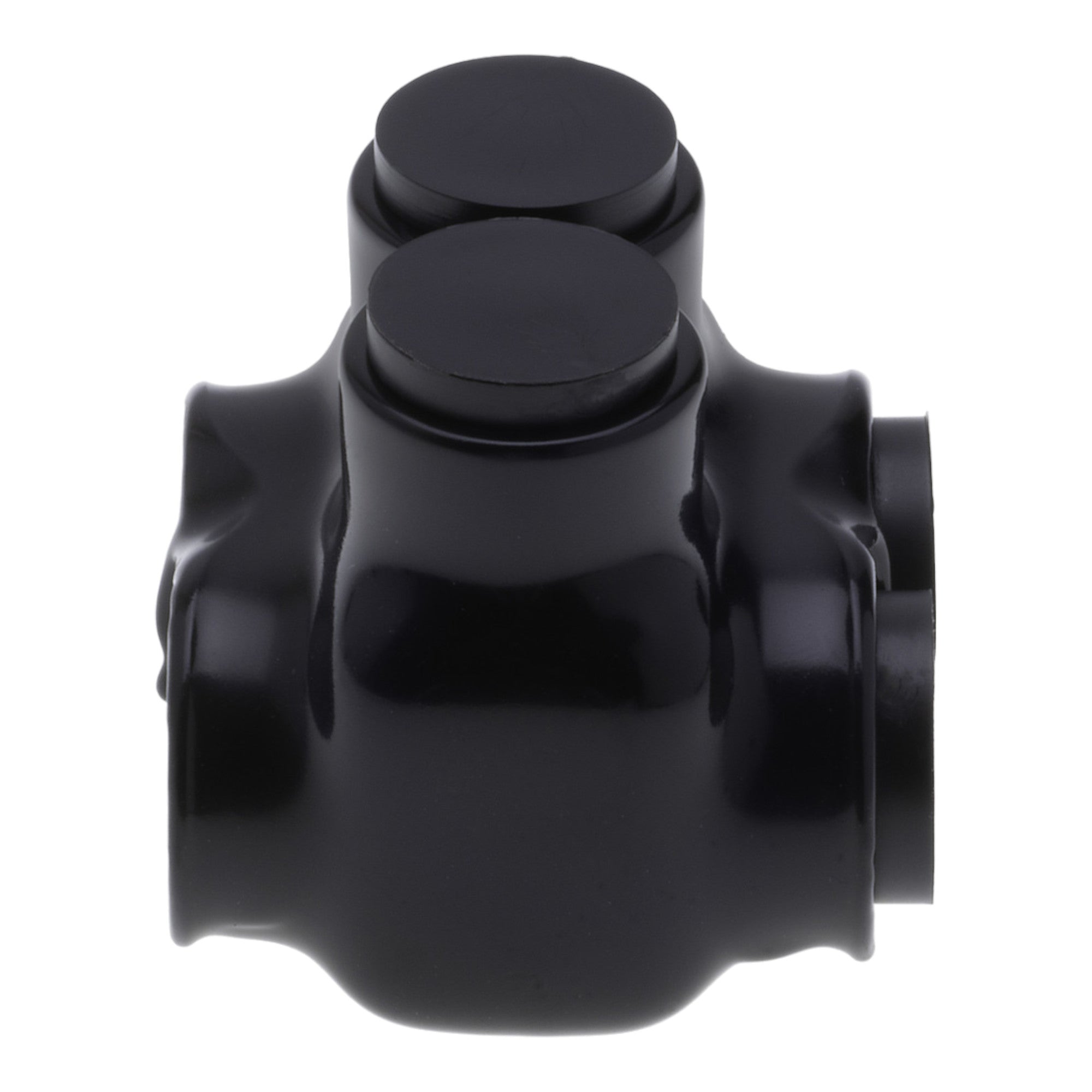

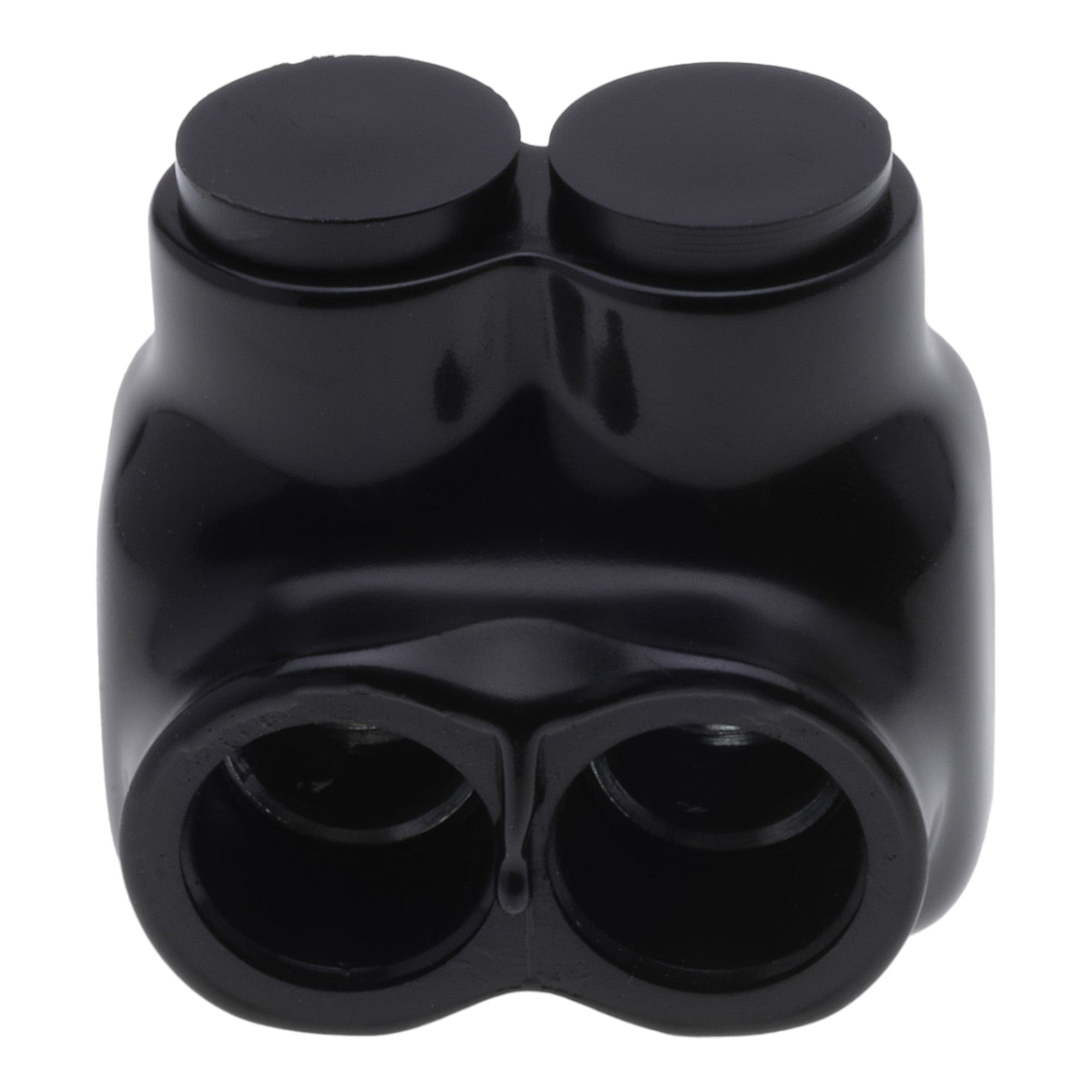

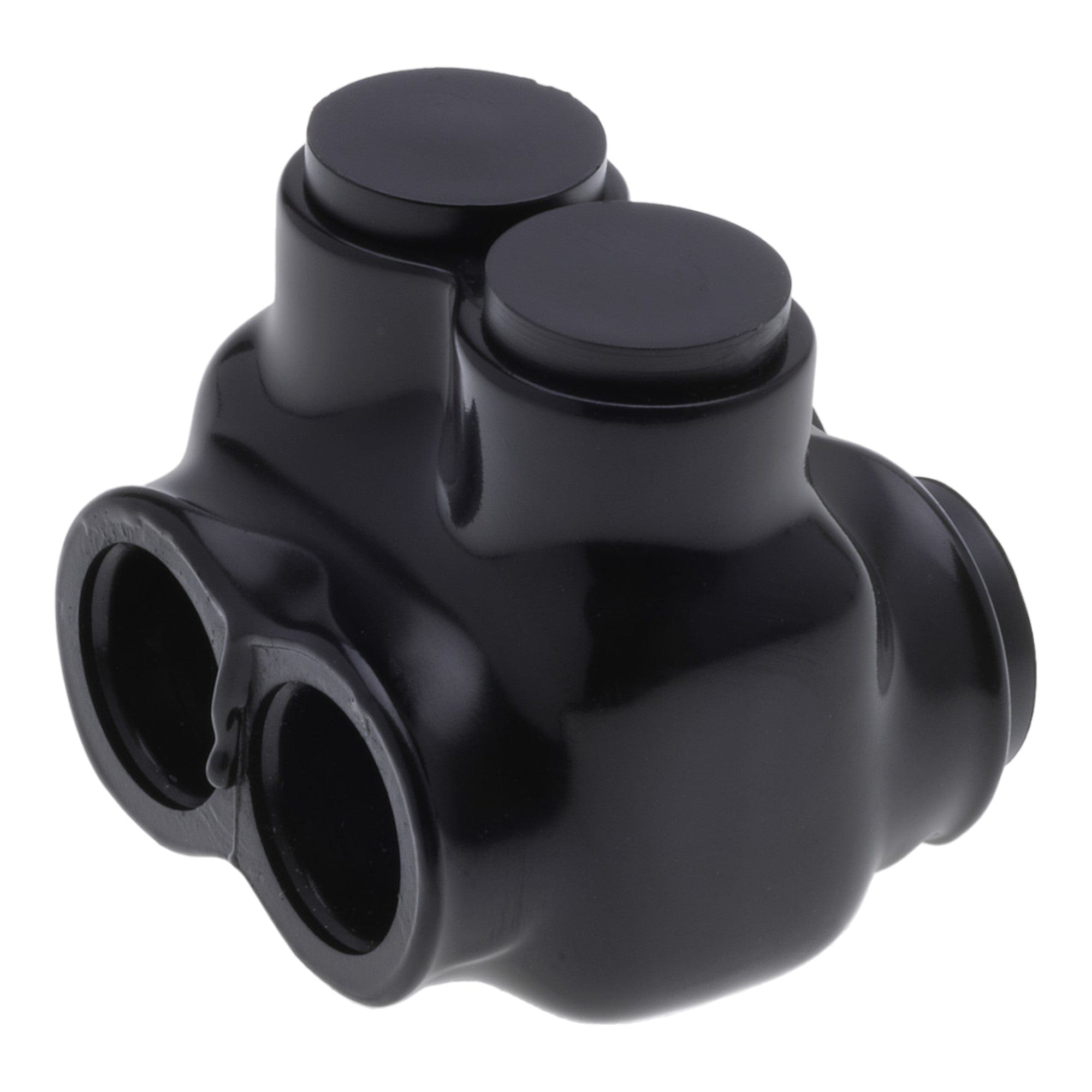

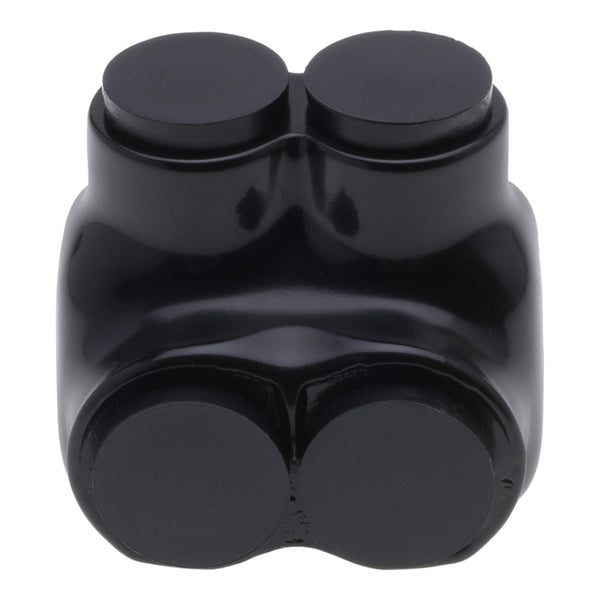

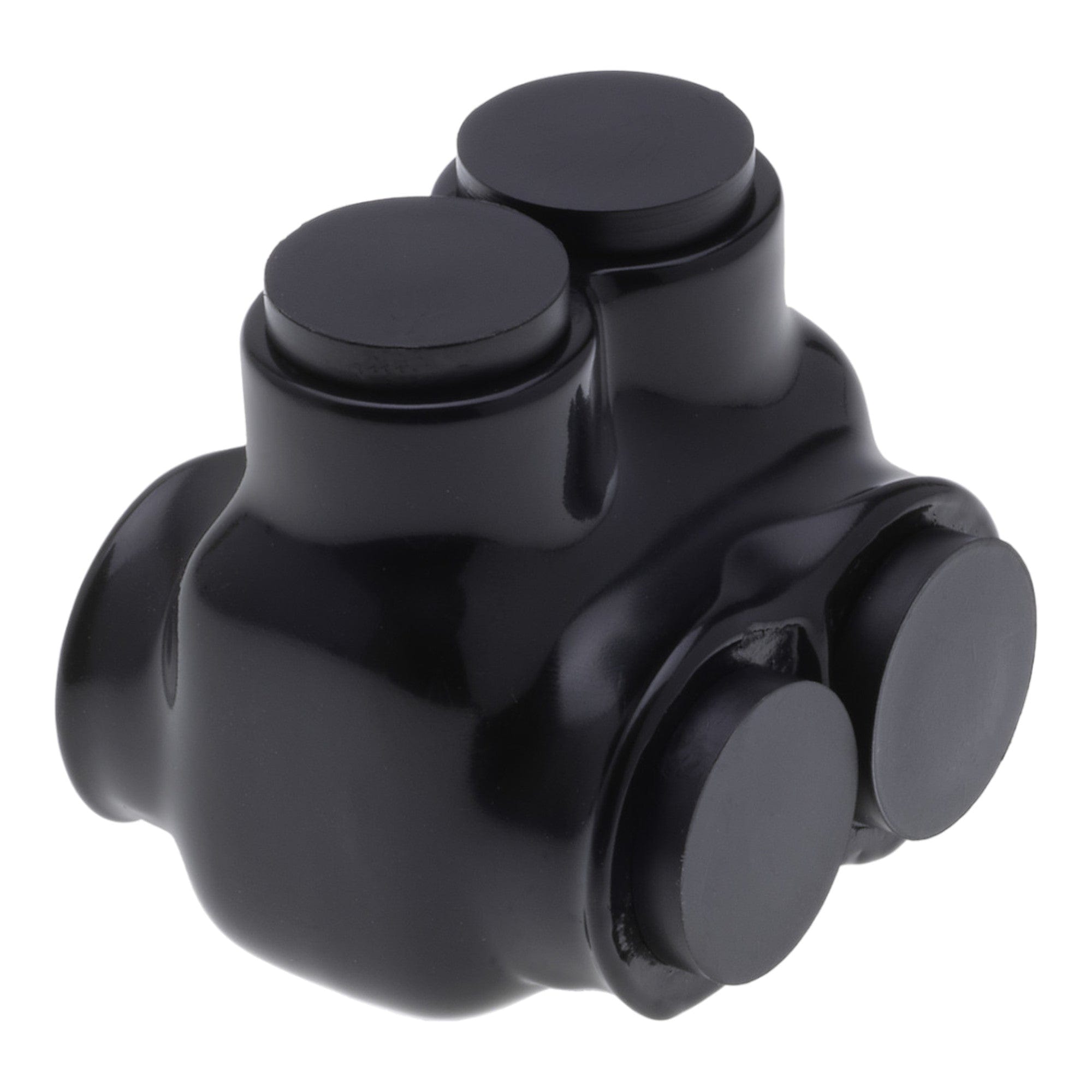

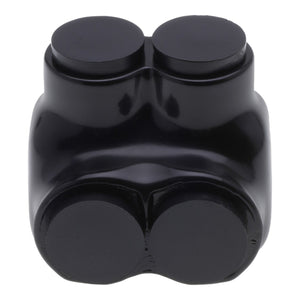

Insulated Tap Connectors 2 ports Dual-side Entry 2/0 AWG - 6 AWG

Sale price $29.05

Shipping calculated at checkout

SKU: 610-1002206

Out of stock

🖨️ Print Spec Sheet

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • Price guarantee
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Venmo
  • Visa

Conversions Tech Insulated Dual-Side Tap Connector | 2-Port, 2/0 AWG–6 AWG

Engineered for secure, low-resistance junctions in power-distribution, HVAC, and machinery circuits, this two-port insulated tap connector accepts conductors from 2/0 AWG down to 6 AWG via opposed side entries—delivering rapid, code-compliant splices in residential, commercial, and industrial environments.

Technical Specifications

Parameter Value Details
Connector Type Insulated Tap, 2-Port Dual side-entry design
Wire Range 2/0 AWG – 6 AWG CU/AL UL 486A/B compatible
Dielectric Rating 600 V AC/DC 90 °C insulation
Housing Material High-impact thermoplastic Flame-retardant, UV-stable
Contact Material High-conductivity aluminum alloy Tin-plated for corrosion resistance
Torque Spec 45 lbf·in Hex-socket set-screws
Compliance UL 486A/B • RoHS III CSA C22.2 No.65 listed

Key Features

  • Dual Side-Entry Ports —streamlines inline or offset tap terminations.
  • Wide Gauge Range —handles feeder (2/0 AWG) to branch (6 AWG) conductors.
  • Insulated Body —factory-molded dielectric eliminates taping and shrink tubing.
  • High-Torque Set-Screws —deep-well hex drive prevents cam-out; maintains 360° pressure.
  • Code-Compliant —UL and CSA listings for Cu or Al conductors; RoHS III environmentally safe.

Common Use-Cases

  • Residential panelboard taps & service upgrades
  • Commercial lighting and power distribution
  • Industrial control cabinets & MCC buckets
  • HVAC equipment disconnects
  • Utility and infrastructure splices
  • Marine, automotive, and heavy-equipment wiring

© 2025 Conversions Tech  — Specifications subject to change without notice.
