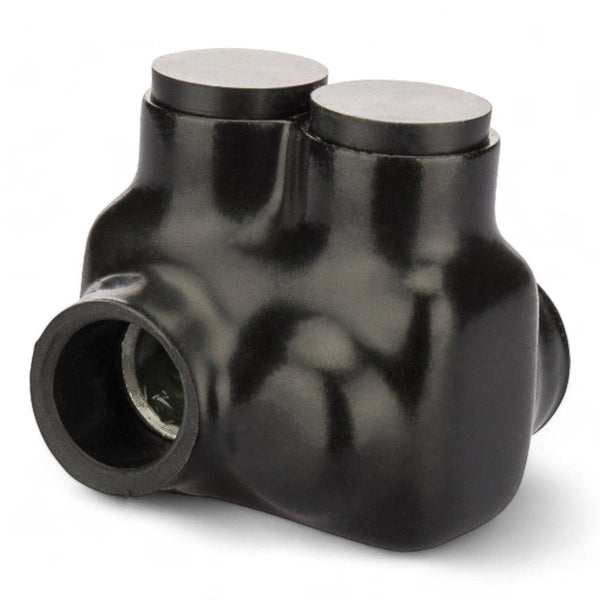

Insulated Tap Connectors With Two Wires Zig Zag Entry 1/0 AWG 2 Port
Product Overview
The 2-Port Insulated Tap Connector is a heavy-duty electrical connector designed for secure and reliable connections of two wires. It's specifically engineered to accommodate a wide range of wire sizes, from large 1/0 AWG conductors down to smaller 14 AWG wires. This versatility makes it suitable for various electrical applications in industrial, commercial, and renewable energy settings.
Tech Description
This tap connector features a unique zig-zag entry design that allows wires to be inserted from either the same side or opposite sides of the connector. This provides flexibility during installation and accommodates different wiring configurations. The connector is constructed with a durable plastisol material and boasts a high dielectric strength, ensuring safe and reliable operation even in demanding environments.
Technical Aspects
- Conductor Compatibility: Aluminum/Copper (Dual Rated)
- Wire Size: 1/0 AWG - 14 AWG
- Voltage Rating: 600 Volts
- Temperature Rating: -45°C to 90°C
- Material: High Dielectric Strength Plastisol
- Ports: Offset Double Sided Entry with Removable Plugs
- Body Style: 1 Pole, 2 Conductor
- Wire Type: Class B & C
- Hex Size: 3/16 inch
Specifications
- Dimensions: 1.62" (L) x 1.75" (W) x 1.75" (H)
- Finish: Black
This combination of features makes the 2-Port Insulated Tap Connector a valuable tool for electricians working on projects that require robust and versatile electrical connections.
