LB Series (Non-Thread) - 1/2"
Shipping calculated at checkout
SKU: 677-30001
400 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

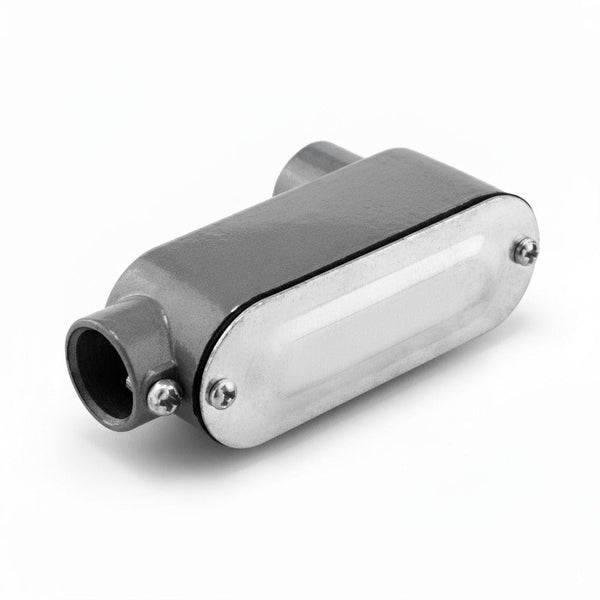

LB Conduit Body — Non-Threaded, 1/2 in (LB Series)
The LB conduit body, non-threaded, 1/2 inch trade size provides a clean, code-compliant 90° change of direction with convenient rear access for pulling, splicing, and maintenance. Engineered for EMT conduit, its non-threaded hubs speed installation, while the removable gasketed cover maintains a weather-resistant seal when properly installed.
Key Features
- Style: Type LB (rear-opening “pull elbow”) for streamlined wire pulls at 90° turns
- Hub Type: Non-threaded 1/2 in hubs designed for EMT runs
- Access & Serviceability: Wide rear opening with removable cover + gasket for fast re-entry
- Durability: Corrosion-resistant body with smooth interior radii to protect conductor insulation
- Weather Performance: Rain-tight performance when cover gasket is installed correctly (installer dependent)
- Compliance: UL Listed to applicable standards; designed in accordance with NEMA FB-1 and the NEC
Technical Specifications
- Trade Size: 1/2 in
- Body Type: Conduit body, style LB, non-threaded hubs
- Compatible Conduit: EMT (use threaded LB bodies for Rigid/IMC systems)
- Enclosure Rating: Rain-tight / NEMA 3R when installed per instructions
- Includes: Body, cover, sealing gasket, mounting screws
Typical Applications
- Direction changes on EMT at exterior walls, rooftops, and service entrances
- Pull points on long conduit runs and tight mechanical rooms
- Commercial, industrial, and residential electrical installations
Installation Notes
- Match hub style to conduit type (non-threaded for EMT). Use threaded LB for Rigid/IMC.
- Seat the cover gasket clean and flat; tighten captive screws to manufacturer torque.
- Bonding/grounding and fill must comply with NEC Article 300 and local code.
Downloads
Frequently Asked Questions
What does “LB” indicate on a conduit body?
Is this LB for EMT or for Rigid/IMC?
Is it suitable for outdoor or wet locations?
What comes in the box?
Can I pull conductors through this body?
