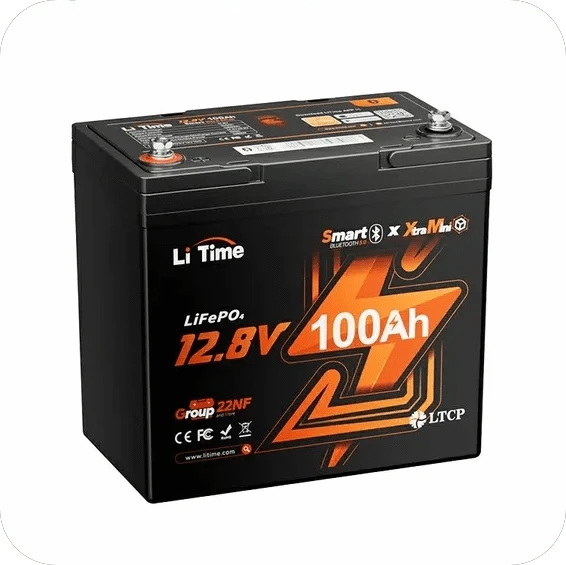

12V 100Ah XTRA-MINI LiFePO₄ Bluetooth Battery | 100A BMS | 15,000 Cycles | IP65 | Conversions Tech INC.
The Conversions Tech XTRA-MINI LiFePO₄ 12V 100Ah Battery is engineered for maximum energy density and performance in a compact, lightweight form factor. Designed for EV-grade reliability, this IP65-rated lithium battery offers Bluetooth 5.0 connectivity, a 100A integrated smart BMS, and up to 15,000 life cycles. Perfect for solar storage, RVs, marine systems, mobility devices, and industrial energy applications.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 12V100-100-XTRA-MINI-BT-4-A55 |
| Battery Type | Solid-State LiFePO₄ |
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Energy | 1280Wh |
| BMS Rating | 100A Smart Bluetooth Battery Management System |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Max 1-Second Discharge Current | 500A |
| Recommended Charge Current | 20A |
| Charge Voltage | 14.4V ± 0.2V (CC/CV Method) |
| Cycle Life | 4,000 cycles @100% DOD · 6,000 @80% DOD · 15,000 @60% DOD |
| Operating Temperature | -20°C ~ +60°C / -4°F ~ +140°F |
| Protection Class | IP65 — Dustproof and Water-Resistant |
| Terminal Type | M8 Bolted Terminals |
| Dimensions (L×W×H) | 9.02 × 5.43 × 8.19 in |
| Weight | 19.13 lbs |
| Max Expansion | 4P4S (Parallel & Series Support) |
| Internal Resistance | ≤40mΩ |
| Cathode Material | LiFePO₄ (EV-Grade Cells) |
| Certifications | FCC ID · UL1973 · CE · RoHS · UN38.3 · MIC |
| Origin | Guangdong, China |
| Warranty | 5-Year Limited Warranty (Extendable to 10 Years) |
Core Product Advantages
- Compact & Lightweight: World’s smallest 12V 100Ah LiFePO₄ battery (Group 22NF form factor, 19.13 lbs).
- Smart Bluetooth 5.0: Real-time tracking of SOC, power, and voltage via the LiTime app.

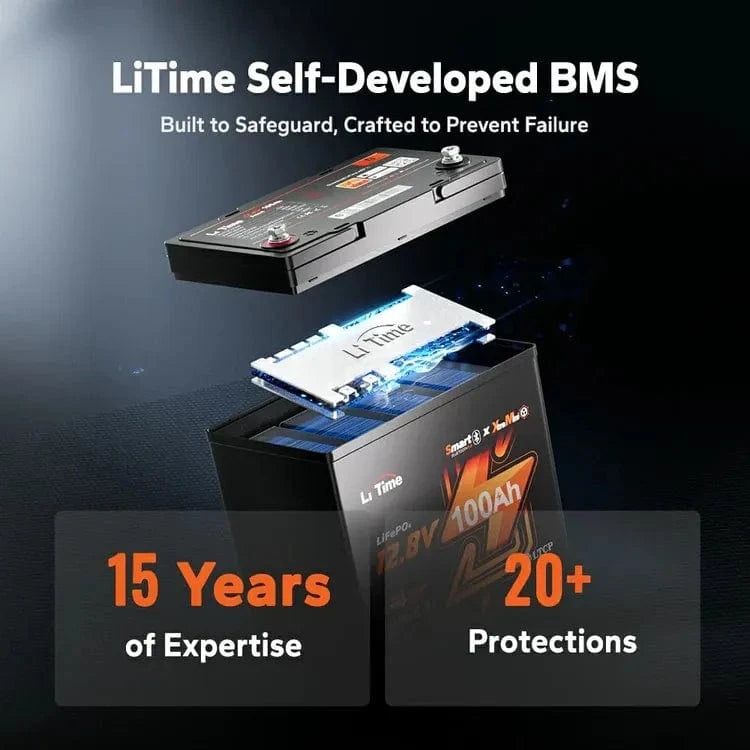

- Advanced BMS: Proprietary 100A system ensures 20+ protections and safe battery activation.
- EV-Grade LiFePO₄ Cells: Delivers up to 15,000 life cycles and full traceability for every cell.
- High Power Output: Supports 500A surge discharge and 1280Wh continuous load.
- Wide Compatibility: Works with RVs, solar systems, marine setups, golf carts, EVs, and backup power.
Applications
- Solar Energy Storage Systems
- RVs, Marine Vessels, and Off-Grid Cabins
- Electric Wheelchairs & Mobility Scooters
- Power Tools & Uninterruptible Power Supplies (UPS)
- Electric Bicycles, Forklifts, Golf Carts, and Drones
- Robotics & Smart Home Backup Systems
Smart Monitoring
Integrated Bluetooth 5.0 BMS provides remote monitoring for real-time voltage, current, and temperature data via the LiTime App. The BMS also includes fault detection, balancing control, and overcurrent protection for enhanced system reliability.
Frequently Asked Questions (FAQs)
1. Can this battery be used for solar or marine systems?
Yes — it’s designed for solar, RV, marine, and other off-grid or mobile energy storage applications.
2. Does it have Bluetooth monitoring?
Yes. Built-in Bluetooth 5.0 allows real-time battery monitoring through the LiTime App.
3. What kind of BMS is used?
It includes a proprietary 100A smart BMS with over 20 safety protections and self-activation features.
4. How long will the battery last?
Up to 15,000 cycles depending on depth of discharge (60–100%).
5. Can it be expanded in series or parallel?
Yes. It supports up to 4P4S (four in series and four in parallel) for large-capacity systems.
6. What certifications does it meet?
The battery is certified under FCC, UL1973, CE, RoHS, UN38.3, and MIC safety standards.
