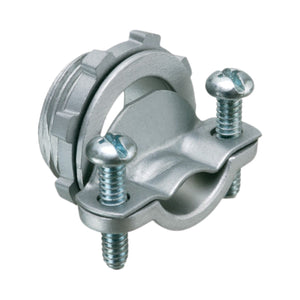

NM Cable Connector Zinc Die Cast 1"

Overview

The NM Cable Connector (Non-Metallic Cable Connector) with a Zinc Die-Cast body is designed for securing non-metallic sheathed cables (often referred to as Romex) to electrical boxes or enclosures. With a 1" opening, this connector is designed for cables of the same diameter. It's a durable, corrosion-resistant component ideal for residential and commercial electrical systems, providing a secure, safe, and efficient means of connecting wires while also ensuring compliance with electrical codes.

Description

The NM Cable Connector Zinc Die Cast 1" is built for securing non-metallic cables, commonly used in residential and commercial electrical installations. The connector's zinc die-cast construction provides superior mechanical strength and resistance to corrosion, making it ideal for both indoor and outdoor use. The 1" size fits most commonly used non-metallic cables, making it versatile for various wiring applications. The design incorporates a secure clamping mechanism to prevent cable movement, ensuring long-lasting performance.

Specifications

• Material: Zinc Die-Cast
• Cable Type: Non-Metallic Sheathed Cable (NM or Romex)
• Connector Size: 1" opening for cable entry
• Mounting: Designed to fit standard electrical boxes, junction boxes, or enclosures
• Construction: Corrosion-resistant, with a durable and sturdy zinc die-cast body
• Temperature Range: Typically from -40°C to 90°C (based on UL ratings)
• Voltage Rating: Standard for low voltage residential and commercial applications (typically up to 600V)
• Certification: UL Listed (Underwriters Laboratories) for safety and reliability
• Wire Compatibility: Compatible with standard 14/2, 12/2, or 10/2 NM cables

Features

• Zinc Die-Cast Construction: Provides high strength and resistance to corrosion, ensuring the connector remains durable in various environments.
• 1" Opening: Designed specifically to accommodate non-metallic cables with a 1" diameter, which is the most common size for residential wiring.
• Secure Cable Clamping: The built-in clamp secures the cable to prevent any unwanted movement, helping maintain a stable and safe connection.
• UL Listed: Meets UL safety standards, ensuring high-quality performance and reliability.
• Easy Installation: The connector is easy to install and provides a secure, reliable connection to electrical boxes without requiring additional tools.
• Versatile Use: Suitable for various residential, commercial, and light industrial applications.

Cases & Uses

1. Residential Electrical Wiring:

   • The most common use for NM cable connectors is in residential electrical systems for connecting non-metallic sheathed cables to outlets, switches, and junction boxes.

2. Commercial Electrical Installations:

   • Widely used in commercial buildings, especially for lighting circuits, power outlets, and general wiring installations that use non-metallic sheathed cable.

3. Renovations and Electrical Upgrades:

   • Ideal for remodeling projects, such as upgrading older electrical systems or adding new electrical circuits to existing buildings.

4. Industrial Electrical Systems:

   • While typically for residential and commercial, they are also useful in light industrial environments that use non-metallic sheathed cables for general-purpose wiring.

5. Outdoor Electrical Connections:

   • Can be used for outdoor weatherproof electrical installations when installed properly, offering protection from environmental conditions like moisture or dust.

6. Utility Boxes and Junction Boxes:

   • Commonly used in junction boxes, outdoor enclosures, and utility boxes where non-metallic sheathed cables need to be securely connected.

Summary

The NM Cable Connector Zinc Die Cast 1" is an essential component in modern electrical systems, offering a reliable, secure, and easy way to connect non-metallic sheathed cables to electrical boxes. With its zinc die-cast construction, it provides exceptional durability and corrosion resistance, ensuring long-term reliability in both residential and commercial installations. Whether used for new constructions, remodeling, or upgrades, this connector meets safety standards and offers ease of installation with a secure cable clamp design.
