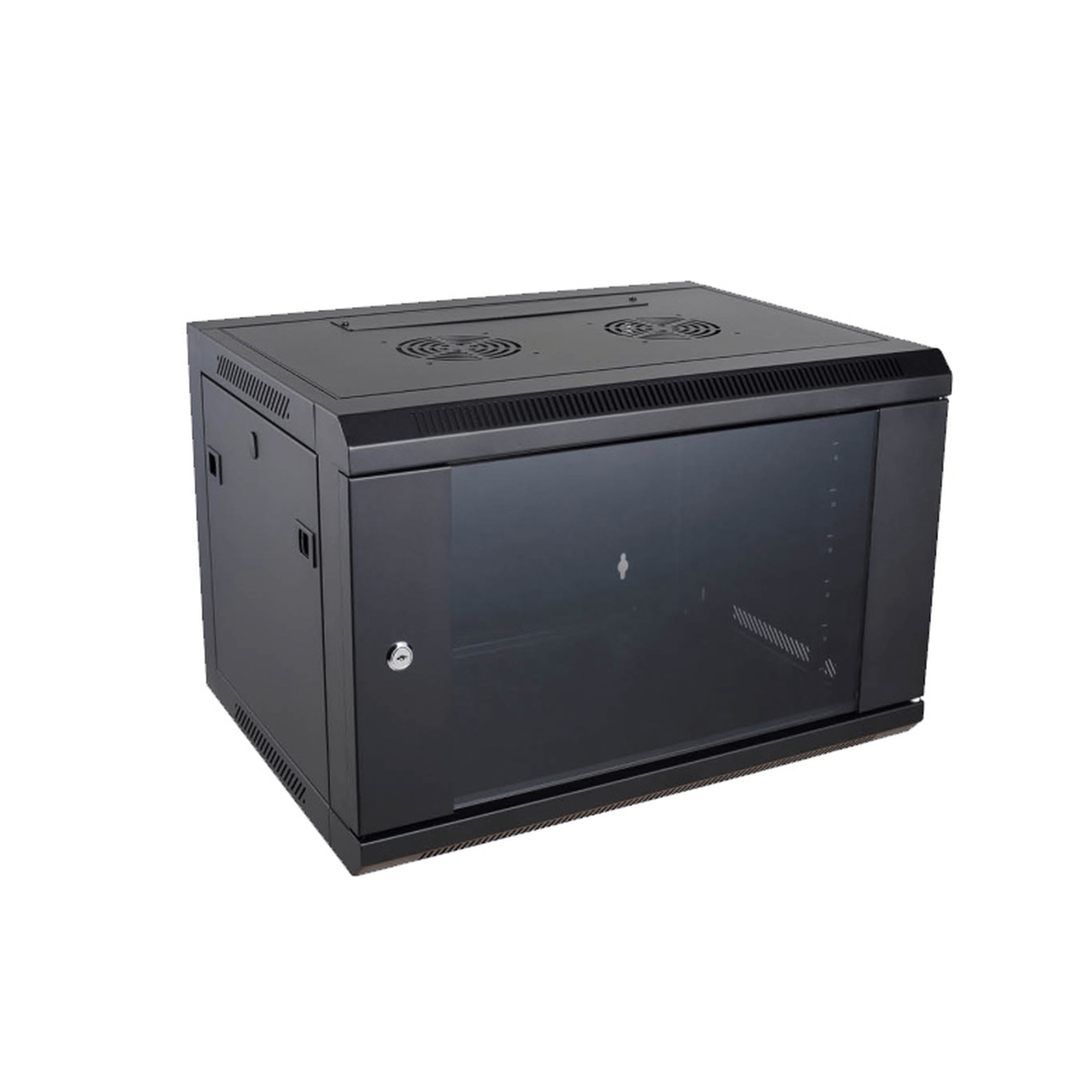

Tool-Free Quick-Assembly Wall Cabinet (6U-12U) – Conversions Tech
Install a full-featured 19-inch rack cabinet in under one minute—no tools, screws, or fasteners needed. The Conversions Tech Quick-Assembly Wall Cabinet ships flat to slash freight costs, folds together in seconds, and locks securely for robust network, A/V, and IT deployments.
Why Choose Our Rapid-Deploy Cabinet?
- One-person, 60-second setup – patented folding frame clicks into place for instant use.
- SPCC cold-rolled steel (1.2 mm) delivers enterprise-grade strength with a 30 kg static load rating.
- Electrostatic powder-coat finish in RAL 7035 (light gray) or RAL 9005 (black) resists scratches and corrosion.
- IP20 protection keeps dust out while ventilated top cover supports optional fan kits.
- Meets or exceeds ANSI/EIA-ECA-310-E, DIN 41491/41494, IEC 297-2, ETSI, and GB/T 3047.2-92 rack standards.
- CE & RoHS certified for worry-free global deployments.
- Ships assembled or knock-down to match your install workflow.
Technical Specifications
| Material | SPCC cold-rolled steel |
|---|---|
| Finish | Electrostatic powder paint |
| Colors | RAL 7035 (Light Gray) / RAL 9005 (Black) |
| Protection Rating | IP20 (IEC 60529) |
| Static Load Capacity | 30 kg / 66 lb |
| Compliance | CE, RoHS |
| Standards | ANSI/EIA-ECA-310-E; DIN 41491-Part 1; IEC 297-2; DIN 41494-Part 7; GB/T 3047.2-92; ETSI compatible |
| Packaging | Flat-pack (disassembled) | Pre-assembled option |
What’s in the Box
- Lockable front door & rear panel
- Removable side panels for effortless cable routing
- Adjustable vertical mounting rails
- Vented top cover with fan knock-outs
- Solid bottom panel with cable entry
- Rigid enclosure frame (horizontal & door beams)
- L-shaped bracket hardware kit
Applications
Perfect for edge networks, camera NVRs, PoE switches, audio-video distribution, smart-home hubs, and any space-constrained telecom or server closet that demands rapid deployment, stellar airflow, and professional aesthetics.
