SucceBuy Outdoor Electrical Junction Box ABS Plastic&Hinged Cover Stainless Steel Latch IP67 Waterproof for Electrical Projects
Shipping calculated at checkout
SKU: 14:1133446133#430 x 330 x 180 mm;200007763:203372089
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
ABS Waterproof Electrical Enclosure Junction Box
Product Overview
The SucceBuy ABS Electrical Junction Box provides rugged, weatherproof, and impact-resistant protection for electrical and electronic components. Certified to CE standards with IP67 waterproofing and IK08 impact resistance, this enclosure is engineered for long-lasting reliability in harsh indoor and outdoor environments.
Available Sizes

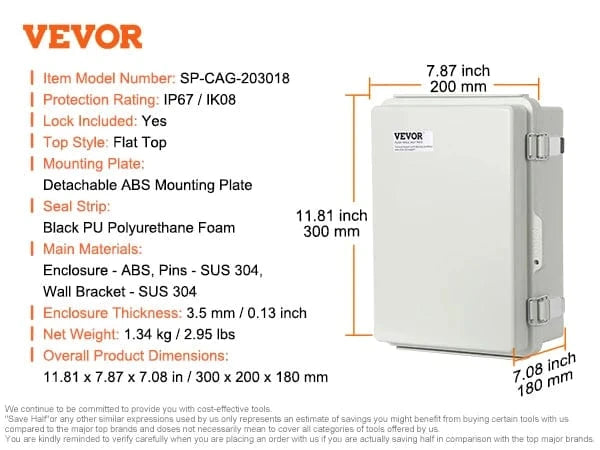

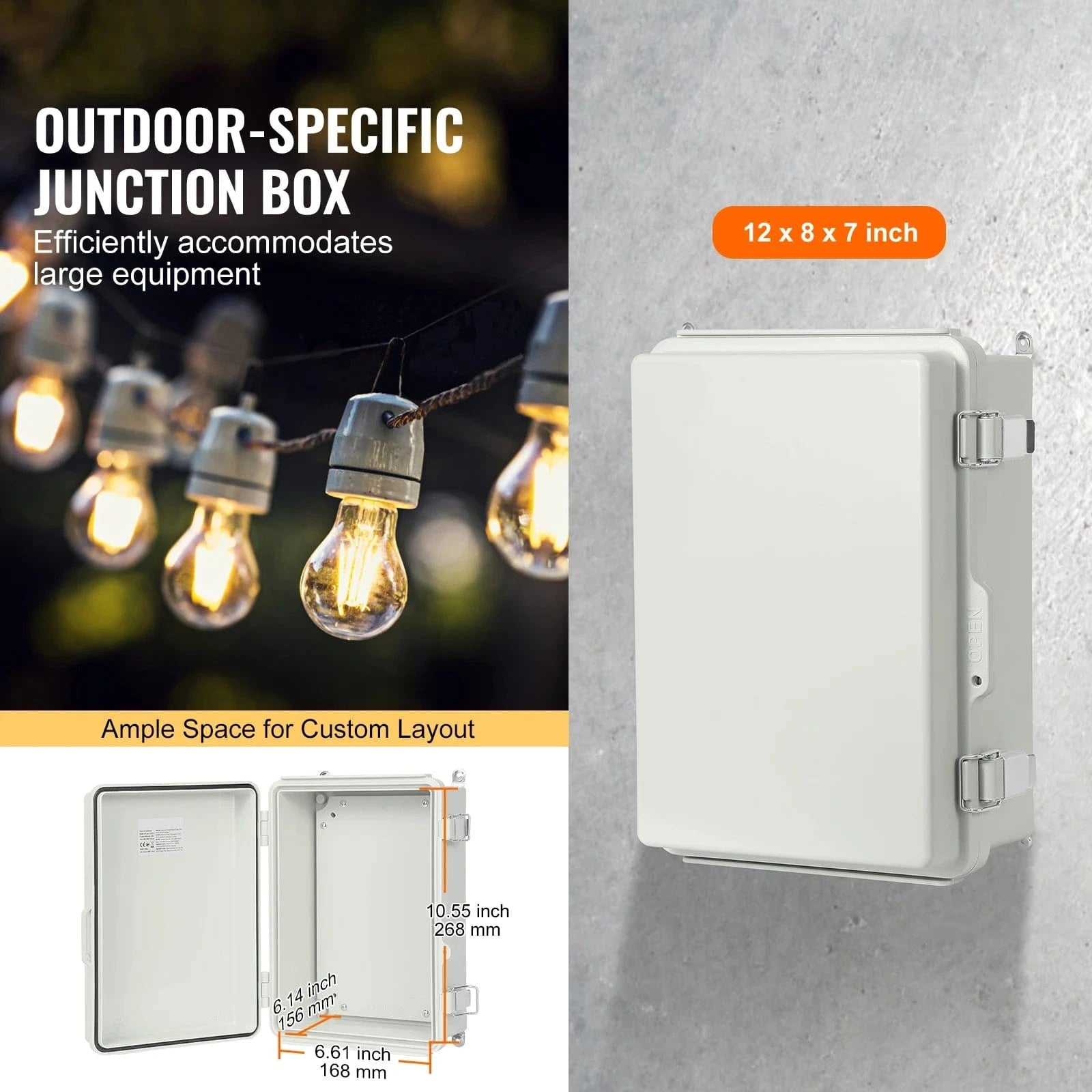

- 300 × 200 × 180 mm (11.81 × 7.87 × 7.08 in) – Internal: 268 × 168 × 156 mm
- 350 × 250 × 150 mm (13.78 × 9.84 × 5.90 in) – Internal: 318 × 218 × 126 mm

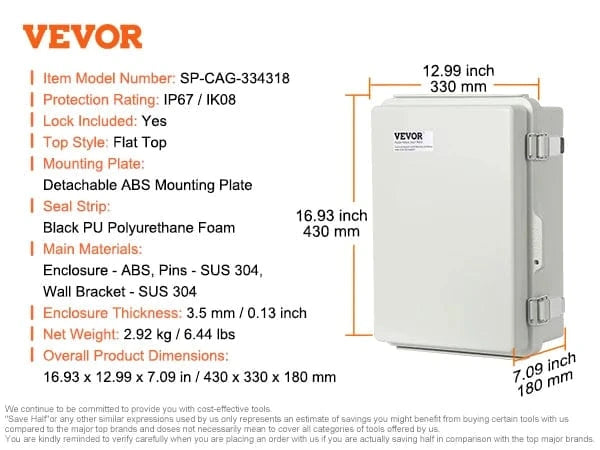

- 430 × 330 × 180 mm (16.93 × 12.99 × 7.09 in) – Internal: 384 × 284 × 160 mm

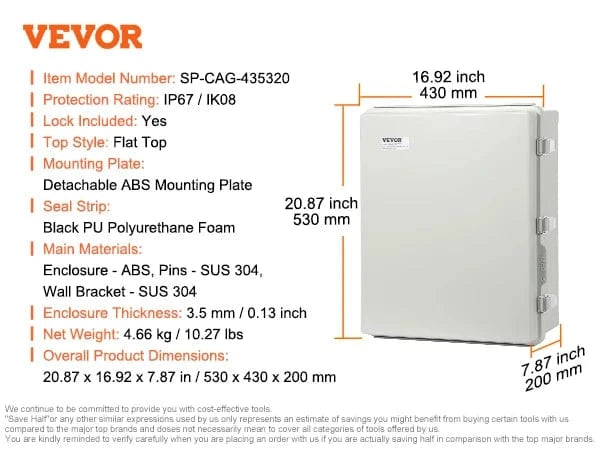

- 530 × 430 × 200 mm (20.87 × 16.92 × 7.87 in) – Internal: 483 × 383 × 181 mm
Multiple size options ensure you can choose the ideal enclosure to fit your electrical installation and wiring requirements.
Key Features

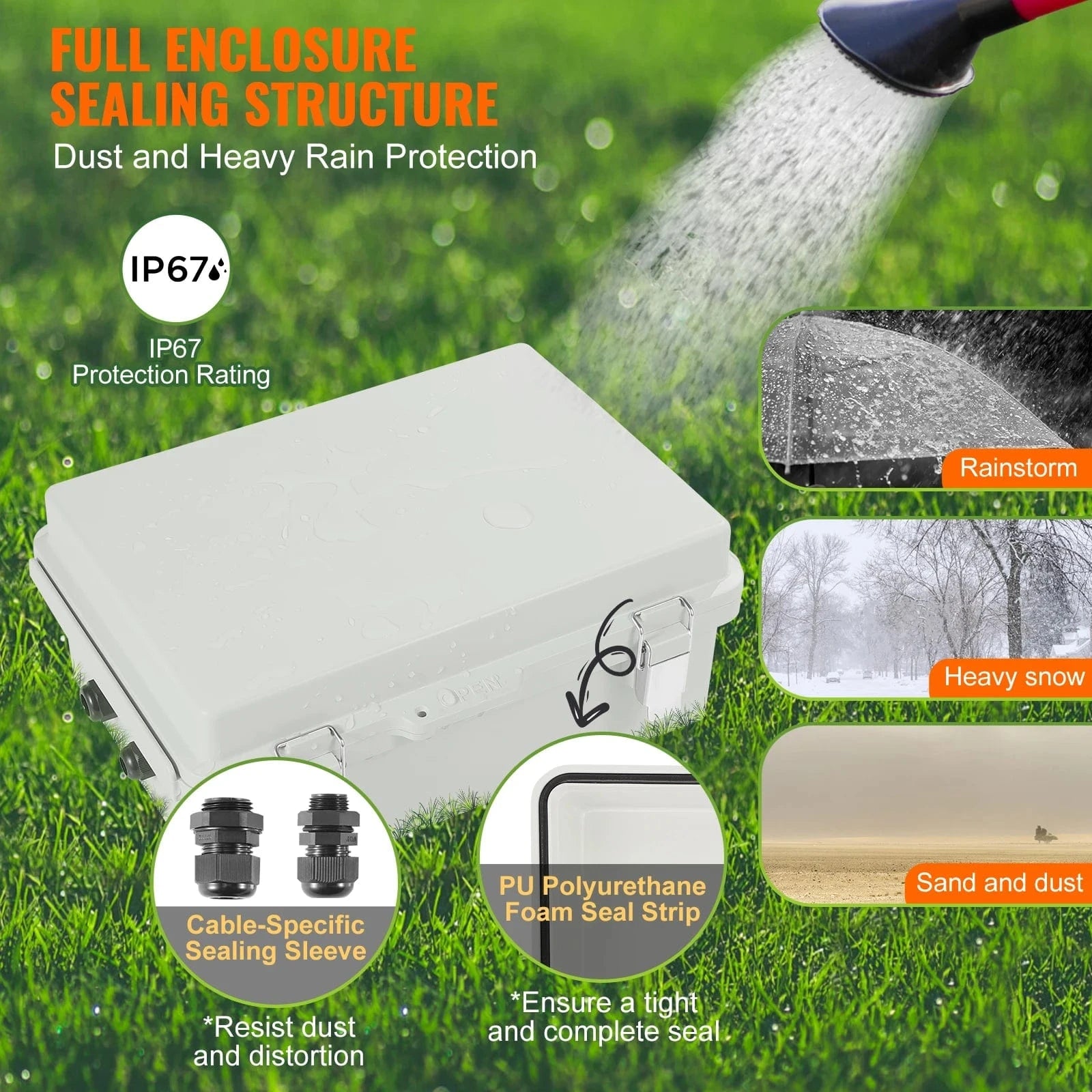

- Superior Waterproof & Dustproof Protection: PU polyurethane foam gasket provides IP67 sealing, keeping out dust, rain, snow, oil, and debris for worry-free outdoor use.

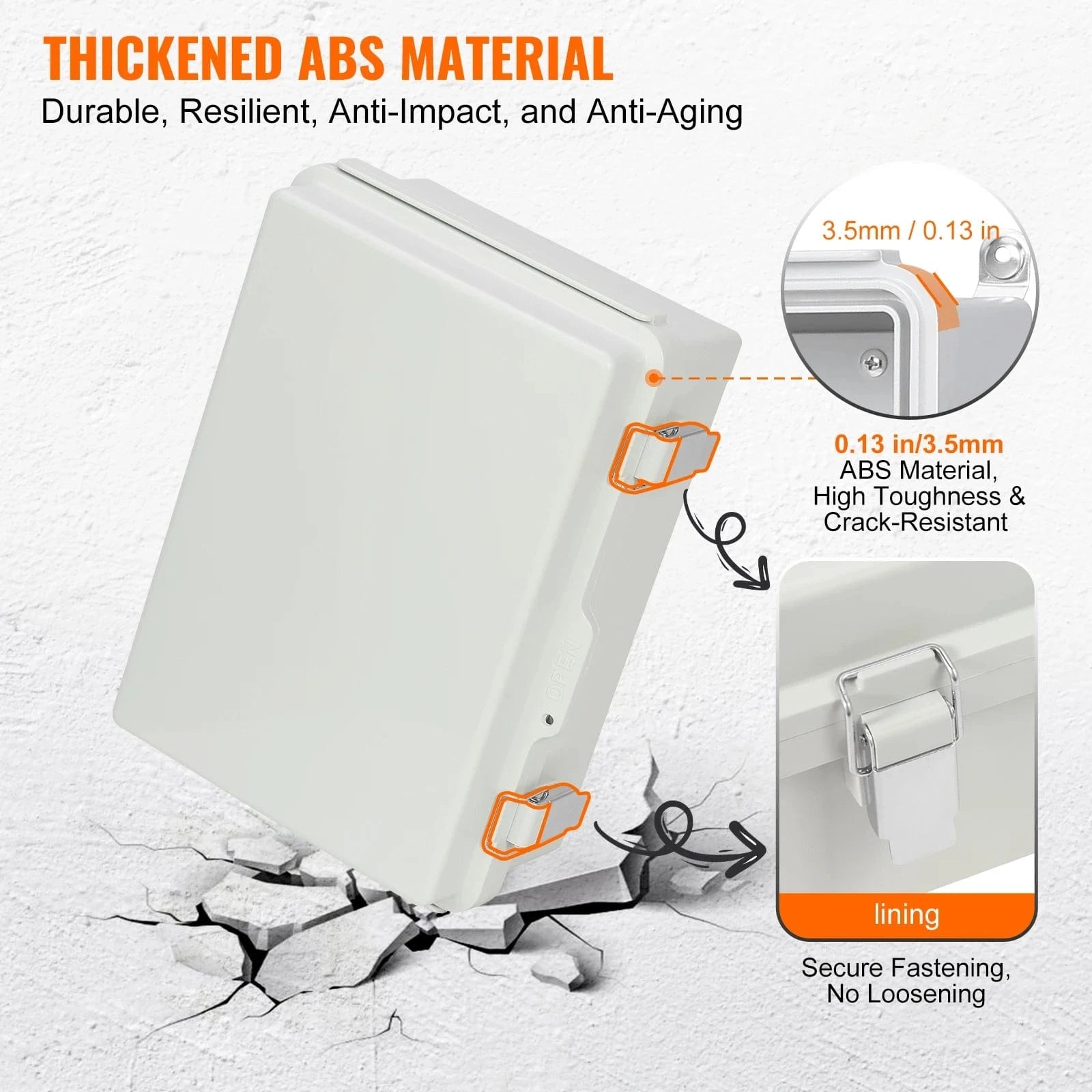

- Impact Resistant Construction: Rated IK08, the 3.5 mm ABS body withstands up to 5 joules of impact force, protecting internal components from accidental collisions.
- Durable Materials: Enclosure body made from ABS; hinges and pins crafted from SUS 304 stainless steel for maximum corrosion resistance; includes a detachable ABS mounting plate.

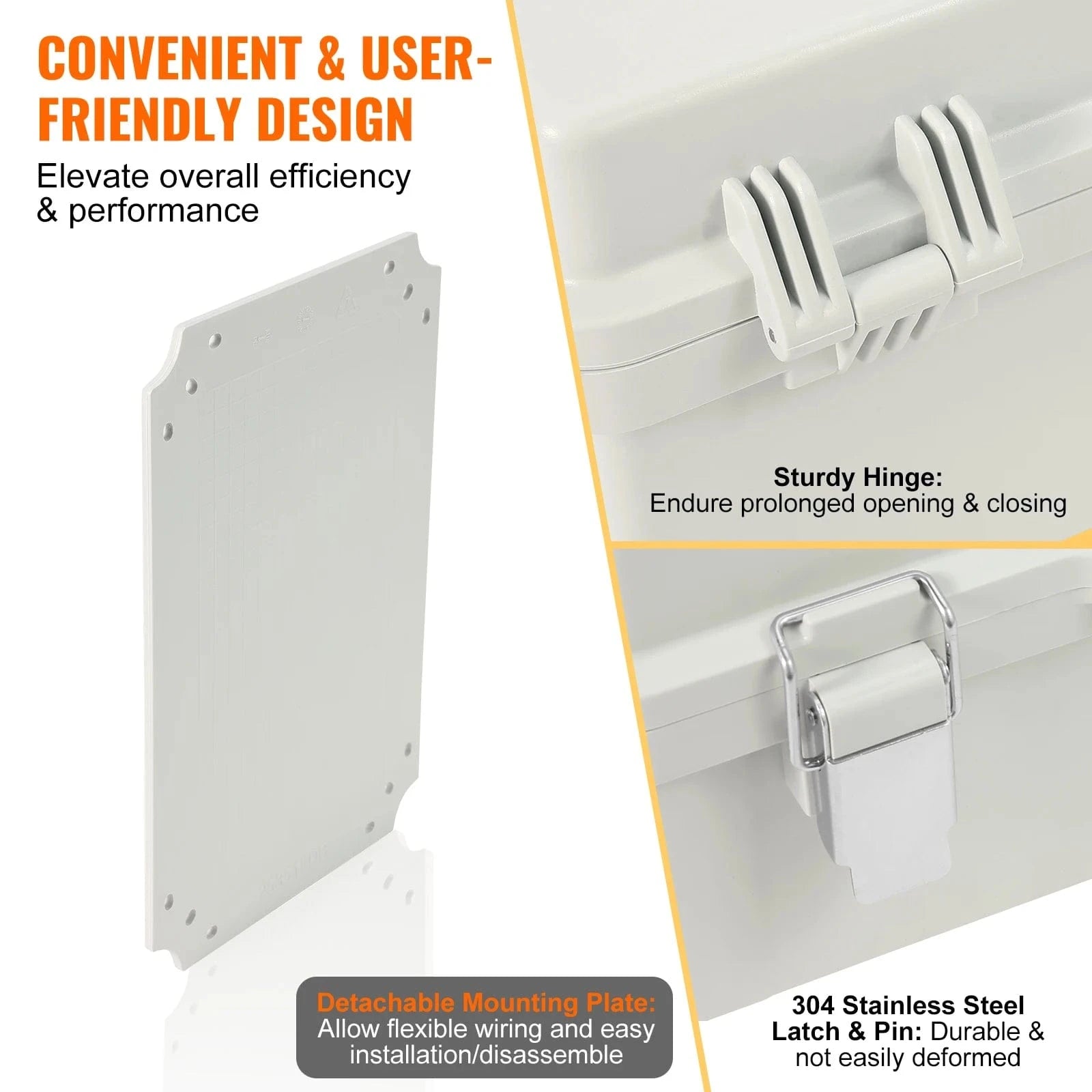

- Secure Hinged Cover: Fitted with a 304 stainless steel door latch for reliable closure while allowing quick access for inspection and maintenance.
- User-Friendly Installation: Includes SUS 304 stainless steel wall brackets, fasteners, and screws. The detachable plate allows flexible mounting of electrical components.
- Professional & DIY Ready: Suitable for residential, commercial, industrial, and outdoor electrical projects where reliable enclosure protection is required.
Technical Specifications
| Brand | SucceBuy |
|---|---|
| Certification | CE |
| Model Numbers | SP-CAG-203018, SP-CAG-253515, SP-CAG-334318, SP-CAG-435320 |
| Overall Thickness | 0.13 in / 3.5 mm |
| Protection Rating | IP67 (waterproof & dustproof) / IK08 (impact resistant) |
| Top Style | Flat Top |
| Main Materials | ABS enclosure, SUS 304 stainless steel pins & wall bracket |
| Mounting Plate | Detachable ABS mounting plate |
| Lock Included | Yes |
| High-Concern Chemicals | None |
Installation Notes
- Select the correct junction box size before beginning installation.
- Do not disassemble components until the installation location is confirmed.
- Ensure the enclosure is mounted securely without wobbling or looseness.
- Regularly inspect and maintain both the enclosure and internal electrical components.

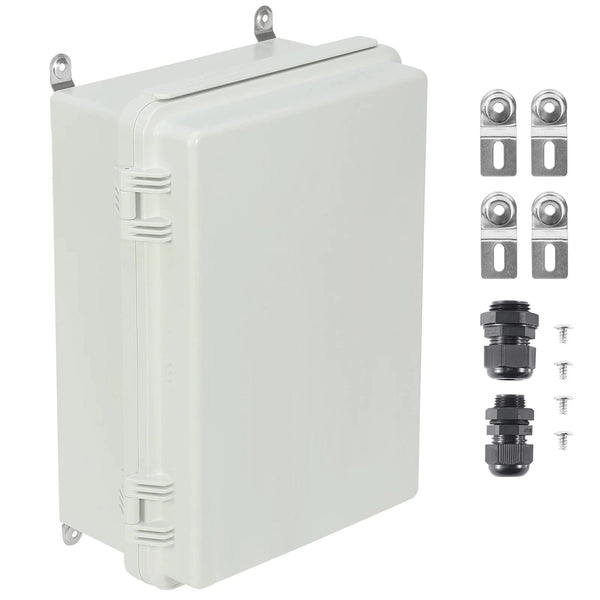

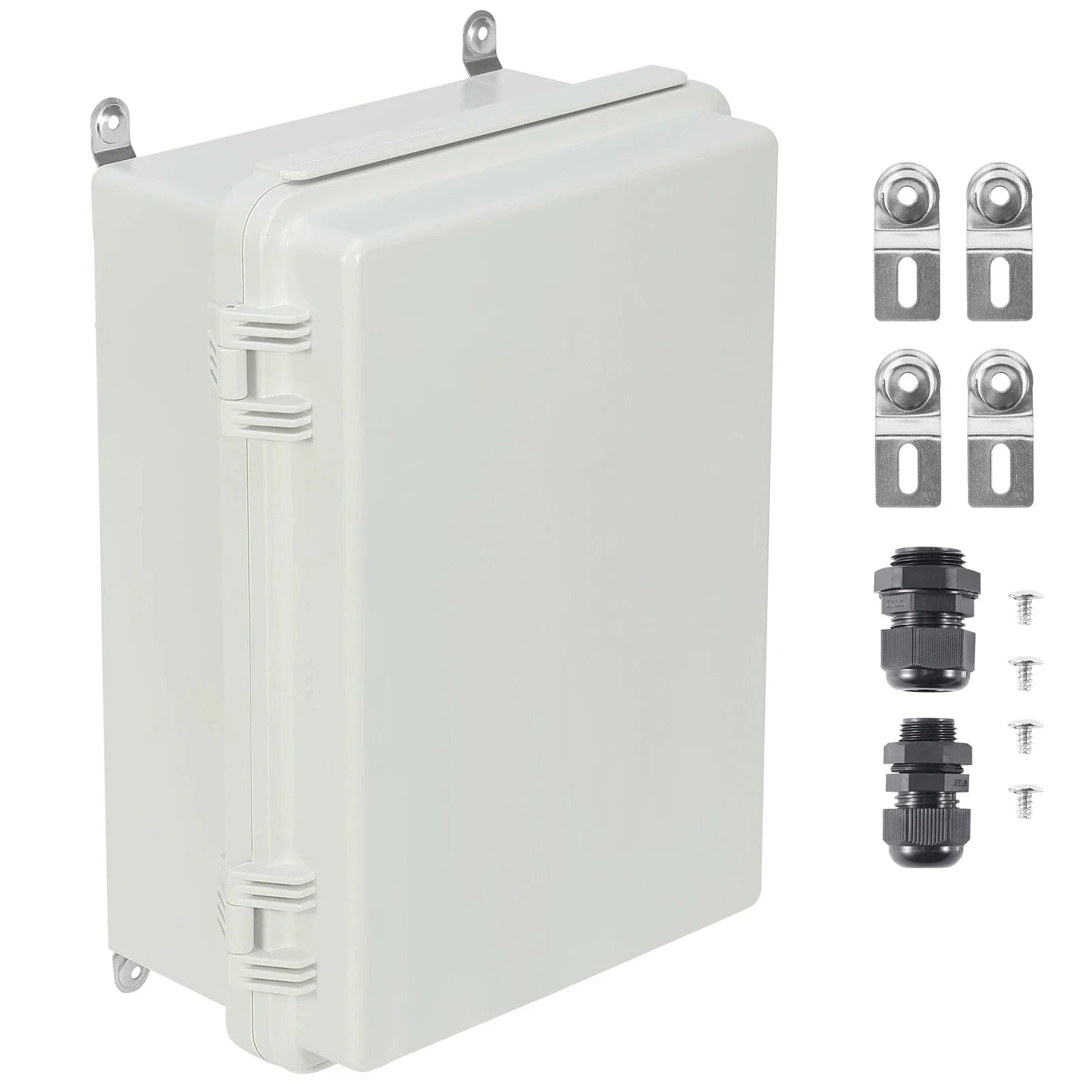

Package Includes
- 1 × SucceBuy ABS Electrical Junction Box (selected size)
- 1 × Detachable ABS mounting plate
- Stainless steel wall brackets and fasteners
- User installation manual
Note: Always follow proper electrical safety standards and local building codes when installing electrical enclosures.
