MC193C OEM Motor & Gearbox for Cable Slide-Out Systems

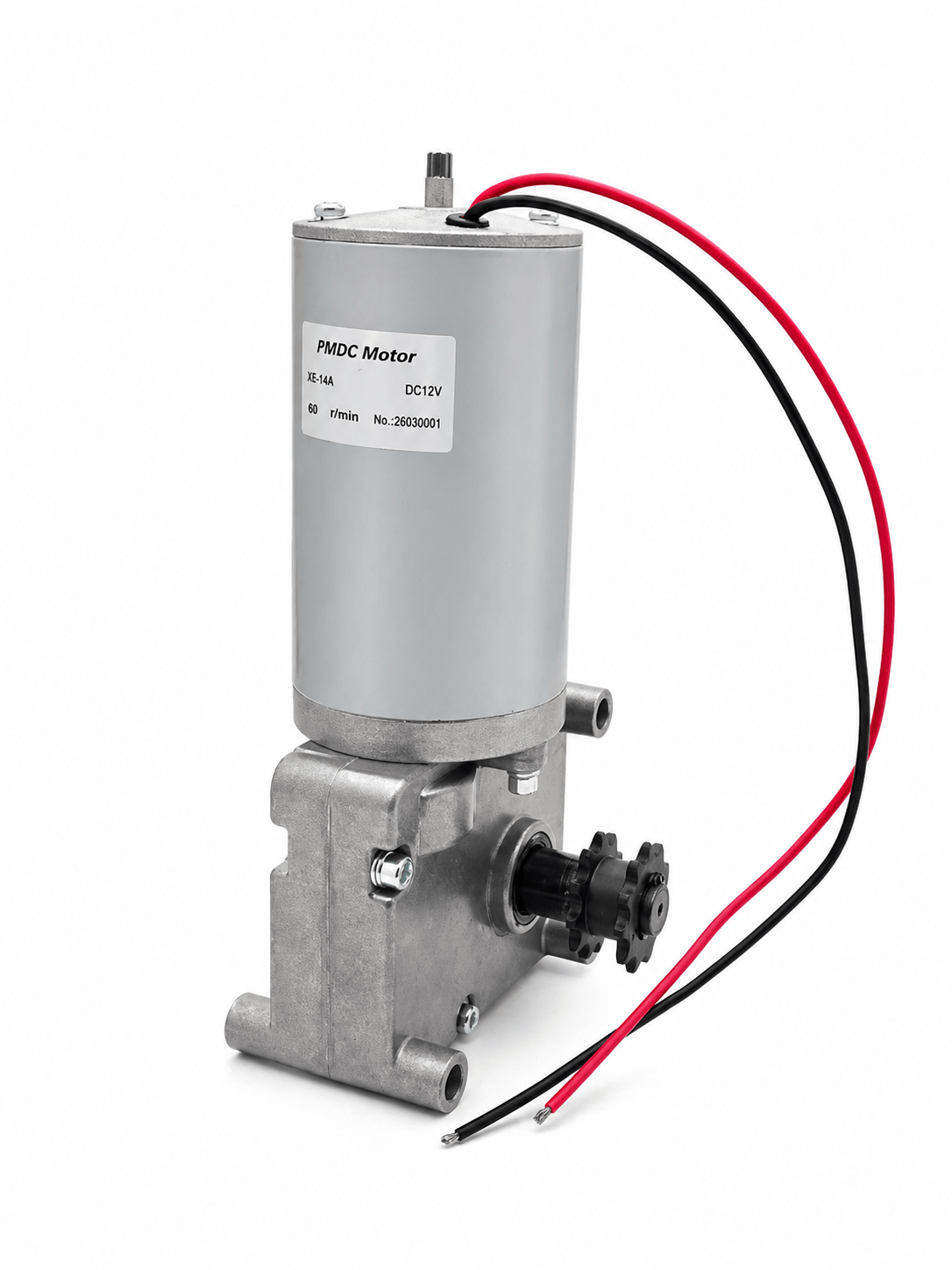

The Conversions Tech MC193C Replacement Motor & Gearbox is designed for BAL/Norco Accu-Slide cable slide-out systems used in RV expandable room applications. This 12V motor and gearbox assembly is built as a replacement for MC193C-style motors commonly associated with BAL/Norco P22307 and R25050 replacement applications.
Featuring an 88:1 gear ratio and a 13-tooth dual sprocket configuration, this motor assembly is designed to provide smooth, controlled movement for compatible cable-operated RV slide-out systems.
Before ordering, please verify your original motor label, gear ratio, sprocket configuration, mounting style, and available wall-to-fascia clearance.
Key Features
- Replacement for MC193C-style BAL/Norco Accu-Slide motor and gearbox assemblies
- Compatible with common BAL/Norco P22307 and R25050 replacement applications
- 12V DC motor assembly for RV slide-out systems
- 88:1 gear ratio for controlled slide movement
- 13-tooth dual sprocket configuration
- Designed for cable-operated Accu-Slide expandable room systems
- Suitable for RV repair, replacement, and aftermarket service applications
Technical Specifications
| Product Type | RV Slide-Out Motor & Gearbox Assembly |
| Motor Voltage | 12V DC |
| Gear Ratio | 88:1 |
| Sprocket Configuration | 13-Tooth Dual Sprocket |
| Compatible System | BAL/Norco Accu-Slide Cable Slide-Out Systems |
| Common Reference Numbers | MC193C, P22307, R25050 |
| Application | RV Expandable Room / Cable Slide-Out System |
| Clearance Requirement | Verify wall-to-fascia clearance before ordering. Some applications may require approximately 5.50" clearance with a flat mount bracket or approximately 4.75" with a slant mount bracket. |
Compatibility
This replacement motor and gearbox assembly is intended for compatible Accu-Slide cable-operated RV slide-out systems. It may be used as a replacement where the original motor or system references MC193C, P22307, or R25050.
Because RV slide-out systems may vary by model year, manufacturer, mounting bracket, and installation style, customers should compare the original motor label, sprocket design, mounting points, gear ratio, and available clearance before purchasing.
Not Compatible With
- Schwintek in-wall slide systems
- Lippert 236575-style motors
- IG-42 300:1 gear motors
- 10mm D-shaft Schwintek replacement motors
- Motors requiring a magnetic encoder configuration unless verified by original part match
Before Ordering
To confirm fitment, please compare your existing motor with the following:
- Original motor part number or label
- MC193C / P22307 / R25050 reference
- 12V DC motor requirement
- 88:1 gearbox ratio
- 13-tooth dual sprocket configuration
- Mounting bracket style
- Wall-to-fascia clearance
This product is intended as a replacement for compatible MC193C-style BAL/Norco Accu-Slide motor and gearbox assemblies. Compatibility should be verified using the original motor label and physical specifications before purchase. This product is not intended to replace Schwintek in-wall slide motors unless all specifications and mounting details are independently confirmed.
