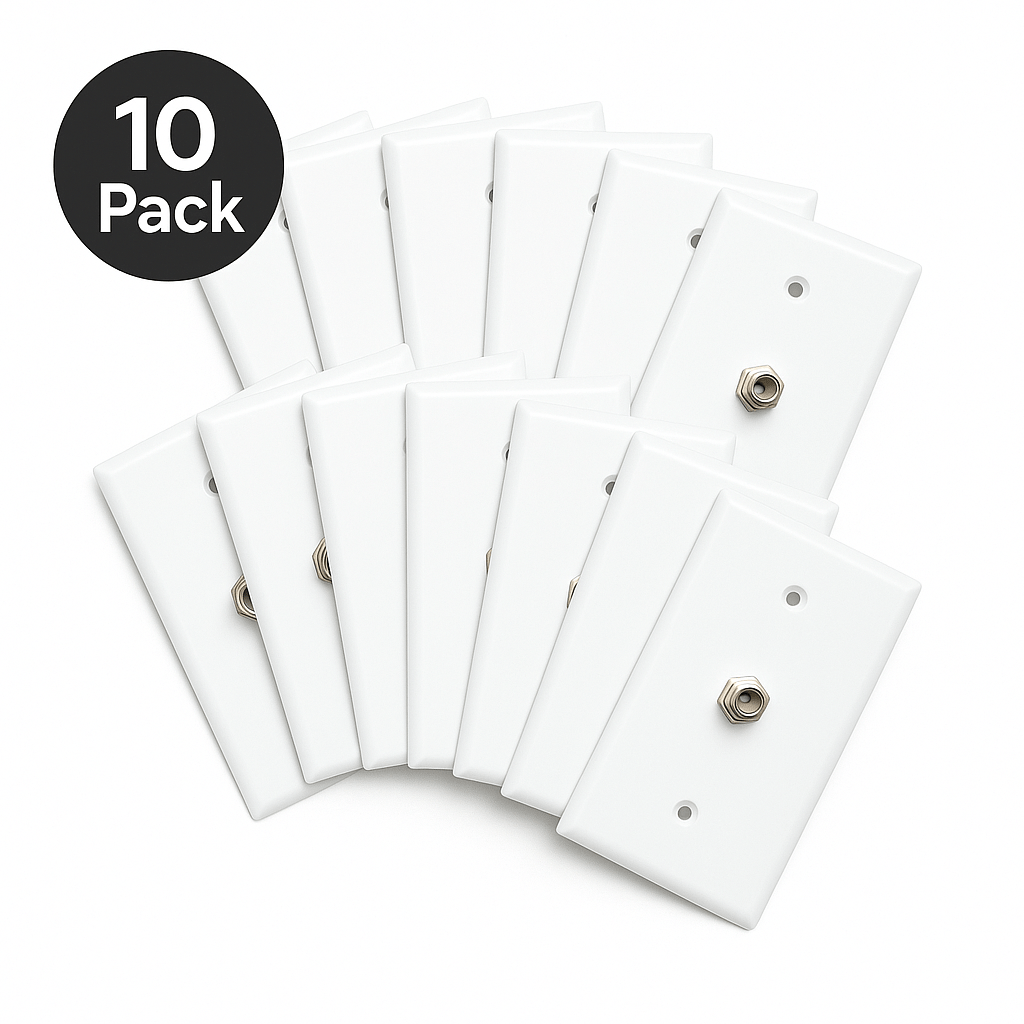

Installer 10-Pack — F81 Coax Wall Plates (Single-Port, White)

Availability:
250 in stock, ready to be shipped
Save 33% Save 33%
Original price $5.99
Original price $5.99 - Original price $5.99
Original price $5.99
Current price $3.99
$3.99 - $3.99
Current price $3.99
Request Distributor or Volume Pricing
SKU 500-107-10

Stock up for your next project with the Conversions Tech™ Installer 10-Pack of single-port F81 coax wall plates. Each plate is molded from rugged high-impact ABS and factory-loaded with a premium 75 Ω F-type feed-through barrel—so you can finish ten drops in one go without extra trips to the supply house.

Why Pros Buy the 10-Pack

  • Bulk Value, Job-Site Ready — ten individually bagged plates in one contractor carton = fewer SKUs, faster pulls, lower cost per drop.
  • Clean, Built-In Aesthetics — gloss-white faceplates disappear into any décor, delivering that “spec-home” finish clients expect.
  • Tool-Less Termination — F81 pass-through accepts RG-6/RG-59 with standard® F connectors—no solder, no crimp rings.
  • Label & Identify — flat surface is sharpie-friendly, so installers can mark source/destination lines for effortless turn-up.
  • Installer-Grade Hardware — matching #6-32 white screws included for each plate; fits any U.S. single-gang box or LV mud ring.

Technical Specs (Per Plate)

Model CT-WP-F81-WH-10
Connector 1 × F-type (F81 feed-through, 75 Ω)
Frequency Range 5 MHz – 3 GHz  (4K UHD, MoCA®, DOCSIS 3.1 ready)
Insertion Loss < 0.1 dB @ 1 GHz
Material UL 94V-0 high-impact ABS
Color Gloss White
Dimensions 4.5 in H × 2.75 in W (standard single-gang)
Mounting Screws White #6-32 × 25 mm (10 pairs included)
Pack Qty 10 plates (individually poly-bagged)

Ideal Applications

  • Satellite & cable TV terminations (multi-room installs)
  • OTA HDTV antenna feeds in residential MDUs
  • Game rooms, bars, and man-cave media centers
  • RV / marine entertainment retrofit or OEM builds
