How to Read a Compression Die Chart (Color Codes, Die Index, Crimp Sequence)

Why Compression Die Charts Matter

Every compression lug installation depends on three variables matching: the conductor size, the die that compresses the barrel, and the tool applying force. When any of these mismatch, you get a rejected inspection, overheated connection, or field failure. The die chart printed on your crimping tool or die case is the reference that ties them together.

Die charts use color codes, die index numbers, and crimp sequences to prevent mismatches. Understanding how to read these charts keeps your work compliant with UL 486A-486B and NEC requirements for reliable terminations.

Color Codes: The First Check

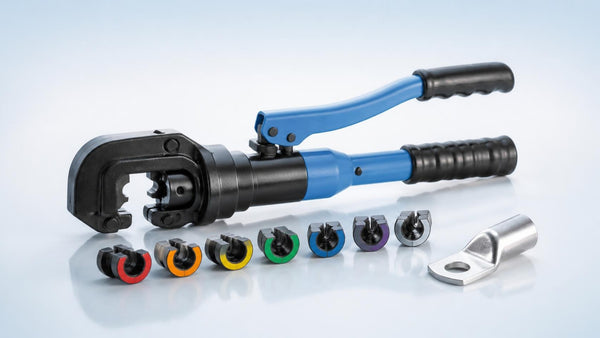

Compression lugs and dies share a color code chart system that identifies conductor size at a glance. The color is typically painted on the lug barrel and molded into the die housing or marked on die rings.

Colors are not universal across all manufacturers. A Burndy yellow die compresses a different range than a Panduit yellow in some product lines. Always verify against the specific manufacturer's chart.

Die Index Numbers: The Critical Match

Every compression lug barrel is stamped with a die index—typically a number, letter, or alphanumeric code. This index must match the die index listed on your tool's die chart. The die index accounts for:

• Barrel wall thickness and material
• Conductor stranding class (standard vs. flexible/fine-strand)
• Crimp profile (hex, indent, circumferential)
• Number of crimps required

For example, a lug stamped "B" requires a die indexed "B" on the tool chart. Using a "C" die produces an under-crimp. Using an "A" die risks cracking the barrel or cutting strands.

Die index stamps are usually located on the barrel flat near the pad. Some manufacturers use dots or geometric symbols instead of letters. Check the lug specification sheet if the marking is unclear.

Manufacturer Die Numbering: Same Color, Different Dies

This is where most errors occur. Burndy, Panduit, Ilsco, Thomas & Betts, and other manufacturers each maintain proprietary die numbering systems. A compression die from one manufacturer will not properly crimp another's lug even when colors match.

Cross-manufacturer compatibility is rare. A Burndy die in a Panduit tool may seat but will not produce a UL-listed crimp. The die cavity dimensions, crimp depth, and profile geometry differ enough to affect electrical and mechanical integrity.

Crimp Sequence and Count

UL 486A-486B specifies crimp requirements based on barrel length. Short barrels typically require one crimp. Long barrels require multiple crimps in a defined sequence.

Standard long-barrel sequence:

• First crimp at the pad end (nearest the tongue)
• Second crimp toward the wire entry end
• Additional crimps spaced evenly for extra-long barrels

The die chart indicates crimp count with symbols or notes. "2X" means two crimps. "3X" means three. Some charts show a diagram with numbered positions. Starting at the pad end prevents barrel deformation that would obstruct full conductor insertion.

Crimp overlap is specified in the installation instructions. Overlapping crimps create a uniform compression zone. Gaps between crimps create stress risers and resistance points.

Fine-Strand and Flexible Conductor Considerations

Standard compression dies are designed for Class B stranded conductors per ASTM B8. Fine-strand flexible conductors (Class G, H, I, K, or M) require different dies or ferrules.

Common mistakes:

• Wrong die class: Using standard dies on fine-strand wire compresses the barrel without fully penetrating the bundle. Resistance increases; strands may pull out.
• Missing ferrule: Some fine-strand applications require a crimped ferrule before lug insertion. The die chart for the lug assumes standard stranding unless noted.
• Over-crimping: Attempting to compensate with extra force or additional crimps work-hardens the barrel without improving contact.

Check the lug specification for stranding class compatibility. If the conductor is flexible cordage or welding cable, verify whether the lug is listed for that application.

UL 486A-486B Compliance

UL 486A-486B covers wire connectors and soldering lugs for use with copper conductors. Key requirements affecting die selection:

• Connectors must be tested and listed for the specific conductor size and type
• Installation instructions, including die index and crimp sequence, must be followed
• Crimp height and pull-out values are verified during listing; deviation voids the listing

NEC 110.3(B) requires equipment to be installed per its listing and labeling. Using the wrong die violates this requirement even if the connection appears secure.

Field Verification

Before crimping:

1. Verify lug color matches conductor size
2. Locate die index stamp on barrel
3. Match index to tool die chart
4. Confirm die manufacturer matches lug manufacturer
5. Note crimp count and sequence
6. Check for fine-strand compatibility

After crimping, inspect for barrel cracks, strand cutting, or incomplete closure. A proper crimp shows uniform die marks without gaps or distortion of the pad.

Summary

Reading a compression die chart requires checking color codes, matching die index stamps to tool charts, respecting manufacturer-specific numbering, and following the specified crimp sequence. These steps ensure terminations meet UL 486A-486B and NEC requirements for safe, reliable connections.
