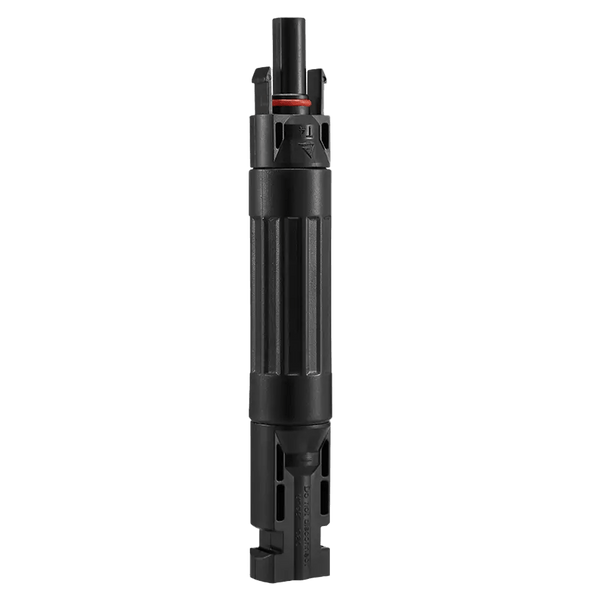

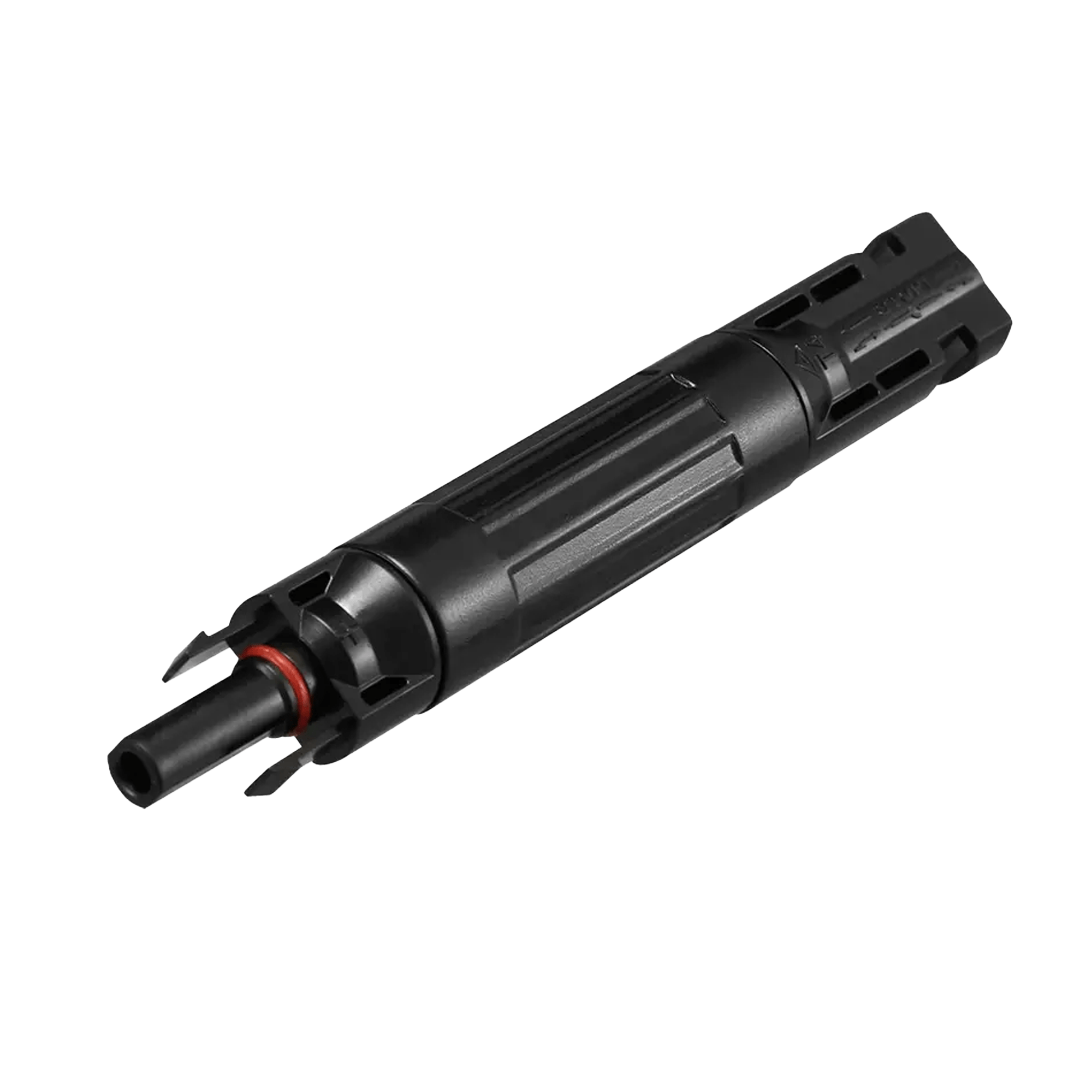

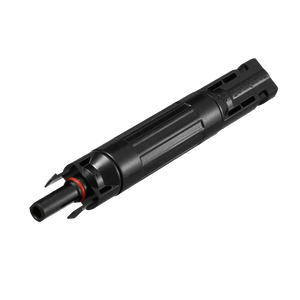

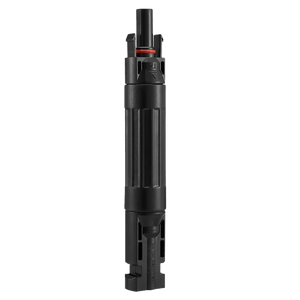

MC4 Connector 1500 Volts with Fuse Adapter
Shipping calculated at checkout
SKU: 4904-1530
39 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
MC4 Inline Fuse Connector — Crimp Style, IP67 Waterproof
Product Description
The MC4 Inline Fuse Connector is designed to provide integrated overcurrent protection directly within solar PV string wiring, serving as a critical link between solar modules and downstream equipment such as inverters, charge controllers, and combiner boxes.
Unlike traditional bracket-mounted 10×85 mm fuse holders, this connector incorporates the fuse into an MC4-compatible inline housing using crimped electrical terminations. This approach improves mechanical stability, minimizes contact resistance, and reduces long-term failure risk caused by vibration, thermal cycling, or loose connections.
Built for harsh outdoor environments, the connector features UV-resistant materials and an IP67 waterproof rating when properly mated. Its compact inline design supports fast installation, simplified maintenance, and quick fuse replacement—making it ideal for residential, commercial, and utility-scale solar installations requiring reliable, code-conscious protection.
Specification
Key Features
FAQs
What is an MC4 inline fuse connector used for?
It provides overcurrent protection directly within the PV string, helping safeguard solar panels and downstream equipment such as inverters and controllers.
Is this compatible with standard MC4 systems?
Yes. It is designed to mate with Multi-Contact MC4 and other MC4-compatible solar connectors.
What cable sizes are supported?
Compatible with 2.5mm², 4mm², and 6mm² solar PV cables using the appropriate crimp contacts.
Is it suitable for outdoor installations?
Yes. With UV-resistant materials and IP67 sealing when mated, it is designed for long-term outdoor solar environments.
How does this differ from bracket-style fuse holders?
This connector integrates fuse protection into an MC4-style inline housing, reducing installation complexity, improving stability, and simplifying maintenance.
