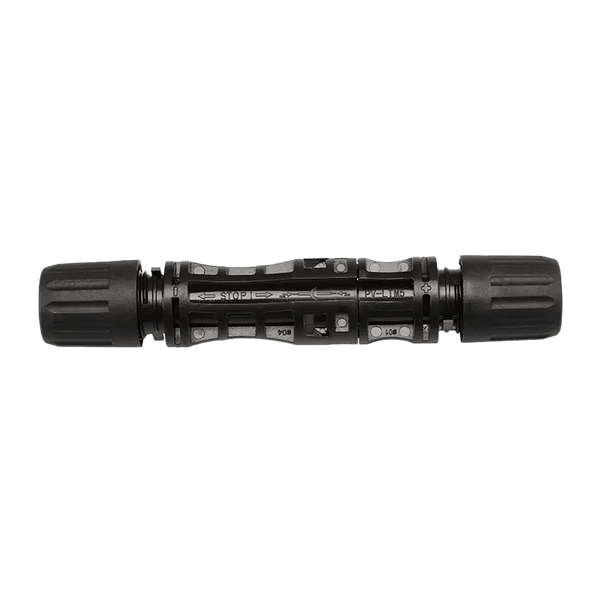

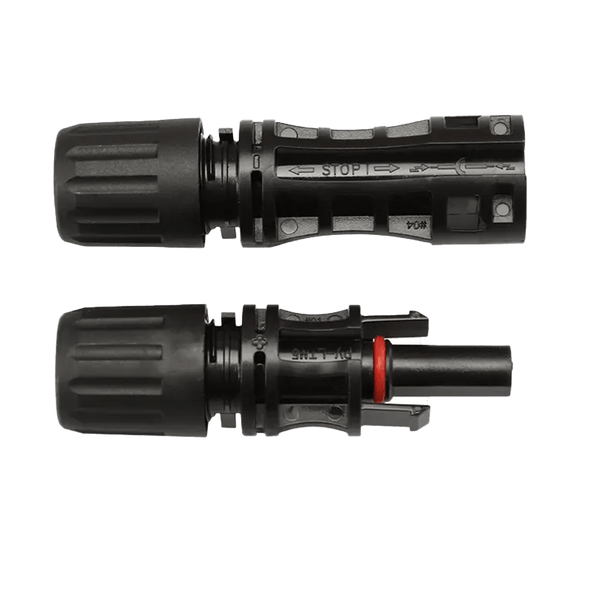

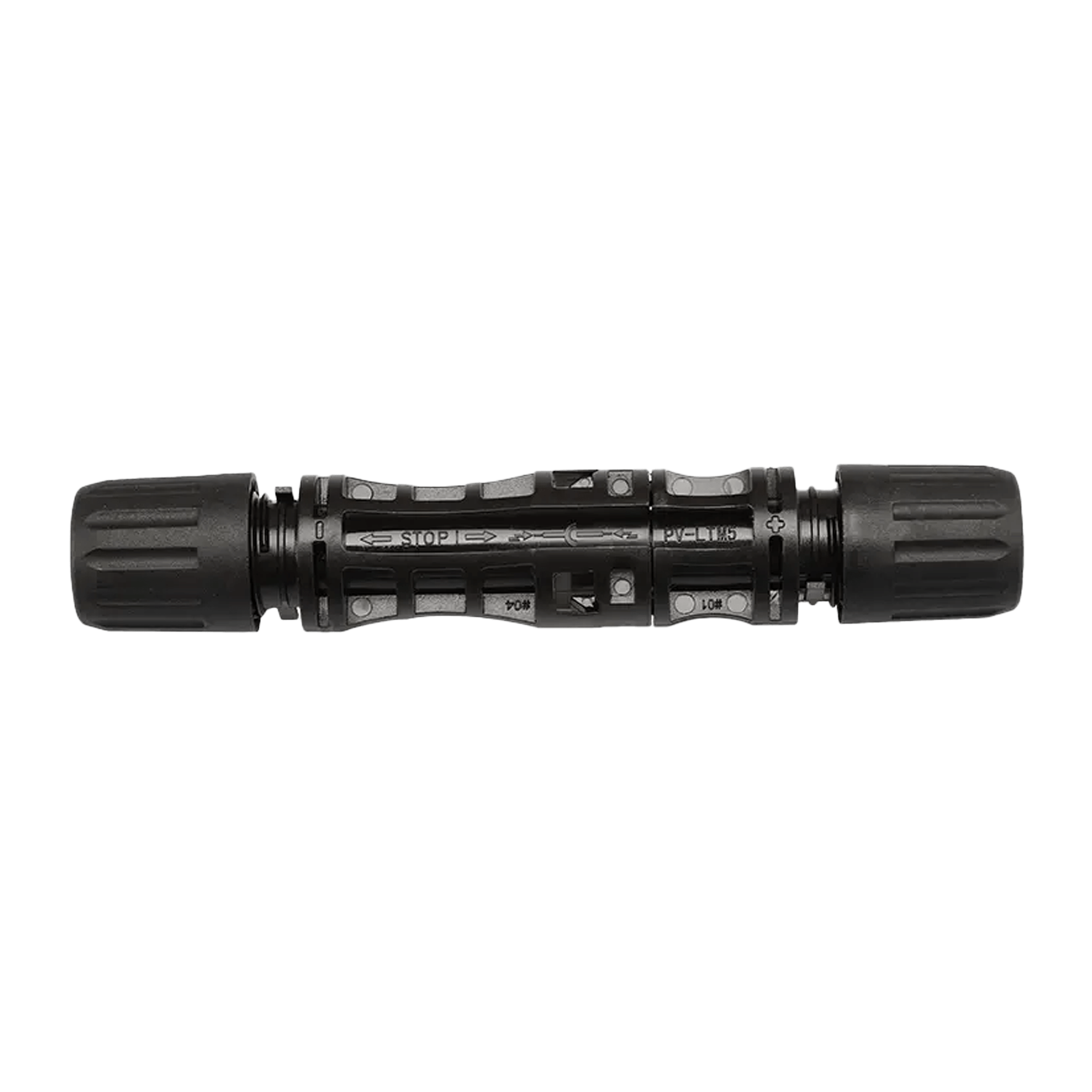

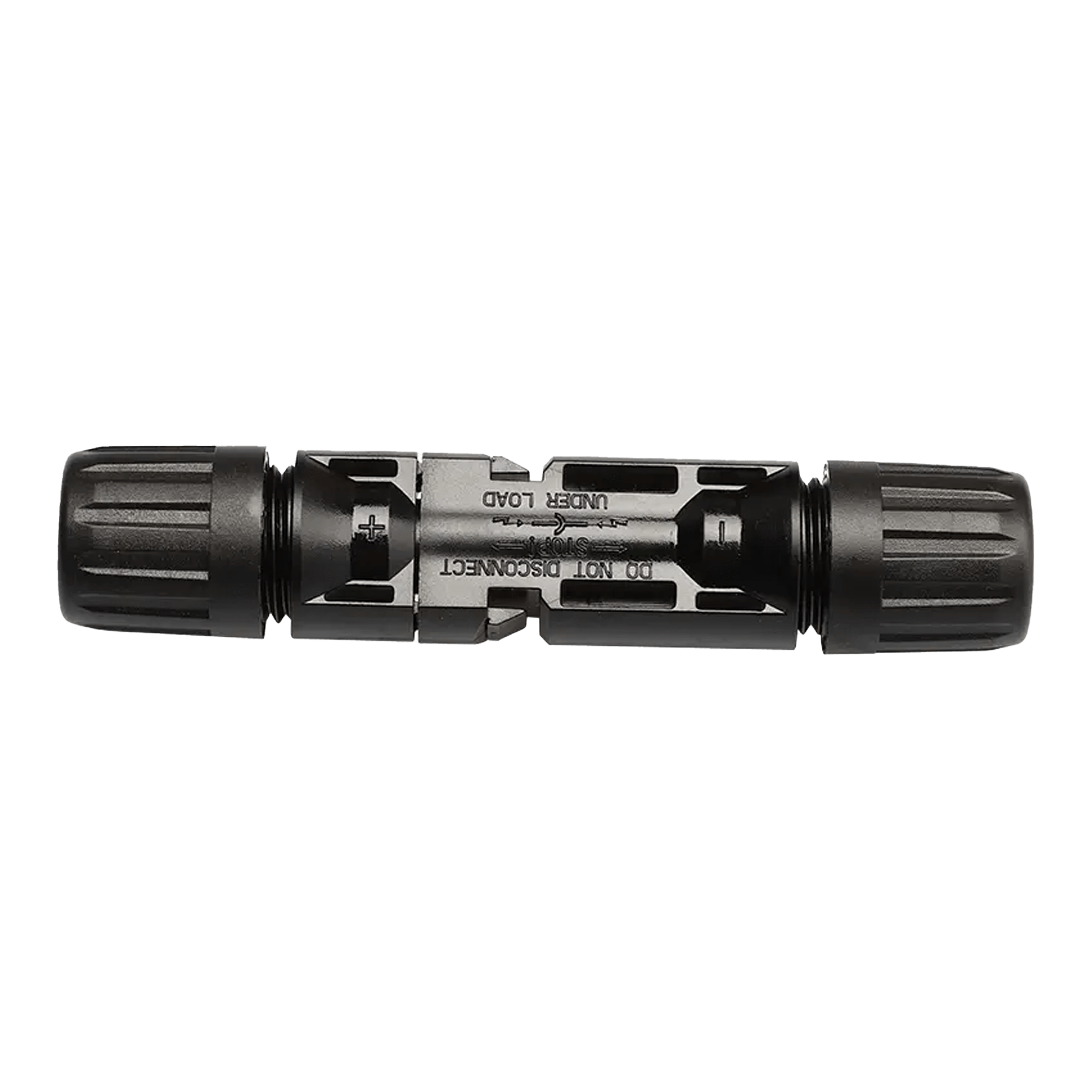

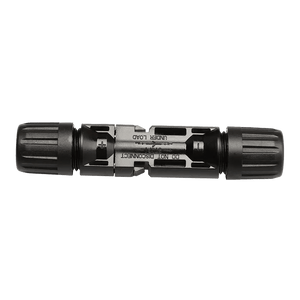

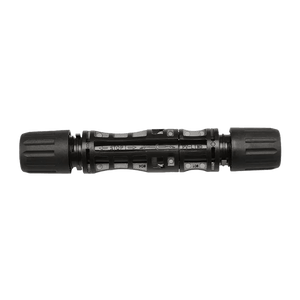

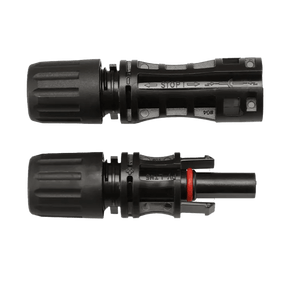

MC4 Connector 1500 Volts 10 Awg - 12 Awg pair Male / Female
Shipping calculated at checkout
SKU: 4904-1500
28 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Solar MC4 Evo2 LR5 Connector is designed to maximize photovoltaic system performance. It offers high electrical conductivity and is constructed to withstand variable environmental conditions, ensuring stable performance and durability. This connector is optimized for continuous operation under severe weather conditions, supporting sustained energy throughput and system reliability.
Key Specifications
Rated Voltage: 1500V DC
Rated Current: 30A
Contact Resistance: ≤0.5mΩ
Insulation Material: PPO + PA
Protection Degree: IP67
Temperature Operability: -40℃ to +90℃
Flame Class: UL94-V0
Cable Compatibility: 2.5mm², 4mm², and 6mm²

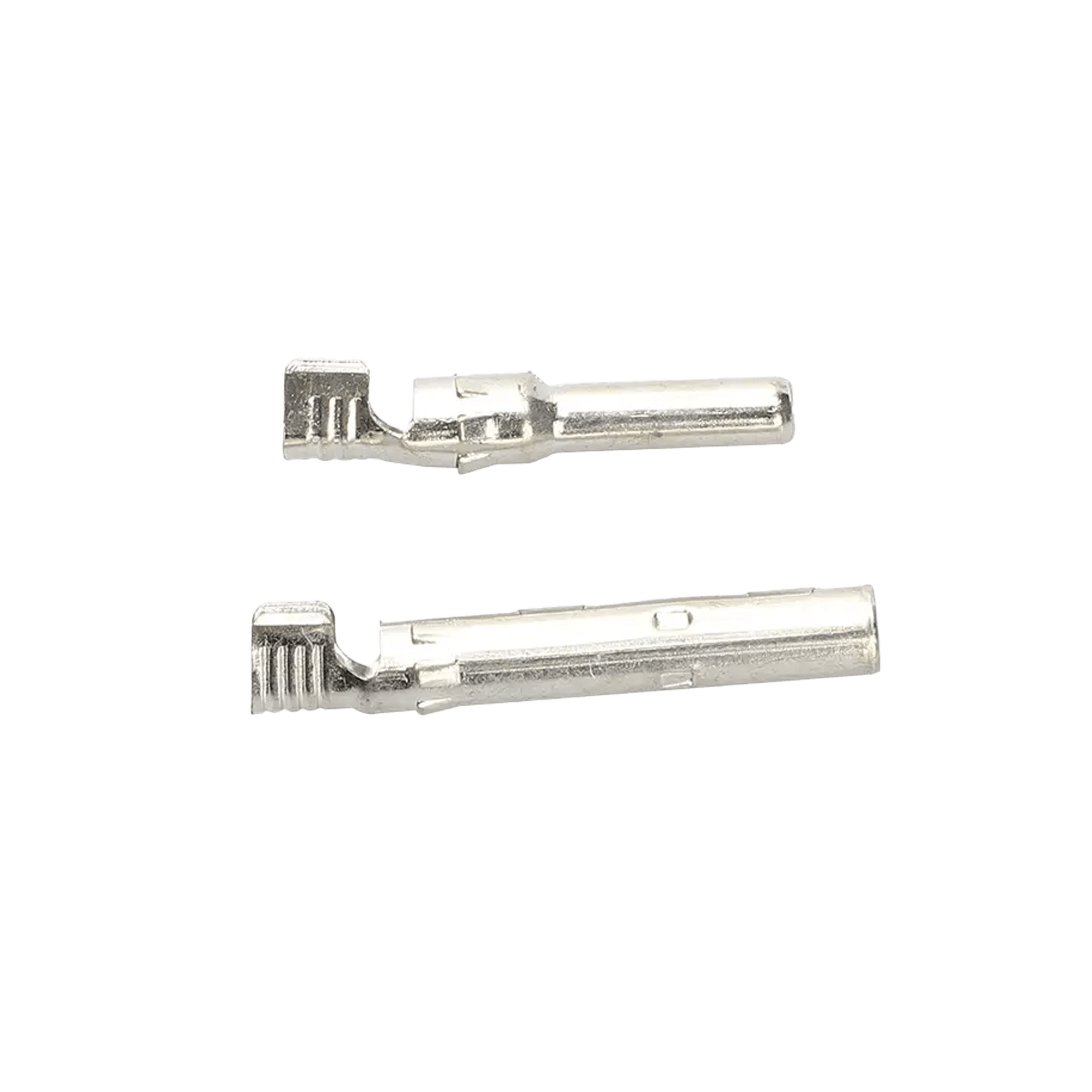

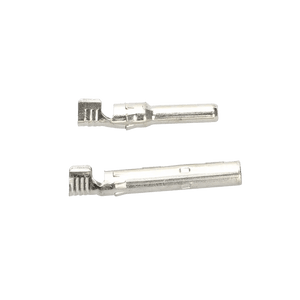

Contact Construction: Copper, tin plated
Locking Mechanism: Intuitive Snap-on System
Integration: Fully compatible with MC4 cable plugs and sockets
Defining Features
- Exceptional Quality: Crafted for optimal solar panel applications.
- Reliable Connection: Guarantees a steadfast link every time.
- Compact Design: Built for durability without compromising on aesthetics.
- Weather Mastery: Exhibits peak performance across all climatic conditions.
- Effortless Usability: Seamless installation and operation.
- Universal Compatibility: Integrates smoothly with MC4 cable plugs and sockets.
- UL Certification: Adheres to industry-leading safety standards.
- High Power Rated: Geared for both high voltage and current applications.
Applications
- Residential rooftops
- Sprawling commercial facilities
- Vast industrial landscapes
- Interlinking solar panels, inverters, and other critical solar equipment
- Designed for rapid installation and trusted connection
- Drives maximum efficiency and unparalleled performance
Whether you're looking at residential rooftops, sprawling commercial facilities, or vast industrial landscapes, this connector stands out as the preferred choice for interlinking solar panels, inverters, and other critical solar equipment. Its user-friendly design ensures rapid installation and a trusted connection, driving maximum efficiency and unparalleled performance.
Dive into the detailed spec sheet here and elevate your solar installations to the next level.
